Dewalt DWE4202 Type 3 Small Angle Grinder Spare Parts

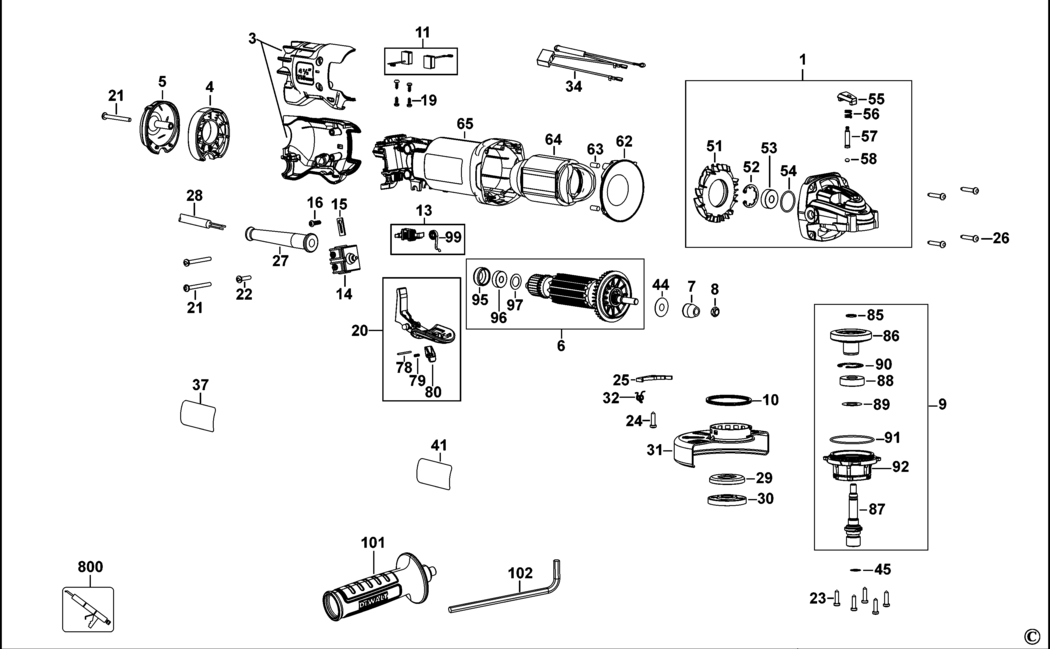

An exploded drawing and spare parts listing for the Dewalt DWE4202 Type 3 Small Angle Grinder

	Ex VAT	Inc VAT
1 - GEARCASE SA GB BDE-N493259.A0 N493259	£24.39	£29.27
1 - GEARCASE SA LX BDE-N493259.A1 N493259	£24.39	£29.27
3 - HOUSING SA BDE-N393706.A2 N393706	£4.69	£5.63
4 - DUST PORT INCL 7071 BDE-N401671.A9 N401671	£2.78	£3.34
5 - END CAP BDE-N400902.A16 N400902	£1.50	£1.80
6 - ARMATURE 115/120V LX BDE-N899443.A5 N899443	£41.25	£49.50
6 - ARMATURE 220/240V GB BDE-NA121482.A3 NA121482	£62.59	£75.11
7 - PINION BDE-N375339.A2 N375339	£5.88	£7.06
8 - NUT BDE-N372039.A2 N372039	£1.50	£1.80
9 - SPINDLE SA GB BDE-N493265.A5 N493265	£30.08	£36.10
9 - SPINDLE SA LX BDE-N493265.A6 N493265	£30.08	£36.10
10 - WASHER SPRING BDE-N135116.A26 N135116	£1.50	£1.80
11 - BRUSH PAIR 115V LX BDE-N421361.A2 N421361	£7.18	£8.62
11 - BRUSH PAIR 230V GB BDE-NA121485.A2 NA121485	£10.85	£13.02
13 - BRUSHBOX SA BDE-N413349.A42 N413349	£4.69	£5.63
14 - SWITCH BDE-N396008.A15 N396008	£9.41	£11.29
15 - CORD CLAMP LX BDE-N194291.A3 N194291	£1.50	£1.80
15 - CORD CLAMP GB BDE-619328-00.A24 619328-00	£1.50	£1.80
16 - SCREW BDE-330065-06.A63 330065-06	£1.50	£1.80
19 - SCREW BDE-593478-00.A32 593478-00	£1.50	£1.80
20 - PADDLE BDE-N413352.A1 N413352	£3.30	£3.96
21 - SCREW BDE-N389438.A18 N389438	£1.50	£1.80
22 - SCREW BDE-330065-08.A91 330065-08	£1.50	£1.80
23 - SCREW BDE-330045-06.A110 330045-06	£1.50	£1.80
24 - SCREW BDE-N297219.A13 N297219	£1.50	£1.80
25 - LEVER BDE-N637725.A3 N637725	£2.26	£2.71
26 - SCREW BDE-N371839.A32 N371839	£1.50	£1.80
27 - CORD PROTECTOR GB BDE-N542553.A199 N542553	£3.80	£4.56
27 - CORD PROTECTOR LX BDE-401088-03.A21 401088-03	£1.50	£1.80
28 - CORDSET (M/PLUG) GB GB BDE-N382230.A0 N382230	£16.03	£19.24
28 - CORDSET LX BDE-N382231.A1 N382231	£34.00	£40.80
29 - INNER FLANGE BDE-391969-00.A68 391969-00	£1.82	£2.19
30 - OUTER FLANGE BDE-N419748.A19 N419748	£5.88	£7.06
31 - GUARD BDE-N487788.A0 N487788	£7.85	£9.42
32 - SPRING BDE-N465886.A15 N465886	£1.50	£1.80
34 - CAPACITOR BDE-N349959.A2 N349959	£3.30	£3.96
37 - BRAND LABEL BDE-N400392.A3 N400392	£1.50	£1.80
41 - RATING PLATE GB BDE-N464510 N464510	£1.50	£1.80
41 - RATING PLATE LX BDE-N464458 N464458	£1.50	£1.80
44 - WASHER BDE-N213812.A48 N213812	£1.50	£1.80
45 - O RING BDE-N420261.A17 N420261	£1.50	£1.80
51 - DEFLECTOR BDE-N401958.A16 N401958	£1.50	£1.80
52 - RETAINER BDE-N453031.A7 N453031	£1.50	£1.80
53 - BEARING BDE-N175104.A37 N175104	£3.30	£3.96
54 - O RING BDE-N119639.A17 N119639	£1.50	£1.80
55 - BUTTON BDE-N278899.A46 N278899	£1.50	£1.80
56 - SPRING BDE-N263579.A21 N263579	£1.50	£1.80
57 - LOCK PIN BDE-N481683.A17 N481683	£1.50	£1.80
58 - O RING BDE-N263699.A26 N263699	£1.50	£1.80
62 - BAFFLE BDE-N265479.A5 N265479	£1.50	£1.80
63 - DAMPER BDE-949638-02.A121 949638-02	£1.50	£1.80
64 - FIELD 115V LX BDE-N409483.A0 N409483	£34.00	£40.80
64 - FIELD 230V GB BDE-N421357.A0 N421357	£30.08	£36.10
65 - FIELDCASE BDE-N369341.A0 N369341	£7.85	£9.42
78 - ROLL PIN BDE-099204-14.A9 099204-14	£1.50	£1.80
79 - SPRING BDE-150264-01.A8 150264-01	£1.50	£1.80
80 - LEVER LOCK-OFF BDE-397657-00.A16 397657-00	£1.50	£1.80
85 - CIRCLIP BDE-444793-00.A64 444793-00	£1.50	£1.80
86 - GEAR BDE-N409481.A3 N409481	£12.17	£14.60
87 - SPINDLE BDE-N163702.A34 N163702	£5.88	£7.06
88 - BEARING BDE-605040-24.A21 605040-24	£3.30	£3.96
89 - WASHER BDE-N400478.A38 N400478	£1.50	£1.80
90 - RETAINER BDE-N481950.A22 N481950	£1.50	£1.80
91 - O RING BDE-N307625.A18 N307625	£1.50	£1.80
92 - GEARCASE COVER GB BDE-N441765.A0 N441765	£7.85	£9.42
92 - GEARCASE COVER LX BDE-N441765.A1 N441765	£7.85	£9.42
95 - SLEEVE BDE-641823-00.A174 641823-00	£1.50	£1.80
96 - BEARING BDE-N130916.A49 N130916	£2.26	£2.71
97 - WASHER BDE-N324400.A19 N324400	£1.50	£1.80
99 - SPRING BDE-N273780.A6 N273780	£1.50	£1.80
101 - SIDE HANDLE BDE-N382311.A25 N382311	£12.17	£14.60
102 - HEX KEY 6 MM BDE-N107295.A41 N107295	£1.50	£1.80
800 - GREASE 50 GMS BDE-583534-00.A255 583534-00	£144.10	£172.92

Attribute Name	Value
Brand	Dewalt
