Dewalt DCH363 Type 1 Rotary Hammer Spare Parts

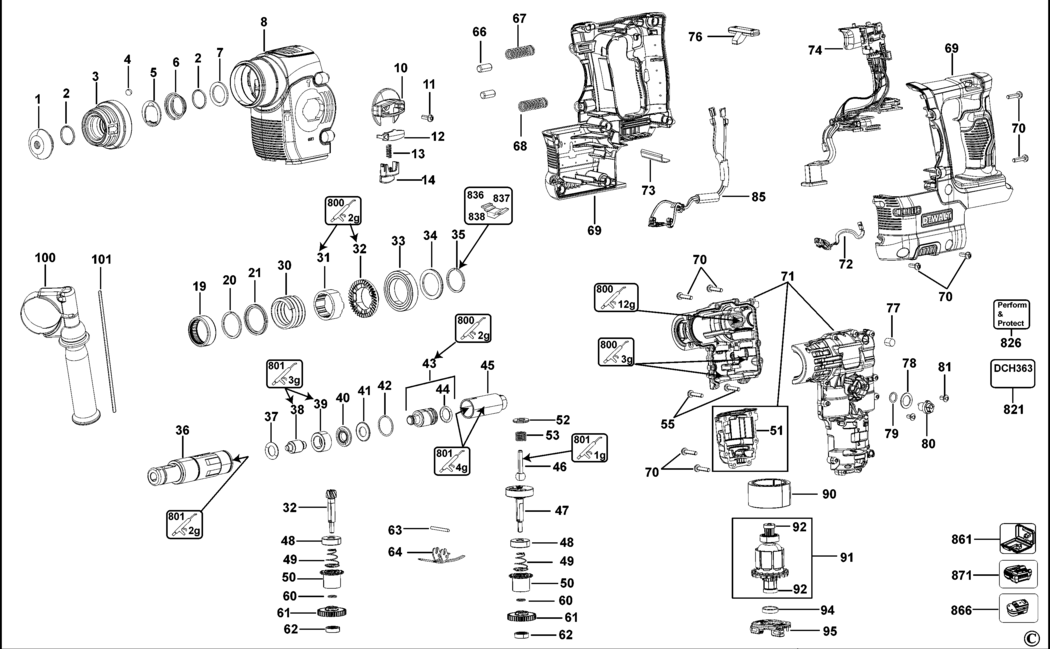

An exploded drawing and spare parts listing for the Dewalt DCH363 Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - CAP BDE-323489-00.A181 323489-00	£1.66	£1.99
1 - CAP BDE-323489-00.A182 323489-00	£1.66	£1.99
2 - RING BDE-579212-00.A153 579212-00	£1.66	£1.99
2 - RING BDE-579212-00.A154 579212-00	£1.66	£1.99
3 - TUBE BDE-N774198.A1 N774198	£12.17	£14.60
3 - TUBE BDE-N774198.A2 N774198	£12.17	£14.60
4 - BALL 7MM BDE-583890-00.A60 583890-00	£1.66	£1.99
4 - BALL 7MM BDE-583890-00.A61 583890-00	£1.66	£1.99
5 - WASHER BDE-578387-00.A213 578387-00	£1.66	£1.99
5 - WASHER BDE-578387-00.A214 578387-00	£1.66	£1.99
6 - SPRING BDE-871690.A256 871690	£1.66	£1.99
6 - SPRING BDE-871690.A257 871690	£1.66	£1.99
7 - FELT SEAL BDE-590306-00.A2 590306-00	£1.50	£1.80
7 - FELT SEAL BDE-590306-00.A3 590306-00	£1.50	£1.80
8 - COVER GEARCASE BDE-N137915.A6 N137915	£18.91	£22.69
8 - COVER GEARCASE BDE-N137915.A7 N137915	£18.91	£22.69
10 - SELECTOR BDE-N190510.A0 N190510	£3.30	£3.96
10 - SELECTOR BDE-N190510.A1 N190510	£3.30	£3.96
11 - SCREW BDE-324006-16.A44 324006-16	£3.80	£4.56
11 - SCREW BDE-324006-16.A45 324006-16	£3.80	£4.56
12 - COVER BDE-N034134.A3 N034134	£1.50	£1.80
12 - COVER BDE-N034134.A4 N034134	£1.50	£1.80
13 - SPRING BDE-N074923.A18 N074923	£1.50	£1.80
13 - SPRING BDE-N074923.A19 N074923	£1.50	£1.80
14 - BUTTON RELEASE BDE-N190511.A8 N190511	£1.50	£1.80
14 - BUTTON RELEASE BDE-N190511.A9 N190511	£1.50	£1.80
19 - BEARING NEEDLE BDE-N149956.A8 N149956	£7.85	£9.42
19 - BEARING NEEDLE BDE-N149956.A9 N149956	£7.85	£9.42
20 - CLIP BDE-488105-00.A27 488105-00	£1.50	£1.80
20 - CLIP BDE-488105-00.A28 488105-00	£1.50	£1.80
21 - WASHER BDE-N043423.A8 N043423	£3.30	£3.96
21 - WASHER BDE-N043423.A9 N043423	£3.30	£3.96
30 - SPRING BDE-N060009.A0 N060009	£7.18	£8.62
30 - SPRING BDE-N060009.A1 N060009	£7.18	£8.62
31 - RING BDE-N072203.A0 N072203	£7.85	£9.42
31 - RING BDE-N072203.A1 N072203	£7.85	£9.42
32 - GEAR & PINION SA BDE-N290001.A0 N290001	£51.90	£62.28
32 - GEAR & PINION SA BDE-N290001.A1 N290001	£51.90	£62.28
33 - BEARING BALL BDE-479478-00.A39 479478-00	£12.17	£14.60
33 - BEARING BALL BDE-479478-00.A40 479478-00	£12.17	£14.60
34 - WASHER BDE-N043424.A0 N043424	£2.78	£3.34
34 - WASHER BDE-N043424.A1 N043424	£2.78	£3.34
35 - CLIP BDE-488390-00.A11 488390-00	£1.50	£1.80
35 - CLIP BDE-488390-00.A12 488390-00	£1.50	£1.80
36 - SPINDLE BDE-N918448.A0 N918448	£65.52	£78.62
36 - SPINDLE BDE-N918448.A1 N918448	£65.52	£78.62
37 - O RING BDE-323711-02.A26 323711-02	£1.50	£1.80
37 - O RING BDE-323711-02.A27 323711-02	£1.50	£1.80
38 - BEAT PIECE BDE-492808-00.A1 492808-00	£7.85	£9.42
38 - BEAT PIECE BDE-492808-00.A2 492808-00	£7.85	£9.42
39 - TUBE GUIDE BDE-N470388.A17 N470388	£2.78	£3.34
39 - TUBE GUIDE BDE-N470388.A18 N470388	£2.78	£3.34
40 - RETAINER BDE-N451068.A11 N451068	£1.50	£1.80
40 - RETAINER BDE-N451068.A12 N451068	£1.50	£1.80
41 - WASHER BDE-327087-00.A15 327087-00	£1.82	£2.19
41 - WASHER BDE-327087-00.A16 327087-00	£1.82	£2.19
42 - RING BDE-323762-07.A51 323762-07	£1.50	£1.80
42 - RING BDE-323762-07.A52 323762-07	£1.50	£1.80
43 - RAM SA BDE-N178363.A37 N178363	£10.85	£13.02
43 - RAM SA BDE-N178363.A38 N178363	£10.85	£13.02
44 - O RING BDE-N114827.A0 N114827	£1.66	£1.99
44 - O RING BDE-N114827.A1 N114827	£1.66	£1.99
45 - PISTON BDE-492822-00.A34 492822-00	£16.03	£19.24
45 - PISTON BDE-492822-00.A35 492822-00	£16.03	£19.24
46 - BALL SPINDLE BDE-492823-00.A3 492823-00	£12.17	£14.60
46 - BALL SPINDLE BDE-492823-00.A4 492823-00	£12.17	£14.60
47 - CRANKSHAFT BDE-N288223.A8 N288223	£37.35	£44.82
47 - CRANKSHAFT BDE-N288223.A9 N288223	£37.35	£44.82
48 - BEARING BALL BDE-N168103.A34 N168103	£2.26	£2.71
48 - BEARING BALL BDE-N168103.A35 N168103	£2.26	£2.71
49 - SPRING COMPRESSION BDE-N466046.A5 N466046	£1.50	£1.80
49 - SPRING COMPRESSION BDE-N466046.A6 N466046	£1.50	£1.80
50 - COLLAR BDE-N150085.A0 N150085	£3.30	£3.96
50 - COLLAR BDE-N150085.A1 N150085	£3.30	£3.96
51 - MOTOR COVER BDE-N307379.A0 N307379	£7.85	£9.42
51 - MOTOR COVER BDE-N307379.A1 N307379	£7.85	£9.42
52 - WASHER BDE-N108992.A3 N108992	£1.50	£1.80
52 - WASHER BDE-N108992.A4 N108992	£1.50	£1.80
53 - SPRING BDE-490286-00.A33 490286-00	£1.66	£1.99
53 - SPRING BDE-490286-00.A34 490286-00	£1.66	£1.99
55 - SCREW BDE-330019-81.A0 330019-81	£1.50	£1.80
55 - SCREW BDE-330019-81.A1 330019-81	£1.50	£1.80
60 - LOCKING RING BDE-323763-10.A11 323763-10	£1.50	£1.80
60 - LOCKING RING BDE-323763-10.A12 323763-10	£1.50	£1.80
61 - GEAR SA BDE-N450704.A26 N450704	£24.39	£29.27
61 - GEAR SA BDE-N450704.A27 N450704	£24.39	£29.27
62 - BEARING BDE-N621023.A44 N621023	£2.78	£3.34
62 - BEARING BDE-N621023.A45 N621023	£2.78	£3.34
63 - PIN BDE-590312-00.A34 590312-00	£1.50	£1.80
63 - PIN BDE-590312-00.A35 590312-00	£1.50	£1.80
64 - PLATE BDE-575022-00.A34 575022-00	£2.58	£3.10
64 - PLATE BDE-575022-00.A35 575022-00	£2.58	£3.10
66 - PIN BDE-575032-00.A26 575032-00	£1.50	£1.80
66 - PIN BDE-575032-00.A27 575032-00	£1.50	£1.80
67 - SPRING BDE-575030-00.A11 575030-00	£1.50	£1.80
67 - SPRING BDE-575030-00.A12 575030-00	£1.50	£1.80
68 - SPRING BDE-479313-00.A3 479313-00	£1.50	£1.80
68 - SPRING BDE-479313-00.A4 479313-00	£1.50	£1.80
69 - CLAMSHELL PAIR BDE-N392850.A0 N392850	£34.00	£40.80
69 - CLAMSHELL PAIR BDE-N392850.A1 N392850	£34.00	£40.80
70 - SCREW BDE-330019-80.A15 330019-80	£1.50	£1.80
70 - SCREW BDE-330019-80.A16 330019-80	£1.50	£1.80
71 - GEARCASE SA BDE-N392851.A2 N392851	£60.94	£73.13
71 - GEARCASE SA BDE-N392851.A3 N392851	£60.94	£73.13
72 - LED LIGHT BDE-N280480.A0 N280480	£11.87	£14.24
72 - LED LIGHT BDE-N280480.A1 N280480	£11.87	£14.24
73 - LATCH BDE-N269419.A0 N269419	£2.26	£2.71
73 - LATCH BDE-N269419.A1 N269419	£2.26	£2.71
74 - ELECTRONIC & SWITCH BDE-N392852.A0 N392852	£104.31	£125.17
74 - ELECTRONIC & SWITCH BDE-N392852.A1 N392852	£104.31	£125.17
76 - LEVER BDE-N072124.A1 N072124	£1.50	£1.80
76 - LEVER BDE-N072124.A2 N072124	£1.50	£1.80
77 - FILTER BDE-582865-00.A21 582865-00	£1.50	£1.80
77 - FILTER BDE-582865-00.A22 582865-00	£1.50	£1.80
78 - WASHER SHIM BDE-1006725-00.A0 1006725-00	£1.50	£1.80
78 - WASHER SHIM BDE-1006725-00.A1 1006725-00	£1.50	£1.80
79 - O RING BDE-323711-34.A46 323711-34	£1.50	£1.80
79 - O RING BDE-323711-34.A47 323711-34	£1.50	£1.80
80 - LEVER BDE-575025-00.A0 575025-00	£7.85	£9.42
80 - LEVER BDE-575025-00.A1 575025-00	£7.85	£9.42
81 - SCREW BDE-330065-04.A39 330065-04	£1.50	£1.80
81 - SCREW BDE-330065-04.A40 330065-04	£1.50	£1.80
85 - SET OF LEAD WIRES BDE-N335499.A0 N335499	£18.91	£22.69
85 - SET OF LEAD WIRES BDE-N335499.A1 N335499	£18.91	£22.69
90 - MAGNET BDE-NA146883.A9 NA146883	£30.08	£36.10
90 - MAGNET BDE-NA146883.A10 NA146883	£30.08	£36.10
91 - ARMATURE SA BDE-N392853.A2 N392853	£41.24	£49.49
91 - ARMATURE SA BDE-N392853.A3 N392853	£41.24	£49.49
92 - BEARING BALL BDE-NA014795.A0 NA014795	£3.80	£4.56
92 - BEARING BALL BDE-NA014795.A1 NA014795	£3.80	£4.56
94 - COVER BDE-N076342.A0 N076342	£1.50	£1.80
94 - COVER BDE-N076342.A1 N076342	£1.50	£1.80
95 - BRUSH PLATE SA BDE-N384037.A0 N384037	£16.03	£19.24
95 - BRUSH PLATE SA BDE-N384037.A1 N384037	£16.03	£19.24
100 - HANDLE SIDE SA BDE-N112156.A1 N112156	£30.08	£36.10
100 - HANDLE SIDE SA BDE-N112156.A2 N112156	£30.08	£36.10
101 - DEPTH STOP BDE-N290613.A4 N290613	£1.50	£1.80
101 - DEPTH STOP BDE-N290613.A5 N290613	£1.50	£1.80
800 - GREASE BDE-870889-03.A98 870889-03	£7.85	£9.42
800 - GREASE BDE-870889-03.A99 870889-03	£7.85	£9.42
801 - GREASE 10 GMS BDE-487130-04.A46 487130-04	£3.80	£4.56
801 - GREASE 10 GMS BDE-487130-04.A47 487130-04	£3.80	£4.56
821 - RATING PLATE GB BDE-N387350 N387350	£1.50	£1.80
826 - LABEL BDE-N196274.A12 N196274	£1.50	£1.80
826 - LABEL BDE-N196274.A13 N196274	£1.50	£1.80
836 - S.T.CIRCLIP REMOVER BDE-596005-99.A33 596005-99	£84.42	£101.30
836 - S.T.CIRCLIP REMOVER BDE-596005-99.A34 596005-99	£84.42	£101.30
837 - S.T.CIRCLIP REMOVER BDE-596006-99.A27 596006-99	£37.35	£44.82
837 - S.T.CIRCLIP REMOVER BDE-596006-99.A28 596006-99	£37.35	£44.82
838 - S.T.CIRCLIP INSERTER BDE-596007-99.A9 596007-99	£58.69	£70.43
838 - S.T.CIRCLIP INSERTER BDE-596007-99.A10 596007-99	£58.69	£70.43
861 - KITBOX BDE-N383257.A0 N383257	£110.62	£132.74
861 - KITBOX BDE-N383257.A1 N383257	£110.62	£132.74
866 - BATTERY 36V - 2.0AH - 72WH DCH363D2 - DCH363D3 GB BDE-N394596 N394596	£183.42	£220.10
871 - CHARGER GB GB BDE-1006633-00.A18 1006633-00	£131.95	£158.34
