Dewalt DC229KL Type 1 Rotary Hammer Drill Spare Parts

Home Details Reviews Delivery

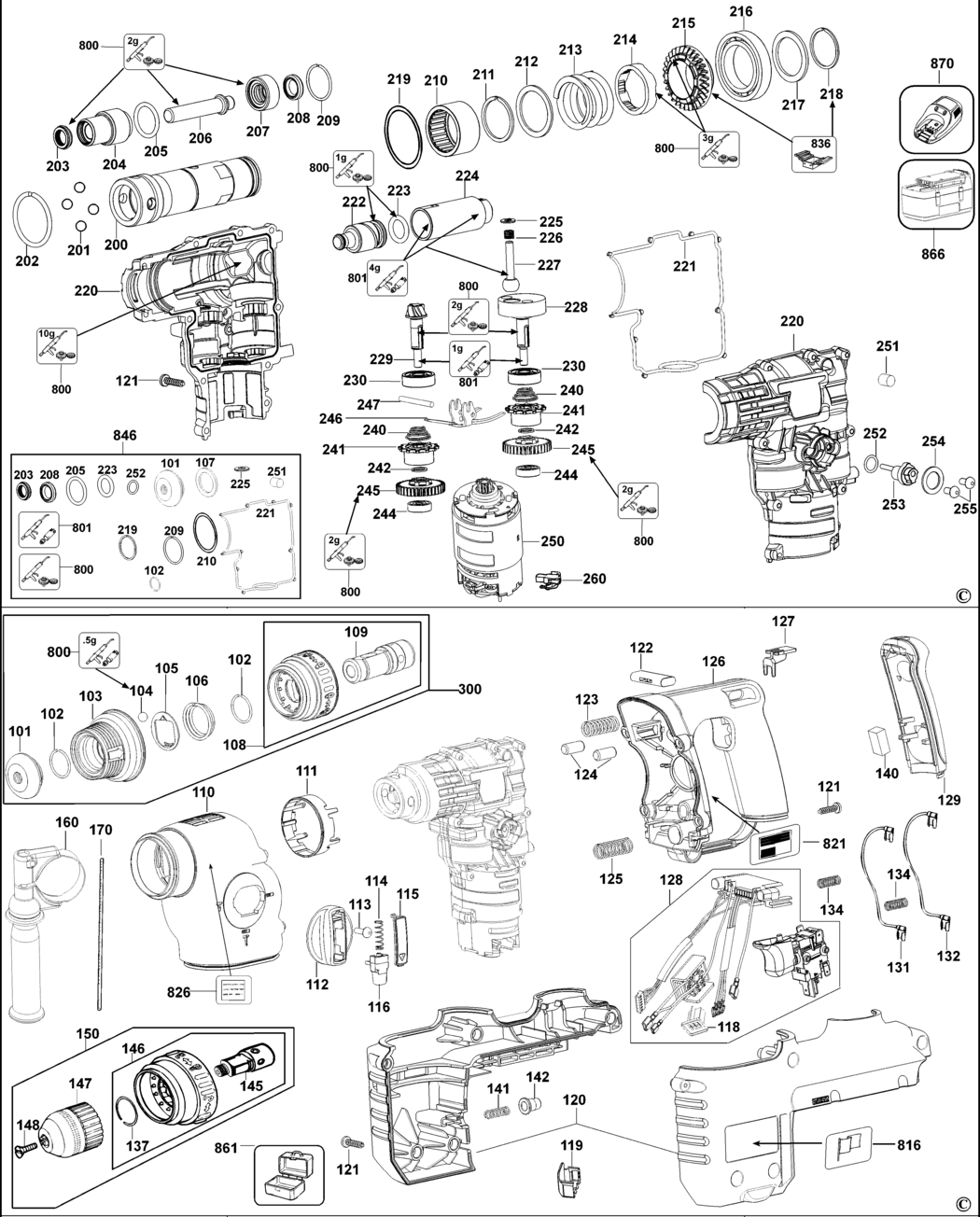

An exploded drawing and spare parts listing for the Dewalt DC229KL Type 1 Rotary Hammer Drill

	Ex VAT	Inc VAT
101 - CAP BDE-323489-00.A139 323489-00	£1.66	£1.99
102 - RING BDE-579212-00.A134 579212-00	£1.66	£1.99
103 - TUBE BDE-N504215.A45 N504215	£7.40	£8.88
104 - BALL 7MM BDE-583890-00.A4 583890-00	£1.66	£1.99
105 - WASHER BDE-578387-00.A247 578387-00	£1.66	£1.99
106 - SPRING BDE-871690.A202 871690	£1.66	£1.99
107 - FELT SEAL BDE-590306-00.A6 590306-00	£1.66	£1.99
108 - SLEEVE SA BDE-584431-00.A20 584431-00	£38.48	£46.17
109 - SPINDLE BDE-N031254.A22 N031254	£25.05	£30.06
110 - COVER BDE-574937-00.A17 574937-00	£17.03	£20.44
111 - SLEEVE BDE-490785-00.A2 490785-00	£1.66	£1.99
112 - SELECTOR BDE-575023-00.A4 575023-00	£1.66	£1.99
113 - SCREW BDE-324006-16.A43 324006-16	£3.92	£4.70
114 - SPRING BDE-478843-00.A18 478843-00	£1.66	£1.99
115 - CAP BDE-575026-00.A20 575026-00	£1.66	£1.99
116 - BUTTON RELEASE BDE-575024-00.A21 575024-00	£1.66	£1.99
118 - PLUG BDE-1005390-00.A3 1005390-00	£1.66	£1.99
119 - COVER BDE-1005093-00.A3 1005093-00	£1.66	£1.99
120 - HOUSING PAIR BDE-492922-01.A0 492922-01	£17.03	£20.44
121 - SCREW BDE-330065-08.A264 330065-08	£1.66	£1.99
122 - CHANGE LEVER SA BDE-1005987-00.A14 1005987-00	£1.66	£1.99
123 - SPRING BDE-575030-00.A8 575030-00	£1.66	£1.99
124 - PIN BDE-575032-00.A30 575032-00	£1.66	£1.99
125 - SPRING BDE-479313-00.A10 479313-00	£1.66	£1.99
126 - NO LONGER AVAILABLE BDE-000000-00.A95597 000000-00	-
127 - LEVER BDE-488182-00.A2 488182-00	£1.66	£1.99
128 - SET OF LEAD WIRES BDE-N023313.A0 N023313	£107.82	£129.39
129 - HANDLE COVER BDE-1006234-00.A0 1006234-00	£7.64	£9.17
131 - LEAD BROWN BDE-495610-02.A4 495610-02	£5.88	£7.06
132 - LEAD BLACK BDE-495610-03.A6 495610-03	£7.18	£8.62
134 - SPRING BDE-628684-00.A5 628684-00	£1.66	£1.99
137 - RING BDE-579212-00.A135 579212-00	£1.66	£1.99
140 - BUMPER BDE-930026-01.A135 930026-01	£1.66	£1.99
141 - SPRING BDE-489874-00.A6 489874-00	£1.66	£1.99
142 - KNOB BDE-487086-00.A2 487086-00	£1.78	£2.13
145 - SPINDLE BDE-584676-00.A25 584676-00	£35.02	£42.02
146 - SPINDLE SA BDE-584556-00.A22 584556-00	£56.97	£68.36
147 - CHUCK KEYLESS BDE-582512-02.A11 582512-02	£25.12	£30.15
148 - SCREW BDE-605256-02.A241 605256-02	£1.66	£1.99
150 - CHUCK & SPINDLE SA BDE-N591847.A25 N591847	£53.46	£64.15
160 - HANDLE SIDE SA BDE-493687-00.A2 493687-00	£18.00	£21.60
170 - DEPTH STOP BDE-580787-00.A151 580787-00	£1.66	£1.99
200 - SPINDLE SA BDE-493674-00.A6 493674-00	£51.90	£62.28
201 - BALL 7MM BDE-583890-00.A5 583890-00	£1.66	£1.99
202 - RING BDE-577795-00.A5 577795-00	£1.66	£1.99
203 - SEAL BDE-577139-00.A92 577139-00	£1.66	£1.99
204 - BEARING BUSH BDE-493676-00.A9 493676-00	£16.52	£19.82
205 - O RING BDE-590299-00.A1 590299-00	£1.66	£1.99
206 - BEAT PIECE BDE-493675-00.A1 493675-00	£15.01	£18.01
207 - GUIDE BUSH BDE-493677-00.A1 493677-00	£15.01	£18.01
208 - O RING BDE-580990-00.A39 580990-00	£1.66	£1.99
209 - RING BDE-323762-07.A43 323762-07	£1.66	£1.99
210 - BEARING NEEDLE BDE-590302-00.A22 590302-00	£12.17	£14.60
211 - CLIP BDE-488105-00.A35 488105-00	£1.66	£1.99
212 - WASHER BDE-589350-00.A7 589350-00	£1.66	£1.99
213 - SPRING BDE-589346-00.A6 589346-00	£4.83	£5.80
214 - BUSH BDE-492817-00.A3 492817-00	£11.87	£14.24
215 - REPAIR KIT BDE-N071966.A12 N071966	-
216 - BEARING BALL BDE-479478-00.A32 479478-00	£12.53	£15.04
217 - WASHER BDE-589348-00.A23 589348-00	-
218 - CLIP BDE-488390-00.A4 488390-00	£1.66	£1.99
219 - O RING BDE-491536-00.A5 491536-00	£1.66	£1.99
220 - CLAMSHELL PAIR BDE-492923-01.A4 492923-01	£18.42	£22.10
221 - SEAL BDE-478909-00.A4 478909-00	£3.30	£3.96
222 - RAM SA BDE-N178363.A29 N178363	£11.18	£13.41
223 - O RING BDE-577168-00.A1 577168-00	£1.66	£1.99
224 - PISTON BDE-492822-00.A27 492822-00	£16.52	£19.82
225 - WASHER BDE-N108992.A12 N108992	£1.66	£1.99
226 - SPRING BDE-490286-00.A29 490286-00	£1.66	£1.99
227 - BALL SPINDLE BDE-492823-00.A11 492823-00	£12.53	£15.04
228 - CRANKSHAFT BDE-492824-00.A19 492824-00	-
229 - REPAIR KIT BDE-N071966.A11 N071966	-
230 - BEARING BALL BDE-N168103.A31 N168103	£2.32	£2.78
240 - SPRING COMPRESSION BDE-N466046.A13 N466046	£1.66	£1.99
241 - COLLAR BDE-492826-00.A9 492826-00	-
242 - LOCKING RING BDE-323763-10.A9 323763-10	£1.66	£1.99
244 - BEARING BDE-N621023.A35 N621023	£2.87	£3.44
245 - GEAR SA BDE-N450704.A34 N450704	£25.12	£30.15
246 - PLATE BDE-575022-00.A31 575022-00	£2.58	£3.10
247 - PIN BDE-590312-00.A32 590312-00	£1.66	£1.99
250 - MOTOR SA BDE-492924-01.A0 492924-01	£110.21	£132.25
251 - FILTER BDE-582865-00.A3 582865-00	£1.66	£1.99
252 - O RING BDE-323711-34.A34 323711-34	£1.66	£1.99
253 - LEVER SA BDE-478898-00.A1 478898-00	£2.21	£2.65
254 - WASHER SHIM BDE-577802-00.A78 577802-00	£2.21	£2.65
255 - SCREW BDE-490129-00.A23 490129-00	£1.66	£1.99
260 - BRUSH & HOLDER BDE-632298-00.A4 632298-00	-
300 - HOLDER TOOL BDE-N591846.A7 N591846	£62.77	£75.32
800 - GREASE BDE-870889-03.A86 870889-03	£8.08	£9.70
801 - GREASE 10 GMS BDE-487130-04.A72 487130-04	£3.92	£4.70
818 - BRAND LABEL BDE-495652-00.A0 495652-00	£3.22	£3.86
826 - NO LONGER AVAILABLE BDE-000000-00.A95598 000000-00	-
836 - S.T.CIRCLIP REMOVER BDE-596006-99.A29 596006-99	£37.35	£44.82
836 - S.T.CIRCLIP REMOVER BDE-596005-99.A27 596005-99	£265.84	£319.01
836 - S.T.CIRCLIP INSERTER BDE-596007-99.A8 596007-99	£58.69	£70.43
846 - SERVICE KIT BDE-N178361.A1 N178361	£35.02	£42.02
861 - KITBOX BDE-574931-21.A5 574931-21	£78.95	£94.74
