Dewalt D25604 Type 3 Rotary Hammer Drill Spare Parts

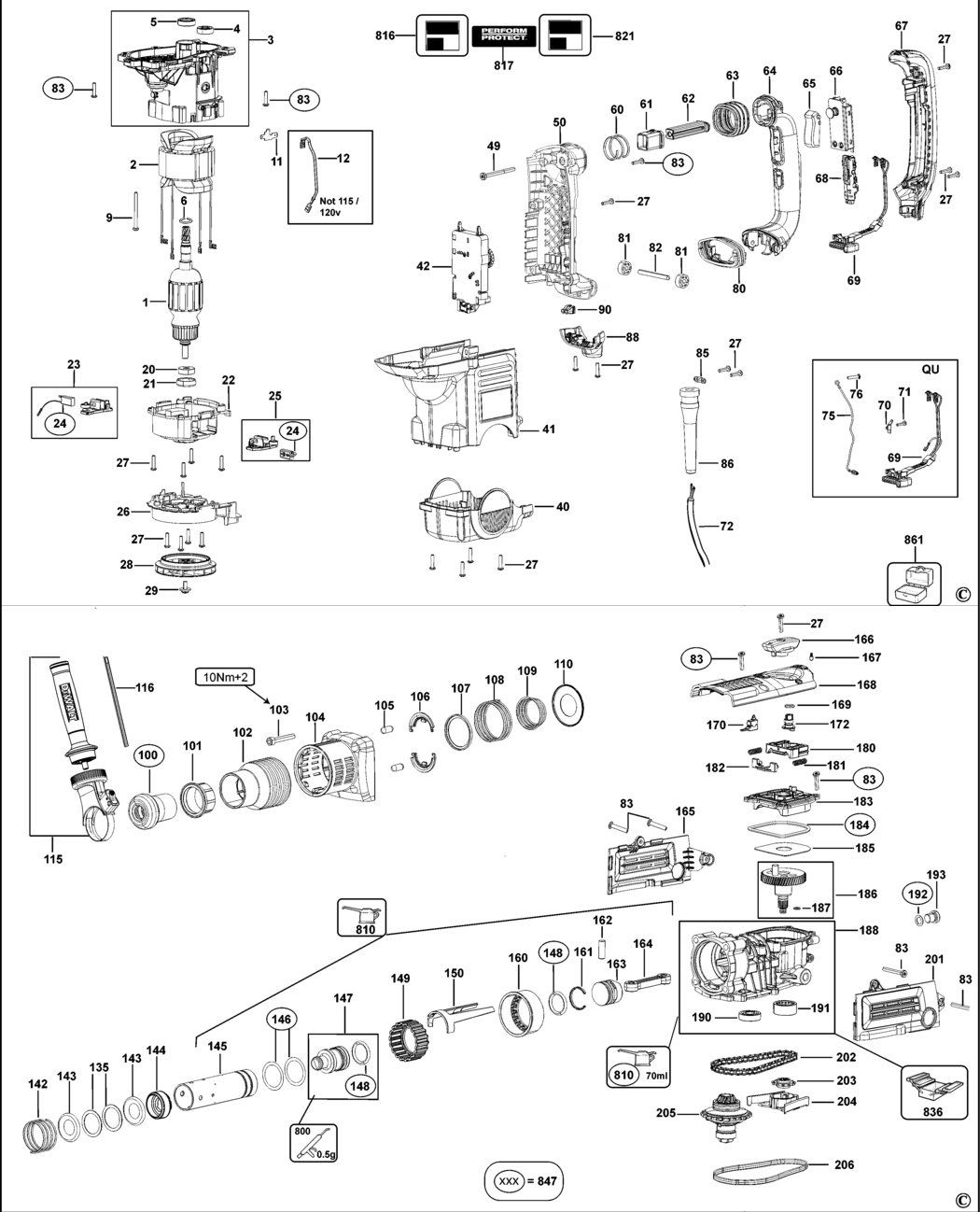

An exploded drawing and spare parts listing for the Dewalt D25604 Type 3 Rotary Hammer Drill

	Ex VAT	Inc VAT
1 - ARMATURE 120V LX BDE-N046419.A0 N046419	£144.10	£172.92
1 - ARMATURE 230V GB BDE-N046420.A9 N046420	£144.10	£172.92
2 - FIELD 120V LX BDE-N046422.A6 N046422	£78.12	£93.74
2 - FIELD 230V GB BDE-N046421.A0 N046421	£80.98	£97.18
3 - HOUSING SA BDE-N047284.A4 N047284	£38.80	£46.56
4 - BEARING BDE-330003-39.A88 330003-39	£2.78	£3.34
5 - SEAL BDE-327141-03.A2 327141-03	£12.17	£14.60
6 - RING BDE-577746-00.A16 577746-00	£1.50	£1.80
9 - SCREW BDE-330065-21.A2 330065-21	£1.50	£1.80
11 - CONNECTOR BDE-1007970-00.A16 1007970-00	£1.50	£1.80
12 - CABLE BDE-N562794 N562794	£3.80	£4.56
20 - BEARING BDE-330003-60.A22 330003-60	£2.78	£3.34
21 - SLEEVE BDE-1007732-00.A18 1007732-00	£1.50	£1.80
22 - BRIDGE BDE-1007798-00.A16 1007798-00	£7.18	£8.62
23 - BRUSH & HOLDER 115V LX BDE-N047304.A0 N047304	£30.08	£36.10
23 - BRUSH & HOLDER 230V GB BDE-N047446.A0 N047446	£14.57	£17.48
24 - BRUSH PAIR 230V GB BDE-N047424.A7 N047424	£24.39	£29.27
24 - BRUSH PAIR 120V LX BDE-N047286.A9 N047286	£25.70	£30.84
25 - BRUSH & HOLDER 115V LX BDE-N047445.A6 N047445	£16.03	£19.24
25 - BRUSH & HOLDER 230V GB BDE-N047444.A0 N047444	£25.70	£30.84
26 - BAFFLE BDE-N481200 N481200	£4.69	£5.63
27 - SCREW BDE-330065-08.A190 330065-08	£1.50	£1.80
28 - FAN SA BDE-1006592-01.A0 1006592-01	£16.03	£19.24
29 - SCREW BDE-324119-02.A25 324119-02	£1.50	£1.80
40 - END CAP BDE-1006577-00.A6 1006577-00	£9.41	£11.29
41 - MOTOR COVER BDE-1006576-02.A6 1006576-02	£14.57	£17.48
49 - SCREW BDE-1005672-00.A27 1005672-00	£1.50	£1.80
50 - HANDLE BDE-N532301 N532301	£17.48	£20.97
60 - SPRING BDE-1007569-00.A16 1007569-00	£1.50	£1.80
61 - BUSH BDE-1007567-00.A11 1007567-00	£1.50	£1.80
62 - STOP BDE-1007566-00.A16 1007566-00	£9.41	£11.29
63 - BELLOWS BDE-1007565-00.A11 1007565-00	£3.80	£4.56
64 - SWITCH HANDLE BDE-1006579-00.A8 1006579-00	£9.41	£11.29
65 - TRIGGER BDE-587114-01.A23 587114-01	£1.50	£1.80
66 - SWITCH BDE-N467530.A0 N467530	£18.91	£22.69
67 - HANDLE COVER BDE-1006580-00.A4 1006580-00	£14.57	£17.48
68 - SWITCH LOCK-ON BDE-N518647 N518647	£45.14	£54.17
69 - SET OF LEAD WIRES BDE-N046423.A0 N046423	£19.90	£23.88
70 - CONNECTOR BDE-N015311.A0 N015311	£1.50	£1.80
71 - SCREW BDE-326619-00.A25 326619-00	£1.50	£1.80
72 - CORDSET LX BDE-324438-90.A1 324438-90	£47.08	£56.49
72 - CORDSET GB BDE-582319-42.A12 582319-42	£34.00	£40.80
75 - CONNECTING WIRE BDE-N020040 N020040	£2.78	£3.34
76 - SCREW BDE-326619-00.A26 326619-00	£1.50	£1.80
80 - BELLOWS BDE-1008678-00.A12 1008678-00	£3.30	£3.96
81 - BUSH BDE-N038214.A19 N038214	£1.50	£1.80
82 - PIN BDE-N062047.A12 N062047	£1.50	£1.80
83 - SCREW TORX BDE-324007-11.A47 324007-11	£1.50	£1.80
85 - CORD CLAMP BDE-821070.A659 821070	£1.50	£1.80
86 - CORD PROTECTOR BDE-323091-01.A106 323091-01	£1.50	£1.80
88 - COVER BDE-1008391-00.A19 1008391-00	£1.82	£2.19
90 - GUIDE BDE-N532302 N532302	£1.50	£1.80
100 - LIP SEAL BDE-329816-00.A13 329816-00	£3.30	£3.96
101 - COLLAR BDE-326575-01.A5 326575-01	£5.88	£7.06
102 - SLEEVE SA BDE-479247-00.A15 479247-00	£7.18	£8.62
103 - SCREW BDE-918825-02.A23 918825-02	£1.50	£1.80
104 - COVER BDE-1006572-00.A16 1006572-00	£5.88	£7.06
105 - ROLLER BDE-325878-00.A17 325878-00	£1.50	£1.80
106 - HALF WASHER BDE-325929-00.A15 325929-00	£1.50	£1.80
107 - GUIDE BDE-327208-00.A15 327208-00	£1.50	£1.80
108 - SPRING BDE-323395-06.A17 323395-06	£1.50	£1.80
109 - SPRING BDE-487118-00.A52 487118-00	£1.50	£1.80
110 - GUIDE BDE-N313860.A5 N313860	£4.69	£5.63
115 - SIDE HANDLE BDE-N501145.A14 N501145	£34.00	£40.80
116 - DEPTH ROD BDE-N040996.A10 N040996	£7.18	£8.62
135 - WASHER BDE-N064329.A16 N064329	£1.50	£1.80
142 - SPRING BDE-1005748-00.A16 1005748-00	£1.50	£1.80
143 - O RING BDE-N210233.A0 N210233	£1.50	£1.80
144 - BUSH BDE-1006778-00.A2 1006778-00	£1.50	£1.80
145 - CYLINDER BDE-N041846.A15 N041846	£41.24	£49.49
146 - O RING BDE-577744-00.A44 577744-00	£1.82	£2.19
147 - RAM BDE-N041845.A1 N041845	£38.80	£46.56
148 - O RING BDE-576232-01.A11 576232-01	£5.88	£7.06
149 - SLEEVE BDE-N041844.A15 N041844	£19.90	£23.88
150 - SELECTOR FORK BDE-1005749-00.A0 1005749-00	£1.50	£1.80
160 - BEVEL GEAR BDE-N041842.A10 N041842	£63.87	£76.64
161 - RETAINER BDE-325905-00.A65 325905-00	£1.50	£1.80
162 - PIN BDE-330041-22.A1 330041-22	£1.50	£1.80
163 - PISTON BDE-N041843.A1 N041843	£12.17	£14.60
164 - CON ROD BDE-494724-00.A15 494724-00	£5.88	£7.06
165 - COVER RH BDE-N482797.A0 N482797	£7.18	£8.62
166 - SELECTOR BDE-1006786-00.A2 1006786-00	£2.26	£2.71
167 - DETENT BDE-326467-00.A174 326467-00	£1.50	£1.80
168 - COVER-TOP BDE-1006575-00.A9 1006575-00	£7.18	£8.62
169 - O RING BDE-323711-57.A31 323711-57	£1.50	£1.80
170 - MICRO SWITCH BDE-N516505 N516505	£16.03	£19.24
172 - ECCENTRIC BDE-496856-00.A0 496856-00	£1.50	£1.80
180 - SLIDER BDE-1006784-00.A2 1006784-00	£1.50	£1.80
181 - SPRING BDE-323395-32.A33 323395-32	£2.26	£2.71
182 - CONNECTOR BDE-1006783-00.A14 1006783-00	£1.50	£1.80
183 - COVER BDE-496857-00.A16 496857-00	£4.69	£5.63
184 - O RING BDE-323711-59.A14 323711-59	£1.50	£1.80
185 - PLATE BDE-1006785-00.A14 1006785-00	£3.30	£3.96
186 - CRANKSHAFT BDE-N041841.A1 N041841	£84.42	£101.30
187 - O RING BDE-323711-26.A114 323711-26	£1.50	£1.80
188 - HOUSING SA BDE-N527066.A9 N527066	£126.63	£151.96
190 - BEARING BALL BDE-577745-01.A10 577745-01	£7.85	£9.42
191 - BEARING NEEDLE BDE-586301-00.A23 586301-00	£9.41	£11.29
192 - O RING BDE-323711-57.A30 323711-57	£1.50	£1.80
193 - SCREW.SPECIAL BDE-1008427-00.A2 1008427-00	£1.50	£1.80
201 - COVER LH BDE-N482796.A6 N482796	£7.18	£8.62
202 - CHAIN BDE-N041839.A0 N041839	£12.17	£14.60
203 - GEAR BDE-N041837.A11 N041837	£5.88	£7.06
204 - GUIDE BDE-1006280-00.A11 1006280-00	£2.26	£2.71
206 - GASKET BDE-1006282-00.A0 1006282-00	£3.80	£4.56
800 - GREASE BDE-870889-03.A105 870889-03	£7.85	£9.42
810 - TUBE OIL BDE-N040237.A16 N040237	£30.08	£36.10
816 - BRAND LABEL BDE-N064908.A14 N064908	£1.50	£1.80
821 - RATING LABEL GB BDE-N554423 N554423	£2.26	£2.71
821 - RATING LABEL LX BDE-N554424 N554424	£2.26	£2.71
836 - SERVICE TOOL BDE-1003938-99.A3 1003938-99	£112.86	£135.43
861 - KITBOX BDE-574931-22.A10 574931-22	£87.82	£105.39
