Dewalt D25413K Type 2 Rotary Hammer Drill Spare Parts

Home Details Reviews Delivery

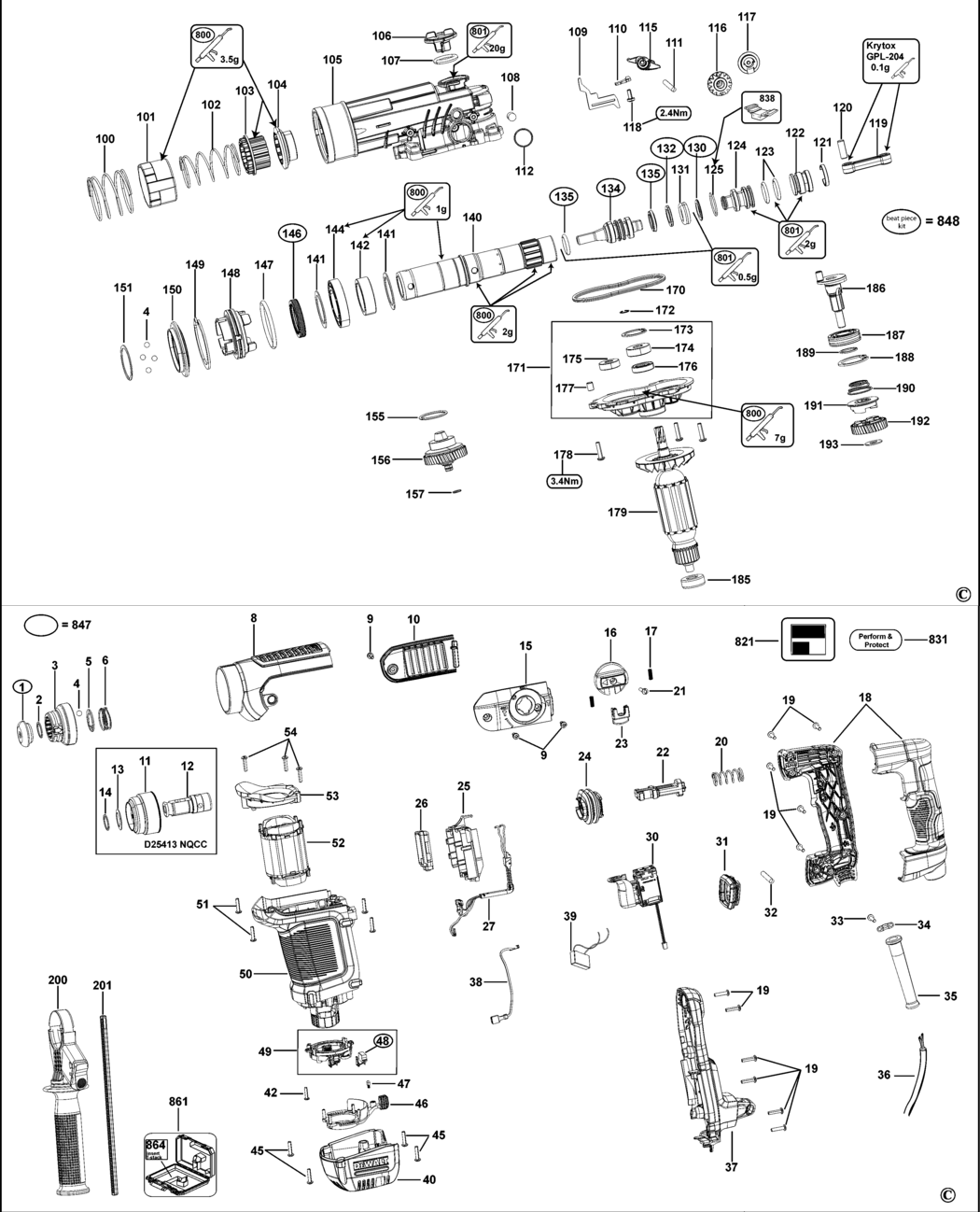

An exploded drawing and spare parts listing for the Dewalt D25413K Type 2 Rotary Hammer Drill

	Ex VAT	Inc VAT
1 - CAP BDE-323489-00.A184 323489-00	£1.66	£1.99
2 - RING BDE-579212-00.A166 579212-00	£1.66	£1.99
3 - TUBE BDE-N910599.A11 N910599	£15.01	£18.01
4 - BALL 7MM BDE-583890-00.A70 583890-00	£1.66	£1.99
5 - WASHER BDE-578387-00.A222 578387-00	£1.66	£1.99
6 - SPRING BDE-N038938.A5 N038938	£1.66	£1.99
8 - COVER BDE-N106154.A9 N106154	£8.08	£9.70
9 - SCREW BDE-324006-14.A81 324006-14	£1.66	£1.99
10 - COVER RH BDE-N106172-00.A6 N106172-00	£3.39	£4.07
11 - SLEEVE BDE-N275419.A0 N275419	£12.53	£15.04
12 - SPINDLE BDE-N379503.A3 N379503	£20.50	£24.60
13 - WASHER. CUP BDE-N016357.A3 N016357	£1.66	£1.99
14 - CIRCLIP BDE-N514338.A2 N514338	£3.39	£4.07
15 - COVER LH BDE-N106173-00.A0 N106173-00	£2.87	£3.44
16 - KNOB BDE-N150304.A2 N150304	£1.66	£1.99
17 - SPRING BDE-1008957-00.A14 1008957-00	£1.66	£1.99
18 - HANDLE SA BDE-N379400.A4 N379400	£16.52	£19.82
19 - SCREW BDE-330065-08.A294 330065-08	£1.66	£1.99
20 - SPRING COMPRESSION BDE-N106188.A1 N106188	£1.66	£1.99
21 - SCREW BDE-330065-08.A295 330065-08	£1.66	£1.99
22 - STOP BDE-N152623.A21 N152623	£6.06	£7.27
23 - BUTTON RELEASE BDE-N192178.A1 N192178	£1.66	£1.99
24 - BELLOWS BDE-N106221-00.A2 N106221-00	£4.83	£5.80
25 - HOLDER BDE-N186074.A6 N186074	£11.18	£13.41
27 - SET OF LEAD WIRES BDE-N379403.A4 N379403	£16.52	£19.82
30 - SWITCH BDE-N524745.A4 N524745	£19.48	£23.37
31 - BELLOWS BDE-N106222.A1 N106222	£3.92	£4.70
32 - AXIS BDE-N159443.A11 N159443	£1.66	£1.99
33 - SCREW BDE-330065-08.A296 330065-08	£1.66	£1.99
34 - CORD CLAMP BDE-821070.A259 821070	£1.66	£1.99
35 - CORD PROTECTOR BDE-584090-00.A63 584090-00	£1.66	£1.99
37 - PLATE BDE-N106186-01.A0 N106186-01	£12.53	£15.04
38 - CONNECTING WIRE BDE-N578054.A2 N578054	£3.92	£4.70
39 - CAPACITOR BDE-N272900.A6 N272900	£1.88	£2.26
40 - END CAP BDE-N106181-00.A6 N106181-00	£7.40	£8.88
42 - SCREW BDE-330065-35.A4 330065-35	£1.66	£1.99
45 - SCREW BDE-330065-08.A292 330065-08	£1.66	£1.99
46 - SELECTOR BDE-N135728.A2 N135728	£1.66	£1.99
47 - DETENT BDE-326467-00.A382 326467-00	£1.66	£1.99
50 - HOUSING MOTOR BDE-N106153.A0 N106153	£16.52	£19.82
51 - SCREW BDE-324006-14.A82 324006-14	£1.66	£1.99
53 - BAFFLE FAN BDE-N137273.A8 N137273	£6.06	£7.27
54 - SCREW BDE-330065-08.A293 330065-08	£1.66	£1.99
100 - SPRING BDE-323395-07.A12 323395-07	£1.66	£1.99
101 - SLEEVE BDE-N106220.A7 N106220	£3.39	£4.07
102 - SPRING COMPRESSION BDE-N106166.A8 N106166	£1.66	£1.99
103 - SLEEVE BDE-N106162.A8 N106162	£12.53	£15.04
104 - BEVEL GEAR BDE-N379410.A4 N379410	£38.48	£46.17
105 - HOUSING GEAR SA BDE-N379411.A2 N379411	£113.93	£136.72
106 - CAP BDE-N106179.A0 N106179	£1.88	£2.26
107 - O RING BDE-N252840.A6 N252840	£12.53	£15.04
108 - FILTER BDE-582865-00.A29 582865-00	£1.66	£1.99
109 - PLATE BDE-N147987.A2 N147987	£2.87	£3.44
110 - LEVER BDE-N106187.A8 N106187	£1.66	£1.99
111 - PIN BDE-330041-44.A8 330041-44	£1.66	£1.99
112 - O RING BDE-323711-05.A4 323711-05	£1.66	£1.99
115 - SELECTOR FORK BDE-N149242.A1 N149242	£1.66	£1.99
116 - ECCENTRIC BDE-N149241.A8 N149241	£2.32	£2.78
117 - GEAR BDE-N150303.A8 N150303	£1.66	£1.99
118 - SCREW BDE-324006-14.A80 324006-14	£1.66	£1.99
119 - CON ROD BDE-N407255.A0 N407255	£2.32	£2.78
120 - PIN BDE-N123257.A1 N123257	£3.39	£4.07
121 - PISTON RING BDE-325905-01.A17 325905-01	£1.66	£1.99
122 - PISTON BDE-N379413.A8 N379413	£12.53	£15.04
123 - O RING BDE-N106150.A9 N106150	£2.32	£2.78
124 - RAM BDE-N407083.A9 N407083	£16.52	£19.82
125 - CIRCLIP BDE-N106174.A0 N106174	£7.40	£8.88
130 - WASHER BDE-N511780.A7 N511780	£3.92	£4.70
130 - WASHER Service packed BDE-N515032.A2 N515032	£12.53	£15.04
131 - DAMPER BDE-N179781.A1 N179781	£3.92	£4.70
132 - WASHER BDE-N511566.A1 N511566	£3.92	£4.70
134 - BEAT PIECE BDE-N534183.A1 N534183	£35.02	£42.02
135 - O RING BDE-N181843.A9 N181843	£3.39	£4.07
140 - SPINDLE BDE-N525737.A8 N525737	£122.90	£147.48
141 - WASHER BDE-1005982-00.A21 1005982-00	£1.66	£1.99
142 - DAMPER BDE-N218372.A7 N218372	£3.39	£4.07
144 - SLEEVE BEARING BDE-N106168.A0 N106168	£7.40	£8.88
146 - SEAL BDE-1007828-00.A9 1007828-00	£16.52	£19.82
147 - O RING BDE-N218672.A8 N218672	£15.01	£18.01
148 - BEARING HOLDER BDE-N122310.A8 N122310	£3.92	£4.70
149 - LOCKING RING BDE-N181847.A9 N181847	£1.66	£1.99
150 - CAP BDE-N184524.A7 N184524	£2.87	£3.44
151 - RING BDE-577795-00.A8 577795-00	£1.66	£1.99
155 - O RING BDE-N252839.A2 N252839	£9.69	£11.63
156 - CLUTCH SA BDE-N379416.A1 N379416	£76.38	£91.65
157 - O RING BDE-323711-26.A61 323711-26	£1.66	£1.99
170 - SEAL BDE-N106217.A1 N106217	£1.66	£1.99
171 - HOUSING GEAR BDE-N379417.A5 N379417	£67.48	£80.98
172 - CLIP BDE-N148663.A7 N148663	£1.66	£1.99
173 - RING BDE-N219512.A0 N219512	£1.66	£1.99
174 - BEARING BALL BDE-330003-96.A10 330003-96	£4.83	£5.80
175 - BEARING BDE-330003-39.A28 330003-39	£2.87	£3.44
176 - SEAL BDE-327141-05.A8 327141-05	£7.40	£8.88
177 - SLEEVE BDE-327575-00.A15 327575-00	£1.66	£1.99
178 - SCREW TORX BDE-324007-11.A139 324007-11	£1.66	£1.99
179 - ARMATURE KIT 240V GB BDE-N379420.A2 N379420	£60.46	£72.55
185 - BEARING & SEAL BDE-N381533.A1 N381533	£3.39	£4.07
186 - CRANKSHAFT BDE-N379421.A7 N379421	£48.48	£58.17
187 - BEARING BALL BDE-323872-06.A13 323872-06	£15.01	£18.01
188 - CIRCLIP BDE-324821-04.A12 324821-04	£1.66	£1.99
189 - RING BDE-N181846.A0 N181846	£1.66	£1.99
190 - SPRING BDE-N199272.A1 N199272	£1.66	£1.99
191 - SLEEVE BDE-N106160.A0 N106160	£42.48	£50.98
192 - GEAR BDE-N379422.A2 N379422	£18.00	£21.60
193 - WASHER BDE-N106163.A0 N106163	£1.66	£1.99
200 - HANDLE SIDE SA BDE-N276149.A8 N276149	£20.50	£24.60
201 - DEPTH STOP BDE-798846-02.A47 798846-02	£1.66	£1.99
800 - GREASE BDE-870889-03.A95 870889-03	£8.08	£9.70
801 - GREASE 10 GMS BDE-487130-04.A40 487130-04	£3.92	£4.70
831 - LABEL BDE-N376894.A1 N376894	£1.66	£1.99
837 - SERVICE TOOL Seal fitting tool BDE-1003957-99.A1 1003957-99	£99.44	£119.33
838 - SERVICE TOOL Itm125 fitting tool BDE-1003958-99.A1 1003958-99	£67.48	£80.98
848 - SERVICE KIT inc13513213014 BDE-N536059.A0 N536059	£48.48	£58.17
861 - KITBOX BDE-N377020.A0 N377020	£46.49	£55.79
