Dewalt D25413K Type 1 Rotary Hammer Spare Parts

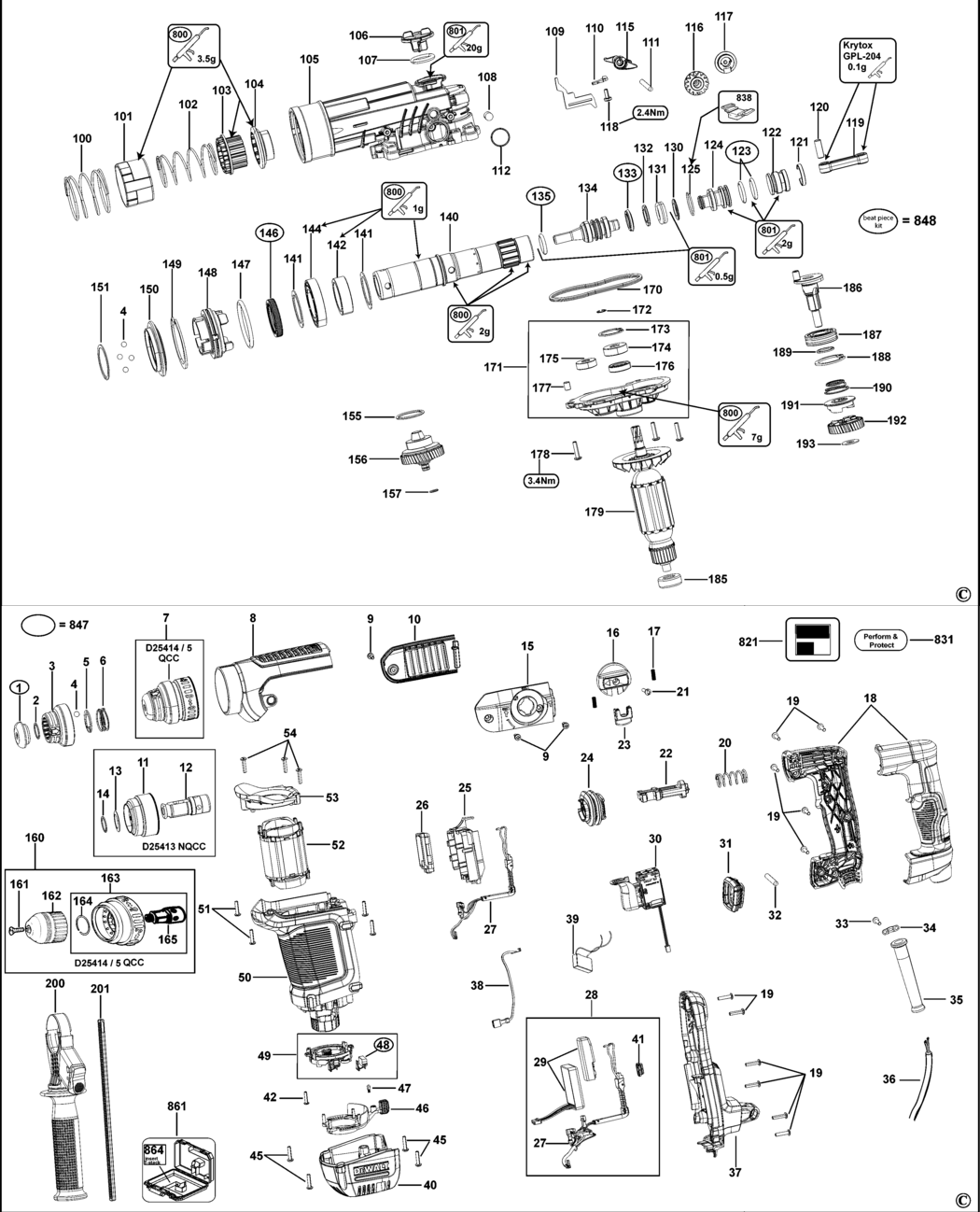

An exploded drawing and spare parts listing for the Dewalt D25413K Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - CAP BDE-323489-00.A13 323489-00	£1.66	£1.99
2 - RING BDE-579212-00.A28 579212-00	£1.66	£1.99
2 - CIRCLIP BDE-N515033.A0 N515033	£12.17	£14.60
3 - TUBE BDE-N910599.A1 N910599	£14.57	£17.48
4 - BALL 7MM BDE-583890-00.A279 583890-00	£1.66	£1.99
4 - BALL 7MM BDE-583890-00.A280 583890-00	£1.66	£1.99
5 - WASHER BDE-578387-00.A13 578387-00	£1.66	£1.99
6 - SPRING BDE-N038938.A8 N038938	£1.50	£1.80
7 - HOLDER TOOL BDE-N591846.A0 N591846	£60.94	£73.13
8 - COVER BDE-N106154.A1 N106154	£7.85	£9.42
9 - SCREW BDE-324006-14.A8 324006-14	£1.50	£1.80
9 - SCREW BDE-N445171.A9 N445171	£1.50	£1.80
10 - COVER RH BDE-N106172-00.A0 N106172-00	£3.30	£3.96
11 - SLEEVE BDE-N275419.A7 N275419	£12.17	£14.60
12 - SPINDLE BDE-N379503.A4 N379503	£19.90	£23.88
13 - WASHER. CUP BDE-N016357.A5 N016357	£1.50	£1.80
14 - CIRCLIP BDE-N514338.A3 N514338	£3.30	£3.96
15 - COVER LH BDE-N106173-00.A3 N106173-00	£2.78	£3.34
16 - KNOB BDE-N150304.A8 N150304	£1.50	£1.80
17 - SPRING BDE-1008957-00.A20 1008957-00	£1.50	£1.80
18 - HANDLE SA BDE-N379400.A7 N379400	£16.03	£19.24
19 - SCREW BDE-330065-08.A188 330065-08	£1.50	£1.80
20 - SPRING COMPRESSION BDE-N106188.A19 N106188	£1.50	£1.80
21 - SCREW BDE-330065-08.A189 330065-08	£1.50	£1.80
22 - STOP BDE-N152623.A2 N152623	£5.88	£7.06
23 - BUTTON RELEASE BDE-N192178.A9 N192178	£1.50	£1.80
24 - BELLOWS BDE-N106221-00.A9 N106221-00	£4.69	£5.63
25 - HOLDER BDE-N186074.A8 N186074	£10.85	£13.02
26 - GACC MODULE 115V LX BDE-N274641.A1 N274641	£47.08	£56.49
27 - SET OF LEAD WIRES BDE-N379403.A2 N379403	£16.03	£19.24
30 - SWITCH BDE-N524745.A5 N524745	£18.91	£22.69
31 - BELLOWS BDE-N106222.A9 N106222	£3.80	£4.56
32 - AXIS BDE-N159443.A16 N159443	£1.50	£1.80
33 - SCREW BDE-330065-08.A347 330065-08	£1.50	£1.80
34 - CORD CLAMP BDE-821070.A218 821070	£1.50	£1.80
35 - CORD PROTECTOR BDE-584090-00.A92 584090-00	£1.50	£1.80
36 - CORDSET LX BDE-582319-40.A6 582319-40	£41.24	£49.49
37 - PLATE BDE-N106186-01.A4 N106186-01	£12.17	£14.60
38 - CONNECTING WIRE BDE-N221172.A0 N221172	£3.30	£3.96
38 - CONNECTING WIRE BDE-N578054.A6 N578054	£3.80	£4.56
39 - CAPACITOR LX BDE-N272900.A7 N272900	£1.82	£2.19
40 - END CAP BDE-N106181-00.A1 N106181-00	£7.18	£8.62
42 - SCREW BDE-330065-35.A12 330065-35	£1.50	£1.80
45 - SCREW BDE-330065-08.A337 330065-08	£1.50	£1.80
46 - SELECTOR BDE-N135728.A5 N135728	£1.50	£1.80
47 - DETENT BDE-326467-00.A264 326467-00	£1.50	£1.80
48 - BRUSH PAIR 120V LX BDE-N379405.A4 N379405	£5.88	£7.06
49 - BRUSH PLATE LX BDE-N379407.A4 N379407	£19.90	£23.88
50 - HOUSING MOTOR BDE-N106153.A5 N106153	£16.03	£19.24
51 - SCREW BDE-N445171.A56 N445171	£1.50	£1.80
51 - SCREW BDE-324006-14.A56 324006-14	£1.50	£1.80
52 - FIELD 120V LX BDE-N379408.A1 N379408	£51.90	£62.28
53 - BAFFLE FAN BDE-N137273.A1 N137273	£5.88	£7.06
54 - SCREW BDE-330065-08.A338 330065-08	£1.50	£1.80
100 - SPRING BDE-323395-07.A3 323395-07	£1.50	£1.80
101 - SLEEVE BDE-N106220.A3 N106220	£3.30	£3.96
102 - SPRING COMPRESSION BDE-N106166.A2 N106166	£1.50	£1.80
103 - SLEEVE BDE-N106162.A2 N106162	£12.17	£14.60
104 - BEVEL GEAR BDE-N379410.A2 N379410	£37.35	£44.82
105 - HOUSING GEAR SA BDE-N379411.A4 N379411	£110.62	£132.74
106 - CAP BDE-N106179.A7 N106179	£1.82	£2.19
107 - O RING BDE-N252840.A2 N252840	£12.17	£14.60
107 - O RING BDE-N252839.A8 N252839	£9.41	£11.29
108 - FILTER BDE-582865-00.A34 582865-00	£1.50	£1.80
109 - PLATE BDE-N147987.A7 N147987	£2.78	£3.34
110 - LEVER BDE-N106187.A6 N106187	£1.50	£1.80
111 - PIN BDE-330041-44.A3 330041-44	£1.50	£1.80
112 - O RING BDE-N553858.A3 N553858	£1.50	£1.80
112 - O RING BDE-323711-05.A1 323711-05	£1.50	£1.80
115 - SELECTOR FORK BDE-N149242.A4 N149242	£1.50	£1.80
116 - ECCENTRIC BDE-N149241.A5 N149241	£2.26	£2.71
117 - GEAR BDE-N150303.A5 N150303	£1.50	£1.80
118 - SCREW BDE-N445171.A55 N445171	£1.50	£1.80
118 - SCREW BDE-324006-14.A55 324006-14	£1.50	£1.80
119 - CON ROD BDE-N407255.A6 N407255	£2.26	£2.71
120 - PIN BDE-N123257.A7 N123257	£3.30	£3.96
121 - PISTON RING BDE-325905-01.A4 325905-01	£1.50	£1.80
122 - PISTON BDE-N379413.A6 N379413	£12.17	£14.60
123 - O RING BDE-N106150.A5 N106150	£2.26	£2.71
124 - RAM BDE-N407083.A3 N407083	£16.03	£19.24
125 - CIRCLIP BDE-N106174.A1 N106174	£7.18	£8.62
130 - WASHER Service Packed BDE-N515032.A1 N515032	£12.17	£14.60
130 - WASHER BDE-N511780.A2 N511780	£3.80	£4.56
131 - DAMPER BDE-N179781.A5 N179781	£3.80	£4.56
132 - WASHER BDE-N122305.A3 N122305	£3.80	£4.56
132 - WASHER BDE-N511566.A4 N511566	£3.80	£4.56
133 - SEAL BDE-N106146.A2 N106146	£5.88	£7.06
134 - BEAT PIECE BDE-N474379.A3 N474379	£24.39	£29.27
135 - O RING BDE-N181843.A5 N181843	£3.30	£3.96
140 - SPINDLE BDE-N525737.A3 N525737	£119.32	£143.19
141 - WASHER BDE-1005982-00.A1 1005982-00	£1.50	£1.80
142 - DAMPER BDE-N218372.A2 N218372	£3.30	£3.96
144 - SLEEVE BEARING BDE-N106168.A6 N106168	£7.18	£8.62
146 - SEAL BDE-1007828-00.A16 1007828-00	£16.03	£19.24
147 - O RING BDE-N218672.A2 N218672	£14.57	£17.48
148 - BEARING HOLDER BDE-N122310.A2 N122310	£3.80	£4.56
149 - LOCKING RING BDE-N181847.A3 N181847	£1.50	£1.80
150 - CAP BDE-N184524.A4 N184524	£2.78	£3.34
151 - RING BDE-577795-00.A15 577795-00	£1.50	£1.80
155 - O RING BDE-N252840.A3 N252840	£12.17	£14.60
155 - O RING BDE-N252839.A7 N252839	£9.41	£11.29
156 - CLUTCH SA BDE-N379416.A3 N379416	£74.15	£88.98
157 - O RING BDE-323711-26.A18 323711-26	£1.50	£1.80
170 - SEAL BDE-N106217.A6 N106217	£1.50	£1.80
171 - HOUSING GEAR BDE-N379417.A3 N379417	£65.52	£78.62
172 - CLIP BDE-N148663.A0 N148663	£1.50	£1.80
173 - RING BDE-N219512.A4 N219512	£1.50	£1.80
174 - BEARING BALL BDE-330003-96.A13 330003-96	£4.69	£5.63
175 - BEARING BDE-330003-39.A7 330003-39	£2.78	£3.34
176 - SEAL BDE-327141-05.A2 327141-05	£7.18	£8.62
177 - SLEEVE BDE-327575-00.A13 327575-00	£1.50	£1.80
178 - SCREW TORX BDE-324007-11.A156 324007-11	£1.50	£1.80
179 - ARMATURE KIT 120V LX BDE-N379419.A2 N379419	£47.08	£56.49
185 - BEARING & SEAL BDE-N381533.A9 N381533	£3.30	£3.96
186 - CRANKSHAFT BDE-N379421.A4 N379421	£47.08	£56.49
187 - BEARING BALL BDE-323872-06.A5 323872-06	£14.57	£17.48
188 - CIRCLIP BDE-324821-04.A20 324821-04	£1.50	£1.80
189 - RING BDE-N181846.A6 N181846	£1.50	£1.80
190 - SPRING BDE-N199272.A4 N199272	£1.50	£1.80
191 - SLEEVE BDE-N106160.A6 N106160	£41.24	£49.49
192 - GEAR BDE-N379422.A5 N379422	£17.48	£20.97
193 - WASHER BDE-N106163.A6 N106163	£1.50	£1.80
200 - HANDLE SIDE SA BDE-N276149.A7 N276149	£19.90	£23.88
201 - DEPTH STOP BDE-798846-02.A17 798846-02	£1.66	£1.99
800 - GREASE 90 GMS BDE-870889-02.A728 870889-02	£7.85	£9.42
800 - GREASE BDE-870889-03.A19 870889-03	£7.85	£9.42
801 - GREASE 10 GMS BDE-487130-04.A35 487130-04	£3.80	£4.56
821 - RATING PLATE LX BDE-N377800 N377800	£1.50	£1.80
831 - LABEL BDE-N376894.A5 N376894	£1.50	£1.80
838 - SERVICE TOOL Itm125 fitting tool BDE-1003958-99.A2 1003958-99	£65.52	£78.62
847 - SERVICE KIT 115V LX BDE-N392848.A1 N392848	£51.90	£62.28
848 - SERVICE KIT BDE-N536059.A5 N536059	£47.08	£56.49
861 - KITBOX BDE-N377020.A2 N377020	£45.14	£54.17
