Dewalt D25313K Type 1 Rotary Hammer Spare Parts

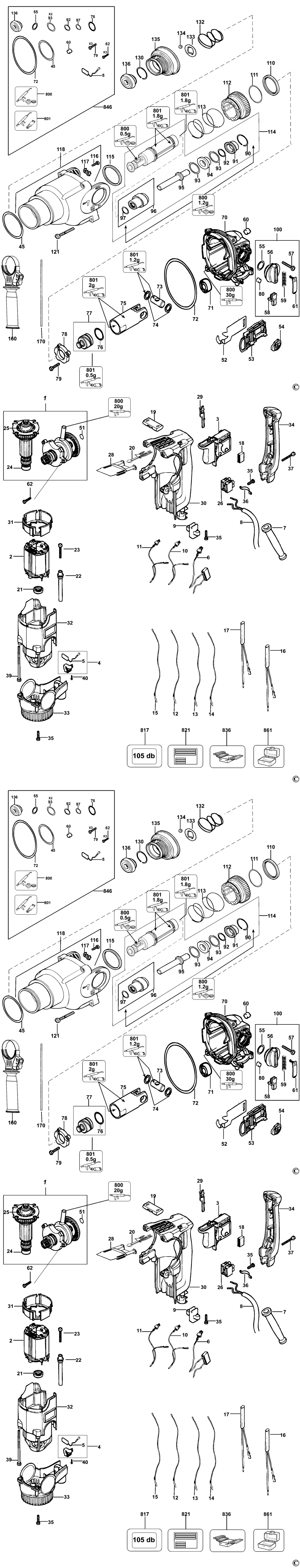

An exploded drawing and spare parts listing for the Dewalt D25313K Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - ARMATURE 230V GB BDE-N569794.A0 N569794	-
1 - ARMATURE 230V GB BDE-496250-00.A1 496250-00	-
1 - ARMATURE 120V LX BDE-496251-00.A1 496251-00	-
1 - ARMATURE 120V LX BDE-N569792.A2 N569792	-
1 - ARMATURE 120V BDE-496251-00.A2 496251-00	-
2 - FIELD 120V BDE-496247-00.A11 496247-00	£24.39	£29.27
2 - FIELD 120V LX BDE-496247-00.A12 496247-00	£24.39	£29.27
2 - FIELD 230V GB BDE-576690-05.A40 576690-05	£30.08	£36.10
3 - SWITCH 115V BDE-583748-04.A6 583748-04	£51.90	£62.28
3 - SWITCH 115V LX BDE-583748-04.A7 583748-04	£51.90	£62.28
3 - SWITCH GB BDE-583748-08.A5 583748-08	£30.08	£36.10
4 - BRUSH HOLDER 230V GB BDE-577805-03.A7 577805-03	-
4 - BRUSH HOLDER 115V BDE-577805-04.A7 577805-04	£19.90	£23.88
4 - BRUSH HOLDER 115V LX BDE-577805-04.A8 577805-04	£19.90	£23.88
5 - BRUSH KIT GB BDE-584429-00.A3 584429-00	£19.90	£23.88
5 - BRUSH KIT BDE-584429-01.A10 584429-01	£19.90	£23.88
5 - BRUSH KIT LX BDE-584429-01.A11 584429-01	£19.90	£23.88
6 - LEAD GREY GB BDE-487505-00.A5 487505-00	£9.41	£11.29
6 - LEAD GREY LX BDE-487505-00.A6 487505-00	£9.41	£11.29
7 - CORD PROTECTOR GB BDE-584090-00.A81 584090-00	£1.50	£1.80
7 - CORD PROTECTOR LX BDE-584090-00.A82 584090-00	£1.50	£1.80
7 - CORD PROTECTOR BDE-403395-00.A36 403395-00	£1.50	£1.80
8 - CORDSET BDE-573379-12.A1 573379-12	£25.70	£30.84
8 - CORDSET (M/PLUG) BDE-582319-05.A9 582319-05	£36.42	£43.70
8 - CORDSET (M/PLUG) GB GB BDE-582319-04.A13 582319-04	£29.32	£35.18
8 - CORDSET U.S.120V BDE-330076-20.A1 330076-20	£16.03	£19.24
8 - CORDSET (M/PLUG) LX BDE-582319-05.A8 582319-05	£36.42	£43.70
8 - CORDSET (M/PLUG) GB BDE-582319-04.A14 582319-04	£29.32	£35.18
8 - CORDSET BDE-582573-08 582573-08	-
9 - PLUG BDE-578222-00.A12 578222-00	£1.50	£1.80
9 - PLUG BDE-578222-00.A13 578222-00	£1.50	£1.80
10 - LEAD RED BDE-582064-23.A6 582064-23	£1.82	£2.19
10 - LEAD RED BDE-582064-23.A7 582064-23	£1.82	£2.19
11 - LEAD WHITE BDE-582064-24.A2 582064-24	£1.82	£2.19
11 - LEAD WHITE BDE-582064-24.A3 582064-24	£1.82	£2.19
12 - LEAD VIOLET BDE-582064-15.A6 582064-15	£1.50	£1.80
12 - LEAD VIOLET BDE-582064-15.A7 582064-15	£1.50	£1.80
13 - LEAD WHITE BDE-582064-19.A10 582064-19	£1.78	£2.13
13 - LEAD WHITE BDE-582064-19.A11 582064-19	£1.78	£2.13
14 - LEAD BLUE BDE-582064-16.A8 582064-16	£1.50	£1.80
14 - LEAD BLUE BDE-582064-16.A9 582064-16	£1.50	£1.80
15 - LEAD BLACK BDE-582064-20.A2 582064-20	£1.50	£1.80
15 - LEAD BLACK BDE-582064-20.A3 582064-20	£1.50	£1.80
16 - NO LONGER AVAILABLE LX BDE-000000-00.A128253 000000-00	-
16 - LEAD RED GB BDE-582064-14.A4 582064-14	£5.88	£7.06
16 - LEAD RED BDE-582064-28 582064-28	-
17 - NO LONGER AVAILABLE LX BDE-000000-00.A128252 000000-00	-
17 - LEAD YELLOW GB BDE-582064-13.A5 582064-13	£5.88	£7.06
17 - LEAD YELLOW BDE-582064-27 582064-27	-
18 - BUMPER BDE-930026-01.A209 930026-01	£1.50	£1.80
18 - BUMPER BDE-930026-01.A210 930026-01	£1.50	£1.80
19 - SLIDER BDE-578218-00.A18 578218-00	£2.78	£3.34
19 - SLIDER BDE-578218-00.A19 578218-00	£2.78	£3.34
20 - LEVER BDE-578220-00.A13 578220-00	£1.50	£1.80
20 - LEVER BDE-578220-00.A14 578220-00	£1.50	£1.80
21 - SLEEVE BDE-870052.A61 870052	£1.50	£1.80
21 - SLEEVE BDE-870052.A62 870052	£1.50	£1.80
22 - BUSH BDE-579720-00.A20 579720-00	£1.50	£1.80
22 - BUSH BDE-579720-00.A21 579720-00	£1.50	£1.80
23 - SCREW BDE-326519-03.A38 326519-03	£1.50	£1.80
23 - SCREW BDE-326519-03.A39 326519-03	£1.50	£1.80
24 - BEARING BDE-330003-19.A28 330003-19	£2.78	£3.34
24 - BEARING BDE-330003-19.A29 330003-19	£2.78	£3.34
25 - BEARING BDE-330003-64.A87 330003-64	£4.69	£5.63
25 - BEARING BDE-330003-64.A88 330003-64	£4.69	£5.63
26 - CONNECTOR BDE-323534-00.A98 323534-00	£1.50	£1.80
26 - CONNECTOR BDE-323534-00.A99 323534-00	£1.50	£1.80
28 - INSERT BDE-582877-00.A8 582877-00	£1.50	£1.80
28 - INSERT BDE-582877-00.A9 582877-00	£1.50	£1.80
29 - INSERT LX BDE-584551-00.A20 584551-00	£2.26	£2.71
29 - INSERT GB BDE-584551-00.A21 584551-00	£2.26	£2.71
30 - HOUSING BDE-577986-20.A7 577986-20	£12.17	£14.60
30 - HOUSING BDE-577986-20.A8 577986-20	£12.17	£14.60
31 - BAFFLE FAN BDE-581808-00.A12 581808-00	£1.50	£1.80
31 - BAFFLE FAN BDE-581808-00.A13 581808-00	£1.50	£1.80
32 - FIELD CASE BDE-577993-00.A15 577993-00	£10.85	£13.02
32 - FIELD CASE BDE-577993-00.A16 577993-00	£10.85	£13.02
33 - END CAP SA BDE-584041-00.A15 584041-00	£9.17	£11.00
33 - END CAP SA BDE-584041-00.A16 584041-00	£9.17	£11.00
34 - HANDLE COVER BDE-577987-10.A2 577987-10	£12.17	£14.60
34 - HANDLE COVER BDE-577987-10.A3 577987-10	£12.17	£14.60
35 - SCREW BDE-330065-08.A427 330065-08	£1.50	£1.80
35 - SCREW BDE-330065-08.A428 330065-08	£1.50	£1.80
36 - CORD CLAMP BDE-821070.A12 821070	£1.50	£1.80
36 - CORD CLAMP BDE-821070.A13 821070	£1.50	£1.80
37 - SCREW BDE-330065-13.A4 330065-13	£1.50	£1.80
37 - SCREW BDE-330065-13.A5 330065-13	£1.50	£1.80
39 - SCREW BDE-330065-26.A31 330065-26	£1.50	£1.80
39 - SCREW BDE-330065-26.A32 330065-26	£1.50	£1.80
40 - SCREW BDE-330065-25.A110 330065-25	£1.50	£1.80
40 - SCREW BDE-330065-25.A111 330065-25	£1.50	£1.80
45 - O RING BDE-577791-00.A43 577791-00	£1.50	£1.80
45 - O RING BDE-577791-00.A44 577791-00	£1.50	£1.80
50 - NO LONGER AVAILABLE BDE-000000-00.A29364 000000-00	-
50 - INTERSHAFT SA BDE-584419-00.A3 584419-00	-
51 - O RING BDE-580908-00.A7 580908-00	£1.50	£1.80
51 - O RING BDE-580908-00.A8 580908-00	£1.50	£1.80
52 - PLATE BDE-578271-00.A34 578271-00	£3.80	£4.56
52 - PLATE BDE-578271-00.A35 578271-00	£3.80	£4.56
53 - HOLDER BDE-579564-00.A28 579564-00	£1.50	£1.80
53 - HOLDER BDE-579564-00.A29 579564-00	£1.50	£1.80
54 - SELECTOR BDE-579552-00.A11 579552-00	£4.69	£5.63
54 - SELECTOR BDE-579552-00.A12 579552-00	£4.69	£5.63
55 - O RING BDE-584638-00.A39 584638-00	£1.50	£1.80
55 - O RING BDE-584638-00.A40 584638-00	£1.50	£1.80
56 - LEVER BDE-587269-00.A11 587269-00	£1.50	£1.80
56 - LEVER BDE-587269-00.A12 587269-00	£1.50	£1.80
57 - SCREW BDE-324007-14.A23 324007-14	-
57 - SCREW BDE-324007-14.A24 324007-14	-
58 - LOCK BUTTON BDE-579184-00.A7 579184-00	£1.50	£1.80
58 - LOCK BUTTON BDE-579184-00.A8 579184-00	£1.50	£1.80
59 - SPRING BDE-579179-00.A26 579179-00	£1.50	£1.80
59 - SPRING BDE-579179-00.A27 579179-00	£1.50	£1.80
60 - FILTER BDE-582865-00.A74 582865-00	£1.50	£1.80
60 - FILTER BDE-582865-00.A75 582865-00	£1.50	£1.80
61 - COVER BDE-579185-00.A23 579185-00	£1.82	£2.19
61 - COVER BDE-579185-00.A24 579185-00	£1.82	£2.19
62 - SCREW BDE-583981-00.A13 583981-00	£1.50	£1.80
62 - SCREW BDE-583981-00.A14 583981-00	£1.50	£1.80
70 - GEARCASE SA BDE-584432-00.A10 584432-00	-
70 - GEARCASE SA BDE-584432-00.A11 584432-00	-
71 - BEARING BDE-330003-81.A14 330003-81	£4.69	£5.63
71 - BEARING BDE-330003-81.A15 330003-81	£4.69	£5.63
72 - SEAL BDE-578229-00.A51 578229-00	£1.50	£1.80
72 - SEAL BDE-578229-00.A52 578229-00	£1.50	£1.80
73 - BEARING BLOCK BDE-577801-00.A72 577801-00	£5.88	£7.06
73 - BEARING BLOCK BDE-577801-00.A73 577801-00	£5.88	£7.06
74 - WASHER SHIM BDE-577802-00.A7 577802-00	£2.21	£2.65
74 - WASHER SHIM BDE-577802-00.A8 577802-00	£2.21	£2.65
75 - PISTON BDE-496246-00.A19 496246-00	£18.91	£22.69
75 - PISTON BDE-496246-00.A20 496246-00	£18.91	£22.69
76 - O RING BDE-579699-00.A79 579699-00	£1.50	£1.80
76 - O RING BDE-579699-00.A80 579699-00	£1.50	£1.80
77 - RAM BDE-496245-00.A18 496245-00	£17.48	£20.97
77 - RAM BDE-496245-00.A19 496245-00	£17.48	£20.97
78 - BEARING BUSH BDE-N042808.A40 N042808	£5.88	£7.06
78 - BEARING BUSH BDE-N042808.A41 N042808	£5.88	£7.06
79 - SCREW BDE-324006-15.A76 324006-15	£1.50	£1.80
79 - SCREW BDE-324006-15.A77 324006-15	£1.50	£1.80
80 - FILTER BDE-587252-00.A18 587252-00	£1.50	£1.80
80 - FILTER BDE-587252-00.A19 587252-00	£1.50	£1.80
90 - CLIP BDE-577793-00.A0 577793-00	£1.50	£1.80
90 - CLIP BDE-577793-00.A1 577793-00	£1.50	£1.80
91 - BUSH BDE-584426-00.A11 584426-00	£16.03	£19.24
91 - BUSH BDE-584426-00.A12 584426-00	£16.03	£19.24
92 - O RING BDE-580990-00.A77 580990-00	£1.50	£1.80
92 - O RING BDE-580990-00.A78 580990-00	£1.50	£1.80
93 - O RING BDE-577135-00.A60 577135-00	£3.30	£3.96
93 - O RING BDE-577135-00.A61 577135-00	£3.30	£3.96
94 - DAMPER BDE-584425-00.A54 584425-00	£16.03	£19.24
94 - DAMPER BDE-584425-00.A55 584425-00	£16.03	£19.24
95 - BEAT PIECE BDE-584424-00.A41 584424-00	£17.48	£20.97
95 - BEAT PIECE BDE-584424-00.A42 584424-00	£17.48	£20.97
96 - BEARING & SEAL BDE-584423-00.A44 584423-00	£18.91	£22.69
96 - BEARING & SEAL BDE-584423-00.A45 584423-00	£18.91	£22.69
97 - SEAL BDE-577139-00.A25 577139-00	£1.50	£1.80
97 - SEAL BDE-577139-00.A26 577139-00	£1.50	£1.80
100 - LEVER KIT BDE-495665-00.A1 495665-00	£7.64	£9.17
100 - LEVER KIT BDE-495665-00.A2 495665-00	£7.64	£9.17
110 - WASHER BDE-577797-00.A2 577797-00	£1.50	£1.80
110 - WASHER BDE-577797-00.A3 577797-00	£1.50	£1.80
111 - O RING BDE-577744-00.A12 577744-00	£1.82	£2.19
111 - O RING BDE-577744-00.A13 577744-00	£1.82	£2.19
112 - CLUTCH SA BDE-587482-00.A38 587482-00	£41.24	£49.49
112 - CLUTCH SA BDE-587482-00.A39 587482-00	£41.24	£49.49
113 - SPRING BDE-579178-00.A11 579178-00	£1.50	£1.80
113 - SPRING BDE-579178-00.A12 579178-00	£1.50	£1.80
114 - CYLINDER SA BDE-584422-00.A39 584422-00	£108.20	£129.84
114 - CYLINDER SA BDE-584422-00.A40 584422-00	£108.20	£129.84
115 - WASHER BDE-577814-00.A21 577814-00	£2.26	£2.71
115 - WASHER BDE-577814-00.A22 577814-00	£2.26	£2.71
116 - SCREW BDE-330065-05.A134 330065-05	£1.50	£1.80
116 - SCREW BDE-330065-05.A135 330065-05	£1.50	£1.80
117 - LOCKING DEVICE BDE-580291-00.A34 580291-00	£2.26	£2.71
117 - LOCKING DEVICE BDE-580291-00.A35 580291-00	£2.26	£2.71
118 - HOUSING SA BDE-584433-00.A0 584433-00	£37.35	£44.82
118 - HOUSING SA BDE-584433-00.A1 584433-00	£37.35	£44.82
121 - SCREW BDE-330065-28.A17 330065-28	£1.50	£1.80
121 - SCREW BDE-330065-28.A18 330065-28	£1.50	£1.80
130 - RING BDE-579212-00.A42 579212-00	£1.66	£1.99
130 - RING BDE-579212-00.A43 579212-00	£1.66	£1.99
132 - SPRING BDE-871690.A84 871690	£1.66	£1.99
132 - SPRING BDE-871690.A85 871690	£1.66	£1.99
133 - WASHER BDE-578387-00.A86 578387-00	£1.66	£1.99
133 - WASHER BDE-578387-00.A87 578387-00	£1.66	£1.99
134 - BALL 7MM BDE-583890-00.A159 583890-00	£1.66	£1.99
134 - BALL 7MM BDE-583890-00.A160 583890-00	£1.66	£1.99
135 - TUBE BDE-N774198.A29 N774198	£12.17	£14.60
135 - TUBE BDE-N774198.A30 N774198	£12.17	£14.60
136 - CAP BDE-323489-00.A76 323489-00	£1.66	£1.99
136 - CAP BDE-323489-00.A77 323489-00	£1.66	£1.99
160 - HANDLE SIDE SA BDE-494661-00.A3 494661-00	£18.91	£22.69
160 - HANDLE SIDE SA BDE-494661-00.A4 494661-00	£18.91	£22.69
170 - DEPTH STOP BDE-495699-00.A3 495699-00	£7.85	£9.42
170 - DEPTH STOP BDE-495699-00.A4 495699-00	£7.85	£9.42
800 - GREASE 90 GMS BDE-870889-02.A4 870889-02	£7.85	£9.42
800 - GREASE 90 GMS BDE-870889-02.A5 870889-02	£7.85	£9.42
801 - GREASE 10 GMS BDE-487130-04.A88 487130-04	£3.80	£4.56
801 - GREASE 10 GMS BDE-487130-04.A89 487130-04	£3.80	£4.56
817 - LABEL BDE-496620-00.A18 496620-00	£1.50	£1.80
817 - LABEL BDE-496620-00.A19 496620-00	£1.50	£1.80
821 - RATING PLATE BDE-495161-00 495161-00	-
821 - RATING PLATE BDE-495161-02 495161-02	-
821 - NO LONGER AVAILABLE LX BDE-000000-00.A29366 000000-00	-
821 - RATING PLATE BDE-495161-03 495161-03	-
821 - RATING PLATE BDE-495161-07 495161-07	-
821 - NO LONGER AVAILABLE GB BDE-000000-00.A29365 000000-00	-
821 - RATING PLATE BDE-495161-01 495161-01	-
821 - RATING PLATE BDE-495161-04 495161-04	-
836 - S.T.TERMINAL EXTRACTOR BDE-559638-99.A25 559638-99	£24.39	£29.27
836 - S.T.TERMINAL EXTRACTOR BDE-559638-99.A26 559638-99	£24.39	£29.27
846 - SERVICE KIT 115V LX BDE-585149-00.A0 585149-00	£55.30	£66.36
846 - SERVICE KIT 115V BDE-585149-00.A1 585149-00	£55.30	£66.36
846 - SERVICE KIT 230V GB BDE-585146-00.A9 585146-00	£55.30	£66.36
861 - KITBOX BDE-578005-00.A1 578005-00	-
861 - KITBOX BDE-578005-00.A2 578005-00	-

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt D25313K Type 1 Rotary Hammer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
