Dewalt D25203K Type 3 Rotary Hammer Spare Parts

Home Details Reviews Delivery

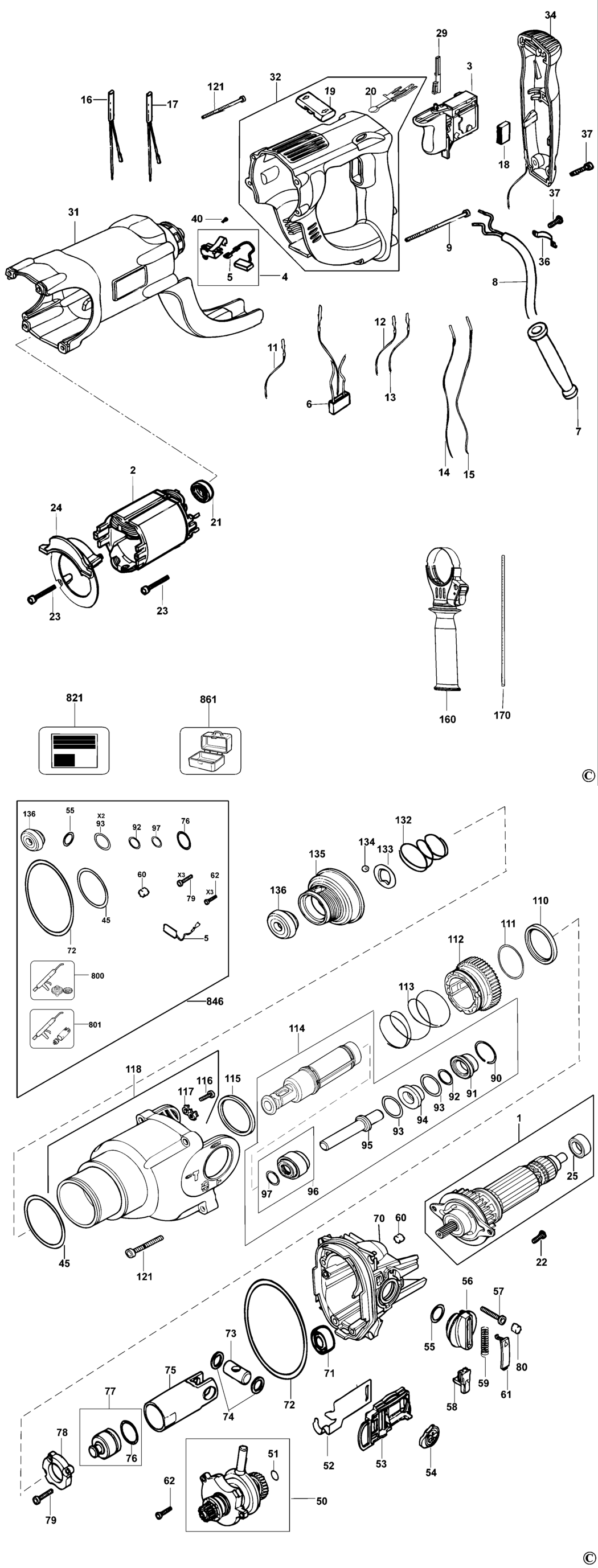

An exploded drawing and spare parts listing for the Dewalt D25203K Type 3 Rotary Hammer

	Ex VAT	Inc VAT
1 - ARMATURE 230V BDE-585474-00.A12 585474-00	-
2 - FIELD 230V BDE-576690-05.A25 576690-05	£30.98	£37.18
3 - SWITCH BDE-583748-08.A8 583748-08	£30.98	£37.18
4 - BRUSH HOLDER SA BDE-577830-02.A10 577830-02	£11.87	£14.24
5 - BRUSH PAIR 230V BDE-585475-00.A18 585475-00	-
8 - NO LONGER AVAILABLE GB BDE-000000-00.A93516 000000-00	-
9 - SCREW BDE-330065-26.A23 330065-26	£1.66	£1.99
11 - NO LONGER AVAILABLE GB BDE-000000-00.A93515 000000-00	-
12 - LEAD WHITE GB BDE-584467-00.A2 584467-00	£1.66	£1.99
13 - LEAD BLUE GB BDE-584467-01.A4 584467-01	-
14 - LEAD BLACK GB BDE-584467-04.A2 584467-04	£1.66	£1.99
15 - LEAD VIOLET GB BDE-584467-05.A4 584467-05	£1.66	£1.99
16 - CHOKE LEAD RED GB BDE-584467-02.A1 584467-02	-
17 - LEAD YELLOW GB BDE-584467-03.A3 584467-03	-
18 - BUMPER BDE-930026-01.A125 930026-01	£1.66	£1.99
19 - SLIDER BDE-578218-00.A14 578218-00	£2.78	£3.34
20 - LEVER BDE-578220-00.A1 578220-00	£1.66	£1.99
21 - SLEEVE BDE-870052.A72 870052	£1.66	£1.99
22 - SCREW BDE-324006-14.A63 324006-14	£1.66	£1.99
23 - SCREW BDE-326519-03.A60 326519-03	£1.66	£1.99
24 - BAFFLE BDE-582144-00.A4 582144-00	£1.78	£2.13
25 - BEARING BDE-330003-19.A126 330003-19	£2.87	£3.44
31 - NO LONGER AVAILABLE BDE-000000-00.A93517 000000-00	-
32 - NO LONGER AVAILABLE BDE-000000-00.A93518 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A93519 000000-00	-
36 - CORD CLAMP BDE-821070.A398 821070	£1.66	£1.99
37 - SCREW BDE-330065-08.A243 330065-08	£1.66	£1.99
40 - SCREW BDE-330065-25.A40 330065-25	£1.66	£1.99
45 - O RING BDE-577791-00.A6 577791-00	£1.66	£1.99
50 - INTERSHAFT SA BDE-585480-00.A34 585480-00	£86.95	£104.34
51 - O RING BDE-580907-00.A9 580907-00	£1.66	£1.99
52 - PLATE BDE-578271-00.A9 578271-00	£3.92	£4.70
53 - HOLDER BDE-579564-00.A10 579564-00	£1.66	£1.99
54 - SELECTOR BDE-579552-00.A21 579552-00	£4.83	£5.80
55 - O RING BDE-584638-00.A18 584638-00	£1.66	£1.99
56 - LEVER BDE-587269-00.A22 587269-00	£1.66	£1.99
57 - SCREW BDE-324007-14.A11 324007-14	-
58 - LOCK BUTTON BDE-579184-00.A27 579184-00	£1.66	£1.99
59 - SPRING BDE-579179-00.A4 579179-00	£1.66	£1.99
60 - FILTER BDE-582865-00.A10 582865-00	£1.66	£1.99
61 - COVER BDE-579185-00.A2 579185-00	£1.88	£2.26
62 - SCREW BDE-583981-00.A42 583981-00	£1.66	£1.99
70 - HOUSING SA BDE-585482-00.A2 585482-00	£36.42	£43.70
71 - BEARING BDE-330003-31.A133 330003-31	£2.87	£3.44
72 - SEAL BDE-578229-00.A0 578229-00	£1.66	£1.99
73 - BEARING BLOCK BDE-577801-00.A7 577801-00	£6.06	£7.27
74 - WASHER SHIM BDE-577802-00.A89 577802-00	£2.21	£2.65
75 - PISTON BDE-584420-00.A11 584420-00	£30.98	£37.18
76 - O RING BDE-579699-00.A29 579699-00	£1.66	£1.99
77 - NO LONGER AVAILABLE BDE-000000-00.A93520 000000-00	-
78 - BEARING BUSH BDE-N042808.A19 N042808	£6.06	£7.27
79 - SCREW BDE-324006-15.A29 324006-15	£1.66	£1.99
80 - FILTER BDE-587252-00.A1 587252-00	£1.66	£1.99
90 - CLIP BDE-577793-00.A69 577793-00	£1.66	£1.99
91 - BUSH BDE-584426-00.A45 584426-00	£16.52	£19.82
92 - O RING BDE-580990-00.A29 580990-00	£1.66	£1.99
93 - O RING BDE-577135-00.A13 577135-00	£3.39	£4.07
94 - DAMPER BDE-584425-00.A21 584425-00	£16.03	£19.24
95 - BEAT PIECE BDE-584424-00.A18 584424-00	£18.00	£21.60
96 - BEARING & SEAL BDE-584423-00.A18 584423-00	£19.48	£23.37
97 - SEAL BDE-577139-00.A83 577139-00	£1.66	£1.99
110 - WASHER BDE-577797-00.A54 577797-00	£1.66	£1.99
111 - O RING BDE-577744-00.A69 577744-00	£1.88	£2.26
112 - CLUTCH SA BDE-587482-00.A13 587482-00	£42.48	£50.98
113 - SPRING BDE-579178-00.A53 579178-00	£1.66	£1.99
114 - CYLINDER SA BDE-584422-00.A17 584422-00	£111.45	£133.74
115 - WASHER BDE-577814-00.A90 577814-00	£2.32	£2.78
116 - SCREW BDE-330065-02.A3 330065-02	£1.66	£1.99
117 - LOCKING DEVICE BDE-580291-00.A15 580291-00	£2.26	£2.71
118 - HOUSING SA BDE-585483-00.A11 585483-00	-
121 - SCREW BDE-330065-28.A37 330065-28	£1.66	£1.99
132 - SPRING BDE-871690.A226 871690	£1.66	£1.99
133 - WASHER BDE-578387-00.A224 578387-00	£1.66	£1.99
134 - BALL 7MM BDE-583890-00.A25 583890-00	£1.66	£1.99
135 - TUBE BDE-N504215.A60 N504215	£7.40	£8.88
136 - CAP BDE-323489-00.A161 323489-00	£1.66	£1.99
160 - SIDE HANDLE BDE-589467-00.A35 589467-00	-
170 - DEPTH STOP BDE-798846-02.A32 798846-02	£1.66	£1.99
800 - GREASE 90 GMS BDE-870889-02.A516 870889-02	£8.08	£9.70
801 - GREASE 10 GMS BDE-487130-04.A84 487130-04	£3.92	£4.70
821 - RATING PLATE BDE-569037-00.A97 569037-00	£3.92	£4.70
846 - SERVICE KIT 230V BDE-585499-00.A2 585499-00	£59.41	£71.29
861 - KITBOX BDE-N383875.A33 N383875	£25.12	£30.15
