Dewalt D25133 Type 1 Rotary Hammer Spare Parts

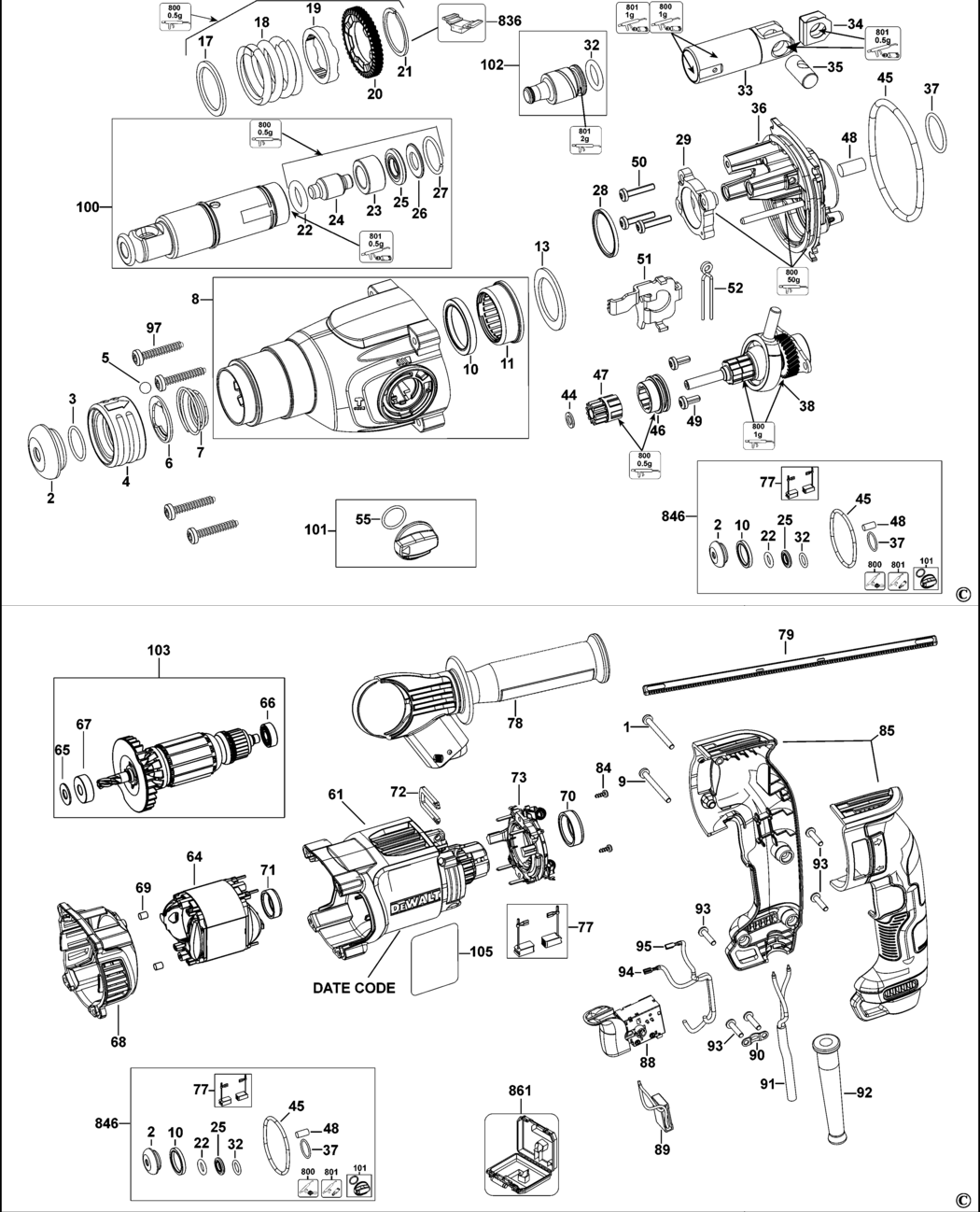

An exploded drawing and spare parts listing for the Dewalt D25133 Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - SCREW BDE-N325879.A2 N325879	£1.50	£1.80
2 - CAP BDE-323489-00.A113 323489-00	£1.66	£1.99
3 - RING BDE-579212-00.A76 579212-00	£1.66	£1.99
4 - TUBE BDE-N720573.A2 N720573	£3.80	£4.56
5 - BALL 7MM BDE-583890-00.A201 583890-00	£1.66	£1.99
6 - WASHER BDE-578387-00.A132 578387-00	£1.66	£1.99
7 - SPRING BDE-871690.A74 871690	£1.66	£1.99
8 - HOUSING SA BDE-N417731.A6 N417731	£16.03	£19.24
9 - SCREW BDE-330065-16.A26 330065-16	£1.50	£1.80
10 - SEAL BDE-327141-06.A6 327141-06	£3.30	£3.96
10 - SEAL BDE-N496180.A5 N496180	£3.30	£3.96
11 - BEARING SPINDLE BDE-N020023.A2 N020023	£7.18	£8.62
13 - WASHER BDE-1005788-00.A9 1005788-00	£1.50	£1.80
17 - WASHER BDE-589350-00.A55 589350-00	£1.50	£1.80
18 - SPRING BDE-N264677.A4 N264677	£1.82	£2.19
19 - LOCKING RING BDE-N417735.A8 N417735	£7.18	£8.62
20 - GEAR BDE-N417737.A9 N417737	£7.18	£8.62
21 - LOCKING RING BDE-N406151.A5 N406151	£1.50	£1.80
21 - LOCKING RING BDE-N406151.A12 N406151	£1.50	£1.80
22 - O RING BDE-N394276.A4 N394276	£1.50	£1.80
23 - TUBE GUIDE BDE-N470388.A27 N470388	£2.78	£3.34
23 - TUBE GUIDE BDE-N470388.A5 N470388	£2.78	£3.34
24 - BEAT PIECE BDE-N417744.A7 N417744	£9.41	£11.29
25 - O RING BDE-580990-00.A104 580990-00	£1.50	£1.80
25 - RING BDE-1005808-00.A7 1005808-00	£3.30	£3.96
26 - WASHER BDE-N531681.A0 N531681	£3.30	£3.96
26 - WASHER BDE-327087-00.A34 327087-00	£1.82	£2.19
27 - RING BDE-N294259.A6 N294259	£1.50	£1.80
28 - RING BDE-N267565.A2 N267565	£1.50	£1.80
29 - BEARING BDE-N417745.A4 N417745	£4.69	£5.63
32 - O RING BDE-N264642.A5 N264642	£1.50	£1.80
33 - PISTON BDE-N425231.A6 N425231	£12.17	£14.60
34 - WASHER BDE-1005842-00.A17 1005842-00	£1.50	£1.80
35 - BEARING SPINDLE BDE-N325041.A16 N325041	£1.82	£2.19
36 - HOUSING BEARING BDE-N495931.A8 N495931	£16.03	£19.24
37 - O RING BDE-N264673.A14 N264673	£1.50	£1.80
38 - INTERSHAFT SA BDE-N418018.A13 N418018	£34.00	£40.80
44 - WASHER BDE-1005844-00.A33 1005844-00	£1.50	£1.80
45 - O RING BDE-N264672.A4 N264672	£1.50	£1.80
46 - COLLAR BDE-N417853.A3 N417853	£3.30	£3.96
47 - GEAR BDE-N417859.A8 N417859	£5.88	£7.06
48 - FELT BDE-1005812-00.A2 1005812-00	£1.50	£1.80
48 - FELT BDE-1005812-00.A3 1005812-00	£1.50	£1.80
49 - SCREW BDE-N445171.A14 N445171	£1.50	£1.80
50 - SCREW BDE-324006-15.A66 324006-15	£1.50	£1.80
51 - PLATE BDE-N493869.A3 N493869	£2.78	£3.34
51 - PLATE BDE-N493869.A11 N493869	£2.78	£3.34
52 - SPRING BDE-1005795-00.A4 1005795-00	£1.50	£1.80
55 - O RING BDE-N091381-00.A2 N091381-00	£1.50	£1.80
61 - HOUSING MOTOR TO DATE CD WK32 2016 BDE-N271819.A0 N271819	£9.41	£11.29
61 - HOUSING MOTOR FR DATE CD WK32 2016 BDE-N481043.A1 N481043	£10.85	£13.02
61 - HOUSING MOTOR >= WK31 2016 BDE-N481043.A2 N481043	£10.85	£13.02
61 - SERVICE KIT 230V < WK31 2016 BDE-N489766.A5 N489766	£37.35	£44.82
63 - NO LONGER AVAILABLE >=WK19 2016 BDE-000000-00.A30496 000000-00	-
64 - FIELD 120V FR DATE CD WK32 2016 LX BDE-N484764.A0 N484764	£25.70	£30.84
64 - SERVICE KIT 120V TO DATE CD WK32 2016 LX BDE-N489765.A0 N489765	£37.35	£44.82
64 - FIELD 230V FR DATE CD WK32 2016 GB BDE-N484765.A1 N484765	£25.70	£30.84
64 - SERVICE KIT 230V TO DATE CD WK32 2016 GB BDE-N489766.A4 N489766	£37.35	£44.82
65 - WASHER BDE-N554533.A6 N554533	-
65 - WASHER BDE-N245239.A20 N245239	£1.50	£1.80
66 - BEARING BDE-1005895-00.A5 1005895-00	£2.78	£3.34
67 - BEARING BDE-330003-60.A86 330003-60	£2.78	£3.34
68 - BAFFLE BDE-N344965.A7 N344965	£2.26	£2.71
69 - RUBBER PAD >= WK31 2016 BDE-N476768.A13 N476768	£1.50	£1.80
69 - RUBBER PAD TO DATE CD WK32 2016 BDE-N012971.A1 N012971	£1.50	£1.80
69 - RUBBER PAD FR DATE CD WK32 2016 BDE-N476768.A14 N476768	£1.50	£1.80
69 - SERVICE KIT 230V < WK31 2016 BDE-N489766.A6 N489766	£37.35	£44.82
70 - RING BDE-N442577.A2 N442577	£1.50	£1.80
71 - COVER BEARING BDE-N442578.A14 N442578	£1.50	£1.80
72 - CLIP BDE-1005894-00.A22 1005894-00	£1.50	£1.80
73 - BRUSH HOLDER SA GB BDE-N418033.A6 N418033	£17.48	£20.97
73 - BRUSH HOLDER SA LX BDE-N418034.A0 N418034	£17.48	£20.97
77 - BRUSH PAIR 230V GB BDE-N418039.A5 N418039	£12.17	£14.60
77 - BRUSH PAIR 120V LX BDE-N418040.A0 N418040	£7.18	£8.62
78 - SIDE HANDLE BDE-1005896-00.A15 1005896-00	£10.85	£13.02
78 - HANDLE SIDE SA GB BDE-N415820.A2 N415820	£18.91	£22.69
78 - HANDLE SIDE SA LX BDE-N415820.A3 N415820	£18.91	£22.69
79 - DEPTH STOP BDE-798846-02.A61 798846-02	£1.50	£1.80
84 - SCREW >= WK31 2016 BDE-N475466.A10 N475466	£1.50	£1.80
84 - SCREW FR DATE CD WK32 2016 BDE-N475466.A11 N475466	£1.50	£1.80
84 - SERVICE KIT 230V < WK31 2016 BDE-N489766.A1 N489766	£37.35	£44.82
84 - SCREW TO DATE CD WK32 2016 BDE-N086775.A16 N086775	£1.50	£1.80
85 - HANDLE SA LX BDE-N418013.A0 N418013	£12.17	£14.60
85 - HANDLE SA GB BDE-N418013.A1 N418013	£12.17	£14.60
85 - HANDLE SA BDE-N418012.A3 N418012	£10.85	£13.02
88 - SWITCH 115V to wk46 2012 LX BDE-N364921.A0 N364921	£18.91	£22.69
88 - SWITCH 240V to wk46 2012 GB BDE-N364920.A6 N364920	£19.90	£23.88
88 - SWITCH LOCK-ON BDE-N166238.A5 N166238	£16.03	£19.24
89 - CAPACITOR GB BDE-320842-19.A24 320842-19	£1.50	£1.80
90 - CORD CLAMP BDE-329301-00.A79 329301-00	£1.50	£1.80
91 - CORDSET GB BDE-1005819-00.A1 1005819-00	£174.63	£209.56
91 - CORDSET LX BDE-N382107.A0 N382107	£30.08	£36.10
92 - CORD PROTECTOR BDE-403395-00.A58 403395-00	£1.50	£1.80
92 - CORD PROTECTOR BDE-N422466.A5 N422466	£1.50	£1.80
93 - SCREW BDE-330065-08.A322 330065-08	£1.50	£1.80
94 - LEAD BLUE BDE-1005879-00.A5 1005879-00	£1.50	£1.80
94 - LEAD BLUE BDE-N425379.A0 N425379	-
95 - LEAD RED BDE-1005879-01.A17 1005879-01	£1.50	£1.80
97 - SCREW BDE-N476832.A4 N476832	£1.50	£1.80
100 - SPINDLE SA BDE-NA015421.A5 NA015421	£45.14	£54.17
101 - SELECTOR SA BDE-N417861.A3 N417861	£10.85	£13.02
102 - RAM SA BDE-N418035.A0 N418035	£7.18	£8.62
103 - ARMATURE 230V GB BDE-N566901.A1 N566901	£44.14	£52.97
103 - ARMATURE 115/120V LX BDE-N418030.A1 N418030	£38.80	£46.56
105 - RATING PLATE LX BDE-N393582 N393582	£1.50	£1.80
105 - RATING PLATE GB BDE-N393581 N393581	£1.50	£1.80
800 - GREASE 90 GMS BDE-870889-02.A721 870889-02	£7.85	£9.42
801 - GREASE 10 GMS BDE-487130-04.A23 487130-04	£3.80	£4.56
836 - S.T.CIRCLIP REMOVER BDE-1003960-99.A6 1003960-99	£183.42	£220.10
836 - S.T.CIRCLIP REMOVER BDE-596005-99.A13 596005-99	£84.42	£101.30
836 - S.T.CIRCLIP REMOVER BDE-1003959-99.A5 1003959-99	£165.92	£199.11
846 - SERVICE KIT 120V LX BDE-N418466.A0 N418466	£37.35	£44.82
846 - SERVICE KIT 230V GB BDE-N418448.A2 N418448	£37.35	£44.82
861 - KITBOX GB BDE-N440493.A9 N440493	£34.00	£40.80
861 - KITBOX LX BDE-N440493.A10 N440493	£34.00	£40.80
