Dewalt D25114K Type 2 Rotary Hammer Spare Parts

Home Details Reviews Delivery

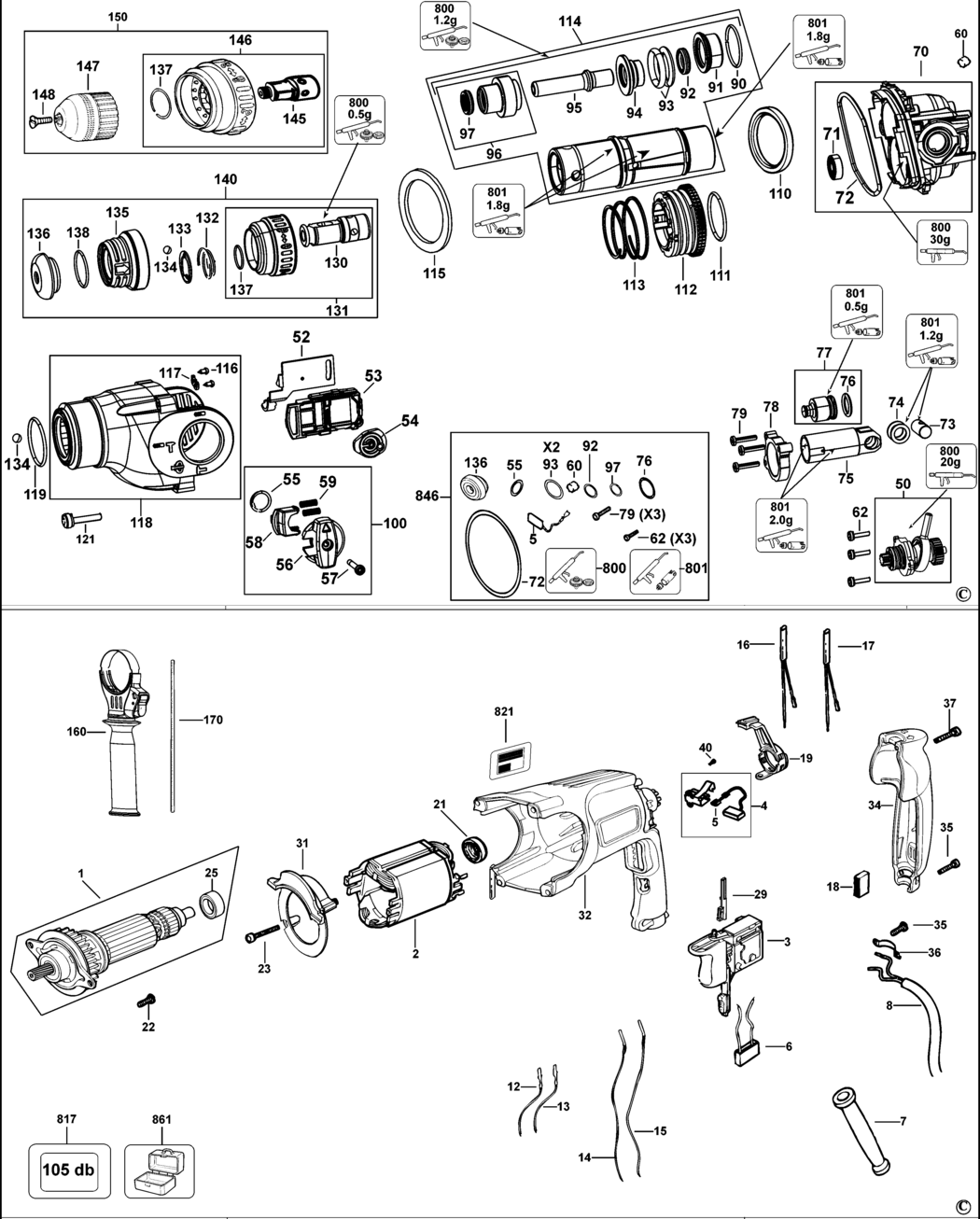

An exploded drawing and spare parts listing for the Dewalt D25114K Type 2 Rotary Hammer

	Ex VAT	Inc VAT
1 - ARMATURE 120V LX BDE-496249-00.A1 496249-00	£78.95	£94.74
1 - ARMATURE 230V GB BDE-N081737.A3 N081737	£50.60	£60.72
2 - FIELD 120V LX BDE-496247-00.A20 496247-00	£24.39	£29.27
2 - FIELD 230V GB BDE-576690-05.A12 576690-05	£30.98	£37.18
3 - SWITCH 115V LX BDE-583748-05.A13 583748-05	£30.08	£36.10
3 - SWITCH GB BDE-583748-09.A6 583748-09	£25.12	£30.15
4 - BRUSH HOLDER SA up to 08 feb 2010 GB BDE-577830-02.A20 577830-02	£11.87	£14.24
4 - BRUSH HOLDER SA up to 08 feb 2010 LX BDE-577830-03.A1 577830-03	£11.87	£14.24
4 - BRUSH HOLDER SA from 08 feb 2010 LX BDE-N028620.A2 N028620	£9.69	£11.63
4 - BRUSH HOLDER SA from 08 feb 2010 GB BDE-N028619.A7 N028619	£8.08	£9.70
5 - BRUSH PAIR 115V up to 08 feb 2010 LX BDE-585475-01.A11 585475-01	-
5 - BRUSH PAIR 230V from 08 feb 2010 GB BDE-N058083.A7 N058083	£11.18	£13.41
5 - BRUSH PAIR 230V up to 08 feb 2010 GB BDE-585475-00.A9 585475-00	-
5 - BRUSH PAIR 115V from 08 feb 2010 LX BDE-N058084.A0 N058084	£17.03	£20.44
6 - CAPACITOR BDE-320842-19.A2 320842-19	£1.66	£1.99
7 - CORD PROTECTOR BDE-584090-00.A28 584090-00	£1.66	£1.99
8 - CORDSET GB BDE-582319-32.A0 582319-32	£25.12	£30.15
8 - CORDSET LX BDE-582319-10.A5 582319-10	£33.13	£39.76
12 - LEAD WHITE BDE-584304-00.A23 584304-00	£1.66	£1.99
13 - LEAD BLUE BDE-584304-10.A15 584304-10	£1.66	£1.99
14 - LEAD BLACK BDE-584304-04.A14 584304-04	£1.66	£1.99
15 - LEAD VIOLET BDE-584304-05.A23 584304-05	£1.66	£1.99
16 - CHOKE LEAD RED LX BDE-584304-08.A3 584304-08	£7.64	£9.17
16 - CHOKE LEAD RED GB BDE-584304-02.A6 584304-02	£4.58	£5.49
17 - CHOKE LEAD GB BDE-584304-03.A15 584304-03	£4.58	£5.49
17 - CHOKE LEAD SA LX BDE-584304-09.A7 584304-09	£7.64	£9.17
18 - BUMPER BDE-930026-01.A82 930026-01	£1.66	£1.99
19 - LEVER BDE-479818-00.A2 479818-00	£1.66	£1.99
21 - SLEEVE BDE-870052.A147 870052	£1.66	£1.99
22 - SCREW BDE-324006-14.A2 324006-14	£1.66	£1.99
23 - SCREW BDE-326519-03.A7 326519-03	£1.66	£1.99
25 - BEARING BDE-330003-19.A208 330003-19	£2.87	£3.44
29 - INSERT BDE-584551-00.A56 584551-00	£2.32	£2.78
31 - BAFFLE FAN BDE-577826-00.A2 577826-00	£2.78	£3.34
32 - FIELDCASE BDE-577810-00.A15 577810-00	£14.57	£17.48
34 - HANDLE COVER BDE-479817-00.A28 479817-00	£14.57	£17.48
35 - SCREW BDE-330065-06.A122 330065-06	£1.66	£1.99
36 - CORD CLAMP BDE-821070.A665 821070	£1.66	£1.99
37 - SCREW BDE-330065-09.A78 330065-09	£1.66	£1.99
40 - SCREW BDE-330065-25.A138 330065-25	£1.66	£1.99
50 - INTERSHAFT SA BDE-585480-00.A17 585480-00	£86.95	£104.34
51 - O RING BDE-580907-00.A27 580907-00	£1.66	£1.99
52 - PLATE BDE-578271-00.A45 578271-00	£3.92	£4.70
53 - HOLDER BDE-579564-00.A47 579564-00	£1.66	£1.99
54 - SELECTOR BDE-1006437-00.A1 1006437-00	-
55 - O RING BDE-584638-00.A45 584638-00	£1.66	£1.99
56 - KNOB BDE-1006434-00.A15 1006434-00	£2.87	£3.44
57 - SCREW BDE-324007-15.A2 324007-15	£1.66	£1.99
58 - TRIGGER BDE-1006435-00.A1 1006435-00	£2.87	£3.44
59 - SPRING BDE-1008957-00.A22 1008957-00	£1.66	£1.99
60 - FILTER BDE-582865-00.A90 582865-00	£1.66	£1.99
62 - SCREW BDE-583981-00.A6 583981-00	£1.66	£1.99
70 - HOUSING SA BDE-N031253.A2 N031253	£37.82	£45.38
71 - BEARING BDE-330003-31.A48 330003-31	£2.87	£3.44
72 - SEAL BDE-578229-00.A66 578229-00	£1.66	£1.99
73 - BEARING BLOCK BDE-577801-00.A42 577801-00	£6.06	£7.27
74 - WASHER SHIM BDE-577802-00.A44 577802-00	£2.21	£2.65
75 - PISTON BDE-496246-00.A8 496246-00	£19.48	£23.37
76 - O RING BDE-579699-00.A48 579699-00	£1.66	£1.99
77 - RAM BDE-496245-00.A30 496245-00	£18.00	£21.60
78 - BEARING BUSH BDE-N042808.A57 N042808	£6.06	£7.27
79 - SCREW BDE-324006-15.A109 324006-15	£1.66	£1.99
90 - CLIP BDE-577793-00.A37 577793-00	£1.66	£1.99
91 - BUSH BDE-584426-00.A30 584426-00	£16.52	£19.82
92 - O RING BDE-580990-00.A56 580990-00	£1.66	£1.99
93 - O RING BDE-577135-00.A48 577135-00	£3.39	£4.07
94 - DAMPER BDE-584425-00.A36 584425-00	£16.03	£19.24
95 - BEAT PIECE BDE-584424-01.A7 584424-01	£10.85	£13.02
96 - BEARING & SEAL BDE-584423-01.A5 584423-01	£20.50	£24.60
97 - SEAL BDE-577139-00.A44 577139-00	£1.66	£1.99
100 - LEVER KIT BDE-N031251.A9 N031251	£12.53	£15.04
110 - WASHER BDE-577797-00.A27 577797-00	£1.66	£1.99
111 - O RING BDE-577744-00.A36 577744-00	£1.88	£2.26
112 - CLUTCH SA BDE-587482-00.A59 587482-00	£42.48	£50.98
113 - SPRING BDE-579178-00.A24 579178-00	£1.66	£1.99
114 - CYLINDER SA BDE-584422-01.A5 584422-01	£113.93	£136.72
115 - WASHER BDE-577814-00.A39 577814-00	£2.32	£2.78
116 - SCREW BDE-330065-05.A99 330065-05	£1.66	£1.99
117 - LOCKING DEVICE BDE-580291-00.A25 580291-00	£2.26	£2.71
118 - GEARCASE SA BDE-586499-00.A0 586499-00	£25.05	£30.06
119 - RING BDE-577795-00.A28 577795-00	£1.66	£1.99
121 - SCREW BDE-330065-13.A67 330065-13	£1.66	£1.99
130 - SPINDLE BDE-N031254.A8 N031254	£25.05	£30.06
131 - SLEEVE SA BDE-584431-00.A9 584431-00	£38.48	£46.17
132 - SPRING BDE-871690.A31 871690	£1.66	£1.99
133 - WASHER BDE-578387-00.A32 578387-00	£1.66	£1.99
134 - BALL 7MM BDE-583890-00.A223 583890-00	£1.66	£1.99
135 - TUBE BDE-N774198.A38 N774198	£12.53	£15.04
136 - CAP BDE-323489-00.A59 323489-00	£1.66	£1.99
137 - RING BDE-579212-00.A4 579212-00	£1.66	£1.99
138 - RING BDE-579212-00.A5 579212-00	£1.66	£1.99
140 - HOLDER TOOL BDE-N591846.A24 N591846	£62.77	£75.32
145 - SPINDLE BDE-584676-00.A0 584676-00	£35.02	£42.02
146 - SPINDLE SA BDE-584556-00.A3 584556-00	£56.97	£68.36
147 - CHUCK KEYLESS BDE-582512-02.A30 582512-02	£25.12	£30.15
148 - SCREW BDE-605256-02.A127 605256-02	£1.66	£1.99
150 - CHUCK & SPINDLE SA BDE-N591847.A8 N591847	£53.46	£64.15
160 - HANDLE SIDE SA LX BDE-494661-00.A7 494661-00	£19.48	£23.37
160 - HANDLE SIDE SA GB BDE-494661-00.A8 494661-00	£19.48	£23.37
170 - DEPTH STOP BDE-495699-00.A16 495699-00	£8.08	£9.70
800 - GREASE 90 GMS BDE-870889-02.A261 870889-02	£8.08	£9.70
801 - GREASE 10 GMS BDE-487130-04.A136 487130-04	£3.92	£4.70
817 - LABEL BDE-496620-00.A0 496620-00	£1.66	£1.99
821 - NO LONGER AVAILABLE LX BDE-000000-00.A63421 000000-00	-
821 - NO LONGER AVAILABLE GB BDE-000000-00.A63422 000000-00	-
846 - SERVICE KIT 230V up to 08 feb 2010 GB BDE-585499-00.A16 585499-00	£59.41	£71.29
846 - SERVICE KIT 230V from 08 feb 2010 GB BDE-N058085.A2 N058085	£50.60	£60.72
846 - SERVICE KIT 115V from 08 feb 2010 LX BDE-N058086.A0 N058086	£51.90	£62.28
846 - SERVICE KIT 115V up to 08 feb 2010 LX BDE-585500-00.A6 585500-00	£37.82	£45.38
861 - KITBOX BDE-N383875.A2 N383875	£25.12	£30.15
