Dewalt D25104K Type 1 Rotary Hammer Spare Parts

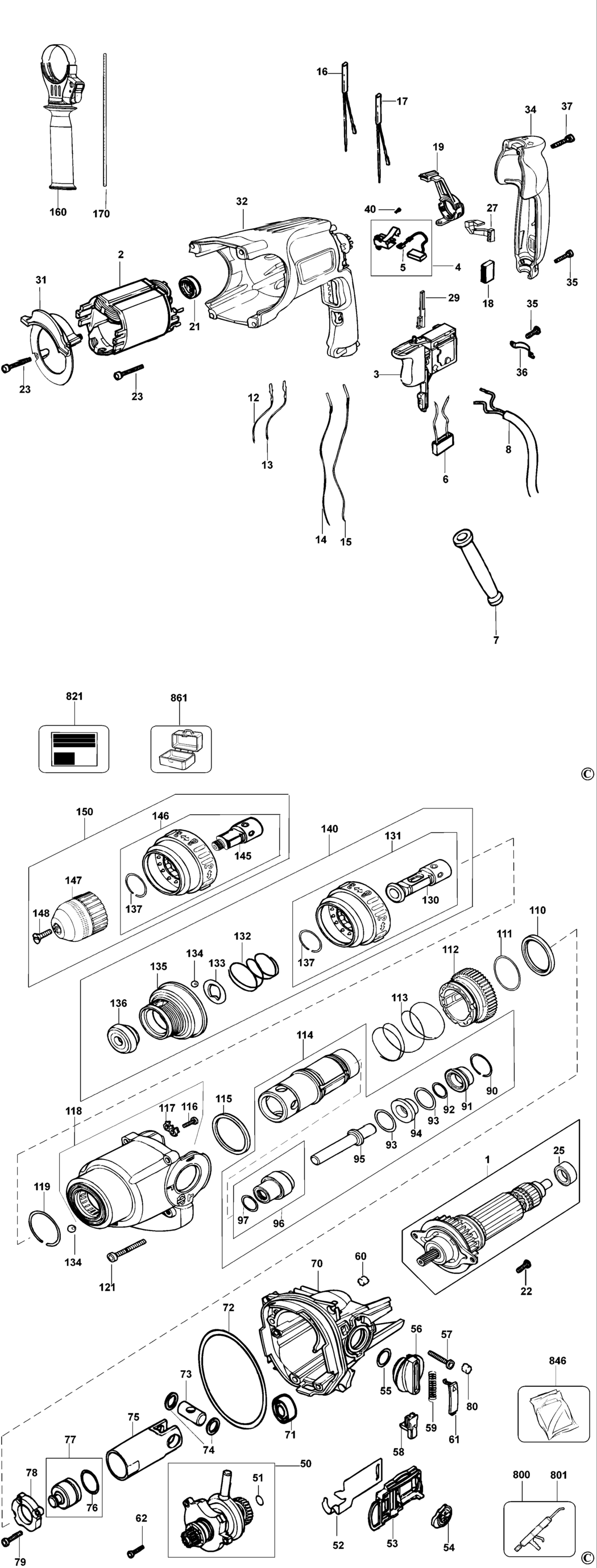

An exploded drawing and spare parts listing for the Dewalt D25104K Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - ARMATURE 230V GB BDE-585474-00.A11 585474-00	-
1 - ARMATURE 115V LX BDE-585474-01.A0 585474-01	£63.87	£76.64
2 - FIELD 230V GB BDE-576690-05.A19 576690-05	£30.08	£36.10
2 - FIELD 115V LX BDE-576690-06.A10 576690-06	£30.08	£36.10
3 - SWITCH 115V LX BDE-583748-05.A1 583748-05	£30.08	£36.10
3 - SWITCH KIT GB BDE-488774-01.A1 488774-01	£63.87	£76.64
4 - BRUSH HOLDER SA GB BDE-577830-02.A8 577830-02	£11.87	£14.24
4 - BRUSH HOLDER SA LX BDE-577830-03.A9 577830-03	£11.87	£14.24
5 - BRUSH PAIR 230V GB BDE-585475-00.A17 585475-00	£14.19	£17.03
5 - BRUSH PAIR 115V LX BDE-585475-01.A2 585475-01	-
6 - CAPACITOR GB BDE-949877-01.A197 949877-01	£1.50	£1.80
6 - CAPACITOR LX BDE-949877-01.A198 949877-01	£1.50	£1.80
7 - CORD PROTECTOR BDE-584090-00.A46 584090-00	£1.50	£1.80
8 - CORDSET (M/PLUG) GB GB BDE-582319-04.A16 582319-04	£29.32	£35.18
8 - CORDSET (M/PLUG) LX BDE-582319-05.A6 582319-05	£36.42	£43.70
12 - NO LONGER AVAILABLE GB BDE-000000-00.A91488 000000-00	-
12 - LEAD WHITE LX BDE-584304-00.A16 584304-00	£1.50	£1.80
13 - LEAD BLUE LX BDE-584304-10.A29 584304-10	£1.50	£1.80
13 - NO LONGER AVAILABLE GB BDE-000000-00.A91489 000000-00	-
14 - LEAD BLACK LX BDE-584304-04.A21 584304-04	£1.50	£1.80
14 - NO LONGER AVAILABLE GB BDE-000000-00.A91490 000000-00	-
15 - LEAD VIOLET LX BDE-584304-05.A16 584304-05	£1.50	£1.80
15 - NO LONGER AVAILABLE GB BDE-000000-00.A91491 000000-00	-
16 - CHOKE LEAD RED LX BDE-584304-02.A10 584304-02	£4.58	£5.49
16 - NO LONGER AVAILABLE GB BDE-000000-00.A91492 000000-00	-
17 - CHOKE LEAD LX BDE-584304-03.A11 584304-03	£4.58	£5.49
17 - LEAD YELLOW GB BDE-582063-03.A5 582063-03	£4.58	£5.49
18 - BUMPER BDE-930026-01.A133 930026-01	£1.50	£1.80
19 - REPAIR KIT BDE-479833-00.A3 479833-00	-
21 - SLEEVE BDE-870052.A81 870052	£1.50	£1.80
22 - SCREW BDE-324006-14.A70 324006-14	£1.50	£1.80
23 - SCREW BDE-326519-03.A52 326519-03	£1.50	£1.80
25 - BEARING BDE-330003-19.A120 330003-19	£2.78	£3.34
27 - NO LONGER AVAILABLE GB BDE-000000-00.A91493 000000-00	-
29 - INSERT GB BDE-584080-00.A6 584080-00	-
29 - INSERT LX BDE-584551-00.A7 584551-00	£2.26	£2.71
31 - BAFFLE FAN BDE-577826-00.A21 577826-00	£2.78	£3.34
32 - FIELDCASE BDE-577810-00.A1 577810-00	£14.57	£17.48
34 - REPAIR KIT BDE-479833-00.A2 479833-00	-
35 - SCREW BDE-330065-06.A194 330065-06	£1.50	£1.80
36 - CORD CLAMP BDE-821070.A388 821070	£1.50	£1.80
37 - SCREW BDE-330065-13.A32 330065-13	£1.50	£1.80
40 - SCREW BDE-330065-25.A42 330065-25	£1.50	£1.80
50 - INTERSHAFT SA BDE-585480-00.A32 585480-00	£84.42	£101.30
51 - O RING BDE-580907-00.A16 580907-00	£1.42	£1.70
52 - PLATE BDE-578271-00.A2 578271-00	£3.80	£4.56
53 - HOLDER BDE-579564-00.A7 579564-00	£1.50	£1.80
54 - SELECTOR BDE-579552-00.A24 579552-00	£4.69	£5.63
55 - O RING BDE-584638-00.A13 584638-00	£1.50	£1.80
56 - LEVER BDE-587269-00.A26 587269-00	£1.50	£1.80
57 - SCREW BDE-324007-14.A12 324007-14	-
58 - LOCK BUTTON BDE-579184-00.A22 579184-00	£1.50	£1.80
59 - SPRING BDE-579179-00.A9 579179-00	£1.50	£1.80
60 - FILTER BDE-582865-00.A16 582865-00	£1.50	£1.80
61 - COVER BDE-579185-00.A9 579185-00	£1.82	£2.19
62 - SCREW BDE-583981-00.A37 583981-00	£1.50	£1.80
70 - HOUSING SA BDE-585482-00.A5 585482-00	£36.42	£43.70
71 - BEARING BDE-330003-31.A129 330003-31	£2.78	£3.34
72 - SEAL BDE-578229-00.A11 578229-00	£1.50	£1.80
73 - BEARING BLOCK BDE-577801-00.A6 577801-00	£5.88	£7.06
74 - WASHER SHIM BDE-577802-00.A90 577802-00	£2.21	£2.65
75 - PISTON BDE-584420-00.A20 584420-00	£30.08	£36.10
76 - O RING BDE-579699-00.A22 579699-00	£1.50	£1.80
77 - NO LONGER AVAILABLE BDE-000000-00.A91494 000000-00	-
78 - BEARING BUSH BDE-N042808.A22 N042808	£5.88	£7.06
79 - SCREW BDE-324006-15.A27 324006-15	£1.50	£1.80
80 - FILTER BDE-587252-00.A6 587252-00	£1.50	£1.80
90 - CLIP BDE-577793-00.A76 577793-00	£1.50	£1.80
91 - BUSH BDE-584426-00.A53 584426-00	£16.03	£19.24
92 - O RING BDE-580990-00.A34 580990-00	£1.50	£1.80
93 - O RING BDE-577135-00.A22 577135-00	£3.30	£3.96
94 - DAMPER BDE-584425-00.A13 584425-00	£16.03	£19.24
95 - BEAT PIECE BDE-584424-01.A11 584424-01	£10.85	£13.02
96 - BEARING & SEAL BDE-584423-01.A12 584423-01	£19.90	£23.88
97 - SEAL BDE-577139-00.A74 577139-00	£1.50	£1.80
110 - WASHER BDE-577797-00.A55 577797-00	£1.50	£1.80
111 - O RING BDE-577744-00.A82 577744-00	£1.82	£2.19
112 - CLUTCH SA BDE-587482-00.A20 587482-00	£41.24	£49.49
113 - SPRING BDE-579178-00.A44 579178-00	£1.50	£1.80
114 - CYLINDER SA BDE-584422-01.A9 584422-01	£110.62	£132.74
115 - WASHER BDE-577814-00.A82 577814-00	£2.26	£2.71
116 - SCREW BDE-330065-05.A72 330065-05	£1.50	£1.80
117 - LOCKING DEVICE BDE-580291-00.A12 580291-00	£2.26	£2.71
118 - GEARCASE SA BDE-586499-00.A3 586499-00	£25.05	£30.06
119 - RING BDE-577795-00.A0 577795-00	£1.50	£1.80
121 - SCREW BDE-330065-13.A28 330065-13	£1.50	£1.80
130 - SPINDLE BDE-N031254.A23 N031254	£25.05	£30.06
131 - SLEEVE SA BDE-584431-00.A17 584431-00	£37.35	£44.82
132 - SPRING BDE-871690.A217 871690	£1.66	£1.99
133 - WASHER BDE-578387-00.A235 578387-00	£1.66	£1.99
134 - BALL 7MM BDE-583890-00.A31 583890-00	£1.66	£1.99
135 - TUBE BDE-N504215.A53 N504215	£7.18	£8.62
136 - CAP BDE-323489-00.A168 323489-00	£1.66	£1.99
137 - RING BDE-579212-00.A125 579212-00	£1.66	£1.99
140 - HOLDER TOOL BDE-N591846.A15 N591846	£60.94	£73.13
145 - SPINDLE BDE-584676-00.A27 584676-00	£34.00	£40.80
146 - SPINDLE SA BDE-584556-00.A19 584556-00	£55.30	£66.36
147 - CHUCK KEYLESS BDE-582512-02.A14 582512-02	£24.39	£29.27
148 - SCREW BDE-605256-02.A256 605256-02	£1.50	£1.80
150 - CHUCK & SPINDLE SA BDE-N591847.A24 N591847	£51.90	£62.28
160 - SIDE HANDLE BDE-589467-00.A40 589467-00	£7.85	£9.42
170 - DEPTH STOP BDE-798846-02.A23 798846-02	£1.50	£1.80
800 - GREASE 90 GMS BDE-870889-02.A506 870889-02	£7.85	£9.42
801 - GREASE 10 GMS BDE-487130-04.A75 487130-04	£3.80	£4.56
821 - RATING PLATE GB BDE-569037-00.A120 569037-00	£3.80	£4.56
821 - RATING PLATE LX BDE-569037-00.A121 569037-00	£3.80	£4.56
846 - SERVICE KIT 115V LX BDE-585500-00.A11 585500-00	£37.82	£45.38
846 - SERVICE KIT 230V GB BDE-585499-00.A8 585499-00	£59.41	£71.29
