Dewalt D25102K Type 4 Rotary Hammer Spare Parts

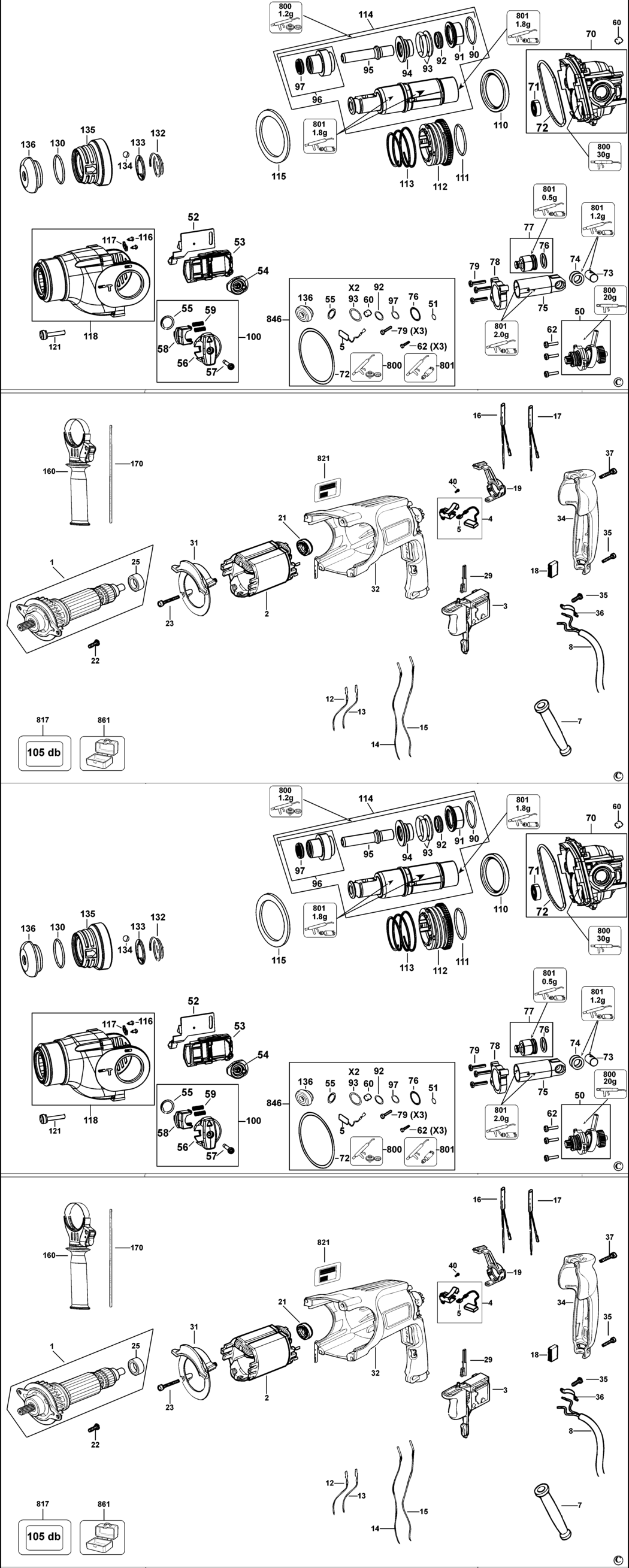

An exploded drawing and spare parts listing for the Dewalt D25102K Type 4 Rotary Hammer

	Ex VAT	Inc VAT
12 - LEAD WHITE BDE-584304-00.A29 584304-00	£1.50	£1.80
12 - LEAD WHITE BDE-584304-00.A30 584304-00	£1.50	£1.80
13 - LEAD BLUE BDE-584304-10.A5 584304-10	£1.50	£1.80
13 - LEAD BLUE BDE-584304-10.A6 584304-10	£1.50	£1.80
14 - LEAD BLACK BDE-584304-04.A6 584304-04	£1.50	£1.80
14 - LEAD BLACK BDE-584304-04.A7 584304-04	£1.50	£1.80
15 - LEAD VIOLET BDE-584304-05.A30 584304-05	£1.50	£1.80
15 - LEAD VIOLET BDE-584304-05.A31 584304-05	£1.50	£1.80
18 - BUMPER BDE-930026-01.A4 930026-01	£1.50	£1.80
18 - BUMPER BDE-930026-01.A5 930026-01	£1.50	£1.80
19 - LEVER BDE-479818-00.A19 479818-00	£1.50	£1.80
19 - LEVER BDE-479818-00.A20 479818-00	£1.50	£1.80
21 - SLEEVE BDE-870052.A229 870052	£1.50	£1.80
21 - SLEEVE BDE-870052.A230 870052	£1.50	£1.80
22 - SCREW BDE-N445171.A20 N445171	£1.50	£1.80
22 - SCREW BDE-324006-14.A23 324006-14	£1.50	£1.80
23 - SCREW BDE-326519-03.A25 326519-03	£1.50	£1.80
23 - SCREW BDE-326519-03.A26 326519-03	£1.50	£1.80
25 - BEARING BDE-330003-19.A256 330003-19	£2.78	£3.34
25 - BEARING BDE-330003-19.A257 330003-19	£2.78	£3.34
29 - INSERT BDE-584551-00.A40 584551-00	£2.26	£2.71
29 - INSERT BDE-584551-00.A41 584551-00	£2.26	£2.71
31 - BAFFLE FAN BDE-577826-00.A13 577826-00	£2.78	£3.34
31 - BAFFLE FAN BDE-577826-00.A14 577826-00	£2.78	£3.34
32 - FIELDCASE BDE-577810-00.A18 577810-00	£14.57	£17.48
32 - FIELDCASE BDE-577810-00.A19 577810-00	£14.57	£17.48
34 - HANDLE COVER BDE-479817-00.A13 479817-00	£14.57	£17.48
34 - HANDLE COVER BDE-479817-00.A14 479817-00	£14.57	£17.48
35 - SCREW BDE-330065-06.A48 330065-06	£1.50	£1.80
35 - SCREW BDE-330065-06.A49 330065-06	£1.50	£1.80
36 - CORD CLAMP BDE-821070.A525 821070	£1.50	£1.80
36 - CORD CLAMP BDE-821070.A526 821070	£1.50	£1.80
37 - SCREW BDE-330065-09.A97 330065-09	£1.50	£1.80
37 - SCREW BDE-330065-09.A98 330065-09	£1.50	£1.80
40 - SCREW BDE-330065-25.A85 330065-25	£1.50	£1.80
40 - SCREW BDE-330065-25.A86 330065-25	£1.50	£1.80
50 - INTERSHAFT SA BDE-585480-00.A12 585480-00	£84.42	£101.30
50 - INTERSHAFT SA BDE-585480-00.A13 585480-00	£84.42	£101.30
52 - PLATE BDE-578271-00.A37 578271-00	£3.80	£4.56
52 - PLATE BDE-578271-00.A38 578271-00	£3.80	£4.56
53 - HOLDER BDE-579564-00.A33 579564-00	£1.50	£1.80
53 - HOLDER BDE-579564-00.A34 579564-00	£1.50	£1.80
54 - SELECTOR BDE-1006437-00.A8 1006437-00	-
54 - SELECTOR BDE-1006437-00.A9 1006437-00	-
55 - O RING BDE-584638-00.A32 584638-00	£1.50	£1.80
55 - O RING BDE-584638-00.A33 584638-00	£1.50	£1.80
56 - KNOB BDE-1006434-00.A10 1006434-00	£2.78	£3.34
56 - KNOB BDE-1006434-00.A11 1006434-00	£2.78	£3.34
57 - SCREW BDE-324007-15.A7 324007-15	£1.50	£1.80
57 - SCREW BDE-324007-15.A8 324007-15	£1.50	£1.80
58 - TRIGGER BDE-1006435-00.A7 1006435-00	£2.78	£3.34
58 - TRIGGER BDE-1006435-00.A8 1006435-00	£2.78	£3.34
59 - SPRING BDE-1008957-00.A30 1008957-00	£1.50	£1.80
59 - SPRING BDE-1008957-00.A31 1008957-00	£1.50	£1.80
60 - FILTER BDE-582865-00.A80 582865-00	£1.50	£1.80
60 - FILTER BDE-582865-00.A81 582865-00	£1.50	£1.80
62 - SCREW BDE-583981-00.A21 583981-00	£1.50	£1.80
62 - SCREW BDE-583981-00.A22 583981-00	£1.50	£1.80
70 - HOUSING SA BDE-N031253.A8 N031253	£37.82	£45.38
70 - HOUSING SA BDE-N031253.A9 N031253	£37.82	£45.38
71 - BEARING BDE-330003-31.A5 330003-31	£2.78	£3.34
71 - BEARING BDE-330003-31.A6 330003-31	£2.78	£3.34
72 - SEAL BDE-578229-00.A42 578229-00	£1.50	£1.80
72 - SEAL BDE-578229-00.A43 578229-00	£1.50	£1.80
73 - BEARING BLOCK BDE-577801-00.A62 577801-00	£5.88	£7.06
73 - BEARING BLOCK BDE-577801-00.A63 577801-00	£5.88	£7.06
74 - WASHER SHIM BDE-577802-00.A19 577802-00	£2.21	£2.65
74 - WASHER SHIM BDE-577802-00.A20 577802-00	£2.21	£2.65
75 - PISTON BDE-496246-00.A14 496246-00	£18.91	£22.69
75 - PISTON BDE-496246-00.A15 496246-00	£18.91	£22.69
76 - O RING BDE-579699-00.A68 579699-00	£1.50	£1.80
76 - O RING BDE-579699-00.A69 579699-00	£1.50	£1.80
77 - RAM BDE-496245-00.A23 496245-00	£17.48	£20.97
77 - RAM BDE-496245-00.A24 496245-00	£17.48	£20.97
78 - BEARING BUSH BDE-N042808.A33 N042808	£5.88	£7.06
78 - BEARING BUSH BDE-N042808.A34 N042808	£5.88	£7.06
79 - SCREW BDE-324006-15.A79 324006-15	£1.50	£1.80
79 - SCREW BDE-324006-15.A80 324006-15	£1.50	£1.80
90 - CLIP BDE-577793-00.A10 577793-00	£1.50	£1.80
90 - CLIP BDE-577793-00.A11 577793-00	£1.50	£1.80
91 - BUSH BDE-584426-00.A2 584426-00	£16.03	£19.24
91 - BUSH BDE-584426-00.A3 584426-00	£16.03	£19.24
92 - O RING BDE-580990-00.A87 580990-00	£1.50	£1.80
92 - O RING BDE-580990-00.A88 580990-00	£1.50	£1.80
93 - O RING BDE-577135-00.A69 577135-00	£3.30	£3.96
93 - O RING BDE-577135-00.A70 577135-00	£3.30	£3.96
94 - DAMPER BDE-584425-00.A63 584425-00	£16.03	£19.24
94 - DAMPER BDE-584425-00.A64 584425-00	£16.03	£19.24
95 - BEAT PIECE BDE-584424-00.A46 584424-00	£17.48	£20.97
95 - BEAT PIECE BDE-584424-00.A47 584424-00	£17.48	£20.97
96 - BEARING & SEAL BDE-584423-00.A52 584423-00	£18.91	£22.69
96 - BEARING & SEAL BDE-584423-00.A53 584423-00	£18.91	£22.69
97 - SEAL BDE-577139-00.A15 577139-00	£1.50	£1.80
97 - SEAL BDE-577139-00.A16 577139-00	£1.50	£1.80
100 - LEVER KIT BDE-N031251.A12 N031251	£12.17	£14.60
100 - LEVER KIT BDE-N031251.A13 N031251	£12.17	£14.60
110 - WASHER BDE-577797-00.A8 577797-00	£1.50	£1.80
110 - WASHER BDE-577797-00.A9 577797-00	£1.50	£1.80
111 - O RING BDE-577744-00.A3 577744-00	£1.82	£2.19
111 - O RING BDE-577744-00.A4 577744-00	£1.82	£2.19
112 - CLUTCH SA BDE-587482-00.A44 587482-00	£41.24	£49.49
112 - CLUTCH SA BDE-587482-00.A45 587482-00	£41.24	£49.49
113 - SPRING BDE-579178-00.A15 579178-00	£1.50	£1.80
113 - SPRING BDE-579178-00.A16 579178-00	£1.50	£1.80
114 - CYLINDER SA BDE-584422-00.A43 584422-00	£108.20	£129.84
114 - CYLINDER SA BDE-584422-00.A44 584422-00	£108.20	£129.84
115 - WASHER BDE-577814-00.A11 577814-00	£2.26	£2.71
115 - WASHER BDE-577814-00.A12 577814-00	£2.26	£2.71
116 - SCREW BDE-330065-05.A128 330065-05	£1.50	£1.80
116 - SCREW BDE-330065-05.A129 330065-05	£1.50	£1.80
117 - LOCKING DEVICE BDE-580291-00.A36 580291-00	£2.26	£2.71
117 - LOCKING DEVICE BDE-580291-00.A37 580291-00	£2.26	£2.71
118 - HOUSING SA BDE-586501-00.A3 586501-00	£24.39	£29.27
118 - HOUSING SA BDE-586501-00.A4 586501-00	£24.39	£29.27
121 - SCREW BDE-330065-28.A24 330065-28	£1.50	£1.80
121 - SCREW BDE-330065-28.A25 330065-28	£1.50	£1.80
130 - RING BDE-579212-00.A57 579212-00	£1.66	£1.99
130 - RING BDE-579212-00.A58 579212-00	£1.66	£1.99
132 - SPRING BDE-871690.A101 871690	£1.66	£1.99
132 - SPRING BDE-871690.A102 871690	£1.66	£1.99
133 - WASHER BDE-578387-00.A76 578387-00	£1.66	£1.99
133 - WASHER BDE-578387-00.A77 578387-00	£1.66	£1.99
134 - BALL 7MM BDE-583890-00.A169 583890-00	£1.66	£1.99
134 - BALL 7MM BDE-583890-00.A170 583890-00	£1.66	£1.99
135 - TUBE BDE-N774198.A20 N774198	£12.17	£14.60
135 - TUBE BDE-N774198.A21 N774198	£12.17	£14.60
136 - CAP BDE-323489-00.A65 323489-00	£1.66	£1.99
136 - CAP BDE-323489-00.A66 323489-00	£1.66	£1.99
170 - DEPTH STOP BDE-495699-00.A10 495699-00	£7.85	£9.42
170 - DEPTH STOP BDE-495699-00.A11 495699-00	£7.85	£9.42
800 - GREASE 90 GMS BDE-870889-02.A36 870889-02	£7.85	£9.42
800 - GREASE 90 GMS BDE-870889-02.A37 870889-02	£7.85	£9.42
801 - GREASE 10 GMS BDE-487130-04.A103 487130-04	£3.80	£4.56
801 - GREASE 10 GMS BDE-487130-04.A104 487130-04	£3.80	£4.56
817 - LABEL BDE-496620-00.A9 496620-00	£1.50	£1.80
817 - LABEL BDE-496620-00.A10 496620-00	£1.50	£1.80
861 - NO LONGER AVAILABLE BDE-000000-00.A30171 000000-00	-
861 - KITBOX BDE-N383875.A6 N383875	£24.39	£29.27
