Dewalt DCM575 Type 1 Chainsaw Spare Parts

Home Details Reviews Delivery

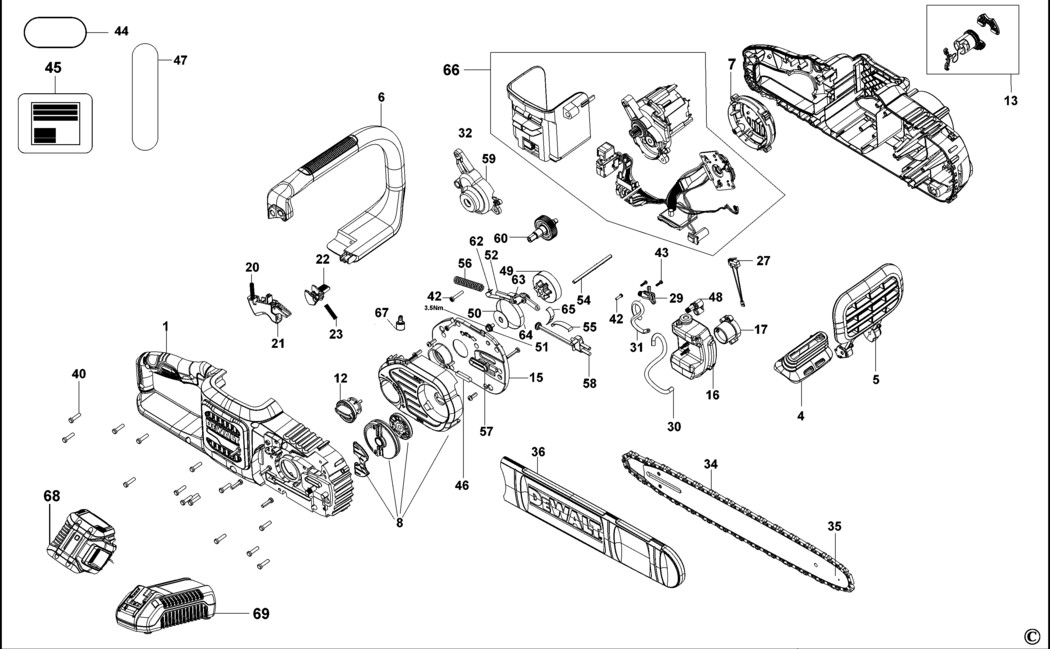

An exploded drawing and spare parts listing for the Dewalt DCM575 Type 1 Chainsaw

	Ex VAT	Inc VAT
1 - HOUSING SA BDE-90630448 90630448	£58.69	£70.43
2 - FIELD SA BDE-N526668 N526668	-
3 - ROTOR SA BDE-N526669 N526669	-
4 - SCREW BDE-330019-05.A60 330019-05	£1.50	£1.80
4 - SEAL BDE-90636798.A0 90636798	£5.88	£7.06
5 - GEARCASE COVER BDE-N897599.A0 N897599	£95.08	£114.10
5 - GUARD BDE-90609587.A3 90609587	£7.18	£8.62
6 - HANDLE BDE-90630455.A0 90630455	£16.03	£19.24
6 - BEARING BDE-N150961.A38 N150961	£2.78	£3.34
7 - RING BDE-90551022.A1 90551022	£1.50	£1.80
7 - CAP SA BDE-90635490.A0 90635490	£7.18	£8.62
8 - COVER BDE-N723753.A2 N723753	£17.48	£20.97
8 - PUMP SA BDE-90624557.A1 90624557	£9.41	£11.29
9 - OUTPUT SHAFT SA BDE-N526479.A1 N526479	£14.57	£17.48
10 - CONTROL MODULE SA BDE-N531281 N531281	-
11 - SWITCH BDE-N470030 N470030	£17.03	£20.44
12 - KNOB BDE-N738912.A2 N738912	£3.30	£3.96
12 - TERMINAL BDE-N416900.A0 N416900	£5.88	£7.06
13 - SCREW BDE-N034545.A0 N034545	£1.50	£1.80
13 - CAP BDE-90618141.A1 90618141	£4.69	£5.63
14 - SWITCH BDE-90637896.A0 90637896	£5.88	£7.06
15 - COVER BDE-90609778.A1 90609778	£4.69	£5.63
15 - CAP SA BDE-90635490.A1 90635490	£7.18	£8.62
16 - TRIGGER BDE-90613570.A1 90613570	£1.50	£1.80
16 - TANK BDE-90618137.A1 90618137	£5.88	£7.06
17 - ADAPTOR BDE-90618138.A1 90618138	£1.50	£1.80
17 - SPRING COMPRESSION BDE-90623323.A3 90623323	£1.50	£1.80
18 - LEVER LOCK BDE-90613569.A1 90613569	£1.50	£1.80
19 - SPRING BDE-90620179.A1 90620179	£1.50	£1.80
20 - PIN BDE-5119820-00.A0 5119820-00	£1.50	£1.80
20 - SPRING COMPRESSION BDE-90623323.A2 90623323	£1.50	£1.80
21 - TRIGGER BDE-90613570.A0 90613570	£1.50	£1.80
21 - FILTER SA BDE-90622705.A1 90622705	£1.50	£1.80
22 - LEVER LOCK BDE-90613569.A2 90613569	£1.50	£1.80
23 - SPRING BDE-90620179.A0 90620179	£1.50	£1.80
23 - TANK BDE-90618137.A2 90618137	£5.88	£7.06
24 - ADAPTOR BDE-90618138.A0 90618138	£1.50	£1.80
25 - SEAL BDE-90618142.A0 90618142	£1.50	£1.80
26 - O RING BDE-90618339.A1 90618339	£1.50	£1.80
27 - SCREW BDE-330019-28.A25 330019-28	£1.50	£1.80
27 - SWITCH BRAKE SWITCH BDE-90637896.A1 90637896	£5.88	£7.06
28 - TUBE BDE-90609541.A1 90609541	£1.50	£1.80
29 - PUMP SA BDE-90624557.A2 90624557	£9.41	£11.29
29 - SEAL BDE-90104259.A1 90104259	£1.50	£1.80
30 - TUBE BDE-90609541.A2 90609541	£1.50	£1.80
30 - VALVE BDE-90618295.A0 90618295	£1.50	£1.80
31 - CAP BDE-90618141.A2 90618141	£4.69	£5.63
31 - TUBE BDE-90609542.A0 90609542	£1.50	£1.80
32 - TERMINAL BDE-N416900.A1 N416900	£5.88	£7.06
32 - TUBE BDE-90609542.A1 90609542	£1.50	£1.80
33 - SPRING BDE-90620845.A0 90620845	£1.50	£1.80
34 - PLUG BDE-90104269.A0 90104269	£1.50	£1.80
34 - CHAIN BDE-N594321.A1 N594321	£24.39	£29.27
35 - O RING BDE-90104270.A2 90104270	£1.50	£1.80
35 - GUIDE BDE-N594320.A1 N594320	£45.14	£54.17
36 - SHEATH BDE-90619707.A2 90619707	£9.41	£11.29
36 - BATTERY CASE SA BDE-90634466 90634466	£12.17	£14.60
37 - SCREW BDE-330019-13.A479 330019-13	£1.50	£1.80
38 - SPROCKET BDE-90618228.A0 90618228	£7.85	£9.42
39 - WASHER BDE-90618229.A3 90618229	£1.58	£1.89
40 - SCREW BDE-330019-13.A478 330019-13	£1.50	£1.80
40 - BOLT BDE-90639221.A1 90639221	£1.66	£1.99
41 - SCREW.TEMP BDE-330019-11.A129 330019-11	£1.50	£1.80
41 - GUARD BDE-90609587.A2 90609587	£7.18	£8.62
42 - SCREW BDE-330019-14.A45 330019-14	£1.50	£1.80
42 - SEAL BDE-90636798.A1 90636798	£5.88	£7.06
43 - SCREW BDE-330019-28.A24 330019-28	£1.50	£1.80
43 - BRAKE SA BDE-N561349 N561349	-
44 - SPRING BDE-N533060 N533060	£1.50	£1.80
44 - LABEL BDE-90641858 90641858	£1.50	£1.80
45 - PIN BDE-90594864.A1 90594864	£1.50	£1.80
45 - RATING LABEL GB BDE-N504111 N504111	£1.50	£1.80
46 - SEAL BDE-90622086.A1 90622086	£1.50	£1.80
46 - PIN BDE-90618528.A1 90618528	£1.50	£1.80
47 - LABEL BDE-90625494 90625494	£1.50	£1.80
47 - LEAF SPRING BDE-90622670.A1 90622670	£1.50	£1.80
48 - LEAF SPRING BDE-90621730.A3 90621730	£1.50	£1.80
48 - PLUG BDE-90104269.A1 90104269	£1.50	£1.80
49 - FOAM BDE-90625343.A1 90625343	£1.50	£1.80
49 - SPROCKET BDE-90618228.A1 90618228	£7.85	£9.42
50 - SEAL BDE-90618051.A1 90618051	£1.66	£1.99
50 - WASHER BDE-90618229.A2 90618229	£1.58	£1.89
51 - BOLT BDE-90639221.A0 90639221	£1.66	£1.99
51 - CLAMP SA BDE-N558327 N558327	-
52 - SCREW BDE-N555910 N555910	£4.69	£5.63
52 - BRAKE SA BDE-90619644.A1 90619644	£12.17	£14.60
53 - SHAFT BDE-90617662.A1 90617662	£1.50	£1.80
54 - GEAR BDE-90617659.A1 90617659	£1.50	£1.80
54 - PIN BDE-90618528.A2 90618528	£1.50	£1.80
55 - WASHER BDE-90629979 90629979	-
55 - LEAF SPRING BDE-90621730.A2 90621730	£1.50	£1.80
56 - SPRING BDE-90609777.A2 90609777	£1.50	£1.80
56 - COVER BDE-90609778.A0 90609778	£4.69	£5.63
57 - KNOB BDE-N738912.A1 N738912	£3.30	£3.96
57 - SEAL BDE-90618051.A2 90618051	£1.66	£1.99
58 - ADJUSTER BDE-90626481.A0 90626481	£14.57	£17.48
58 - COVER BDE-N723753.A3 N723753	£17.48	£20.97
59 - GEARCASE COVER BDE-N897599.A1 N897599	£95.08	£114.10
59 - SEAL BDE-90622086.A0 90622086	£1.50	£1.80
60 - OUTPUT SHAFT SA BDE-N526479.A0 N526479	£14.57	£17.48
61 - HANDLE BDE-90630455.A1 90630455	£16.03	£19.24
62 - PIN BDE-90594864.A2 90594864	£1.50	£1.80
62 - SCREW BDE-330019-14.A46 330019-14	£1.50	£1.80
63 - SPIROL PIN BDE-90627301.A2 90627301	£1.50	£1.80
63 - FOAM BDE-90634469 90634469	-
64 - STRAP BDE-90638025.A1 90638025	£1.50	£1.80
64 - GUIDE BDE-N594320.A2 N594320	£45.14	£54.17
65 - LEAF SPRING BDE-90622670.A2 90622670	£1.50	£1.80
65 - CHAIN BDE-N594321.A0 N594321	£24.39	£29.27
66 - SHEATH BDE-90619707.A1 90619707	£9.41	£11.29
66 - MOTOR & SWITCH SA BDE-N534127 N534127	£183.42	£220.10
67 - FILTER SA BDE-90622705.A2 90622705	£1.50	£1.80
68 - BATTERY 3 X18V-9.0AH-162WH GB BDE-N491552.A1 N491552	£371.62	£445.95
69 - CHARGER GB GB BDE-N473855.A1 N473855	£183.42	£220.10
800 - GREASE 50 GMS BDE-583534-00.A154 583534-00	£144.10	£172.92

Attribute Name	Value
Brand	Dewalt
