Dewalt DWE4887N Type 1 Die Grinder Spare Parts

Home Details Reviews Delivery

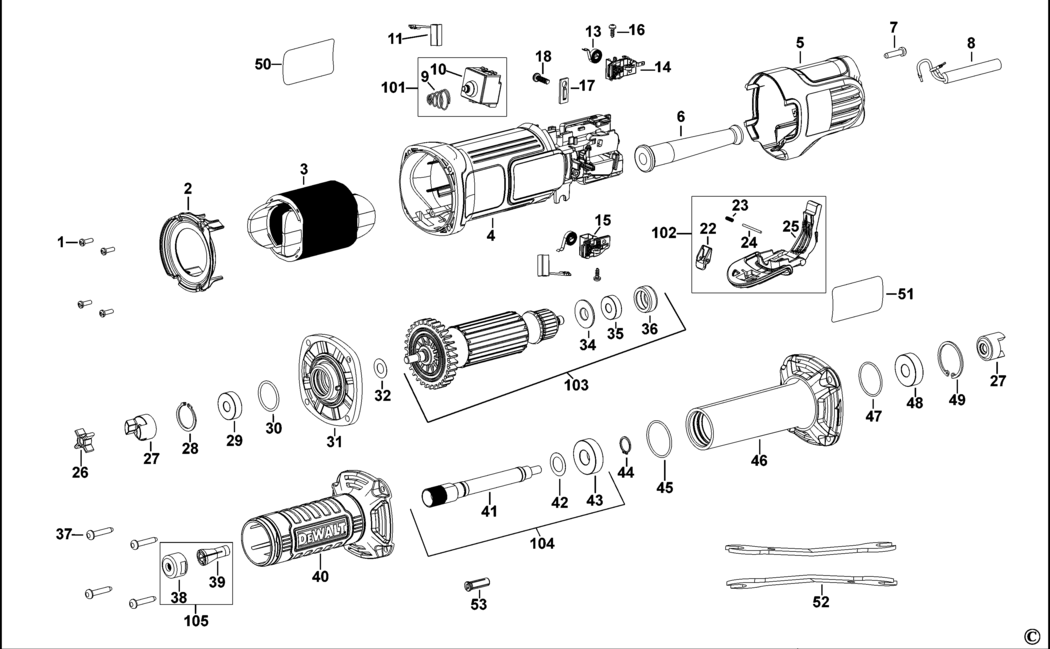

An exploded drawing and spare parts listing for the Dewalt DWE4887N Type 1 Die Grinder

	Ex VAT	Inc VAT
1 - SCREW BDE-330065-25.A151 330065-25	£1.66	£1.99
2 - BAFFLE BDE-N132864.A20 N132864	£1.66	£1.99
3 - FIELD SA BDE-N386329.A0 N386329	£34.00	£40.80
4 - FIELDCASE BDE-N122019-01.A3 N122019-01	£8.08	£9.70
5 - HOUSING BDE-N122020-01.A1 N122020-01	£3.92	£4.70
6 - CORD PROTECTOR BDE-N447519.A15 N447519	£1.66	£1.99
7 - SCREW BDE-N017839.A34 N017839	£1.66	£1.99
9 - SPRING BDE-N260662.A2 N260662	£1.66	£1.99
10 - SWITCH BDE-N327459.A0 N327459	£3.92	£4.70
11 - BRUSH PAIR BDE-N183725.A1 N183725	£8.08	£9.70
13 - SPRING BDE-N097703.A33 N097703	£1.66	£1.99
14 - BRUSHBOX BDE-N097702.A12 N097702	£1.88	£2.26
15 - BRUSHBOX BDE-N167600.A4 N167600	£1.66	£1.99
16 - SCREW BDE-593478-00.A8 593478-00	£1.66	£1.99
17 - CORD CLAMP BDE-619328-00.A5 619328-00	£1.66	£1.99
18 - SCREW BDE-562097-00.A10 562097-00	£1.66	£1.99
22 - LEVER LOCK-OFF BDE-397657-00.A7 397657-00	£1.66	£1.99
23 - SPRING BDE-150264-01.A18 150264-01	£1.66	£1.99
24 - ROLL PIN BDE-099204-14.A15 099204-14	£1.66	£1.99
25 - LEVER BDE-N126770.A2 N126770	£1.88	£2.26
26 - DRIVER BDE-N275347.A1 N275347	£1.66	£1.99
27 - COUPLING BDE-N275349.A2 N275349	£2.87	£3.44
28 - RING BDE-N286522.A3 N286522	£1.66	£1.99
29 - BEARING BDE-N175104.A2 N175104	£3.39	£4.07
30 - O RING BDE-N119639.A25 N119639	£1.66	£1.99
31 - STATOR BDE-N283650.A3 N283650	£8.08	£9.70
32 - WASHER BDE-N213812.A24 N213812	£1.66	£1.99
34 - WASHER BDE-N101228.A20 N101228	£1.66	£1.99
34 - BEARING BDE-N130916.A64 N130916	£2.32	£2.78
35 - BEARING BDE-N130916.A65 N130916	£2.32	£2.78
35 - WASHER BDE-N101228.A21 N101228	£1.66	£1.99
36 - SLEEVE BDE-641823-00.A187 641823-00	£1.66	£1.99
37 - SCREW BDE-N354900.A2 N354900	£1.66	£1.99
38 - NUT BDE-N382458.A3 N382458	£3.92	£4.70
39 - COLLET 6MM BDE-N382457.A1 N382457	£12.53	£15.04
40 - NOSE BDE-N287179.A3 N287179	£7.40	£8.88
41 - OUTPUT SHAFT BDE-N275348.A3 N275348	£12.53	£15.04
42 - WASHER BDE-638229-00.A46 638229-00	£1.66	£1.99
43 - BEARING BDE-605040-24.A54 605040-24	£3.39	£4.07
44 - RETAINER BDE-N027674.A2 N027674	£1.66	£1.99
45 - O RING BDE-N100358.A7 N100358	£1.66	£1.99
46 - NOSE BDE-N275343.A2 N275343	£15.01	£18.01
47 - O RING BDE-N308579.A2 N308579	£1.66	£1.99
48 - BEARING BALL BDE-605040-17.A2 605040-17	£12.53	£15.04
49 - RETAINER BDE-N184706.A2 N184706	£1.66	£1.99
51 - BRAND LABEL BDE-N149175.A16 N149175	£1.66	£1.99
52 - SPANNER BDE-N332459.A3 N332459	£3.39	£4.07
53 - COLLET BDE-N275352.A2 N275352	£12.53	£15.04
101 - SWITCH SA BDE-N261500.A2 N261500	£7.40	£8.88
102 - PADDLE BDE-N232486.A2 N232486	£3.39	£4.07
103 - ARMATURE SA BDE-N386326.A1 N386326	£42.48	£50.98
104 - SPINDLE SA BDE-N396960.A3 N396960	£15.01	£18.01
105 - COLLET & NUT SA BDE-N382456.A1 N382456	£16.52	£19.82
