Dewalt DWE4884 Type 1 Die Grinder Spare Parts

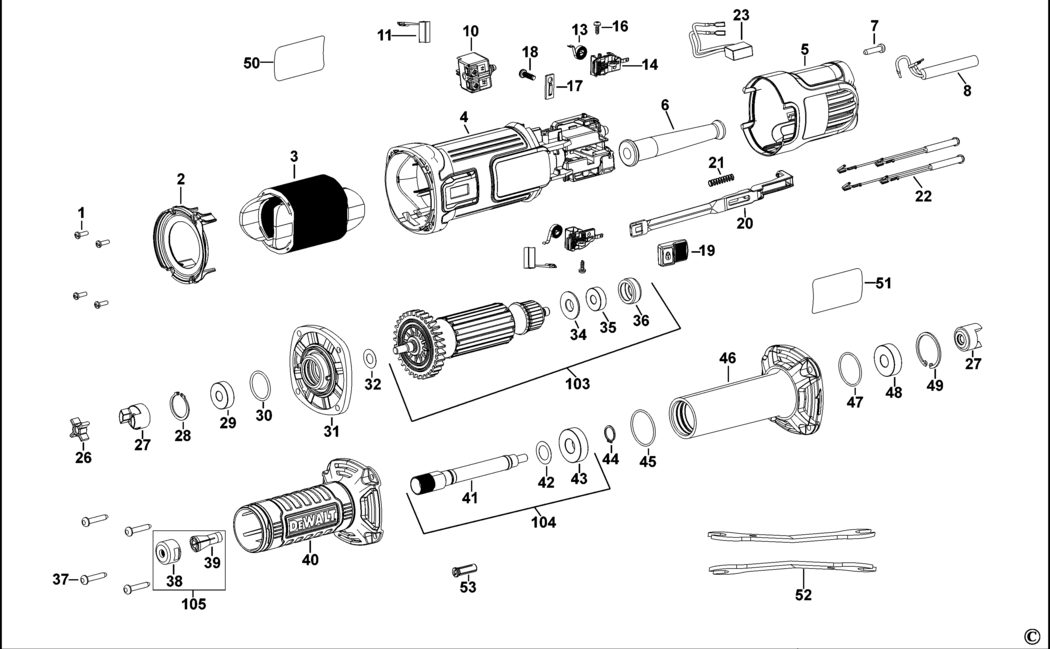

An exploded drawing and spare parts listing for the Dewalt DWE4884 Type 1 Die Grinder

	Ex VAT	Inc VAT
1 - SCREW BDE-330065-25.A152 330065-25	£1.50	£1.80
2 - BAFFLE BDE-N132864.A19 N132864	£1.50	£1.80
4 - FIELDCASE BDE-N115131.A2 N115131	£9.41	£11.29
5 - HOUSING BDE-N115132.A3 N115132	£3.80	£4.56
6 - CORD PROTECTOR BDE-N447519.A16 N447519	£1.50	£1.80
7 - SCREW BDE-N017839.A33 N017839	£1.50	£1.80
10 - SWITCH BDE-N327459.A1 N327459	£3.80	£4.56
13 - SPRING BDE-N097703.A34 N097703	£1.50	£1.80
14 - BRUSHBOX BDE-N097702.A11 N097702	£1.82	£2.19
16 - SCREW BDE-593478-00.A7 593478-00	£1.50	£1.80
17 - CORD CLAMP BDE-619328-00.A6 619328-00	£1.50	£1.80
18 - SCREW BDE-562097-00.A11 562097-00	£1.50	£1.80
19 - BUTTON BDE-N097844.A23 N097844	£1.50	£1.80
20 - LINK BDE-N117648.A7 N117648	£1.50	£1.80
21 - SPRING BDE-N093410.A10 N093410	£1.50	£1.80
26 - DRIVER BDE-N275347.A2 N275347	£1.50	£1.80
27 - COUPLING BDE-N275349.A1 N275349	£2.78	£3.34
28 - RING BDE-N286522.A2 N286522	£1.50	£1.80
29 - BEARING BDE-N175104.A3 N175104	£3.30	£3.96
30 - O RING BDE-N119639.A24 N119639	£1.50	£1.80
31 - STATOR BDE-N283650.A4 N283650	£7.85	£9.42
32 - WASHER BDE-N213812.A25 N213812	£1.50	£1.80
34 - WASHER BDE-N101228.A22 N101228	£1.50	£1.80
35 - BEARING BDE-N130916.A63 N130916	£2.26	£2.71
36 - SLEEVE BDE-641823-00.A188 641823-00	£1.50	£1.80
37 - SCREW BDE-N354900.A3 N354900	£1.50	£1.80
38 - NUT BDE-N382458.A4 N382458	£3.80	£4.56
40 - NOSE BDE-N287179.A2 N287179	£7.18	£8.62
41 - OUTPUT SHAFT BDE-N275348.A2 N275348	£12.17	£14.60
42 - WASHER BDE-638229-00.A45 638229-00	£1.50	£1.80
43 - BEARING BDE-605040-24.A55 605040-24	£3.30	£3.96
44 - RETAINER BDE-N027674.A1 N027674	£1.50	£1.80
45 - O RING BDE-N398026.A2 N398026	£1.50	£1.80
46 - NOSE BDE-N275343.A3 N275343	£14.57	£17.48
47 - O RING BDE-N308579.A3 N308579	£1.50	£1.80
48 - BEARING BALL BDE-605040-17.A1 605040-17	£12.17	£14.60
49 - RETAINER BDE-N184706.A1 N184706	£1.50	£1.80
51 - BRAND LABEL BDE-N149175.A15 N149175	£1.50	£1.80
52 - SPANNER BDE-N332459.A2 N332459	£3.30	£3.96
53 - COLLET BDE-N275352.A1 N275352	£12.17	£14.60
104 - SPINDLE SA BDE-N396960.A2 N396960	£14.57	£17.48

Attribute Name	Value
Brand	Dewalt
