Dewalt D28715 Type 1 Chop Saw Spare Parts

Home Details Reviews Delivery

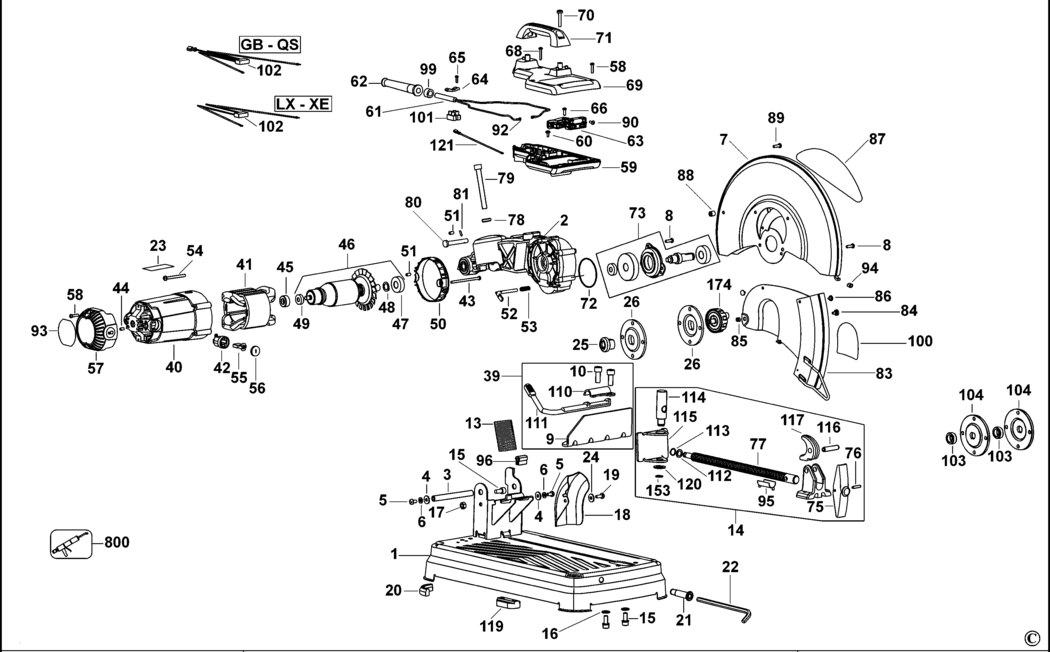

An exploded drawing and spare parts listing for the Dewalt D28715 Type 1 Chop Saw

	Ex VAT	Inc VAT
1 - BASE BDE-639944-01.A1 639944-01	£113.93	£136.72
2 - ARM BDE-N105335.A0 N105335	£73.58	£88.30
3 - PIVOT SHAFT BDE-621101-00.A3 621101-00	£4.83	£5.80
4 - WASHER BDE-330016-18.A7 330016-18	£1.66	£1.99
5 - SCREW BDE-153778-01.A5 153778-01	£1.66	£1.99
6 - WASHER LOCK BDE-098197-10.A6 098197-10	£1.66	£1.99
7 - GUARD UPPER BDE-639967-00.A0 639967-00	£42.48	£50.98
8 - SCREW BDE-330045-15.A82 330045-15	£1.66	£1.99
9 - FENCE BDE-382677-00.A7 382677-00	£4.83	£5.80
10 - SCREW BDE-383450-00.A5 383450-00	£1.66	£1.99
13 - SPRING BDE-387282-00.A10 387282-00	£7.40	£8.88
14 - VICE BDE-384180-00.A2 384180-00	£42.48	£50.98
15 - SCREW BDE-098123-16.A10 098123-16	£1.66	£1.99
16 - WASHER BDE-098197-09.A6 098197-09	£1.66	£1.99
17 - NUT BDE-330021-02.A33 330021-02	£1.66	£1.99
18 - DEFLECTOR BDE-648524-00.A0 648524-00	£7.40	£8.88
19 - SCREW BDE-330045-64.A1 330045-64	£1.66	£1.99
20 - FOOT BDE-383243-00.A11 383243-00	£1.66	£1.99
21 - HOLDER TOOL BDE-386765-00.A9 386765-00	£1.66	£1.99
22 - WRENCH BDE-384717-00.A4 384717-00	£1.66	£1.99
23 - RATING PLATE GB BDE-647916-00 647916-00	-
23 - RATING PLATE LX BDE-647919-00 647919-00	-
24 - RETAINER BDE-389750-00.A0 389750-00	£1.66	£1.99
25 - ADAPTOR LX BDE-649352-00.A4 649352-00	£3.92	£4.70
25 - ADAPTOR GB BDE-649352-00.A5 649352-00	£3.92	£4.70
26 - WASHER CLAMP GB BDE-649353-00.A1 649353-00	£6.06	£7.27
26 - WASHER CLAMP LX BDE-649353-00.A2 649353-00	£6.06	£7.27
39 - FENCE SA BDE-384137-00.A1 384137-00	£16.52	£19.82
40 - FIELDCASE GB BDE-621067-00.A1 621067-00	£20.50	£24.60
40 - FIELDCASE LX BDE-621067-00.A2 621067-00	£20.50	£24.60
41 - FIELD SA 115V LX BDE-640192-00 640192-00	-
41 - FIELD 230V GB BDE-640192-01 640192-01	£112.86	£135.43
42 - BRUSH HOLDER BDE-622440-00.A5 622440-00	£3.92	£4.70
43 - SCREW BDE-330019-34.A32 330019-34	£1.66	£1.99
44 - SCREW BDE-330022-18.A6 330022-18	£12.53	£15.04
45 - RUBBER BOOT BDE-660165-00.A4 660165-00	£1.66	£1.99
46 - ARMATURE SA GB BDE-621069-01.A1 621069-01	£128.92	£154.70
46 - ARMATURE 115V LX BDE-621069-02SV.A1 621069-02SV	£53.46	£64.15
47 - BEARING BDE-605040-27.A13 605040-27	£4.83	£5.80
48 - CIRCLIP BDE-144803-00.A63 144803-00	£1.66	£1.99
49 - BEARING BDE-330003-60.A64 330003-60	£2.87	£3.44
50 - BAFFLE FAN BDE-391375-00.A13 391375-00	-
51 - PLUG BDE-623092-00.A1 623092-00	£1.66	£1.99
52 - SPINDLE LOCK BDE-621087-00.A0 621087-00	£2.32	£2.78
53 - SPRING BDE-621088-00.A6 621088-00	£1.66	£1.99
54 - SCREW BDE-98094-55.A40 98094-55	£1.66	£1.99
55 - BRUSH PAIR SA LX BDE-N088936.A2 N088936	£8.08	£9.70
55 - BRUSH PAIR SA GB BDE-N088936.A3 N088936	£8.08	£9.70
56 - BRUSH CAP BDE-622441-00.A13 622441-00	£1.66	£1.99
57 - END CAP BDE-621118-00.A2 621118-00	£4.83	£5.80
58 - SCREW BDE-330019-13.A86 330019-13	£1.66	£1.99
59 - LOWER HANDLE LX BDE-639958-00.A0 639958-00	£15.01	£18.01
59 - LOWER HANDLE GB BDE-639958-00.A1 639958-00	£15.01	£18.01
60 - SCREW BDE-330045-06.A127 330045-06	£1.66	£1.99
61 - CORDSET LX BDE-330061-30.A1 330061-30	£38.48	£46.17
61 - CORDSET (M/PLUG) GB GB BDE-330060-92.A1 330060-92	£20.50	£24.60
62 - CORD PROTECTOR LX BDE-330005-12.A0 330005-12	£1.66	£1.99
62 - CORD PROTECTOR GB BDE-330005-02.A21 330005-02	£1.88	£2.26
63 - NO LONGER AVAILABLE GB BDE-000000-00.A29138 000000-00	-
63 - NO LONGER AVAILABLE LX BDE-000000-00.A29139 000000-00	-
64 - CORD CLAMP BDE-386540-00.A12 386540-00	£1.66	£1.99
65 - SCREW BDE-330019-02.A140 330019-02	£1.66	£1.99
66 - SCREW.TEMP BDE-330019-11.A30 330019-11	£1.66	£1.99
68 - SCREW BDE-330045-08.A37 330045-08	£1.66	£1.99
69 - HANDLE UPPER LX BDE-639963-00.A2 639963-00	£15.01	£18.01
69 - HANDLE UPPER GB BDE-639963-00.A3 639963-00	£15.01	£18.01
70 - HANDLE BDE-621082-00.A2 621082-00	£2.32	£2.78
71 - SCREW BDE-330019-22.A54 330019-22	£1.66	£1.99
72 - O RING BDE-099180-46.A4 099180-46	£1.66	£1.99
73 - GEAR & SPINDLE SA BDE-621074-01.A0 621074-01	£30.98	£37.18
75 - LOCK HANDLE BDE-383252-00.A3 383252-00	£1.88	£2.26
76 - PIN BDE-330036-08.A4 330036-08	£1.66	£1.99
77 - ROD BDE-395856-00.A5 395856-00	£19.48	£23.37
78 - WASHER SPECIAL BDE-383246-01.A1 383246-01	£1.66	£1.99
79 - SCREW BDE-383286-00.A10 383286-00	£1.66	£1.99
80 - PIN BDE-621104-00.A1 621104-00	£1.88	£2.26
81 - PIN BDE-330036-00.A1 330036-00	£1.66	£1.99
83 - GUARD LOWER GB BDE-639971-01.A1 639971-01	£35.02	£42.02
83 - GUARD LOWER LX BDE-639971-01.A2 639971-01	£35.02	£42.02
84 - SCREW.SPECIAL BDE-384844-00.A8 384844-00	£1.66	£1.99
85 - LOCK-NUT BDE-148641-00.A29 148641-00	£1.66	£1.99
86 - BUMPER BDE-383637-00.A0 383637-00	£1.66	£1.99
87 - IDENTITY LABEL BDE-621093-00.A2 621093-00	£1.66	£1.99
88 - SPACER BDE-629619-00.A3 629619-00	£1.66	£1.99
89 - SCREW BDE-330045-16.A11 330045-16	£1.66	£1.99
90 - SCREW BDE-648204-00 648204-00	-
92 - TERMINAL BDE-625933-00.A1 625933-00	£6.06	£7.27
93 - NO LONGER AVAILABLE BDE-000000-00.A29140 000000-00	-
94 - STOP RUBBER BDE-386526-00.A0 386526-00	£1.66	£1.99
95 - SADDLE BDE-383451-00.A7 383451-00	£1.66	£1.99
96 - STOP BDE-642739-00.A1 642739-00	£1.66	£1.99
99 - BUSH LX BDE-388414-01.A27 388414-01	£1.66	£1.99
99 - BUSH GB BDE-388414-01.A28 388414-01	£1.66	£1.99
100 - LABEL BDE-639986-00.A0 639986-00	£1.66	£1.99
101 - TERMINAL BLOCK BDE-393520-00.A11 393520-00	£6.06	£7.27
102 - CAPACITOR LX BDE-628939-00.A2 628939-00	£8.08	£9.70
102 - CAPACITOR GB BDE-650011-00.A0 650011-00	£4.83	£5.80
103 - ADAPTOR BDE-649352-00.A6 649352-00	£3.92	£4.70
104 - WASHER CLAMP BDE-649353-00.A0 649353-00	£6.06	£7.27
110 - PLATE LOCK BDE-391459-00.A9 391459-00	£3.92	£4.70
111 - LEVER BDE-382540-00.A3 382540-00	£6.06	£7.27
112 - WASHER BDE-384365-00.A5 384365-00	£1.66	£1.99
113 - CIRCLIP BDE-383169-00.A12 383169-00	£1.66	£1.99
114 - PIN BDE-603988-00.A2 603988-00	£3.92	£4.70
115 - VICE JAW BDE-607278-00.A6 607278-00	£8.08	£9.70
116 - DOWEL BDE-386525-01.A11 386525-01	£1.66	£1.99
117 - LOCKING DEVICE BDE-383828-00.A7 383828-00	£11.18	£13.41
119 - BLOCK BDE-383254-00.A7 383254-00	£7.40	£8.88
120 - WASHER BDE-607592-00.A8 607592-00	£1.66	£1.99
121 - LEADWIRE GB BDE-650009-00.A1 650009-00	£1.66	£1.99
153 - RETAINER BDE-398605-00.A28 398605-00	£1.66	£1.99
174 - BLADE CLAMP BDE-629984-00.A1 629984-00	£19.48	£23.37
800 - GREASE BDE-5140061-28.A71 5140061-28	£53.46	£64.15
