Dewalt D28409 Type 1 Sander/grinder Spare Parts

Home Details Reviews Delivery

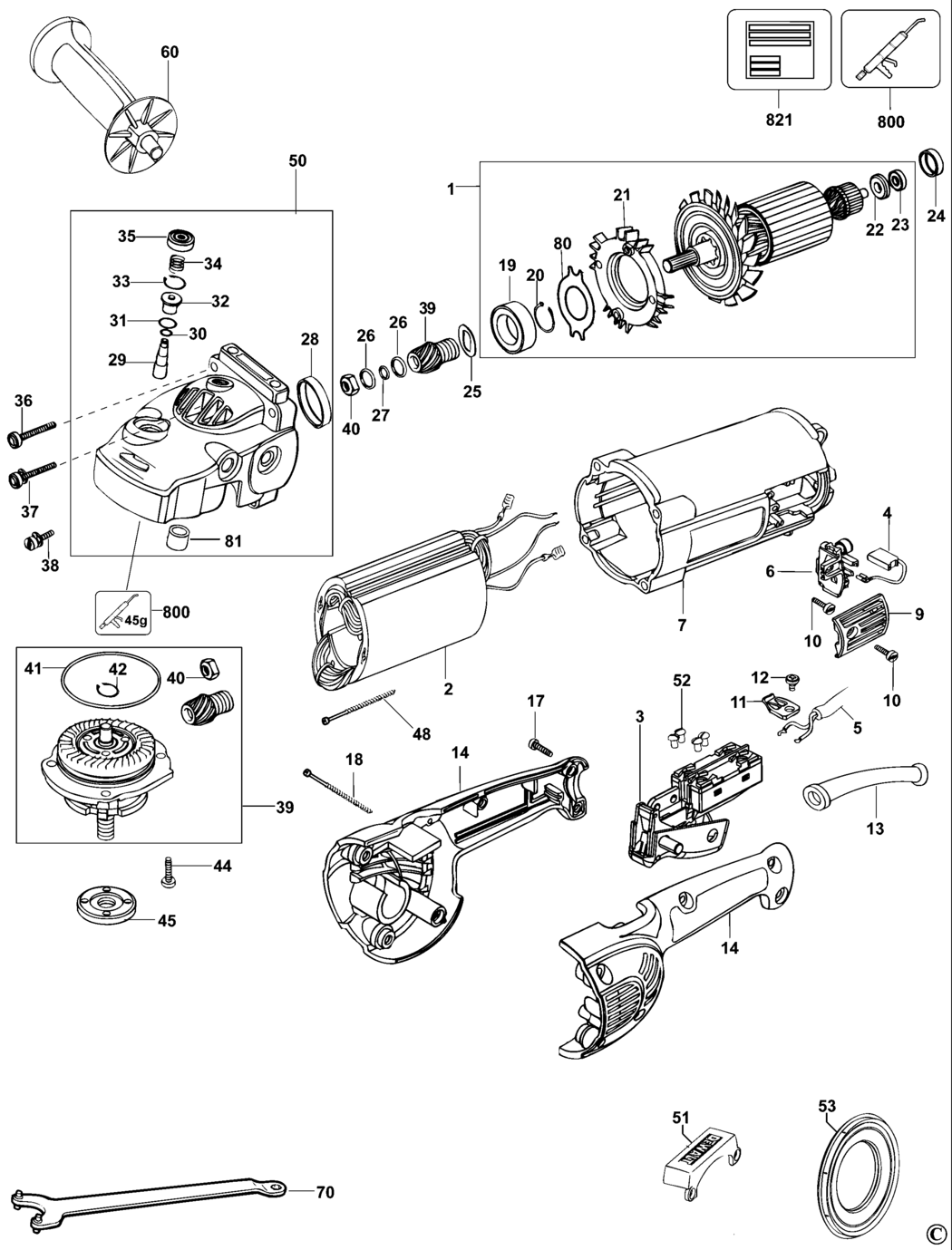

An exploded drawing and spare parts listing for the Dewalt D28409 Type 1 Sander/grinder

	Ex VAT	Inc VAT
4 - BRUSH PAIR 230V BDE-N036459 N036459	-
6 - BRUSH HOLDER SA BDE-617001-00.A0 617001-00	£8.08	£9.70
7 - FIELD CASE BDE-393239-00.A5 393239-00	£18.91	£22.69
9 - BRUSH COVER BDE-394387-00.A3 394387-00	£1.66	£1.99
10 - SCREW.TEMP BDE-330019-11.A11 330019-11	£1.66	£1.99
11 - CORD CLAMP BDE-608780-00.A0 608780-00	£1.66	£1.99
12 - SCREW.TEMP BDE-330019-11.A12 330019-11	£1.66	£1.99
13 - CORD PROTECTOR BDE-604118-00.A11 604118-00	£2.87	£3.44
14 - HANDLE SA BDE-395184-00.A3 395184-00	£17.48	£20.97
17 - SCREW BDE-330019-32.A88 330019-32	£1.66	£1.99
18 - SCREW BDE-330019-18.A32 330019-18	£1.66	£1.99
19 - BEARING BDE-605040-27.A14 605040-27	£4.83	£5.80
20 - RETAINER BDE-398605-00.A33 398605-00	£1.66	£1.99
21 - SPACER BDE-614708-00.A18 614708-00	£5.72	£6.87
22 - SHIELD BDE-393238-00.A55 393238-00	£1.66	£1.99
23 - BEARING BDE-N110359.A221 N110359	£3.75	£4.50
24 - SLEEVE INSULATING BDE-609970-00.A77 609970-00	£1.66	£1.99
25 - WASHER BDE-608568-00.A17 608568-00	£1.66	£1.99
26 - WASHER BDE-607502-00.A15 607502-00	£1.66	£1.99
27 - WASHER SPRING BDE-614045-00.A24 614045-00	£1.66	£1.99
28 - SLEEVE BDE-609971-00.A13 609971-00	£1.66	£1.99
29 - LOCK PIN BDE-611212-00.A0 611212-00	£1.88	£2.26
30 - O RING BDE-603608-00.A17 603608-00	£1.66	£1.99
31 - RING BDE-050049-00.A12 050049-00	£1.66	£1.99
32 - SLEEVE BDE-611213-00.A7 611213-00	£4.83	£5.80
33 - RETAINER BDE-603470-00.A38 603470-00	£1.66	£1.99
34 - SPRING BDE-395029-00.A4 395029-00	£1.66	£1.99
35 - CAP BDE-610999-00.A4 610999-00	£1.66	£1.99
36 - SCREW BDE-330019-26.A0 330019-26	£1.66	£1.99
37 - SCREW BDE-330045-70.A3 330045-70	-
38 - SCREW BDE-330045-67.A21 330045-67	£16.52	£19.82
39 - GEARCASE COVER SA BDE-N064421 N064421	-
40 - LOCK NUT BDE-609125-00.A21 609125-00	£1.66	£1.99
41 - O RING BDE-397031-00.A27 397031-00	£1.66	£1.99
42 - RETAINER BDE-034109-00.A25 034109-00	£1.66	£1.99
44 - SCREW BDE-330045-15.A87 330045-15	£1.66	£1.99
45 - OUTER FLANGE BDE-401678-05.A54 401678-05	£4.83	£5.80
48 - SCREW BDE-330019-19.A27 330019-19	£1.66	£1.99
50 - GEARCASE SA BDE-398618-00.A1 398618-00	-
51 - BUMPER BDE-620579-00.A4 620579-00	£5.72	£6.87
52 - SCREW BDE-384127-01.A112 384127-01	£1.66	£1.99
53 - BAFFLE BDE-614542-00.A9 614542-00	£1.66	£1.99
60 - SIDE HANDLE BDE-651858-00.A6 651858-00	-
70 - WRENCH BDE-401680-00.A100 401680-00	£4.83	£5.80
80 - INSERT BDE-613366-00.A25 613366-00	£1.66	£1.99
81 - BEARING NEEDLE BDE-330004-06.A41 330004-06	£1.66	£1.99
800 - GREASE 50 GMS BDE-583534-00.A208 583534-00	£148.42	£178.11

Attribute Name	Value
Brand	Dewalt
