Dewalt DW566K Type 4 Rotary Hammer Spare Parts

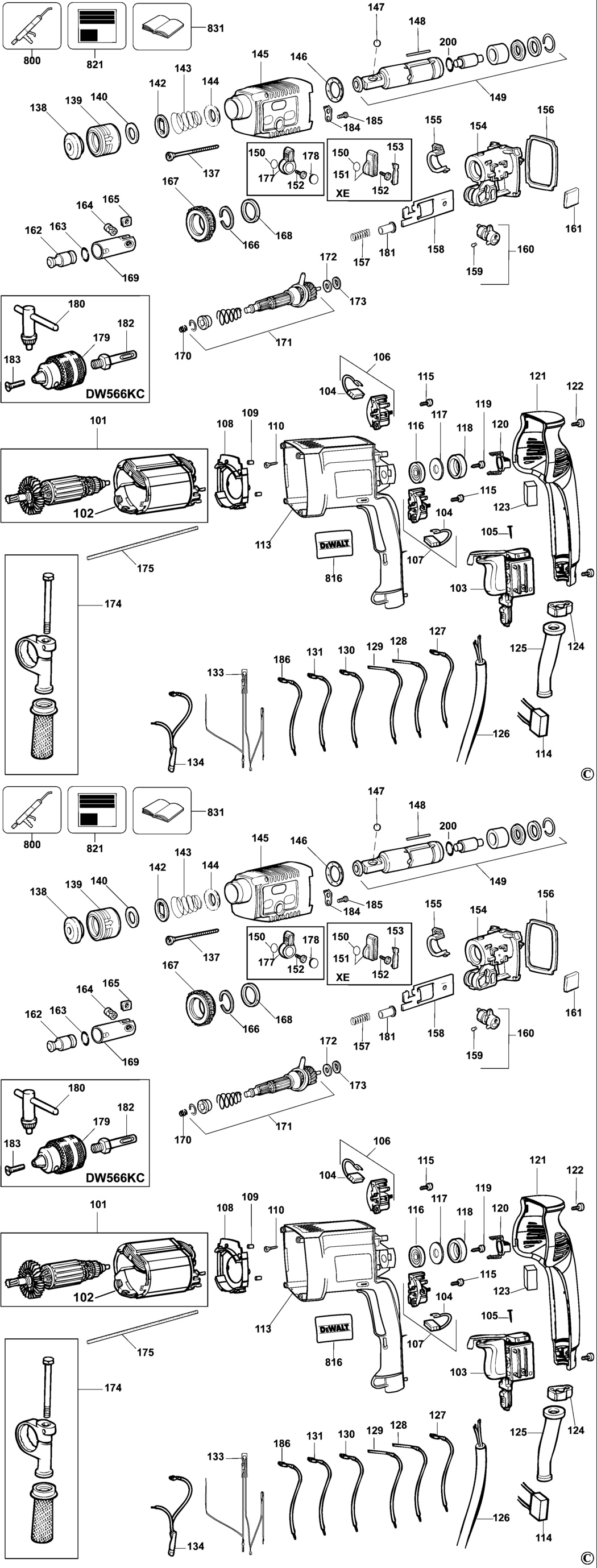

An exploded drawing and spare parts listing for the Dewalt DW566K Type 4 Rotary Hammer

	Ex VAT	Inc VAT
105 - PIN BDE-590480-00.A1 590480-00	-
105 - PIN BDE-590480-00.A2 590480-00	-
108 - NO LONGER AVAILABLE BDE-000000-00.A29551 000000-00	-
108 - BAFFLE FAN BDE-327293-00.A6 327293-00	-
109 - BUFFER BDE-949638-01.A68 949638-01	£1.50	£1.80
109 - BUFFER BDE-949638-01.A69 949638-01	£1.50	£1.80
110 - SCREW BDE-747329.A131 747329	£1.50	£1.80
110 - SCREW BDE-747329.A132 747329	£1.50	£1.80
113 - HOUSING SA BDE-327290-05.A8 327290-05	-
113 - HOUSING SA BDE-327290-05.A9 327290-05	-
115 - SCREW BDE-330065-06.A40 330065-06	£1.50	£1.80
115 - SCREW BDE-330065-06.A41 330065-06	£1.50	£1.80
116 - BEARING BDE-330003-19.A248 330003-19	£2.78	£3.34
116 - BEARING BDE-330003-19.A249 330003-19	£2.78	£3.34
117 - WASHER BDE-949876-25.A39 949876-25	£1.42	£1.70
117 - WASHER BDE-949876-25.A40 949876-25	£1.42	£1.70
118 - SLEEVE BDE-870052.A236 870052	£1.50	£1.80
118 - SLEEVE BDE-870052.A237 870052	£1.50	£1.80
119 - SCREW BDE-329794-00.A10 329794-00	£1.50	£1.80
119 - SCREW BDE-329794-00.A11 329794-00	£1.50	£1.80
120 - CAP BDE-327296-00.A16 327296-00	-
120 - CAP BDE-327296-00.A17 327296-00	-
121 - NO LONGER AVAILABLE BDE-000000-00.A29552 000000-00	-
121 - SWITCH COVER BDE-327298-01.A19 327298-01	-
122 - SCREW BDE-330065-07.A98 330065-07	£1.50	£1.80
122 - SCREW BDE-330065-07.A99 330065-07	£1.50	£1.80
123 - BUMPER BDE-930026-01.A12 930026-01	£1.50	£1.80
123 - BUMPER BDE-930026-01.A13 930026-01	£1.50	£1.80
137 - SCREW BDE-324044-02.A43 324044-02	£1.42	£1.70
137 - SCREW BDE-324044-02.A44 324044-02	£1.42	£1.70
138 - CAP BDE-323489-00.A87 323489-00	£1.66	£1.99
138 - CAP BDE-323489-00.A88 323489-00	£1.66	£1.99
139 - NO LONGER AVAILABLE BDE-000000-00.A29553 000000-00	-
139 - COLLAR BDE-576756-00.A0 576756-00	-
142 - WASHER BDE-578387-00.A97 578387-00	£1.66	£1.99
142 - WASHER BDE-578387-00.A98 578387-00	£1.66	£1.99
143 - SPRING BDE-871690.A96 871690	£1.66	£1.99
143 - SPRING BDE-871690.A97 871690	£1.66	£1.99
144 - SEAL SA BDE-324432-00.A86 324432-00	£5.88	£7.06
144 - SEAL SA BDE-324432-00.A87 324432-00	£5.88	£7.06
145 - GEARCASE SA BDE-329968-01.A16 329968-01	£33.13	£39.76
145 - GEARCASE SA BDE-329968-01.A17 329968-01	£33.13	£39.76
146 - WASHER BDE-329907-00.A13 329907-00	£7.85	£9.42
146 - WASHER BDE-329907-00.A14 329907-00	£7.85	£9.42
147 - BALL 7MM BDE-583890-00.A164 583890-00	£1.66	£1.99
147 - BALL 7MM BDE-583890-00.A165 583890-00	£1.66	£1.99
148 - PIN BDE-325880-05.A12 325880-05	£7.64	£9.17
148 - PIN BDE-325880-05.A13 325880-05	£7.64	£9.17
149 - NO LONGER AVAILABLE BDE-000000-00.A29554 000000-00	-
149 - SPINDLE SA BDE-577080-01.A1 577080-01	-
150 - O RING BDE-916323.A21 916323	-
150 - O RING BDE-916323.A22 916323	-
152 - SCREW BDE-323924-08.A162 323924-08	£1.50	£1.80
152 - SCREW BDE-323924-08.A163 323924-08	£1.50	£1.80
154 - CASTING SA BDE-327100-00.A39 327100-00	-
154 - CASTING SA BDE-327100-00.A40 327100-00	-
155 - SHIELD BDE-328507-00.A17 328507-00	£3.70	£4.44
155 - SHIELD BDE-328507-00.A18 328507-00	£3.70	£4.44
156 - NO LONGER AVAILABLE BDE-000000-00.A29555 000000-00	-
156 - NO LONGER AVAILABLE BDE-000000-00.A29556 000000-00	-
157 - SPRING BDE-323395-17.A14 323395-17	£1.42	£1.70
157 - SPRING BDE-323395-17.A15 323395-17	£1.42	£1.70
158 - PLATE BDE-327081-01.A9 327081-01	-
158 - PLATE BDE-327081-01.A10 327081-01	-
159 - DETENT BDE-326467-00.A34 326467-00	£1.50	£1.80
159 - DETENT BDE-326467-00.A35 326467-00	£1.50	£1.80
160 - CAM BDE-327094-01.A5 327094-01	£3.30	£3.96
160 - CAM BDE-327094-01.A6 327094-01	£3.30	£3.96
161 - FILTER BDE-327093-00.A43 327093-00	£1.42	£1.70
161 - FILTER BDE-327093-00.A44 327093-00	£1.42	£1.70
162 - RAM SA BDE-N032136.A13 N032136	-
162 - RAM SA BDE-N032136.A14 N032136	-
163 - O RING BDE-577168-00.A92 577168-00	£1.50	£1.80
163 - O RING BDE-577168-00.A93 577168-00	£1.50	£1.80
164 - AXLE BDE-487143-00.A51 487143-00	£7.85	£9.42
164 - AXLE BDE-487143-00.A52 487143-00	£7.85	£9.42
165 - SHIM BDE-327072-00.A35 327072-00	£2.26	£2.71
165 - SHIM BDE-327072-00.A36 327072-00	£2.26	£2.71
166 - CIRCLIP BDE-323762-02.A56 323762-02	£1.50	£1.80
166 - CIRCLIP BDE-323762-02.A57 323762-02	£1.50	£1.80
167 - CLUTCH SA BDE-487401-01.A3 487401-01	-
167 - CLUTCH SA BDE-487401-01.A4 487401-01	-
168 - RING BDE-327074-00.A14 327074-00	-
168 - RING BDE-327074-00.A15 327074-00	-
169 - PISTON BDE-487067-00.A5 487067-00	£19.90	£23.88
169 - NO LONGER AVAILABLE BDE-000000-00.A29557 000000-00	-
170 - SPRING BDE-323395-33.A13 323395-33	£1.78	£2.13
170 - SPRING BDE-323395-33.A14 323395-33	£1.78	£2.13
171 - INTERSHAFT SA BDE-327101-01.A2 327101-01	£65.52	£78.62
171 - INTERSHAFT SA BDE-327101-01.A3 327101-01	£65.52	£78.62
172 - BEARING AXIAL BDE-324430-03.A109 324430-03	-
172 - BEARING AXIAL BDE-324430-03.A110 324430-03	-
173 - WASHER 7 BDE-324431-03.A12 324431-03	-
173 - WASHER 7 BDE-324431-03.A13 324431-03	-
174 - HANDLE SIDE SA BDE-939794-02.A198 939794-02	£14.57	£17.48
174 - HANDLE SIDE SA BDE-939794-02.A199 939794-02	£14.57	£17.48
175 - DEPTH STOP BDE-580787-00.A87 580787-00	£1.50	£1.80
175 - DEPTH STOP BDE-580787-00.A88 580787-00	£1.50	£1.80
177 - LEVER BDE-327119-00.A24 327119-00	£1.82	£2.19
177 - LEVER BDE-327119-00.A25 327119-00	£1.82	£2.19
178 - COVER BDE-328809-00.A15 328809-00	-
178 - COVER BDE-328809-00.A16 328809-00	-
179 - CHUCK 13MM DW566KC BDE-5140071-68.A105 5140071-68	£14.57	£17.48
179 - CHUCK 13MM DW566KC BDE-5140071-68.A106 5140071-68	£14.57	£17.48
180 - CHUCK KEY DW566KC BDE-330034-07.A505 330034-07	£1.66	£1.99
180 - CHUCK KEY DW566KC BDE-330034-07.A506 330034-07	£1.66	£1.99
181 - SLEEVE BDE-329211-00.A7 329211-00	£1.82	£2.19
181 - SLEEVE BDE-329211-00.A8 329211-00	£1.82	£2.19
182 - ADAPTOR DW566KC BDE-352065.A5 352065	£14.57	£17.48
182 - ADAPTOR DW566KC BDE-352065.A6 352065	£14.57	£17.48
183 - SCREW DW566KC BDE-945013-00.A57 945013-00	£1.50	£1.80
183 - SCREW DW566KC BDE-945013-00.A58 945013-00	£1.50	£1.80
184 - PLATE BDE-577058-00.A18 577058-00	£7.64	£9.17
184 - PLATE BDE-577058-00.A19 577058-00	£7.64	£9.17
185 - NO LONGER AVAILABLE BDE-000000-00.A29558 000000-00	-
185 - SCREW BDE-930553.A2 930553	-
800 - GREASE 90 GMS BDE-870889-02.A19 870889-02	£7.85	£9.42
800 - GREASE 90 GMS BDE-870889-02.A20 870889-02	£7.85	£9.42
816 - BRAND LABEL BDE-395047-00.A176 395047-00	£1.50	£1.80
816 - BRAND LABEL BDE-395047-00.A177 395047-00	£1.50	£1.80
