Dewalt DW523K35 Type 1 Rotary Hammer Spare Parts

Home Details Reviews Delivery

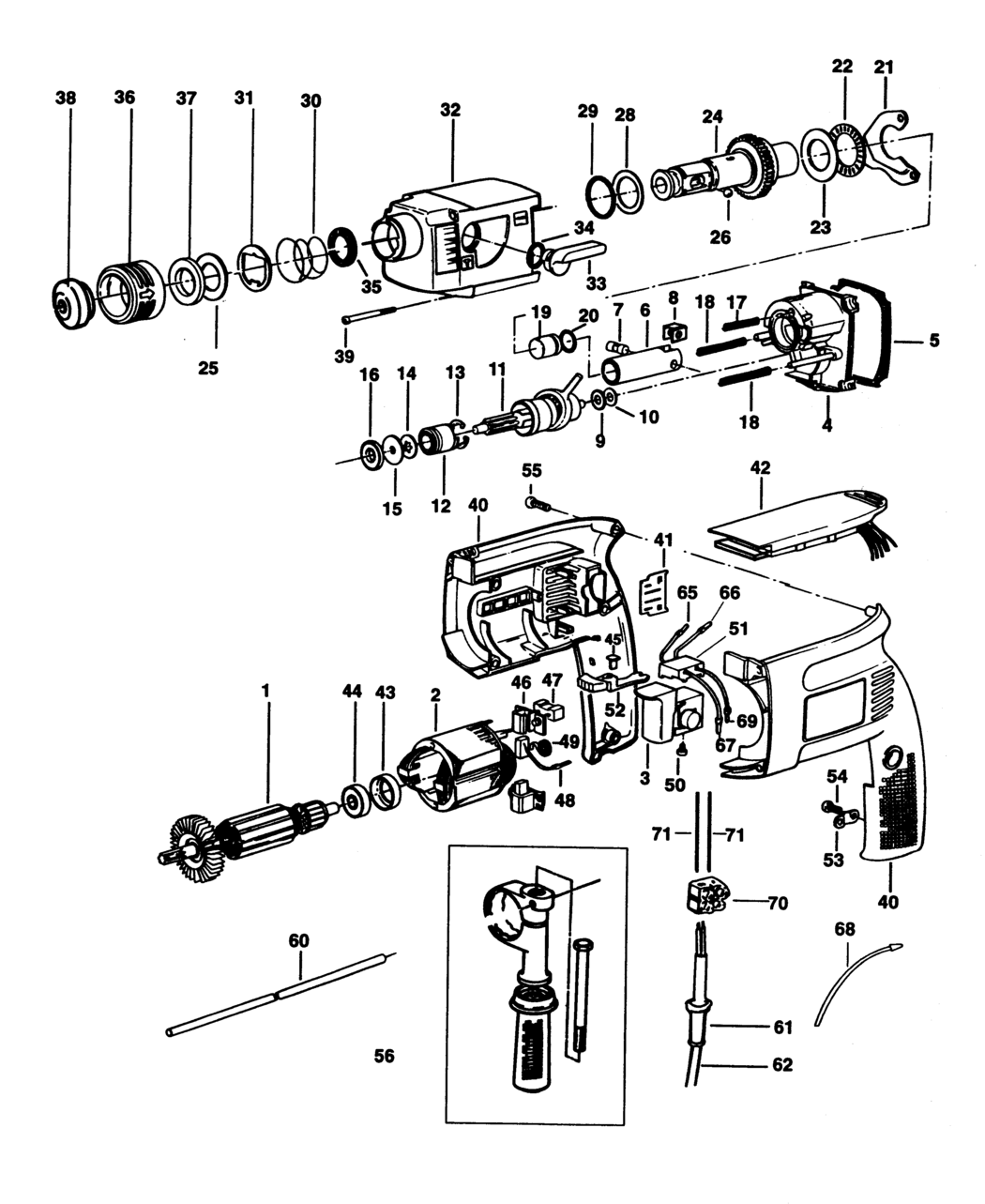

An exploded drawing and spare parts listing for the Dewalt DW523K35 Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE DW523K35 BDE-000000-00.A117748 000000-00	-
2 - NO LONGER AVAILABLE DW523K44 BDE-000000-00.A117749 000000-00	-
2 - NO LONGER AVAILABLE DW523K35 BDE-000000-00.A117750 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A117751 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A117752 000000-00	-
5 - NO LONGER AVAILABLE BDE-000000-00.A117753 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A117754 000000-00	-
7 - NO LONGER AVAILABLE BDE-000000-00.A117755 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A117756 000000-00	-
9 - BEARING AXIAL BDE-324430-03.A27 324430-03	-
10 - WASHER 7 BDE-324431-03.A95 324431-03	-
11 - NO LONGER AVAILABLE BDE-000000-00.A117757 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A117758 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A117759 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A117760 000000-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A117761 000000-00	-
16 - NO LONGER AVAILABLE BDE-000000-00.A117762 000000-00	-
17 - NO LONGER AVAILABLE BDE-000000-00.A117763 000000-00	-
18 - NO LONGER AVAILABLE BDE-000000-00.A117764 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A117765 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A117766 000000-00	-
21 - NO LONGER AVAILABLE BDE-000000-00.A117767 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A117768 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A117769 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A117770 000000-00	-
25 - WASHER BDE-323492-00.A83 323492-00	-
26 - BALL 7MM BDE-583890-00.A106 583890-00	£1.66	£1.99
28 - NO LONGER AVAILABLE BDE-000000-00.A117772 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A117773 000000-00	-
30 - SPRING BDE-871690.A182 871690	£1.66	£1.99
31 - WASHER BDE-578387-00.A186 578387-00	£1.66	£1.99
32 - NO LONGER AVAILABLE BDE-000000-00.A117774 000000-00	-
33 - NO LONGER AVAILABLE BDE-000000-00.A117775 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A117776 000000-00	-
35 - SEAL SA BDE-324432-00.A20 324432-00	£6.06	£7.27
36 - COLLAR BDE-576756-00.A58 576756-00	-
37 - SPACER BDE-323480-00.A93 323480-00	£1.88	£2.26
38 - CAP BDE-323489-00.A212 323489-00	£1.66	£1.99
39 - SCREW BDE-324044-02.A13 324044-02	£1.66	£1.99
40 - NO LONGER AVAILABLE BDE-000000-00.A117777 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A117778 000000-00	-
42 - NO LONGER AVAILABLE DW523K35 BDE-000000-00.A117779 000000-00	-
42 - NO LONGER AVAILABLE DW523K44 BDE-000000-00.A117780 000000-00	-
43 - CAP BDE-323481-00.A5 323481-00	£1.66	£1.99
44 - BEARING BDE-605040-63.A63 605040-63	£3.39	£4.07
45 - NO LONGER AVAILABLE DW523K44 BDE-000000-00.A117781 000000-00	-
46 - BRUSH HOLDER BDE-323496-01.A2 323496-01	-
47 - NO LONGER AVAILABLE DW523K35 BDE-000000-00.A117782 000000-00	-
47 - NO LONGER AVAILABLE DW523K44 BDE-000000-00.A117783 000000-00	-
48 - BRUSH 230V DW523K44 BDE-323660-01.A41 323660-01	£7.18	£8.62
48 - BRUSH 120V DW523K35 BDE-323660-00.A4 323660-00	£7.40	£8.88
49 - NO LONGER AVAILABLE BDE-000000-00.A117784 000000-00	-
50 - SCREW BDE-911026.A155 911026	£1.66	£1.99
51 - SWITCH REVERSE BDE-324400-00.A2 324400-00	-
52 - LEVER BDE-323490-08.A1 323490-08	-
53 - CORD CLAMP BDE-821070.A131 821070	£1.66	£1.99
54 - SCREW BDE-323924-08.A45 323924-08	£1.66	£1.99
55 - NO LONGER AVAILABLE BDE-000000-00.A117820 000000-00	-
56 - HANDLE SIDE SA BDE-939794-02.A33 939794-02	£15.01	£18.01
60 - DEPTH STOP BDE-580787-00.A242 580787-00	£1.66	£1.99
61 - CORD PROTECTOR BDE-320785.A1169 320785	£1.66	£1.99
62 - NO LONGER AVAILABLE BDE-000000-00.A117785 000000-00	-
65 - NO LONGER AVAILABLE DW523K44 BDE-000000-00.A117786 000000-00	-
65 - NO LONGER AVAILABLE DW523K35 BDE-000000-00.A117787 000000-00	-
66 - NO LONGER AVAILABLE DW523K44 BDE-000000-00.A117788 000000-00	-
66 - NO LONGER AVAILABLE DW523K35 BDE-000000-00.A117789 000000-00	-
67 - NO LONGER AVAILABLE DW523K44 BDE-000000-00.A117790 000000-00	-
67 - NO LONGER AVAILABLE DW523K35 BDE-000000-00.A117791 000000-00	-
68 - LEAD 200MM BLACK DW523K44 BDE-878756.A76 878756	-
68 - LEAD 200MM BLACK DW523K35 BDE-878756.A77 878756	-
69 - NO LONGER AVAILABLE DW523K44 BDE-000000-00.A117821 000000-00	-
69 - NO LONGER AVAILABLE DW523K35 BDE-000000-00.A117822 000000-00	-
70 - CONNECTOR DW523K44 BDE-323534-00.A110 323534-00	£1.66	£1.99
71 - NO LONGER AVAILABLE DW523K44 BDE-000000-00.A117823 000000-00	-
800 - GREASE 90 GMS BDE-870889-02.A687 870889-02	£8.08	£9.70
816 - NO LONGER AVAILABLE BDE-000000-00.A117792 000000-00	-
821 - NO LONGER AVAILABLE DW523K35 BDE-000000-00.A117793 000000-00	-
822 - NO LONGER AVAILABLE DW523K44 BDE-000000-00.A117794 000000-00	-
831 - NO LONGER AVAILABLE BDE-000000-00.A117795 000000-00	-
846 - NO LONGER AVAILABLE BDE-000000-00.A117796 000000-00	-

Attribute Name	Value
Brand	Dewalt
