Dewalt D25113K Type 1 Rotary Hammer Spare Parts

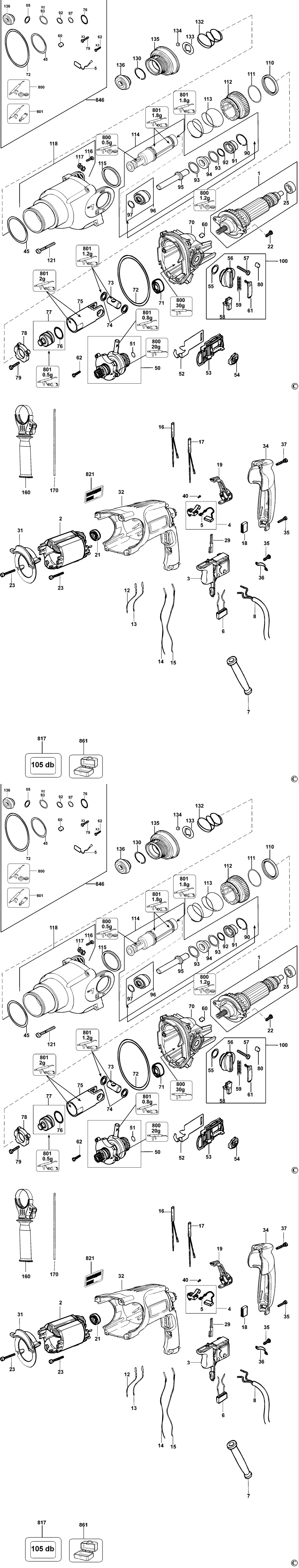

An exploded drawing and spare parts listing for the Dewalt D25113K Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - ARMATURE 120V LX BDE-496249-00.A9 496249-00	£78.95	£94.74
1 - ARMATURE 230V GB BDE-N081737.A7 N081737	£50.60	£60.72
2 - FIELD 230V GB BDE-576690-05.A29 576690-05	£30.08	£36.10
2 - FIELD 120V LX BDE-496247-00.A1 496247-00	£24.39	£29.27
3 - SWITCH 115V LX BDE-583748-05.A4 583748-05	£30.08	£36.10
3 - SWITCH GB BDE-583748-09.A2 583748-09	£24.39	£29.27
4 - BRUSH HOLDER SA GB BDE-577830-02.A4 577830-02	£11.87	£14.24
4 - BRUSH HOLDER SA LX BDE-577830-03.A13 577830-03	£11.87	£14.24
5 - BRUSH PAIR 115V LX BDE-585475-01.A0 585475-01	-
5 - BRUSH PAIR 230V GB BDE-585475-00.A21 585475-00	£14.19	£17.03
6 - CAPACITOR LX BDE-320842-19.A35 320842-19	£1.50	£1.80
6 - CAPACITOR GB BDE-320842-19.A36 320842-19	£1.50	£1.80
7 - CORD PROTECTOR LX BDE-584090-00.A52 584090-00	£1.50	£1.80
7 - CORD PROTECTOR GB BDE-584090-00.A53 584090-00	£1.50	£1.80
8 - CORDSET BDE-330076-19.A0 330076-19	£17.48	£20.97
8 - CORDSET (M/PLUG) GB GB BDE-582319-04.A24 582319-04	£29.32	£35.18
8 - CORDSET (M/PLUG) BDE-582319-05.A0 582319-05	£36.42	£43.70
8 - CORDSET (M/PLUG) GB BDE-582319-04.A23 582319-04	£29.32	£35.18
8 - CORDSET (M/PLUG) LX BDE-582319-05.A1 582319-05	£36.42	£43.70
8 - CORDSET BDE-330120-42.A0 330120-42	£25.70	£30.84
8 - CORDSET BDE-573379-15.A0 573379-15	£24.39	£29.27
8 - CORDSET BDE-582573-10.A1 582573-10	£24.39	£29.27
12 - LEAD WHITE BDE-584304-00.A14 584304-00	£1.50	£1.80
13 - LEAD BLUE BDE-584304-10.A21 584304-10	£1.50	£1.80
14 - LEAD BLACK BDE-584304-04.A23 584304-04	£1.50	£1.80
15 - LEAD VIOLET BDE-584304-05.A14 584304-05	£1.50	£1.80
16 - CHOKE LEAD RED GB BDE-584304-02.A12 584304-02	£4.58	£5.49
16 - CHOKE LEAD RED LX BDE-584304-08.A5 584304-08	£7.64	£9.17
17 - CHOKE LEAD GB BDE-584304-03.A9 584304-03	£4.58	£5.49
17 - CHOKE LEAD SA LX BDE-584304-09.A5 584304-09	£7.64	£9.17
18 - BUMPER BDE-930026-01.A149 930026-01	£1.50	£1.80
19 - LEVER BDE-479818-00.A31 479818-00	£1.50	£1.80
21 - SLEEVE BDE-870052.A86 870052	£1.50	£1.80
22 - SCREW BDE-324006-14.A76 324006-14	£1.50	£1.80
22 - SCREW BDE-N445171.A46 N445171	£1.50	£1.80
23 - SCREW BDE-326519-03.A49 326519-03	£1.50	£1.80
25 - BEARING BDE-330003-19.A132 330003-19	£2.78	£3.34
29 - INSERT BDE-584551-00.A6 584551-00	£2.26	£2.71
31 - BAFFLE FAN BDE-577826-00.A25 577826-00	£2.78	£3.34
32 - FIELDCASE BDE-577810-00.A4 577810-00	£14.57	£17.48
34 - HANDLE COVER BDE-479817-00.A1 479817-00	£14.57	£17.48
35 - SCREW BDE-330065-06.A217 330065-06	£1.50	£1.80
36 - CORD CLAMP BDE-821070.A451 821070	£1.50	£1.80
37 - SCREW BDE-330065-09.A50 330065-09	£1.50	£1.80
40 - SCREW BDE-330065-25.A52 330065-25	£1.50	£1.80
45 - O RING BDE-577791-00.A10 577791-00	£1.50	£1.80
50 - INTERSHAFT SA BDE-585480-00.A36 585480-00	£84.42	£101.30
51 - O RING BDE-580907-00.A8 580907-00	£1.42	£1.70
52 - PLATE BDE-578271-00.A0 578271-00	£3.80	£4.56
53 - HOLDER BDE-579564-00.A0 579564-00	£1.50	£1.80
54 - SELECTOR BDE-579552-00.A31 579552-00	£4.69	£5.63
55 - O RING BDE-584638-00.A12 584638-00	£1.50	£1.80
56 - LEVER BDE-587269-00.A29 587269-00	£1.50	£1.80
57 - SCREW BDE-324007-14.A7 324007-14	-
58 - LOCK BUTTON BDE-579184-00.A31 579184-00	£1.50	£1.80
59 - SPRING BDE-579179-00.A0 579179-00	£1.50	£1.80
60 - FILTER BDE-582865-00.A0 582865-00	£1.50	£1.80
61 - COVER BDE-579185-00.A0 579185-00	£1.82	£2.19
62 - SCREW BDE-583981-00.A47 583981-00	£1.50	£1.80
70 - HOUSING SA BDE-585482-00.A0 585482-00	£36.42	£43.70
71 - BEARING BDE-330003-31.A134 330003-31	£2.78	£3.34
72 - SEAL BDE-578229-00.A13 578229-00	£1.50	£1.80
73 - BEARING BLOCK BDE-577801-00.A16 577801-00	£5.88	£7.06
74 - WASHER SHIM BDE-577802-00.A76 577802-00	£2.21	£2.65
75 - PISTON BDE-496246-00.A37 496246-00	£18.91	£22.69
76 - O RING BDE-579699-00.A37 579699-00	£1.50	£1.80
77 - RAM BDE-496245-00.A1 496245-00	£17.48	£20.97
78 - BEARING BUSH BDE-N042808.A13 N042808	£5.88	£7.06
79 - SCREW BDE-324006-15.A14 324006-15	£1.50	£1.80
80 - FILTER BDE-587252-00.A10 587252-00	£1.50	£1.80
90 - CLIP BDE-577793-00.A63 577793-00	£1.50	£1.80
91 - BUSH BDE-584426-00.A40 584426-00	£16.03	£19.24
92 - O RING BDE-580990-00.A37 580990-00	£1.50	£1.80
93 - O RING BDE-577135-00.A8 577135-00	£3.30	£3.96
94 - DAMPER BDE-584425-00.A26 584425-00	£16.03	£19.24
95 - BEAT PIECE BDE-584424-00.A19 584424-00	£17.48	£20.97
96 - BEARING & SEAL BDE-584423-00.A22 584423-00	£18.91	£22.69
97 - SEAL BDE-577139-00.A89 577139-00	£1.50	£1.80
100 - LEVER KIT BDE-495665-00.A6 495665-00	£7.64	£9.17
110 - WASHER BDE-577797-00.A48 577797-00	£1.50	£1.80
111 - O RING BDE-577744-00.A94 577744-00	£1.82	£2.19
112 - CLUTCH SA BDE-587482-00.A25 587482-00	£41.24	£49.49
113 - SPRING BDE-579178-00.A56 579178-00	£1.50	£1.80
114 - CYLINDER SA BDE-584422-00.A19 584422-00	£108.20	£129.84
115 - WASHER BDE-577814-00.A80 577814-00	£2.26	£2.71
116 - SCREW BDE-330065-05.A64 330065-05	£1.50	£1.80
117 - LOCKING DEVICE BDE-580291-00.A8 580291-00	£2.26	£2.71
118 - HOUSING SA BDE-585483-00.A12 585483-00	-
121 - SCREW BDE-330065-28.A36 330065-28	£1.50	£1.80
130 - RING BDE-579212-00.A129 579212-00	£1.66	£1.99
132 - SPRING BDE-871690.A205 871690	£1.66	£1.99
133 - WASHER BDE-578387-00.A240 578387-00	£1.66	£1.99
134 - BALL 7MM BDE-583890-00.A8 583890-00	£1.66	£1.99
135 - TUBE BDE-N774198.A5 N774198	£12.17	£14.60
136 - CAP BDE-323489-00.A144 323489-00	£1.66	£1.99
138 - RING BDE-579212-00.A130 579212-00	£1.66	£1.99
160 - SIDE HANDLE LX BDE-589467-00.A29 589467-00	£7.85	£9.42
160 - SIDE HANDLE BDE-589467-00.A30 589467-00	£7.85	£9.42
160 - SIDE HANDLE GB BDE-589467-00.A31 589467-00	£7.85	£9.42
170 - DEPTH STOP BDE-495699-00.A25 495699-00	£7.85	£9.42
800 - GREASE 90 GMS BDE-870889-02.A460 870889-02	£7.85	£9.42
801 - GREASE 10 GMS BDE-487130-04.A69 487130-04	£3.80	£4.56
817 - LABEL BDE-496620-00.A27 496620-00	£1.50	£1.80
821 - RATING PLATE BDE-495119-01 495119-01	-
821 - NO LONGER AVAILABLE LX BDE-000000-00.A95115 000000-00	-
821 - RATING PLATE BDE-495119-02 495119-02	-
821 - RATING PLATE BDE-495119-04 495119-04	-
821 - RATING PLATE BDE-495119-06 495119-06	-
821 - RATING PLATE BDE-495119-07 495119-07	-
821 - NO LONGER AVAILABLE GB BDE-000000-00.A95116 000000-00	-
821 - RATING PLATE BDE-495119-00 495119-00	-
821 - RATING PLATE BDE-495119-03 495119-03	-
821 - RATING PLATE BDE-495119-05 495119-05	-
846 - SERVICE KIT 230V GB BDE-585499-00.A1 585499-00	£59.41	£71.29
846 - SERVICE KIT 115V LX BDE-585500-00.A15 585500-00	£37.82	£45.38
861 - KITBOX BDE-N383875.A26 N383875	£24.39	£29.27
861 - NO LONGER AVAILABLE BDE-000000-00.A95117 000000-00	-

Attribute Name	Value
Brand	Dewalt
