Dewalt D25112K Type 2 Rotary Hammer Spare Parts

Home Details Reviews Delivery

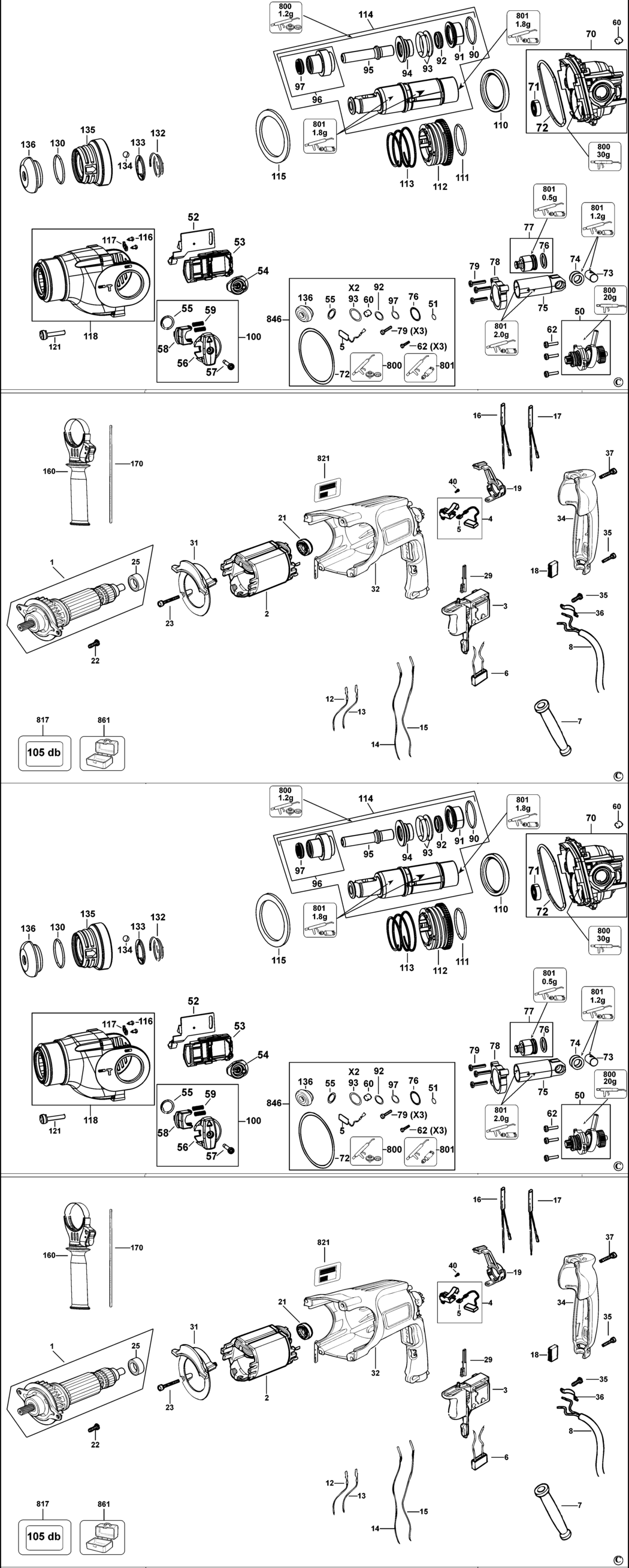

An exploded drawing and spare parts listing for the Dewalt D25112K Type 2 Rotary Hammer

	Ex VAT	Inc VAT
1 - ARMATURE 120V LX BDE-496249-00.A3 496249-00	£78.95	£94.74
1 - ARMATURE 230V GB BDE-N081737.A0 N081737	£50.60	£60.72
2 - FIELD 120V LX BDE-496247-00.A18 496247-00	£24.39	£29.27
2 - FIELD 230V GB BDE-576690-05.A3 576690-05	£30.98	£37.18
3 - SWITCH 115V LX BDE-583748-05.A15 583748-05	£30.08	£36.10
3 - SWITCH GB BDE-583748-09.A12 583748-09	£25.12	£30.15
4 - BRUSH HOLDER SA from 08 feb 2010 GB BDE-N028619.A8 N028619	£8.08	£9.70
4 - BRUSH HOLDER SA from 08 feb 2010 LX BDE-N028620.A0 N028620	£9.69	£11.63
4 - BRUSH HOLDER SA up to 08 feb 2010 GB BDE-577830-02.A12 577830-02	£11.87	£14.24
4 - BRUSH HOLDER SA up to 08 feb 2010 LX BDE-577830-03.A6 577830-03	£11.87	£14.24
5 - BRUSH PAIR 115V up to 08 feb 2010 LX BDE-585475-01.A14 585475-01	-
5 - BRUSH PAIR 230V from 08 feb 2010 GB BDE-N058083.A4 N058083	£11.18	£13.41
5 - BRUSH PAIR 115V from 08 feb 2010 LX BDE-N058084.A3 N058084	£17.03	£20.44
5 - BRUSH PAIR 230V up to 08 feb 2010 GB BDE-585475-00.A6 585475-00	-
6 - CAPACITOR LX BDE-320842-19.A9 320842-19	£1.66	£1.99
6 - CAPACITOR GB BDE-320842-19.A10 320842-19	£1.66	£1.99
7 - CORD PROTECTOR GB BDE-584090-00.A17 584090-00	£1.66	£1.99
7 - CORD PROTECTOR LX BDE-584090-00.A18 584090-00	£1.66	£1.99
8 - CORDSET (M/PLUG) LX BDE-582319-05.A19 582319-05	£36.42	£43.70
8 - CORDSET (M/PLUG) GB GB BDE-582319-04.A4 582319-04	£29.32	£35.18
12 - LEAD WHITE BDE-584304-00.A27 584304-00	£1.66	£1.99
12 - LEAD WHITE BDE-584304-00.A28 584304-00	£1.66	£1.99
13 - LEAD BLUE BDE-584304-10.A3 584304-10	£1.66	£1.99
13 - LEAD BLUE BDE-584304-10.A4 584304-10	£1.66	£1.99
14 - LEAD BLACK BDE-584304-04.A4 584304-04	£1.66	£1.99
14 - LEAD BLACK BDE-584304-04.A5 584304-04	£1.66	£1.99
15 - LEAD VIOLET BDE-584304-05.A32 584304-05	£1.66	£1.99
15 - LEAD VIOLET BDE-584304-05.A33 584304-05	£1.66	£1.99
16 - CHOKE LEAD RED LX BDE-584304-08.A1 584304-08	£7.64	£9.17
16 - CHOKE LEAD RED GB BDE-584304-02.A3 584304-02	£4.58	£5.49
17 - CHOKE LEAD GB BDE-584304-03.A18 584304-03	£4.58	£5.49
17 - CHOKE LEAD SA LX BDE-584304-09.A9 584304-09	£7.64	£9.17
18 - BUMPER BDE-930026-01.A7 930026-01	£1.66	£1.99
18 - BUMPER BDE-930026-01.A8 930026-01	£1.66	£1.99
19 - LEVER BDE-479818-00.A16 479818-00	£1.66	£1.99
19 - LEVER BDE-479818-00.A17 479818-00	£1.66	£1.99
21 - SLEEVE BDE-870052.A231 870052	£1.66	£1.99
21 - SLEEVE BDE-870052.A232 870052	£1.66	£1.99
22 - SCREW BDE-N445171.A19 N445171	£1.66	£1.99
22 - SCREW BDE-324006-14.A22 324006-14	£1.66	£1.99
23 - SCREW BDE-326519-03.A27 326519-03	£1.66	£1.99
23 - SCREW BDE-326519-03.A28 326519-03	£1.66	£1.99
25 - BEARING BDE-330003-19.A259 330003-19	£2.87	£3.44
25 - BEARING BDE-330003-19.A260 330003-19	£2.87	£3.44
29 - INSERT BDE-584551-00.A38 584551-00	£2.32	£2.78
29 - INSERT BDE-584551-00.A39 584551-00	£2.32	£2.78
31 - BAFFLE FAN BDE-577826-00.A11 577826-00	£2.78	£3.34
31 - BAFFLE FAN BDE-577826-00.A12 577826-00	£2.78	£3.34
32 - FIELDCASE BDE-577810-00.A16 577810-00	£14.57	£17.48
32 - FIELDCASE BDE-577810-00.A17 577810-00	£14.57	£17.48
34 - HANDLE COVER BDE-479817-00.A15 479817-00	£14.57	£17.48
34 - HANDLE COVER BDE-479817-00.A16 479817-00	£14.57	£17.48
35 - SCREW BDE-330065-06.A46 330065-06	£1.66	£1.99
35 - SCREW BDE-330065-06.A47 330065-06	£1.66	£1.99
36 - CORD CLAMP BDE-821070.A529 821070	£1.66	£1.99
36 - CORD CLAMP BDE-821070.A530 821070	£1.66	£1.99
37 - SCREW BDE-330065-09.A95 330065-09	£1.66	£1.99
37 - SCREW BDE-330065-09.A96 330065-09	£1.66	£1.99
40 - SCREW BDE-330065-25.A87 330065-25	£1.66	£1.99
40 - SCREW BDE-330065-25.A88 330065-25	£1.66	£1.99
50 - INTERSHAFT SA BDE-585480-00.A10 585480-00	£86.95	£104.34
50 - INTERSHAFT SA BDE-585480-00.A11 585480-00	£86.95	£104.34
52 - PLATE BDE-578271-00.A39 578271-00	£3.92	£4.70
52 - PLATE BDE-578271-00.A40 578271-00	£3.92	£4.70
53 - HOLDER BDE-579564-00.A36 579564-00	£1.66	£1.99
53 - HOLDER BDE-579564-00.A37 579564-00	£1.66	£1.99
54 - SELECTOR BDE-1006437-00.A11 1006437-00	-
54 - SELECTOR BDE-1006437-00.A12 1006437-00	-
55 - O RING BDE-584638-00.A34 584638-00	£1.66	£1.99
55 - O RING BDE-584638-00.A35 584638-00	£1.66	£1.99
56 - KNOB BDE-1006434-00.A13 1006434-00	£2.87	£3.44
56 - KNOB BDE-1006434-00.A14 1006434-00	£2.87	£3.44
57 - SCREW BDE-324007-15.A10 324007-15	£1.66	£1.99
57 - SCREW BDE-324007-15.A11 324007-15	£1.66	£1.99
58 - TRIGGER BDE-1006435-00.A4 1006435-00	£2.87	£3.44
58 - TRIGGER BDE-1006435-00.A5 1006435-00	£2.87	£3.44
59 - SPRING BDE-1008957-00.A27 1008957-00	£1.66	£1.99
59 - SPRING BDE-1008957-00.A28 1008957-00	£1.66	£1.99
60 - FILTER BDE-582865-00.A83 582865-00	£1.66	£1.99
60 - FILTER BDE-582865-00.A84 582865-00	£1.66	£1.99
62 - SCREW BDE-583981-00.A24 583981-00	£1.66	£1.99
62 - SCREW BDE-583981-00.A25 583981-00	£1.66	£1.99
70 - HOUSING SA BDE-N031253.A6 N031253	£37.82	£45.38
70 - HOUSING SA BDE-N031253.A7 N031253	£37.82	£45.38
71 - BEARING BDE-330003-31.A2 330003-31	£2.87	£3.44
71 - BEARING BDE-330003-31.A3 330003-31	£2.87	£3.44
72 - SEAL BDE-578229-00.A40 578229-00	£1.66	£1.99
72 - SEAL BDE-578229-00.A41 578229-00	£1.66	£1.99
73 - BEARING BLOCK BDE-577801-00.A60 577801-00	£6.06	£7.27
73 - BEARING BLOCK BDE-577801-00.A61 577801-00	£6.06	£7.27
74 - WASHER SHIM BDE-577802-00.A21 577802-00	£2.21	£2.65
74 - WASHER SHIM BDE-577802-00.A22 577802-00	£2.21	£2.65
75 - PISTON BDE-496246-00.A11 496246-00	£19.48	£23.37
75 - PISTON BDE-496246-00.A12 496246-00	£19.48	£23.37
76 - O RING BDE-579699-00.A65 579699-00	£1.66	£1.99
76 - O RING BDE-579699-00.A66 579699-00	£1.66	£1.99
77 - RAM BDE-496245-00.A26 496245-00	£18.00	£21.60
77 - RAM BDE-496245-00.A27 496245-00	£18.00	£21.60
78 - BEARING BUSH BDE-N042808.A35 N042808	£6.06	£7.27
78 - BEARING BUSH BDE-N042808.A36 N042808	£6.06	£7.27
79 - SCREW BDE-324006-15.A81 324006-15	£1.66	£1.99
79 - SCREW BDE-324006-15.A82 324006-15	£1.66	£1.99
90 - CLIP BDE-577793-00.A8 577793-00	£1.66	£1.99
90 - CLIP BDE-577793-00.A9 577793-00	£1.66	£1.99
91 - BUSH BDE-584426-00.A5 584426-00	£16.52	£19.82
91 - BUSH BDE-584426-00.A6 584426-00	£16.52	£19.82
92 - O RING BDE-580990-00.A85 580990-00	£1.66	£1.99
92 - O RING BDE-580990-00.A86 580990-00	£1.66	£1.99
93 - O RING BDE-577135-00.A67 577135-00	£3.39	£4.07
93 - O RING BDE-577135-00.A68 577135-00	£3.39	£4.07
94 - DAMPER BDE-584425-00.A60 584425-00	£16.03	£19.24
94 - DAMPER BDE-584425-00.A61 584425-00	£16.03	£19.24
95 - BEAT PIECE BDE-584424-00.A49 584424-00	£18.00	£21.60
95 - BEAT PIECE BDE-584424-00.A50 584424-00	£18.00	£21.60
96 - BEARING & SEAL BDE-584423-00.A49 584423-00	£19.48	£23.37
96 - BEARING & SEAL BDE-584423-00.A50 584423-00	£19.48	£23.37
97 - SEAL BDE-577139-00.A17 577139-00	£1.66	£1.99
97 - SEAL BDE-577139-00.A18 577139-00	£1.66	£1.99
100 - LEVER KIT BDE-N031251.A15 N031251	£12.53	£15.04
100 - LEVER KIT BDE-N031251.A16 N031251	£12.53	£15.04
110 - WASHER BDE-577797-00.A10 577797-00	£1.66	£1.99
110 - WASHER BDE-577797-00.A11 577797-00	£1.66	£1.99
111 - O RING BDE-577744-00.A6 577744-00	£1.88	£2.26
111 - O RING BDE-577744-00.A7 577744-00	£1.88	£2.26
112 - CLUTCH SA BDE-587482-00.A46 587482-00	£42.48	£50.98
112 - CLUTCH SA BDE-587482-00.A47 587482-00	£42.48	£50.98
113 - SPRING BDE-579178-00.A17 579178-00	£1.66	£1.99
113 - SPRING BDE-579178-00.A18 579178-00	£1.66	£1.99
114 - CYLINDER SA BDE-584422-00.A46 584422-00	£111.45	£133.74
114 - CYLINDER SA BDE-584422-00.A47 584422-00	£111.45	£133.74
115 - WASHER BDE-577814-00.A13 577814-00	£2.32	£2.78
115 - WASHER BDE-577814-00.A14 577814-00	£2.32	£2.78
116 - SCREW BDE-330065-05.A131 330065-05	£1.66	£1.99
116 - SCREW BDE-330065-05.A132 330065-05	£1.66	£1.99
117 - LOCKING DEVICE BDE-580291-00.A39 580291-00	£2.26	£2.71
117 - LOCKING DEVICE BDE-580291-00.A40 580291-00	£2.26	£2.71
118 - HOUSING SA BDE-586501-00.A1 586501-00	£24.39	£29.27
118 - HOUSING SA BDE-586501-00.A2 586501-00	£24.39	£29.27
121 - SCREW BDE-330065-28.A21 330065-28	£1.66	£1.99
121 - SCREW BDE-330065-28.A22 330065-28	£1.66	£1.99
130 - RING BDE-579212-00.A55 579212-00	£1.66	£1.99
130 - RING BDE-579212-00.A56 579212-00	£1.66	£1.99
132 - SPRING BDE-871690.A103 871690	£1.66	£1.99
132 - SPRING BDE-871690.A104 871690	£1.66	£1.99
133 - WASHER BDE-578387-00.A73 578387-00	£1.66	£1.99
133 - WASHER BDE-578387-00.A74 578387-00	£1.66	£1.99
134 - BALL 7MM BDE-583890-00.A166 583890-00	£1.66	£1.99
134 - BALL 7MM BDE-583890-00.A167 583890-00	£1.66	£1.99
135 - TUBE BDE-N774198.A22 N774198	£12.53	£15.04
135 - TUBE BDE-N774198.A23 N774198	£12.53	£15.04
136 - CAP BDE-323489-00.A68 323489-00	£1.66	£1.99
136 - CAP BDE-323489-00.A69 323489-00	£1.66	£1.99
160 - SIDE HANDLE LX BDE-589467-00.A10 589467-00	-
160 - SIDE HANDLE GB BDE-589467-00.A11 589467-00	-
170 - DEPTH STOP BDE-495699-00.A8 495699-00	£8.08	£9.70
170 - DEPTH STOP BDE-495699-00.A9 495699-00	£8.08	£9.70
800 - GREASE 90 GMS BDE-870889-02.A34 870889-02	£8.08	£9.70
800 - GREASE 90 GMS BDE-870889-02.A35 870889-02	£8.08	£9.70
801 - GREASE 10 GMS BDE-487130-04.A106 487130-04	£3.92	£4.70
801 - GREASE 10 GMS BDE-487130-04.A107 487130-04	£3.92	£4.70
817 - LABEL BDE-496620-00.A6 496620-00	£1.66	£1.99
817 - LABEL BDE-496620-00.A7 496620-00	£1.66	£1.99
821 - RATING PLATE GB BDE-N043098 N043098	£1.66	£1.99
821 - RATING PLATE LX BDE-N043099 N043099	£1.66	£1.99
846 - SERVICE KIT 115V from 08 feb 2010 LX BDE-N058086.A2 N058086	£51.90	£62.28
846 - SERVICE KIT 230V up to 08 feb 2010 GB BDE-585499-00.A19 585499-00	£59.41	£71.29
846 - SERVICE KIT 115V up to 08 feb 2010 LX BDE-585500-00.A3 585500-00	£37.82	£45.38
846 - SERVICE KIT 230V from 08 feb 2010 GB BDE-N058085.A0 N058085	£50.60	£60.72
861 - NO LONGER AVAILABLE BDE-000000-00.A30145 000000-00	-
861 - KITBOX BDE-N383875.A8 N383875	£25.12	£30.15
