Dewalt DWV902MT Type 1 Dust Extractor Spare Parts

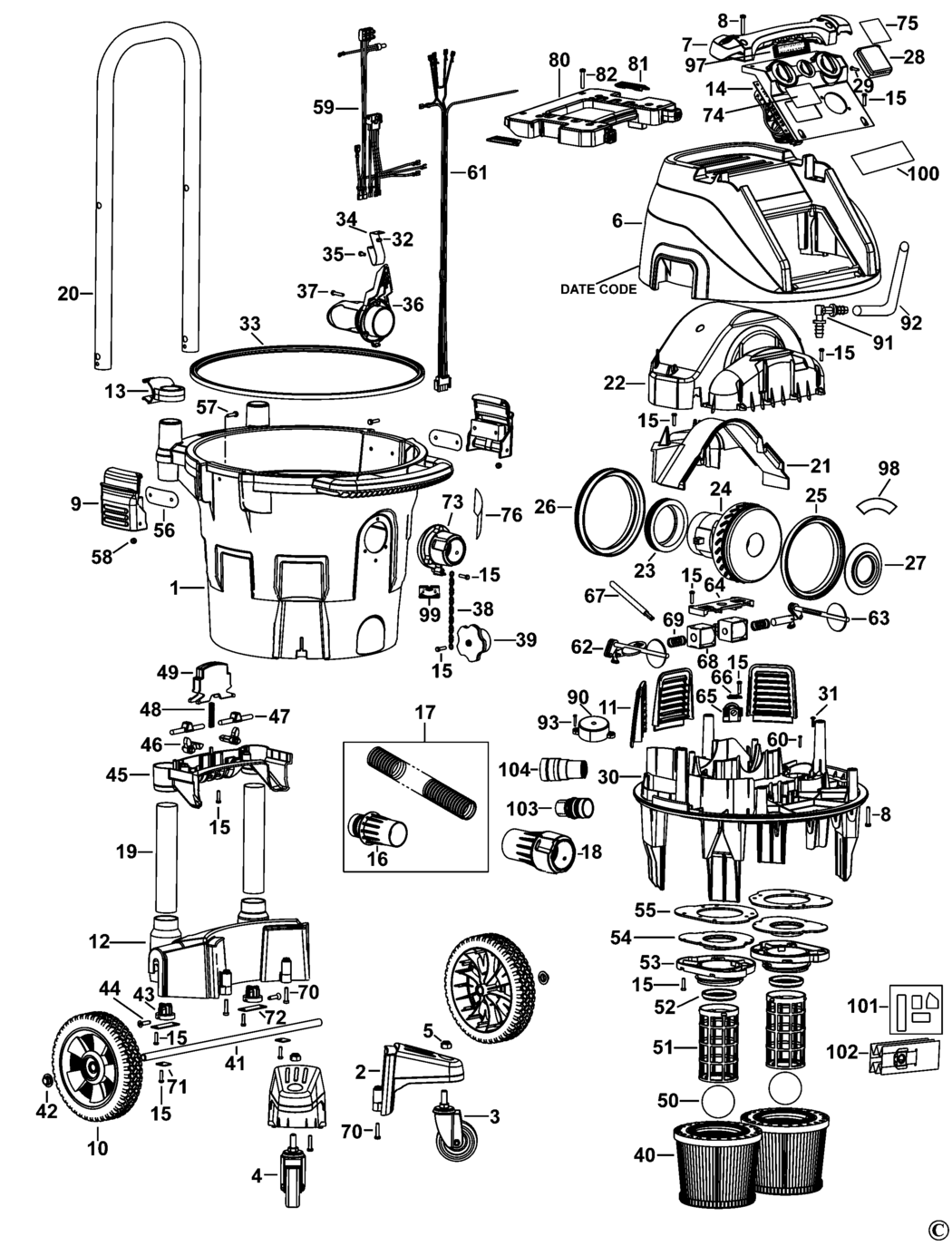

An exploded drawing and spare parts listing for the Dewalt DWV902MT Type 1 Dust Extractor

	Ex VAT	Inc VAT
1 - TANK BDE-N116019.A1 N116019	£108.20	£129.84
2 - MOUNT BDE-N118219.A0 N118219	£9.17	£11.00
3 - WHEELS PAIR WITHOUT BRAKE BDE-N489744.A1 N489744	£51.90	£62.28
4 - WHEEL LOCK WITH BRAKE BDE-N118221.A3 N118221	£29.32	£35.18
5 - LOCK NUT BDE-N148438.A2 N148438	£1.42	£1.70
6 - HEAD BDE-N316266.A3 N316266	£51.90	£62.28
7 - HANDLE BDE-N135179.A6 N135179	£7.18	£8.62
8 - SCREW.TEMP BDE-330019-21.A14 330019-21	£1.50	£1.80
9 - LATCH BDE-1004771-97.A4 1004771-97	£7.85	£9.42
10 - WHEEL REAR BDE-N417079.A3 N417079	£17.48	£20.97
11 - VENT BDE-N135170.A2 N135170	£2.78	£3.34
12 - MOUNTING BRACKET BDE-N118223.A0 N118223	£25.70	£30.84
13 - CLAMP BDE-N147540.A6 N147540	£1.50	£1.80
15 - SCREW BDE-330019-13.A286 330019-13	£1.50	£1.80
16 - HOSE PLATE BDE-N145597.A3 N145597	£9.41	£11.29
17 - HOSE SA INCL 16 BDE-N208032.A0 N208032	£65.52	£78.62
18 - CONNECTOR BDE-N071898.A2 N071898	£24.39	£29.27
19 - TUBE BDE-N139272.A1 N139272	£4.69	£5.63
20 - HANDLE UPPER BDE-N138912.A4 N138912	£24.39	£29.27
21 - MOTOR COVER BDE-N226858.A0 N226858	£7.64	£9.17
22 - COVER SA BDE-N226857.A1 N226857	£23.75	£28.50
23 - GASKET REAR BDE-N137849.A2 N137849	£7.18	£8.62
25 - RING GASKET MIDDLE BDE-N250119.A0 N250119	£3.30	£3.96
26 - RING GASKET BDE-N250119.A1 N250119	£3.30	£3.96
27 - GASKET FRONT BDE-N137847.A1 N137847	£3.80	£4.56
29 - SCREW BDE-330019-03.A189 330019-03	£1.50	£1.80
30 - MOUNT SA BDE-N226859.A3 N226859	£57.22	£68.66
31 - SCREW BDE-N142836.A3 N142836	£1.50	£1.80
32 - LOCK NUT BDE-N142838.A5 N142838	£1.50	£1.80
33 - GASKET TANK BDE-N124753.A6 N124753	£18.91	£22.69
34 - PLATE STATIC DISCHARGE ELE BDE-N137853.A2 N137853	£2.78	£3.34
35 - SCREW BDE-N142827.A5 N142827	£1.50	£1.80
36 - INLET BDE-N133364.A0 N133364	£12.17	£14.60
37 - SCREW BDE-330019-14.A117 330019-14	£1.50	£1.80
38 - CABLE BDE-N185285.A2 N185285	£1.50	£1.80
39 - CAP BDE-N143848.A0 N143848	£1.50	£1.80
40 - FILTER & INLET KIT See SB204 BDE-N498234.A2 N498234	£119.32	£143.19
41 - AXLE BDE-N118225.A6 N118225	£7.18	£8.62
42 - RETAINER BDE-N118234.A6 N118234	£1.50	£1.80
43 - BUNG BDE-N137054.A5 N137054	£1.50	£1.80
44 - SCREW BDE-N147400.A4 N147400	£1.50	£1.80
45 - COVER BDE-N133363.A6 N133363	£7.18	£8.62
46 - LEVER BDE-N139136.A3 N139136	£1.50	£1.80
47 - LOCK PIN BDE-N137872.A1 N137872	£1.50	£1.80
48 - SPRING BDE-N142180.A4 N142180	£1.50	£1.80
49 - BUTTON BDE-N137721.A3 N137721	£2.26	£2.71
50 - VALVE FLOATING BDE-N206771.A2 N206771	£7.18	£8.62
51 - CAGE BDE-N114680.A0 N114680	-
52 - SEAL BDE-N114681.A3 N114681	£1.42	£1.70
53 - MOUNT BDE-N114682.A0 N114682	£4.58	£5.49
54 - SEAT BDE-N139235.A1 N139235	£3.22	£3.86
55 - GASKET BDE-N146653.A0 N146653	£1.50	£1.80
56 - PLATE BDE-N146843.A2 N146843	£1.50	£1.80
57 - SCREW BDE-330045-15.A24 330045-15	£1.50	£1.80
58 - NUT BDE-330021-06.A3 330021-06	£1.50	£1.80
60 - SCREW BDE-330019-24.A22 330019-24	£1.50	£1.80
61 - LEAD SA BDE-N142779.A3 N142779	£23.75	£28.50
62 - VALVE BDE-N243564.A1 N243564	-
63 - VALVE BDE-N243563.A2 N243563	£14.19	£17.03
64 - COVER BDE-N182342.A0 N182342	£4.58	£5.49
65 - CORD PROTECTOR BDE-N135151.A6 N135151	£1.50	£1.80
66 - CORD CLAMP BDE-450877-00.A12 450877-00	£1.50	£1.80
69 - SPRING BDE-N137860.A0 N137860	£1.50	£1.80
70 - SCREW BDE-330019-20.A27 330019-20	£1.50	£1.80
71 - PLATE BDE-N118226.A0 N118226	£1.50	£1.80
72 - PLATE BDE-N134941.A4 N134941	£1.50	£1.80
73 - INLET BDE-N150546.A3 N150546	£16.03	£19.24
76 - BRAND LABEL BDE-N147780.A0 N147780	£1.42	£1.70
80 - RACK BDE-N310159.A0 N310159	£47.08	£56.49
81 - LATCH BDE-N376128.A1 N376128	£1.50	£1.80
82 - SCREW.TEMP BDE-330019-21.A13 330019-21	£1.50	£1.80
90 - SIREN BDE-N139903.A3 N139903	£7.85	£9.42
91 - CONNECTOR BDE-N149299.A0 N149299	£1.50	£1.80
92 - TUBE PLASTIC BDE-N149246.A3 N149246	£1.82	£2.19
93 - SCREW BDE-330019-02.A81 330019-02	£1.50	£1.80
97 - LABEL BDE-N177322.A8 N177322	£1.50	£1.80
98 - LABEL BDE-N183923.A0 N183923	£1.50	£1.80
99 - LABEL BDE-N199361.A5 N199361	£1.50	£1.80
100 - WARNING LABEL BDE-N154132.A3 N154132	£1.50	£1.80
101 - FOAM BDE-N177921.A6 N177921	£2.78	£3.34
102 - DUST BAG SA BDE-N194931.A0 N194931	£9.41	£11.29
103 - ADAPTOR BDE-N070902.A8 N070902	£7.85	£9.42
104 - CONNECTOR BDE-N243560.A1 N243560	£12.17	£14.60

Attribute Name	Value
Brand	Dewalt
