Dewalt DXPW001CE Type 1 Pressure Washer Spare Parts

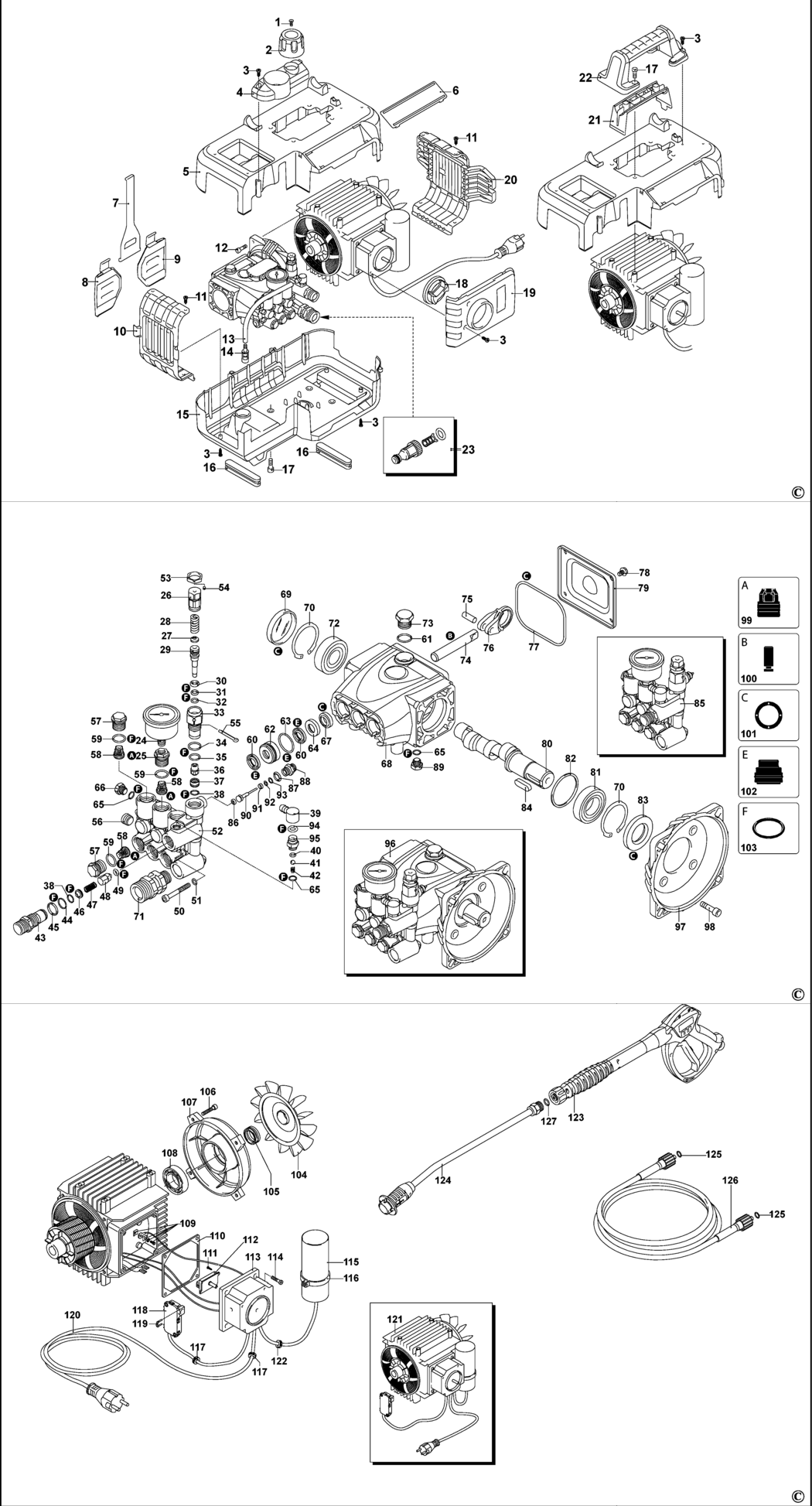

An exploded drawing and spare parts listing for the Dewalt DXPW001CE Type 1 Pressure Washer

	Ex VAT	Inc VAT
1 - SCREW BDE-1004743-72.A0 1004743-72	£1.66	£1.99
2 - KNOB BDE-1004743-85.A2 1004743-85	£7.85	£9.42
3 - SCREW BDE-1004712-13.A2 1004712-13	£1.66	£1.99
4 - GUARD BDE-1004743-86.A0 1004743-86	£9.41	£11.29
5 - COVER-TOP BDE-1004743-75.A2 1004743-75	£34.00	£40.80
6 - GUARD BDE-1004714-01.A2 1004714-01	£16.03	£19.24
7 - CLAMP BDE-1004743-84.A0 1004743-84	£10.85	£13.02
8 - SUPPORT BDE-1004743-77.A2 1004743-77	£7.85	£9.42
9 - SUPPORT BDE-1004743-83.A2 1004743-83	£7.85	£9.42
10 - GUARD BDE-1004743-81.A2 1004743-81	£14.57	£17.48
11 - SCREW BDE-1004714-17.A0 1004714-17	£1.66	£1.99
12 - SCREW BDE-1004710-60.A3 1004710-60	£1.66	£1.99
13 - HOSE BDE-1004710-70.A5 1004710-70	£4.69	£5.63
14 - FILTER BDE-1004710-89.A5 1004710-89	£14.57	£17.48
15 - BASE SA BDE-1004743-76.A0 1004743-76	£34.00	£40.80
16 - FOOT BDE-1004714-16.A6 1004714-16	£9.41	£11.29
17 - SCREW BDE-1004710-12.A3 1004710-12	£1.66	£1.99
18 - KNOB BDE-1004713-73.A6 1004713-73	£7.18	£8.62
19 - GUARD BDE-1004743-78.A0 1004743-78	£14.57	£17.48
20 - GUARD BDE-1004743-82.A0 1004743-82	£16.03	£19.24
21 - GUARD BDE-1004743-80.A0 1004743-80	£9.41	£11.29
22 - HANDLE BDE-1004743-79.A2 1004743-79	£12.17	£14.60
23 - COUPLING SA BDE-1004712-93.A20 1004712-93	£9.16	£10.99
24 - PRESSURE GAUGE BDE-1004730-85.A3 1004730-85	£30.08	£36.10
25 - PLUG BDE-1004744-22.A0 1004744-22	£14.57	£17.48
26 - SCREW BDE-1004743-73.A2 1004743-73	£7.85	£9.42
27 - PLATE BDE-1004711-87.A8 1004711-87	£1.66	£1.99
28 - SPRING BDE-1004744-07.A0 1004744-07	£1.66	£1.99
29 - PISTON BDE-1004743-98.A0 1004743-98	£9.41	£11.29
30 - O RING BDE-1004712-21.A2 1004712-21	£1.66	£1.99
31 - O RING BDE-1004709-88.A7 1004709-88	£1.66	£1.99
32 - RING BDE-1004712-52.A7 1004712-52	£5.88	£7.06
33 - GUIDE BDE-1004743-74.A0 1004743-74	£25.70	£30.84
34 - O RING BDE-1004709-90.A8 1004709-90	£1.66	£1.99
35 - O RING BDE-1004710-05.A24 1004710-05	£1.66	£1.99
36 - PISTON BDE-1004743-70.A0 1004743-70	£7.85	£9.42
37 - SEAT BDE-1004744-35.A2 1004744-35	£3.80	£4.56
38 - O RING BDE-1004711-57.A2 1004711-57	£1.66	£1.99
39 - CONNECTOR BDE-1004712-33.A0 1004712-33	£4.69	£5.63
40 - O RING BDE-1004709-78.A30 1004709-78	£1.66	£1.99
41 - BALL BDE-1004710-50.A12 1004710-50	£1.66	£1.99
42 - SPRING BDE-1004711-70.A8 1004711-70	£1.66	£1.99
43 - COUPLING BDE-1004743-66.A0 1004743-66	£25.70	£30.84
44 - O RING BDE-1004712-56.A8 1004712-56	£1.66	£1.99
45 - O RING BDE-1004709-75.A6 1004709-75	£1.66	£1.99
46 - INSERT BDE-1004712-49.A2 1004712-49	£5.88	£7.06
47 - SPRING BDE-1004712-51.A2 1004712-51	£1.66	£1.99
48 - SHUTTER BDE-1004744-23.A2 1004744-23	£14.57	£17.48
49 - O RING BDE-1004712-14.A9 1004712-14	£1.66	£1.99
50 - SCREW BDE-1004711-14.A2 1004711-14	£1.66	£1.99
51 - WASHER BDE-1004743-96.A0 1004743-96	£1.66	£1.99
52 - HEAD BDE-1004743-88.A1 1004743-88	£144.10	£172.92
53 - NUT BDE-1004744-30.A2 1004744-30	£7.18	£8.62
54 - SCREW BDE-1004743-71.A1 1004743-71	£1.66	£1.99
55 - PIN BDE-1004712-46.A11 1004712-46	£1.66	£1.99
56 - PLUG BDE-1004744-34.A0 1004744-34	£5.88	£7.06
57 - PLUG BDE-1004712-65.A5 1004712-65	£5.88	£7.06
58 - VALVE BDE-1004712-74.A1 1004712-74	£2.78	£3.34
59 - O RING BDE-2841520.A1 2841520	£1.66	£1.99
60 - SEAL BDE-1004712-18.A5 1004712-18	£4.69	£5.63
61 - O RING BDE-1004709-90.A9 1004709-90	£1.66	£1.99
62 - BUSHING BDE-1004712-69.A9 1004712-69	£9.41	£11.29
63 - O RING BDE-1004709-93.A11 1004709-93	£1.66	£1.99
64 - BUSH BDE-1004743-67.A1 1004743-67	£1.66	£1.99
65 - O RING BDE-1004744-43.A2 1004744-43	£1.66	£1.99
66 - PLUG BDE-1004743-68.A2 1004743-68	£7.18	£8.62
67 - SEAL BDE-1004711-74.A5 1004711-74	£5.88	£7.06
68 - PUMP SA BDE-1004743-87.A1 1004743-87	£65.52	£78.62
69 - COVER BDE-1004743-97.A1 1004743-97	£7.18	£8.62
70 - RING BDE-1004744-04.A1 1004744-04	£1.66	£1.99
71 - COUPLING BDE-1004744-06.A1 1004744-06	£18.91	£22.69
72 - BEARING BDE-1004743-95.A1 1004743-95	£14.57	£17.48
73 - PLUG BDE-1004711-91.A7 1004711-91	£3.80	£4.56
74 - PISTON BDE-1004743-90.A1 1004743-90	£34.00	£40.80
75 - PIN BDE-1004743-91.A1 1004743-91	£1.66	£1.99
76 - CON ROD BDE-1004743-92.A1 1004743-92	£18.91	£22.69
77 - O RING BDE-1004743-93.A1 1004743-93	£1.66	£1.99
78 - SCREW BDE-1004744-01.A1 1004744-01	£1.66	£1.99
79 - COVER BDE-1004743-89.A1 1004743-89	£16.03	£19.24
80 - SHAFT BDE-1004744-03.A0 1004744-03	£71.44	£85.73
81 - BEARING BDE-1004743-94.A1 1004743-94	£14.57	£17.48
82 - RING BDE-1004743-99.A1 1004743-99	£10.85	£13.02
83 - SEAL BDE-1004744-00.A1 1004744-00	£7.18	£8.62
84 - KEY BDE-1004711-28.A2 1004711-28	£1.66	£1.99
85 - HEAD SA BDE-1004744-09.A0 1004744-09	£336.69	£404.03
86 - O RING BDE-1004710-44.A2 1004710-44	£1.66	£1.99
87 - O RING BDE-1004709-81.A14 1004709-81	£1.66	£1.99
88 - PLUG BDE-1004744-08.A1 1004744-08	£7.85	£9.42
89 - PLUG BDE-1004743-68.A3 1004743-68	£7.18	£8.62
90 - PIN BDE-1004744-05.A1 1004744-05	£7.18	£8.62
91 - WASHER BDE-1004712-06.A2 1004712-06	£1.66	£1.99
92 - O RING BDE-1004710-62.A7 1004710-62	£1.66	£1.99
93 - RING BDE-1004713-50.A2 1004713-50	£5.88	£7.06
94 - O RING BDE-1004709-79.A0 1004709-79	£1.66	£1.99
95 - CONNECTOR BDE-1004711-02.A3 1004711-02	£14.57	£17.48
96 - PUMP SA BDE-1004743-58.A0 1004743-58	£393.38	£472.06
97 - FLANGE BDE-1004743-69.A1 1004743-69	£30.08	£36.10
98 - SCREW BDE-1004710-12.A2 1004710-12	£1.66	£1.99
99 - VALVES & SEALS KIT BDE-1004744-27.A2 1004744-27	£10.85	£13.02
100 - PISTON KIT BDE-1004744-15.A1 1004744-15	£74.15	£88.98
101 - SEALS KIT BDE-1004743-59.A1 1004743-59	£19.90	£23.88
102 - SEALS KIT BDE-1004744-26.A0 1004744-26	£12.17	£14.60
103 - GASKET SET BDE-1004744-28.A0 1004744-28	£9.41	£11.29
104 - FAN BDE-1004710-55.A2 1004710-55	£7.18	£8.62
105 - SEAL BDE-1004710-85.A2 1004710-85	£5.88	£7.06
106 - SCREW BDE-1004744-37 1004744-37	£1.66	£1.99
107 - SHIELD BDE-1004744-19 1004744-19	£24.39	£29.27
108 - BEARING BDE-1004710-84.A1 1004710-84	£7.85	£9.42
109 - CLAMP BDE-1004710-67.A7 1004710-67	£5.88	£7.06
110 - GASKET BDE-1004710-86.A1 1004710-86	£3.30	£3.96
111 - SCREW BDE-1004712-01.A14 1004712-01	£1.66	£1.99
113 - BOX BDE-1004713-52.A0 1004713-52	£7.85	£9.42
114 - SCREW BDE-1004710-64.A2 1004710-64	£1.66	£1.99
115 - CAPACITOR BDE-1004744-17 1004744-17	£25.70	£30.84
116 - CLAMP BDE-1004711-97.A2 1004711-97	£2.78	£3.34
117 - GLAND BDE-1004712-04.A4 1004712-04	£3.80	£4.56
118 - BOX BDE-1004743-65.A2 1004743-65	£34.00	£40.80
119 - FORK BDE-1004744-38.A0 1004744-38	£1.66	£1.99
121 - MOTOR SA BDE-1004743-63 1004743-63	£301.55	£361.86
122 - GLAND BDE-1004711-55.A3 1004711-55	£1.66	£1.99
123 - HANDLE SA BDE-1004709-16.A8 1004709-16	£55.30	£66.36
124 - NOZZLE BDE-1004743-60 1004743-60	£41.24	£49.49
125 - O RING BDE-1004712-02.A0 1004712-02	£7.18	£8.62
126 - HOSE BDE-1004714-04.A6 1004714-04	£84.42	£101.30
127 - O RING BDE-1004709-73.A0 1004709-73	£1.66	£1.99

Attribute Name	Value
Brand	Dewalt
