Dewalt DWS778 Type 2 Mitre Saw Spare Parts

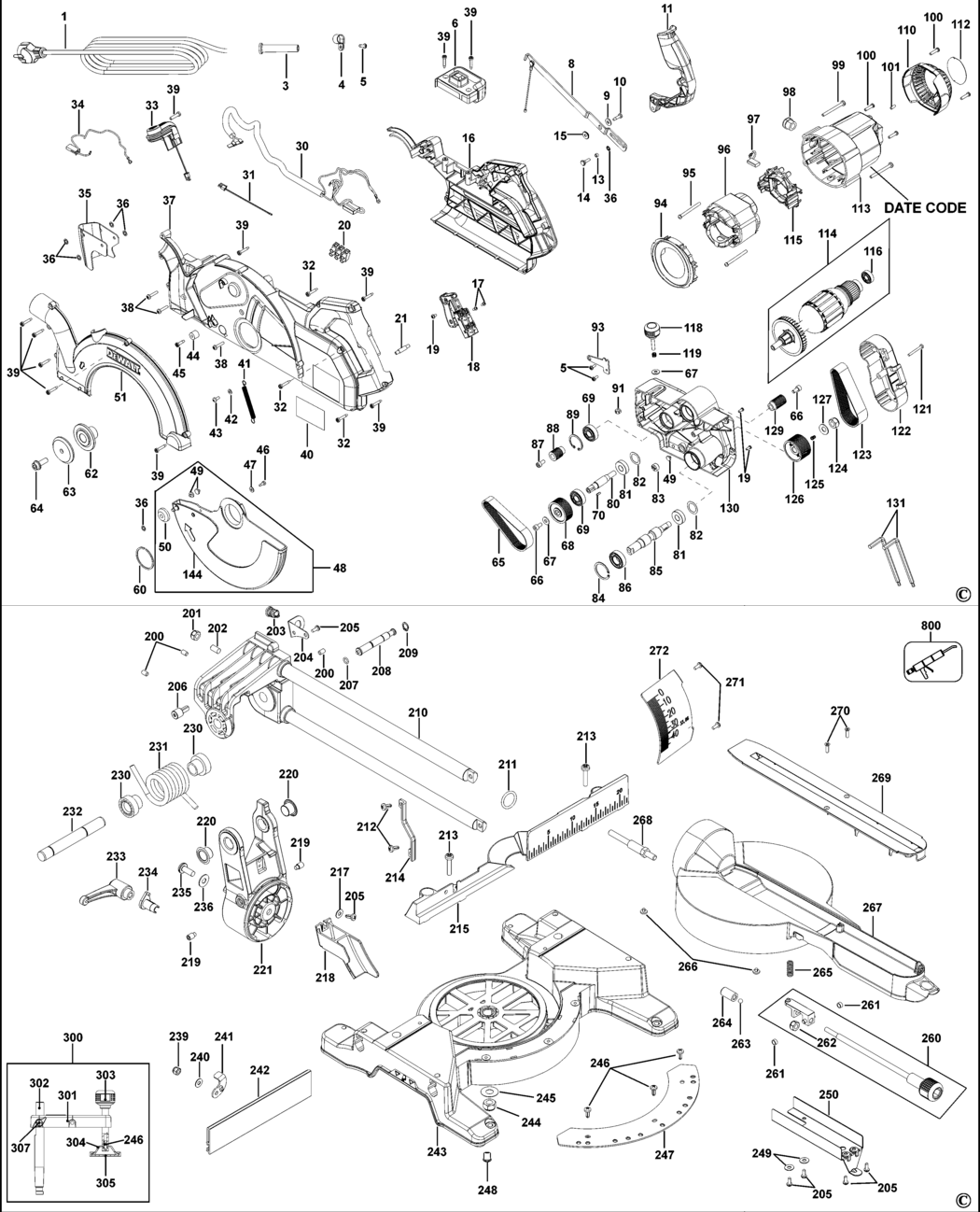

An exploded drawing and spare parts listing for the Dewalt DWS778 Type 2 Mitre Saw

	Ex VAT	Inc VAT
1 - CORDSET GB BDE-N243301.A0 N243301	£38.48	£46.17
1 - CORDSET LX BDE-N243302.A1 N243302	£45.47	£54.56
3 - CORD PROTECTOR BDE-868520-00.A43 868520-00	£1.88	£2.26
4 - CLAMP BDE-860843-01.A19 860843-01	£1.66	£1.99
5 - SCREW BDE-330045-05.A75 330045-05	£1.66	£1.99
6 - SA POWER SUPPLY BDE-N620861.A0 N620861	£122.90	£147.48
8 - LEVER SA BDE-N110339.A0 N110339	£12.53	£15.04
9 - WASHER BDE-939625-00.A37 939625-00	£3.92	£4.70
10 - SCREW BDE-930076-01.A8 930076-01	£1.66	£1.99
11 - LEVER BDE-N464700.A1 N464700	£3.92	£4.70
13 - BUSH BDE-869295-00.A12 869295-00	£1.66	£1.99
14 - PIN BDE-869156-00.A16 869156-00	£3.92	£4.70
15 - BUSH BDE-869192-00.A5 869192-00	£1.88	£2.26
16 - HOUSING HANDLE >192014 BDE-N466267.A1 N466267	£25.12	£30.15
17 - SCREW BDE-384127-01.A97 384127-01	£1.66	£1.99
18 - SWITCH BDE-394375-02P.A22 394375-02P	£15.01	£18.01
19 - SCREW BDE-330065-06.A165 330065-06	£1.66	£1.99
20 - CONNECTOR BDE-658093-00.A3 658093-00	£9.69	£11.63
21 - PIVOT BDE-760296-01.A3 760296-01	£1.66	£1.99
30 - CAPACITOR SA GB BDE-N458806.A0 N458806	£19.48	£23.37
30 - CAPACITOR SA LX BDE-N458806.A1 N458806	£19.48	£23.37
31 - SET OF LEAD WIRES BDE-N210177.A1 N210177	£6.06	£7.27
32 - SCREW BDE-N456928.A3 N456928	£1.88	£2.26
33 - LED LIGHT BDE-N231737.A0 N231737	£67.48	£80.98
34 - CABLE SA BDE-N137473.A1 N137473	£12.53	£15.04
35 - DUST DEFLECTOR BDE-N130455.A2 N130455	£4.83	£5.80
36 - WASHER BDE-860077-01.A17 860077-01	£1.66	£1.99
37 - COVER HOUSING BDE-N466268.A0 N466268	£26.47	£31.76
38 - SCREW BDE-330045-05.A246 330045-05	£1.66	£1.99
39 - SCREW BDE-N456928.A4 N456928	£1.88	£2.26
40 - RATING PLATE LX BDE-N467750 N467750	£5.88	£7.06
40 - RATING PLATE GB BDE-N467749 N467749	£5.88	£7.06
41 - SPRING BDE-N168410.A1 N168410	£1.66	£1.99
42 - WASHER BDE-860073-00.A204 860073-00	£1.66	£1.99
43 - SCREW BDE-860084-20.A75 860084-20	£1.66	£1.99
44 - BUMPER BDE-761306-00.A20 761306-00	£1.66	£1.99
45 - SCREW BDE-949896-13.A12 949896-13	£1.66	£1.99
46 - SCREW BDE-943022-01.A6 943022-01	£1.66	£1.99
47 - WASHER BDE-941633-00.A32 941633-00	£1.66	£1.99
48 - GUARD SA BDE-N110318.A2 N110318	£38.48	£46.17
49 - INSERT BDE-760298-01.A53 760298-01	£1.66	£1.99
50 - ROLLER BDE-146774-00.A55 146774-00	£1.88	£2.26
51 - GUARD UPPER BDE-N106544.A0 N106544	£35.02	£42.02
60 - SPRING CLIP BDE-N142857.A2 N142857	£1.66	£1.99
62 - WASHER INNER CLAMP BDE-N106551.A2 N106551	£16.52	£19.82
63 - WASHER OUTER CLAMP BDE-N106550.A1 N106550	£12.53	£15.04
64 - SCREW BDE-869245-00.A2 869245-00	£3.54	£4.25
65 - BELT GROOVED BDE-N106424.A0 N106424	£12.53	£15.04
66 - SCREW BDE-760219-00.A60 760219-00	£1.66	£1.99
67 - SPACER BDE-760241-01.A6 760241-01	£1.66	£1.99
67 - WASHER BDE-860075-00.A229 860075-00	£1.66	£1.99
68 - PULLEY BDE-N106421.A1 N106421	£18.00	£21.60
69 - BEARING BDE-861721-13.A11 861721-13	£8.08	£9.70
70 - WOODRUFF KEY BDE-N116864.A1 N116864	£1.66	£1.99
80 - INTER SHAFT BDE-N231745.A0 N231745	£30.98	£37.18
81 - BEARING BDE-605040-59.A20 605040-59	£3.39	£4.07
82 - WASHER BDE-930122-00.A1 930122-00	£1.66	£1.99
83 - ADJUSTER BDE-946874-00.A5 946874-00	£1.66	£1.99
84 - CIRCLIP BDE-949729-03.A19 949729-03	£1.66	£1.99
85 - SPINDLE SA BDE-N231744.A1 N231744	£38.48	£46.17
86 - BEARING BDE-861721-10.A11 861721-10	£8.08	£9.70
87 - SCREW BDE-949886-26.A6 949886-26	£1.88	£2.26
88 - DRIVE PULLEY BDE-N106420.A0 N106420	£6.06	£7.27
89 - CIRCLIP BDE-949729-02.A9 949729-02	£1.66	£1.99
91 - NUT BDE-860083-03.A342 860083-03	£1.66	£1.99
93 - LOCKING DEVICE BDE-869166-00.A5 869166-00	£2.87	£3.44
94 - DEFLECTOR BDE-N119659.A1 N119659	£1.66	£1.99
95 - SCREW BDE-330019-19.A68 330019-19	£1.66	£1.99
96 - FIELD 230V GB BDE-N503672.A1 N503672	£60.46	£72.55
96 - FIELD 115V LX BDE-N503673.A1 N503673	£62.77	£75.32
97 - BRUSH PAIR GB BDE-659512-00.A7 659512-00	£12.53	£15.04
97 - BRUSH PAIR LX BDE-659512-00.A8 659512-00	£12.53	£15.04
98 - BUSHING BDE-605155-00.A29 605155-00	£1.66	£1.99
99 - SCREW BDE-98094-55.A23 98094-55	£1.66	£1.99
100 - SCREW BDE-330019-13.A143 330019-13	£1.66	£1.99
101 - PLUG BDE-145312-00.A78 145312-00	£1.66	£1.99
110 - END CAP SA BDE-N187409.A0 N187409	£6.06	£7.27
112 - LABEL BDE-N625165.A17 N625165	£1.66	£1.99
113 - FIELDCASE BDE-391317-00.A41 391317-00	£12.53	£15.04
114 - ARMATURE 115V LX BDE-N231747.A0 N231747	£122.90	£147.48
114 - ARMATURE 230V GB BDE-N231746.A1 N231746	£128.92	£154.70
115 - BRUSHPLATE BDE-N458123.A0 N458123	£25.12	£30.15
116 - BEARING BDE-N110359.A145 N110359	£3.75	£4.50
118 - LOCKING KNOB BDE-869140-00.A14 869140-00	£6.06	£7.27
119 - SPRING BDE-868082-00.A15 868082-00	£1.66	£1.99
121 - SCREW BDE-330045-10.A12 330045-10	£9.69	£11.63
122 - BELT COVER BDE-N106479.A0 N106479	£4.83	£5.80
123 - BELT GROOVED BDE-N115190.A0 N115190	£18.00	£21.60
124 - NUT BDE-860083-17.A12 860083-17	£1.66	£1.99
125 - SPRING BDE-869246-00.A7 869246-00	£1.66	£1.99
126 - PULLEY BDE-N115189.A1 N115189	£18.00	£21.60
127 - WASHER BDE-860074-05.A48 860074-05	£1.66	£1.99
129 - DRIVE PULLEY BDE-N115188.A0 N115188	£7.40	£8.88
130 - CASTING SA <192014 BDE-N231743.A0 N231743	£119.32	£143.19
130 - CASTING SA >192014 BDE-N394543.A0 N394543	£102.45	£122.94
131 - HEX KEY BDE-868682-00.A2 868682-00	£1.66	£1.99
144 - GUARD LOWER BDE-N106542.A1 N106542	£30.98	£37.18
200 - SCREW BDE-150075-00.A62 150075-00	£1.66	£1.99
201 - NUT BDE-860083-14.A63 860083-14	£1.66	£1.99
202 - SCREW BDE-760242-00.A15 760242-00	£1.66	£1.99
203 - BUSHING BDE-N137454.A2 N137454	£1.66	£1.99
204 - BRACKET BDE-N137455.A1 N137455	£1.66	£1.99
205 - SCREW BDE-330045-05.A74 330045-05	£1.66	£1.99
206 - SCREW BDE-618198-00.A9 618198-00	£1.66	£1.99
207 - O RING BDE-943030-00.A12 943030-00	£1.66	£1.99
208 - PIN BDE-N129820.A2 N129820	£12.53	£15.04
209 - CIRCLIP BDE-860079-02.A45 860079-02	£1.66	£1.99
210 - RAIL SA BDE-N231740.A1 N231740	£188.92	£226.70
211 - O RING BDE-869141-00.A8 869141-00	£1.66	£1.99
212 - SCREW BDE-949609-03.A3 949609-03	£1.66	£1.99
213 - SCREW BDE-330045-26.A2 330045-26	£1.88	£2.26
214 - BRACKET BDE-947613-00.A7 947613-00	£2.87	£3.44
215 - FENCE BDE-N783370.A0 N783370	£46.49	£55.79
217 - WASHER BDE-941633-00.A33 941633-00	£1.66	£1.99
218 - CONVEYOR BDE-N150087.A1 N150087	£2.41	£2.89
219 - SCREW BDE-949743-02.A28 949743-02	£1.66	£1.99
220 - BUSH BDE-N083191.A6 N083191	£1.66	£1.99
221 - SEGMENT BDE-N106395.A1 N106395	£46.49	£55.79
230 - SPACER BDE-146732-00.A25 146732-00	£1.66	£1.99
231 - SPRING TORSION BDE-N136651.A1 N136651	£12.53	£15.04
232 - PIVOT SHAFT BDE-N231736.A1 N231736	£18.00	£21.60
233 - LEVER BDE-861840-03.A22 861840-03	£7.40	£8.88
234 - INSERT BDE-868680-00.A13 868680-00	£4.79	£5.75
235 - SCREW BDE-612008-00.A37 612008-00	£1.66	£1.99
236 - WASHER BDE-933168-00.A11 933168-00	£1.66	£1.99
239 - NUT BDE-860092-02.A23 860092-02	£1.66	£1.99
240 - WASHER BDE-860075-00.A228 860075-00	£1.66	£1.99
241 - LEVER LOCK BDE-N128350.A1 N128350	£1.66	£1.99
242 - FENCE SA BDE-N497434.A1 N497434	£35.02	£42.02
243 - TABLE SA BDE-869313-00.A3 869313-00	£122.90	£147.48
244 - NUT BDE-860092-07.A13 860092-07	£1.66	£1.99
245 - WASHER BDE-949705-01.A10 949705-01	£1.66	£1.99
246 - SCREW BDE-330045-49.A79 330045-49	£1.66	£1.99
247 - SCALE BDE-868677-00.A11 868677-00	£19.48	£23.37
248 - FOOT BDE-868777-00.A8 868777-00	£1.66	£1.99
249 - WASHER SPRING BDE-860074-00.A1 860074-00	£1.66	£1.99
250 - COVER BDE-N483511.A2 N483511	£7.40	£8.88
260 - LOCKING DEVICE BDE-N109532.A2 N109532	£18.00	£21.60
261 - BUSH BDE-N299799.A2 N299799	£1.66	£1.99
262 - NUT BDE-860092-05.A51 860092-05	£1.66	£1.99
263 - BALL BDE-868708-00.A12 868708-00	£1.66	£1.99
264 - BUSH BDE-868707-01.A14 868707-01	£1.66	£1.99
265 - SPRING BDE-868778-00.A19 868778-00	£1.66	£1.99
266 - INSERT BDE-760298-01.A54 760298-01	£1.66	£1.99
267 - ROTARY TABLE BDE-N231742.A0 N231742	£128.92	£154.70
268 - SHAFT BDE-N115187.A3 N115187	£7.40	£8.88
269 - TABLE INSERT BDE-N106478.A1 N106478	£7.40	£8.88
270 - SCREW BDE-860205-08.A7 860205-08	£1.66	£1.99
271 - SCREW BDE-949894-12.A13 949894-12	£1.66	£1.99
272 - BEVEL SCALE BDE-N131182.A2 N131182	£3.92	£4.70
300 - CLAMP SA BDE-N171682.A2 N171682	£26.47	£31.76
301 - ARM BDE-869306-00.A5 869306-00	£6.06	£7.27
302 - CLAMPING BAR BDE-N168123.A1 N168123	£9.69	£11.63
303 - KNOB BDE-869308-00.A4 869308-00	£3.92	£4.70
304 - SUPPORT BDE-630068-00.A15 630068-00	£1.66	£1.99
305 - GRIP BDE-630085-00.A6 630085-00	£1.66	£1.99
307 - SCREW WING BDE-326573-01.A5 326573-01	£1.88	£2.26
800 - GREASE BDE-93488-00.A79 93488-00	£18.00	£21.60

Attribute Name	Value
Brand	Dewalt
