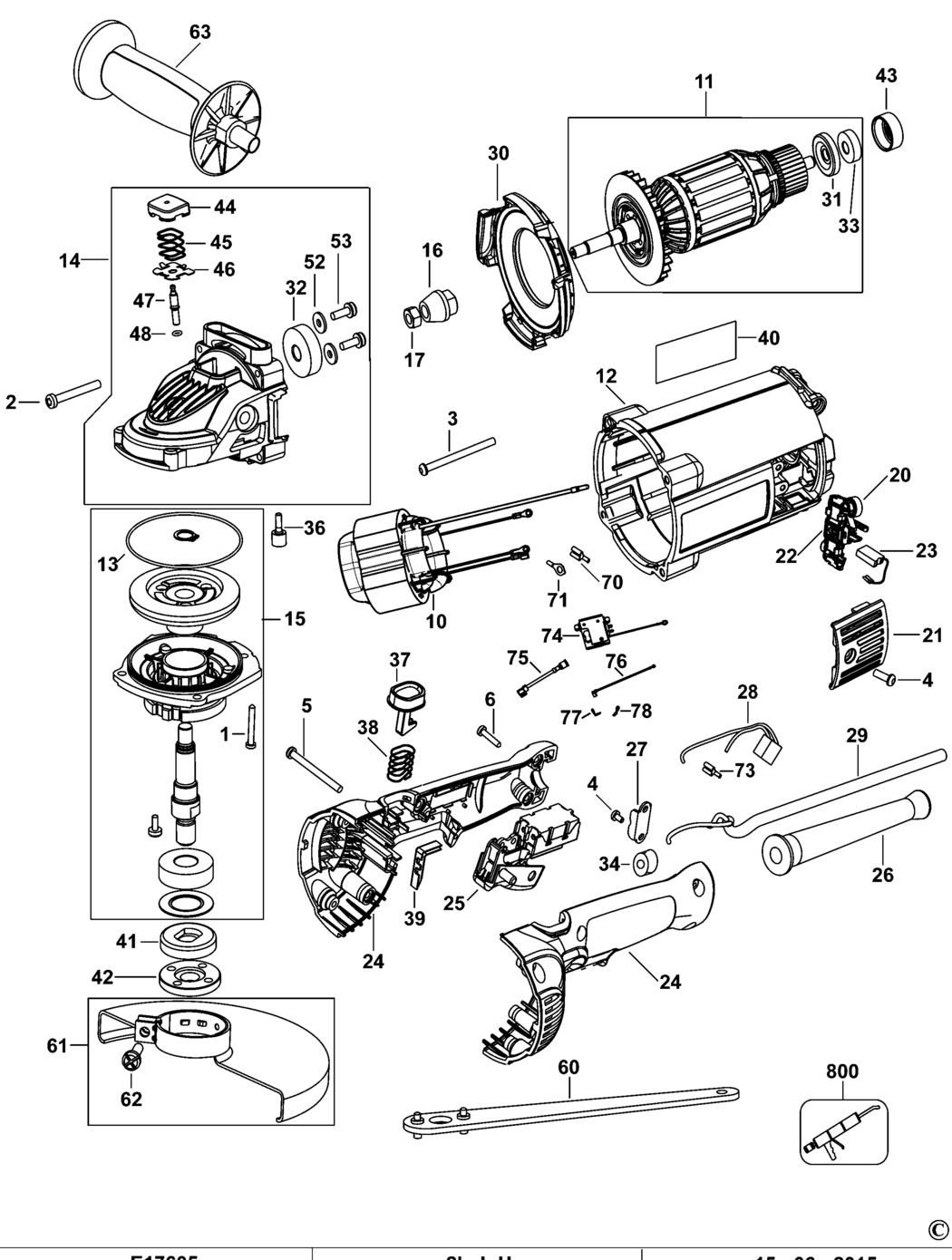

An exploded drawing and spare parts listing for the Dewalt DWE494 Type 1 Angle Grinder
Ex VAT Inc VAT
1 - SCREW BDE-330045-14.A114 330045-14 £1.50 £1.80
2 - SCREW BDE-330019-26.A89 330019-26 £1.50 £1.80
3 - SCREW BDE-330019-19.A159 330019-19 £1.50 £1.80
4 - SCREW.TEMP BDE-330019-11.A134 330019-11 £1.50 £1.80
5 - SCREW BDE-330019-50.A29 330019-50 £1.50 £1.80
6 - SCREW BDE-330019-32.A4 330019-32 £1.50 £1.80
12 - FIELD CASE BDE-393239-01.A3 393239-01 £14.57 £17.48
13 - O RING BDE-397031-00.A98 397031-00 £1.50 £1.80
14 - GEARCASE SA BDE-N442319.A1 N442319 £30.08 £36.10
15 - GEARCASE COVER SA BDE-N497001.A6 N497001 £58.70 £70.44
16 - PINION BDE-N407625.A6 N407625 £7.85 £9.42
17 - NUT BDE-330015-03.A77 330015-03 £1.50 £1.80
20 - BRUSH SPRING BDE-645650-00.A22 645650-00 £1.50 £1.80
21 - BRUSH COVER BDE-394387-01.A15 394387-01 £1.50 £1.80
22 - BRUSH HOLDER SA BDE-N410308.A14 N410308 £3.30 £3.96
27 - CORD CLAMP BDE-604119-00.A12 604119-00 £1.50 £1.80
30 - BAFFLE FAN BDE-631350-00.A16 631350-00 £2.26 £2.71
31 - SHIELD BDE-393238-00.A17 393238-00 £1.50 £1.80
32 - BEARING BDE-N389509.A2 N389509 £3.80 £4.56
33 - BEARING BDE-N110359.A46 N110359 £3.75 £4.50
36 - SCREW BDE-N033051.A40 N033051 £1.50 £1.80
37 - BUTTON LOCK-OFF BDE-636503-00.A9 636503-00 £1.50 £1.80
38 - SPRING BDE-636502-00.A27 636502-00 £1.50 £1.80
39 - COVER BDE-N391190.A10 N391190 £1.50 £1.80
41 - INNER FLANGE BDE-403150-01.A96 403150-01 £4.69 £5.63
42 - OUTER FLANGE BDE-401678-05.A118 401678-05 £4.69 £5.63
43 - SLEEVE INSULATING BDE-609970-00.A6 609970-00 £1.50 £1.80
44 - CAP BDE-630553-00.A24 630553-00 £1.50 £1.80
45 - SPRING BDE-638328-00.A32 638328-00 £1.50 £1.80
46 - RETAINER BDE-635908-00.A29 635908-00 £1.50 £1.80
47 - PIN BDE-634589-00.A33 634589-00 £1.82 £2.19
48 - O RING BDE-750831.A30 750831 £1.50 £1.80
52 - WASHER BDE-640591-00.A7 640591-00 £1.50 £1.80
53 - SCREW BDE-330045-67.A18 330045-67 £16.03 £19.24
60 - WRENCH PIN BDE-635261-00.A28 635261-00 £4.69 £5.63
61 - GUARD SA BDE-N419366.A8 N419366 £14.57 £17.48
62 - SCREW BDE-N082712.A19 N082712 £1.50 £1.80
63 - SIDE HANDLE BDE-651858-01.A28 651858-01 £7.18 £8.62
70 - TERMINAL BDE-612273-00.A11 612273-00 £1.50 £1.80
71 - TERMINAL BDE-610057-00.A8 610057-00 £1.50 £1.80
73 - TERMINAL BDE-53650-00.A26 53650-00 £1.50 £1.80
75 - LEAD SA BDE-N442585 N442585 £1.50 £1.80
76 - LEAD SA BDE-N442586 N442586 £1.50 £1.80
77 - TERMINAL BDE-N442587 N442587 £1.50 £1.80
78 - TERMINAL BDE-N442684 N442684 £1.50 £1.80
800 - GREASE 50 GMS BDE-583534-00.A160 583534-00 £144.10 £172.92
