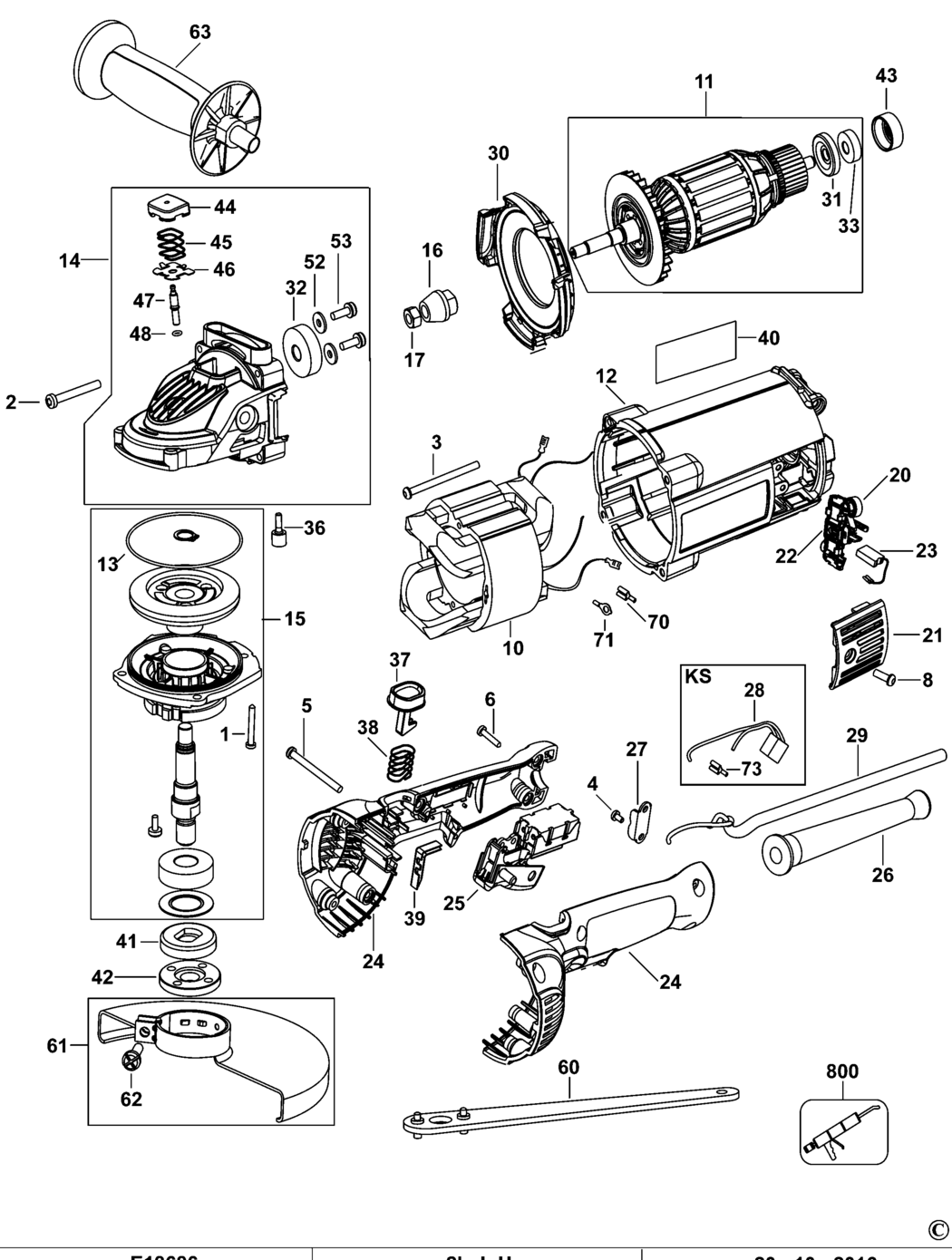

1 - SCREW
BDE-330045-14.A39
330045-14
|
£1.66
|
£1.99
|
|
|
2 - SCREW
BDE-330019-26.A59
330019-26
|
£1.66
|
£1.99
|
|
|
3 - SCREW
BDE-330019-19.A60
330019-19
|
£1.66
|
£1.99
|
|
|
4 - SCREW.TEMP
BDE-330019-11.A57
330019-11
|
£1.66
|
£1.99
|
|
|
5 - SCREW
BDE-330019-18.A25
330019-18
|
£1.66
|
£1.99
|
|
|
6 - SCREW
BDE-330019-32.A142
330019-32
|
£1.66
|
£1.99
|
|
|
8 - SCREW
BDE-176951-00.A52
176951-00
|
£1.66
|
£1.99
|
|
|
12 - FIELD CASE
BDE-393239-00.A0
393239-00
|
£18.91
|
£22.69
|
|
|
12 - FIELD CASE
BDE-393239-01.A45
393239-01
|
£15.01
|
£18.01
|
|
|
13 - O RING
BDE-397031-00.A22
397031-00
|
£1.66
|
£1.99
|
|
|
14 - GEARCASE SA
BDE-N495149.A0
N495149
|
-
|
|
|
|
15 - GEARCASE COVER SA
BDE-N495147
N495147
|
-
|
|
|
|
16 - PINION
BDE-N407627.A0
N407627
|
£8.08
|
£9.70
|
|
|
17 - NUT
BDE-330015-03.A17
330015-03
|
£1.66
|
£1.99
|
|
|
20 - BRUSH SPRING
BDE-645650-00.A6
645650-00
|
£1.66
|
£1.99
|
|
|
21 - BRUSH COVER
BDE-394387-00.A5
394387-00
|
£1.66
|
£1.99
|
|
|
21 - BRUSH COVER
BDE-394387-01.A40
394387-01
|
£1.66
|
£1.99
|
|
|
22 - BRUSH HOLDER SA
BDE-N410308.A7
N410308
|
£3.39
|
£4.07
|
|
|
23 - BRUSH PAIR
BDE-N404514.A0
N404514
|
£8.08
|
£9.70
|
|
|
24 - HANDLE SA
BDE-395184-00.A1
395184-00
|
£17.48
|
£20.97
|
|
|
24 - HANDLE & COVER
BDE-636499-00.A18
636499-00
|
£25.12
|
£30.15
|
|
|
25 - SWITCH SA
BDE-N015071.A3
N015071
|
£15.01
|
£18.01
|
|
|
26 - CORD PROTECTOR
BDE-N219433.A1
N219433
|
£1.66
|
£1.99
|
|
|
27 - CORD CLAMP
BDE-604119-00.A28
604119-00
|
£1.66
|
£1.99
|
|
|
27 - CORD CLAMP
BDE-N219432.A2
N219432
|
-
|
|
|
|
30 - BAFFLE FAN
BDE-631350-00.A24
631350-00
|
£2.32
|
£2.78
|
|
|
31 - SHIELD
BDE-393238-00.A97
393238-00
|
£1.66
|
£1.99
|
|
|
32 - BEARING
BDE-N389509.A36
N389509
|
£3.92
|
£4.70
|
|
|
33 - BEARING
BDE-N110359.A168
N110359
|
£3.75
|
£4.50
|
|
|
36 - SCREW
BDE-N033051.A54
N033051
|
£1.66
|
£1.99
|
|
|
37 - BUTTON LOCK-OFF
BDE-636503-00.A24
636503-00
|
£1.66
|
£1.99
|
|
|
38 - SPRING
BDE-636502-00.A11
636502-00
|
£1.66
|
£1.99
|
|
|
39 - COVER
BDE-N391190.A6
N391190
|
£1.66
|
£1.99
|
|
|
41 - INNER FLANGE
BDE-403150-01.A57
403150-01
|
£4.83
|
£5.80
|
|
|
42 - OUTER FLANGE
BDE-401678-05.A28
401678-05
|
£4.83
|
£5.80
|
|
|
43 - SLEEVE INSULATING
BDE-609970-00.A64
609970-00
|
£1.66
|
£1.99
|
|
|
44 - CAP
BDE-630553-00.A20
630553-00
|
£1.66
|
£1.99
|
|
|
45 - SPRING
BDE-638328-00.A20
638328-00
|
£1.66
|
£1.99
|
|
|
46 - RETAINER
BDE-635908-00.A16
635908-00
|
£1.66
|
£1.99
|
|
|
47 - PIN
BDE-634589-00.A10
634589-00
|
£1.88
|
£2.26
|
|
|
47 - PIN
BDE-N459860.A1
N459860
|
-
|
|
|
|
48 - O RING
BDE-750831.A11
750831
|
£1.66
|
£1.99
|
|
|
49 - SLEEVE BEARING
BDE-449852-00.A14
449852-00
|
-
|
|
|
|
52 - WASHER
BDE-640591-00.A28
640591-00
|
£1.66
|
£1.99
|
|
|
53 - SCREW
BDE-330045-67.A39
330045-67
|
£16.52
|
£19.82
|
|
|
60 - WRENCH PIN
BDE-635261-00.A23
635261-00
|
£4.83
|
£5.80
|
|
|
61 - GUARD SA
BDE-627378-01.A0
627378-01
|
-
|
|
|
|
62 - SCREW
BDE-N082712.A7
N082712
|
£1.66
|
£1.99
|
|
|
63 - SIDE HANDLE
BDE-651858-01.A13
651858-01
|
£7.40
|
£8.88
|
|
|
70 - TERMINAL
BDE-612273-00.A30
612273-00
|
£1.66
|
£1.99
|
|
|
71 - TERMINAL
BDE-610057-00.A36
610057-00
|
£1.66
|
£1.99
|
|
|
72 - SCREW
BDE-330045-56.A1
330045-56
|
-
|
|
|
|
73 - SEAL
BDE-607807-00.A1
607807-00
|
-
|
|
|
|
74 - BEARING
BDE-605040-31.A2
605040-31
|
£6.06
|
£7.27
|
|
|
75 - SPINDLE
BDE-637282-00.A1
637282-00
|
-
|
|
|
|
76 - GEARCASE COVER
BDE-N495240.A1
N495240
|
-
|
|
|
|
77 - GEAR
BDE-N407628
N407628
|
-
|
|
|
|
78 - RETAINER
BDE-034109-00.A1
034109-00
|
£1.66
|
£1.99
|
|
|
800 - GREASE 50 GMS
BDE-583534-00.A330
583534-00
|
£148.42
|
£178.11
|
|
