Dewalt DWE4599 Type 1 Angle Grinder Spare Parts

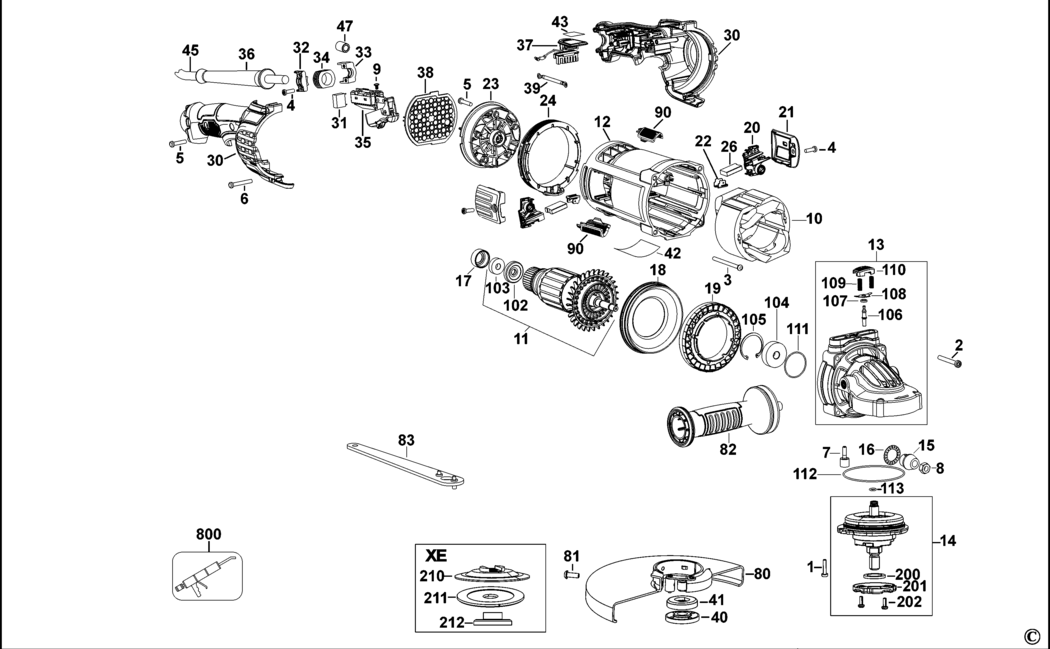

An exploded drawing and spare parts listing for the Dewalt DWE4599 Type 1 Angle Grinder

	Ex VAT	Inc VAT
1 - SCREW BDE-330045-07.A19 330045-07	£1.50	£1.80
2 - SCREW BDE-330019-26.A27 330019-26	£1.50	£1.80
3 - SCREW BDE-330019-19.A1 330019-19	£1.50	£1.80
4 - SCREW BDE-330019-12.A73 330019-12	£1.50	£1.80
5 - SCREW BDE-330019-32.A120 330019-32	£1.50	£1.80
6 - SCREW BDE-330019-15.A2 330019-15	£1.50	£1.80
7 - SCREW BDE-N033051.A67 N033051	£1.50	£1.80
8 - NUT BDE-330015-03.A45 330015-03	£1.50	£1.80
9 - SCREW BDE-N111595.A0 N111595	£1.50	£1.80
10 - FIELD SA 115V LX BDE-N203637.A0 N203637	£74.15	£88.98
11 - ARMATURE 120V LX BDE-N203632.A2 N203632	£93.62	£112.35
12 - FIELDCASE BDE-N096025.A1 N096025	£25.70	£30.84
13 - GEARCASE SA BDE-N252619.A10 N252619	£45.14	£54.17
14 - GEARCASE COVER SA LX BDE-N230836 N230836	£119.32	£143.19
15 - PINION BDE-N099841.A0 N099841	£12.17	£14.60
16 - WASHER SPECIAL BDE-N132602.A8 N132602	£1.50	£1.80
17 - SLEEVE INSULATING BDE-609970-00.A98 609970-00	£1.50	£1.80
18 - BAFFLE FAN BDE-N094853.A1 N094853	£1.82	£2.19
19 - FAN BDE-N094854.A8 N094854	£1.50	£1.80
20 - BRUSH HOLDER SA BDE-N106196.A0 N106196	£7.18	£8.62
21 - BRUSH COVER BDE-N111898.A7 N111898	£1.50	£1.80
22 - TERMINAL BDE-N139735.A1 N139735	£1.50	£1.80
23 - FAN SA BDE-N435947.A6 N435947	£12.17	£14.60
24 - RING BDE-N110984.A7 N110984	£4.69	£5.63
26 - BRUSH PAIR 115V LX BDE-N253979.A2 N253979	£18.91	£22.69
30 - HANDLE SA LX BDE-N145822.A5 N145822	£17.48	£20.97
32 - CORD CLAMP BDE-N142099.A0 N142099	£1.50	£1.80
33 - CORD CLAMP BDE-N104732.A6 N104732	£1.50	£1.80
34 - SHOCK ABSORBER BDE-N135624.A1 N135624	£1.50	£1.80
35 - SWITCH SA LX BDE-N142959.A7 N142959	£16.03	£19.24
36 - CORD PROTECTOR BDE-604118-00.A7 604118-00	£2.78	£3.34
37 - LED LX BDE-N103805.A5 N103805	£18.91	£22.69
38 - GACC MODULE 115V LX BDE-N173924.A0 N173924	£60.94	£73.13
39 - LEAD SA LX BDE-N106622.A2 N106622	£1.50	£1.80
40 - OUTER FLANGE LX BDE-401678-05.A62 401678-05	£4.69	£5.63
41 - INNER FLANGE LX BDE-403150-01.A31 403150-01	£4.69	£5.63
42 - RATING PLATE LX BDE-N145047 N145047	£1.50	£1.80
43 - LABEL LX BDE-N145317.A5 N145317	£1.50	£1.80
45 - CORDSET LX BDE-N116824.A2 N116824	£51.90	£62.28
80 - GUARD LX BDE-N037746.A2 N037746	£12.17	£14.60
81 - SCREW BDE-606863-00.A31 606863-00	£1.50	£1.80
82 - SIDE HANDLE BDE-N241543.A6 N241543	£25.70	£30.84
83 - WRENCH PIN BDE-635261-00.A3 635261-00	£4.69	£5.63
90 - COVER BDE-N398650.A1 N398650	£1.50	£1.80
102 - SHIELD BDE-393238-00.A67 393238-00	£1.50	£1.80
103 - BEARING BDE-N110359.A178 N110359	£3.75	£4.50
104 - BEARING BDE-N389509.A28 N389509	£3.80	£4.56
105 - RETAINER BDE-N173539.A8 N173539	£1.50	£1.80
106 - LOCK PIN BDE-N173538.A1 N173538	£1.50	£1.80
107 - O RING BDE-N173540.A1 N173540	£1.50	£1.80
108 - PLATE BDE-N108422.A9 N108422	£1.50	£1.80
109 - SPRING BDE-N110675.A1 N110675	£1.50	£1.80
110 - BUTTON BDE-N110236.A1 N110236	£1.50	£1.80
111 - O RING BDE-N226986.A8 N226986	£2.78	£3.34
112 - O RING BDE-397031-00.A56 397031-00	£1.50	£1.80
113 - O RING BDE-660143-00.A0 660143-00	£1.50	£1.80
200 - FELT BDE-N103732.A1 N103732	£1.50	£1.80
201 - CAP BDE-N095989.A6 N095989	£2.78	£3.34
202 - SCREW BDE-N247325.A0 N247325	£1.50	£1.80
210 - INNER FLANGE BDE-608371-00 608371-00	£38.80	£46.56
800 - GREASE 50 GMS BDE-583534-00.A239 583534-00	£144.10	£172.92

Attribute Name	Value
Brand	Dewalt
