Dewalt DWE4597 Type 1 Angle Grinder Spare Parts

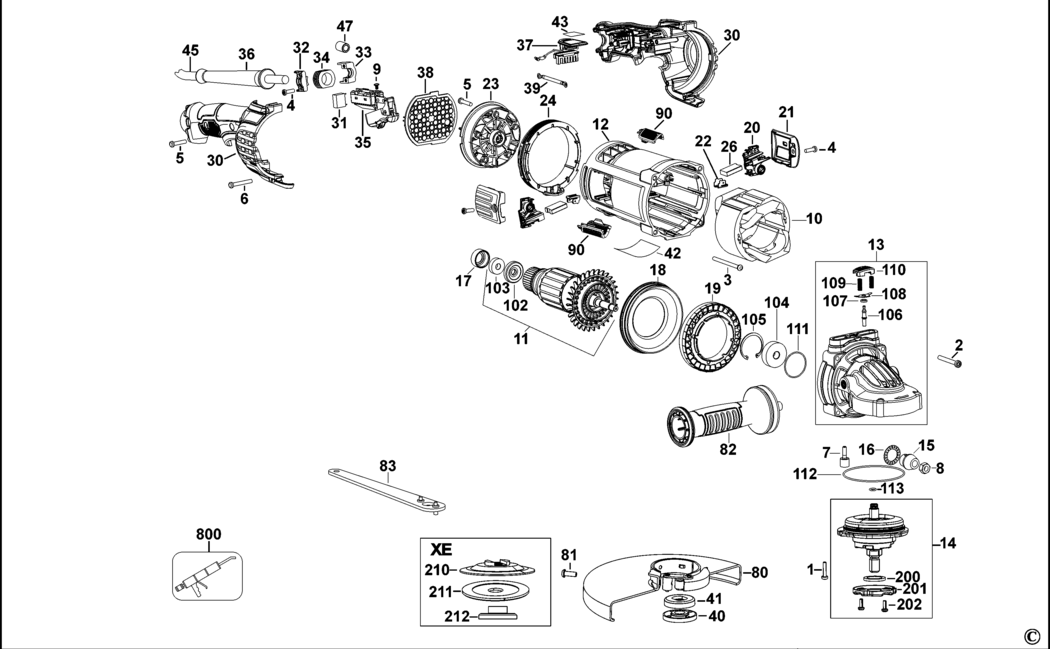

An exploded drawing and spare parts listing for the Dewalt DWE4597 Type 1 Angle Grinder

	Ex VAT	Inc VAT
1 - SCREW BDE-330045-07.A18 330045-07	£1.66	£1.99
2 - SCREW BDE-330019-26.A26 330019-26	£1.66	£1.99
3 - SCREW BDE-330019-19.A2 330019-19	£1.66	£1.99
4 - SCREW BDE-330019-12.A74 330019-12	£1.66	£1.99
5 - SCREW BDE-330019-32.A121 330019-32	£1.66	£1.99
6 - SCREW BDE-330019-15.A1 330019-15	£1.66	£1.99
7 - SCREW BDE-N033051.A66 N033051	£1.66	£1.99
8 - NUT BDE-330015-03.A44 330015-03	£1.66	£1.99
9 - SCREW BDE-N111595.A3 N111595	£1.66	£1.99
10 - FIELD 230V <2015WK2 BDE-N203633.A0 N203633	£71.44	£85.73
10 - FIELD SA 115V LX BDE-N203637.A2 N203637	£74.15	£88.98
10 - FIELD 230V >=2015WK2 BDE-N434863.A1 N434863	-
11 - ARMATURE 120V LX BDE-N203632.A1 N203632	£93.62	£112.35
11 - ARMATURE SA BDE-N203630.A0 N203630	£87.82	£105.39
12 - FIELDCASE BDE-N096025.A4 N096025	£25.70	£30.84
13 - GEARCASE SA BDE-N252619.A3 N252619	£45.14	£54.17
13 - GEARCASE SA LX BDE-N252619.A4 N252619	£45.14	£54.17
14 - GEARCASE COVER SA BDE-N203623.A0 N203623	£44.14	£52.97
15 - PINION BDE-N112754.A2 N112754	£12.17	£14.60
16 - WASHER SPECIAL BDE-N132602.A6 N132602	£1.66	£1.99
17 - SLEEVE INSULATING BDE-609970-00.A27 609970-00	£1.66	£1.99
18 - BAFFLE FAN BDE-N094853.A4 N094853	£1.82	£2.19
19 - FAN BDE-N094854.A5 N094854	£1.66	£1.99
20 - BRUSH HOLDER SA BDE-N106196.A4 N106196	£7.18	£8.62
21 - BRUSH COVER BDE-N111898.A3 N111898	£1.66	£1.99
22 - TERMINAL BDE-N139735.A7 N139735	£1.66	£1.99
23 - FAN SA BDE-N435947.A0 N435947	£12.17	£14.60
24 - RING BDE-N110984.A4 N110984	£4.69	£5.63
26 - BRUSH PAIR 115V LX BDE-N253979.A0 N253979	£18.91	£22.69
26 - BRUSH PAIR BDE-N259699.A2 N259699	-
30 - HANDLE SA BDE-N145822.A3 N145822	£17.48	£20.97
30 - HANDLE SA LX BDE-N145822.A4 N145822	£17.48	£20.97
31 - CAPACITOR BDE-N144790.A2 N144790	£2.78	£3.34
32 - CORD CLAMP BDE-N142099.A6 N142099	£1.66	£1.99
33 - CORD CLAMP BDE-N104732.A2 N104732	£1.66	£1.99
34 - SHOCK ABSORBER BDE-N135624.A6 N135624	£1.66	£1.99
35 - SWITCH SA LX BDE-N142959.A2 N142959	£16.03	£19.24
35 - SWITCH SA BDE-N122893 N122893	£24.39	£29.27
35 - SWITCH SA BDE-N142959.A3 N142959	£16.03	£19.24
36 - CORD PROTECTOR BDE-604118-00.A22 604118-00	£2.78	£3.34
37 - LED BDE-N103805.A0 N103805	£18.91	£22.69
37 - LED LX BDE-N103805.A1 N103805	£18.91	£22.69
38 - GACC MODULE 115V LX BDE-N173924.A1 N173924	£60.94	£73.13
38 - GACC MODULE 230V BDE-N173925.A2 N173925	£65.52	£78.62
39 - LEAD SA LX BDE-N106622.A1 N106622	£1.66	£1.99
39 - LEAD SA BDE-N150481.A2 N150481	£1.66	£1.99
40 - OUTER FLANGE LX BDE-401678-05.A75 401678-05	£4.69	£5.63
40 - OUTER FLANGE BDE-401678-05.A76 401678-05	£4.69	£5.63
41 - INNER FLANGE LX BDE-403150-01.A72 403150-01	£4.69	£5.63
41 - INNER FLANGE BDE-403150-01.A73 403150-01	£4.69	£5.63
42 - RATING PLATE LX BDE-N145031 N145031	£1.66	£1.99
43 - LABEL LX BDE-N145317.A3 N145317	£1.66	£1.99
43 - LABEL BDE-N145317.A4 N145317	£1.66	£1.99
45 - CORDSET (EURO) BDE-N116823.A1 N116823	£30.08	£36.10
45 - CORDSET LX BDE-N116824.A0 N116824	£51.90	£62.28
47 - SUPPRESSOR <2015WK2 BDE-647865-00.A0 647865-00	£1.66	£1.99
47 - SUPPRESSOR >=2015WK2 BDE-N419846.A4 N419846	£2.26	£2.71
80 - GUARD SA LX BDE-N036831.A7 N036831	£17.48	£20.97
80 - GUARD SA BDE-N036831.A8 N036831	£17.48	£20.97
81 - SCREW BDE-606863-00.A11 606863-00	£1.66	£1.99
82 - SIDE HANDLE BDE-N241543.A1 N241543	£25.70	£30.84
83 - WRENCH PIN BDE-635261-00.A41 635261-00	£4.69	£5.63
90 - COVER BDE-N398650.A2 N398650	£1.66	£1.99
102 - SHIELD BDE-393238-00.A37 393238-00	£1.66	£1.99
103 - BEARING BDE-N110359.A73 N110359	£3.75	£4.50
104 - BEARING BDE-N389509.A15 N389509	£3.80	£4.56
105 - RETAINER BDE-N173539.A3 N173539	£1.66	£1.99
106 - LOCK PIN BDE-N173538.A6 N173538	£1.66	£1.99
107 - O RING BDE-N173540.A6 N173540	£1.66	£1.99
108 - PLATE BDE-N108422.A6 N108422	£1.66	£1.99
109 - SPRING BDE-N110675.A4 N110675	£1.66	£1.99
110 - BUTTON BDE-N110236.A9 N110236	£1.66	£1.99
111 - O RING BDE-N226986.A5 N226986	£2.78	£3.34
112 - O RING BDE-397031-00.A77 397031-00	£1.66	£1.99
113 - O RING BDE-660143-00.A2 660143-00	£1.66	£1.99
200 - FELT BDE-N103732.A6 N103732	£1.66	£1.99
201 - CAP BDE-N095989.A3 N095989	£2.78	£3.34
202 - SCREW BDE-N247325.A7 N247325	£1.66	£1.99
800 - GREASE 50 GMS BDE-583534-00.A37 583534-00	£144.10	£172.92

Attribute Name	Value
Brand	Dewalt
