Dewalt DWE4235 Type 3 Small Angle Grinder Spare Parts

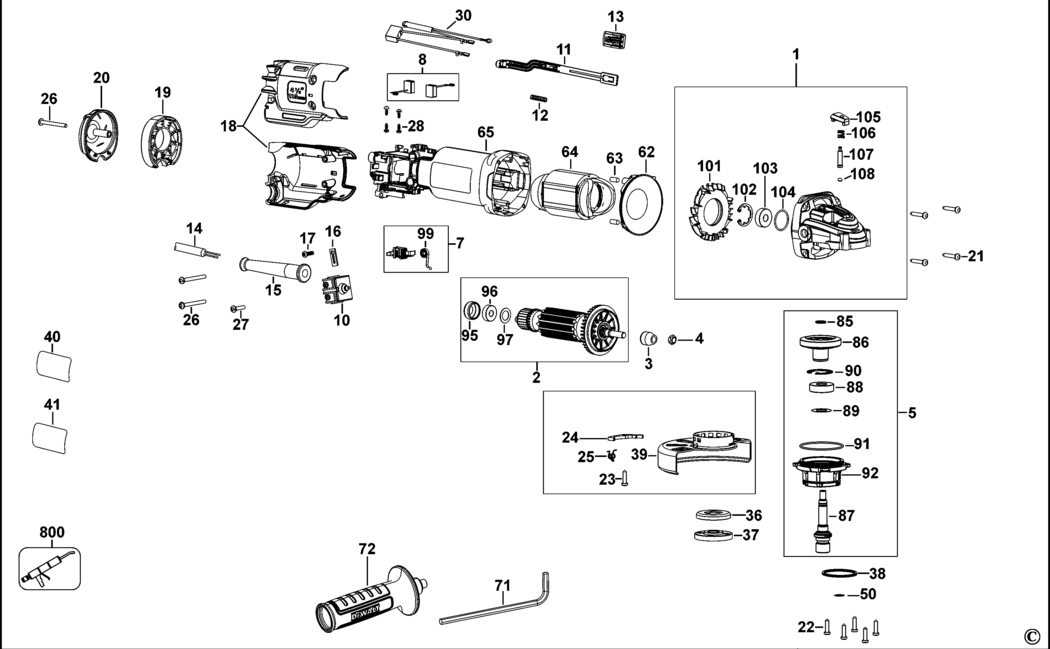

An exploded drawing and spare parts listing for the Dewalt DWE4235 Type 3 Small Angle Grinder

	Ex VAT	Inc VAT
1 - GEARCASE SA BDE-N493259.A8 N493259	£24.39	£29.27
2 - ARMATURE 230V BDE-N442428.A0 N442428	£37.35	£44.82
3 - PINION BDE-N423537.A32 N423537	£5.88	£7.06
4 - NUT BDE-N372039.A23 N372039	£1.50	£1.80
5 - GEARCASE COVER SA BDE-N475902 N475902	£30.08	£36.10
7 - BRUSHBOX SA BDE-N413349.A7 N413349	£4.69	£5.63
8 - BRUSH PAIR 230V BDE-N442427 N442427	£3.80	£4.56
10 - SWITCH BDE-N484918.A10 N484918	£12.17	£14.60
11 - LINK BDE-N298583.A25 N298583	£1.51	£1.81
12 - SPRING BDE-N093410.A57 N093410	£1.50	£1.80
13 - BUTTON BDE-N097844.A56 N097844	£1.50	£1.80
15 - CORD PROTECTOR BDE-330005-01.A53 330005-01	£1.50	£1.80
16 - CORD CLAMP BDE-619328-00.A53 619328-00	£1.50	£1.80
17 - SCREW BDE-330065-06.A251 330065-06	£1.50	£1.80
18 - HOUSING SA BDE-N419604.A3 N419604	£5.88	£7.06
19 - DUST PORT BDE-N401579.A5 N401579	£3.30	£3.96
20 - END CAP BDE-N400902.A1 N400902	£1.50	£1.80
21 - SCREW BDE-N371839.A23 N371839	£1.50	£1.80
22 - SCREW BDE-330045-06.A4 330045-06	£1.50	£1.80
23 - SCREW BDE-N130031.A1 N130031	£1.50	£1.80
26 - SCREW BDE-N389438.A32 N389438	£1.50	£1.80
27 - SCREW BDE-330065-09.A42 330065-09	£1.50	£1.80
28 - SCREW BDE-593478-00.A63 593478-00	£1.50	£1.80
30 - CAPACITOR SA BDE-N399579.A3 N399579	£4.69	£5.63
36 - INNER FLANGE BDE-391969-00.A106 391969-00	£1.82	£2.19
37 - OUTER FLANGE BDE-N419748.A4 N419748	£5.88	£7.06
39 - GUARD SA BDE-N170678.A6 N170678	£9.41	£11.29
40 - BRAND LABEL BDE-N403730.A33 N403730	£1.50	£1.80
50 - O RING BDE-N420261.A23 N420261	£1.50	£1.80
62 - BAFFLE FAN BDE-N399419.A20 N399419	£1.50	£1.80
63 - DAMPER BDE-949638-02.A1 949638-02	£1.50	£1.80
64 - FIELD 230V BDE-NA121487.A5 NA121487	£58.69	£70.43
65 - FIELDCASE BDE-N390640.A14 N390640	£7.85	£9.42
71 - HEX KEY 6 MM BDE-N107295.A31 N107295	£1.50	£1.80
72 - SIDE HANDLE BDE-N382311.A11 N382311	£12.17	£14.60
85 - CIRCLIP BDE-444793-00.A7 444793-00	£1.50	£1.80
86 - GEAR BDE-N409481.A25 N409481	£12.17	£14.60
87 - SPINDLE BDE-N163702.A2 N163702	£5.88	£7.06
88 - BEARING BDE-605040-24.A69 605040-24	£3.30	£3.96
89 - WASHER BDE-N400478.A1 N400478	£1.50	£1.80
90 - RETAINER BDE-N481950.A13 N481950	£1.50	£1.80
91 - O RING BDE-N307625.A28 N307625	£1.50	£1.80
92 - GEARCASE COVER BDE-N482578.A2 N482578	£9.41	£11.29
95 - SLEEVE BDE-641823-00.A126 641823-00	£1.50	£1.80
96 - BEARING BDE-N130916.A27 N130916	£2.26	£2.71
97 - WASHER BDE-N324400.A34 N324400	£1.50	£1.80
99 - SPRING BDE-N273780.A44 N273780	£1.50	£1.80
101 - DEFLECTOR BDE-N401958.A40 N401958	£1.50	£1.80
102 - RETAINER BDE-N453031.A25 N453031	£1.50	£1.80
103 - BEARING BDE-N175104.A51 N175104	£3.30	£3.96
104 - O RING BDE-N119639.A67 N119639	£1.50	£1.80
105 - BUTTON BDE-N278899.A23 N278899	£1.50	£1.80
106 - SPRING BDE-N263579.A25 N263579	£1.50	£1.80
107 - LOCK PIN BDE-N481683.A40 N481683	£1.50	£1.80
107 - SPINDLE LOCK BDE-N263679.A1 N263679	£1.50	£1.80
108 - O RING BDE-N263699.A0 N263699	£1.50	£1.80
800 - GREASE 50 GMS BDE-583534-00.A72 583534-00	£144.10	£172.92
