Dewalt DWD530KS Type 1 Hammer Drill Spare Parts

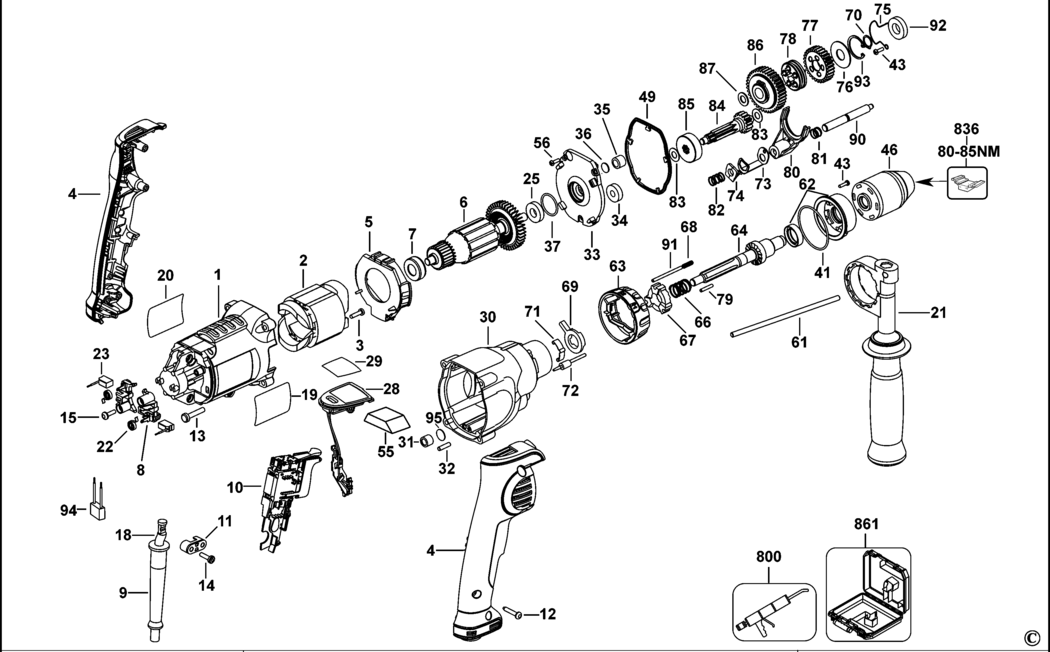

An exploded drawing and spare parts listing for the Dewalt DWD530KS Type 1 Hammer Drill

	Ex VAT	Inc VAT
1 - FIELD CASE BDE-639593-01.A2 639593-01	£15.01	£18.01
2 - FIELD 230V GB BDE-N048009SV.A0 N048009SV	£38.48	£46.17
2 - FIELD 115V LX BDE-N048007SV.A1 N048007SV	£45.47	£54.56
3 - SCREW BDE-N068183.A2 N068183	£3.92	£4.70
4 - CLAMSHELL SET BDE-N028547.A2 N028547	£20.50	£24.60
5 - BAFFLE FAN BDE-641824-00.A2 641824-00	£1.66	£1.99
6 - ARMATURE 115V LX BDE-647864-02SV.A3 647864-02SV	£86.95	£104.34
6 - ARMATURE 230V GB BDE-647864-03SV.A1 647864-03SV	£73.58	£88.30
7 - BEARING & SEAL GB BDE-391032-00.A15 391032-00	£3.92	£4.70
7 - BEARING LX BDE-330003-60.A122 330003-60	£2.87	£3.44
7 - BOOT LX BDE-631563-00.A18 631563-00	£1.66	£1.99
8 - BRUSH HOLDER SA LX BDE-653892-01.A3 653892-01	£4.83	£5.80
8 - BRUSH HOLDER GB BDE-N028784SV.A1 N028784SV	£19.48	£23.37
9 - CORD PROTECTOR BDE-N542553.A422 N542553	£3.92	£4.70
10 - SWITCH SA LX BDE-N034129.A0 N034129	£96.44	£115.73
10 - SWITCH SA GB BDE-NA505123.A1 NA505123	£148.42	£178.11
11 - CORD CLAMP BDE-655058-00.A2 655058-00	£1.66	£1.99
12 - PLASTIC SCREW BDE-330065-31.A98 330065-31	£1.66	£1.99
13 - SCREW BDE-330045-15.A17 330045-15	£1.66	£1.99
14 - SCREW BDE-330065-07.A48 330065-07	£1.66	£1.99
15 - SCREW BDE-176951-00.A22 176951-00	£1.66	£1.99
18 - CORDSET (M/PLUG) GB GB BDE-330120-93.A1 330120-93	£25.12	£30.15
18 - CORDSET LX BDE-330061-38.A1 330061-38	£38.48	£46.17
19 - RATING PLATE GB BDE-N097990 N097990	£2.71	£3.25
19 - RATING PLATE LX BDE-N097989 N097989	£2.71	£3.25
20 - BRAND LABEL BDE-395047-00.A2 395047-00	£1.66	£1.99
21 - HANDLE SIDE SA BDE-663029-00.A2 663029-00	£25.12	£30.15
22 - SPRING LX BDE-662999-00.A2 662999-00	£1.66	£1.99
22 - SPRING GB BDE-662999-01.A3 662999-01	£1.66	£1.99
23 - BRUSH LX BDE-N032701.A1 N032701	£4.83	£5.80
23 - BRUSH GB BDE-N032702.A0 N032702	£4.83	£5.80
25 - BEARING BDE-N339299.A2 N339299	£3.92	£4.70
28 - MODULE GB BDE-656320-00.A0 656320-00	£19.48	£23.37
28 - MODULE LX BDE-656320-00.A1 656320-00	£19.48	£23.37
29 - LABEL GB BDE-N203994.A2 N203994	£1.66	£1.99
29 - LABEL LX BDE-N203994.A3 N203994	£1.66	£1.99
30 - GEARCASE SA BDE-N077817.A1 N077817	£78.12	£93.74
31 - BEARING NEEDLE BDE-330004-01.A12 330004-01	£3.92	£4.70
32 - PIN BDE-330041-07.A10 330041-07	£1.66	£1.99
33 - GEARCASE COVER BDE-645400-04SV.A1 645400-04SV	£30.98	£37.18
34 - BEARING BDE-605040-02.A143 605040-02	£2.32	£2.78
35 - BEARING NEEDLE BDE-330004-02.A32 330004-02	£1.66	£1.99
36 - THRUST PLATE BDE-652185-00.A5 652185-00	£1.66	£1.99
37 - O RING BDE-99014-04.A6 99014-04	-
41 - O RING BDE-56122-00.A4 56122-00	£1.66	£1.99
43 - SCREW BDE-330045-74.A3 330045-74	£1.66	£1.99
46 - CHUCK KEYLESS TORQUE TO 80-85 NM BDE-586200-12.A1 586200-12	£86.95	£104.34
49 - SEAL BDE-648761-00.A0 648761-00	£1.66	£1.99
55 - FELT BDE-N063107.A1 N063107	£3.39	£4.07
56 - NO LONGER AVAILABLE BDE-000000-00.A96520 000000-00	-
61 - DEPTH STOP BDE-940357-00.A36 940357-00	£18.00	£21.60
62 - END CAP BDE-N030304.A3 N030304	£18.00	£21.60
63 - COLLAR BDE-655856-00.A3 655856-00	£11.18	£13.41
64 - SPINDLE BDE-656368-02SV.A3 656368-02SV	£76.38	£91.65
66 - SPRING BDE-651266-00.A1 651266-00	£1.66	£1.99
67 - RATCHET BDE-651262-00.A3 651262-00	£4.83	£5.80
68 - SPRING BDE-656287-00.A2 656287-00	£1.66	£1.99
69 - ARM BDE-659192-00.A3 659192-00	£4.83	£5.80
70 - CIRCLIP BDE-652188-00.A0 652188-00	£1.66	£1.99
71 - SPRING GUIDE BDE-395460-00.A39 395460-00	£1.66	£1.99
72 - PIN BDE-648298-00.A1 648298-00	£1.66	£1.99
73 - BRACKET BDE-651331-00.A1 651331-00	£1.66	£1.99
74 - FINGER BDE-656286-00.A2 656286-00	£1.66	£1.99
75 - SPRING BDE-652003-00.A1 652003-00	£1.66	£1.99
76 - WASHER THRUST BDE-652004-00.A3 652004-00	£1.66	£1.99
77 - GEAR BDE-653728-00.A4 653728-00	£16.52	£19.82
78 - SELECTOR BDE-643924-00SV.A1 643924-00SV	£38.48	£46.17
79 - ROLLER BDE-651330-00.A3 651330-00	£1.66	£1.99
80 - YOKE BDE-N045436.A2 N045436	£1.66	£1.99
81 - SPRING BDE-N031370.A2 N031370	£1.66	£1.99
82 - SPRING BDE-N022914.A3 N022914	£1.66	£1.99
83 - WASHER THRUST BDE-659185-00.A1 659185-00	£1.66	£1.99
84 - INTER SHAFT INCL 85 BDE-N045500SV.A2 N045500SV	£42.48	£50.98
85 - GEAR BDE-643896-00.A3 643896-00	£16.52	£19.82
86 - CLUTCH SA BDE-653814-00SV.A1 653814-00SV	£56.97	£68.36
87 - WASHER THRUST BDE-652007-00.A1 652007-00	£1.66	£1.99
90 - PIN BDE-651334-00.A3 651334-00	£3.92	£4.70
91 - PIN BDE-656321-00.A2 656321-00	£1.66	£1.99
92 - BEARING BDE-605040-72.A1 605040-72	£6.06	£7.27
93 - CIRCLIP BDE-658952-00.A2 658952-00	£1.66	£1.99
94 - CAPACITOR LX BDE-N075085.A0 N075085	£7.40	£8.88
94 - CAPACITOR GB BDE-N075085.A1 N075085	£7.40	£8.88
95 - WASHER THRUST BDE-N045430.A3 N045430	£1.66	£1.99
800 - GREASE BDE-286436-00.A153 286436-00	£130.43	£156.52
800 - GREASE BDE-429698-00.A88 429698-00	£86.95	£104.34
836 - S.T.CHUCK REMOVAL JIG BDE-1003939-99.A1 1003939-99	£139.42	£167.30
836 - S.T.CHUCK REMOVAL JIG BDE-559662-99.A11 559662-99	£73.58	£88.30
861 - KITBOX GB BDE-N079829.A4 N079829	£46.49	£55.79
861 - KITBOX LX BDE-N079829.A5 N079829	£46.49	£55.79
