Dewalt DWD524KS Type 1 Hammer Drill Spare Parts

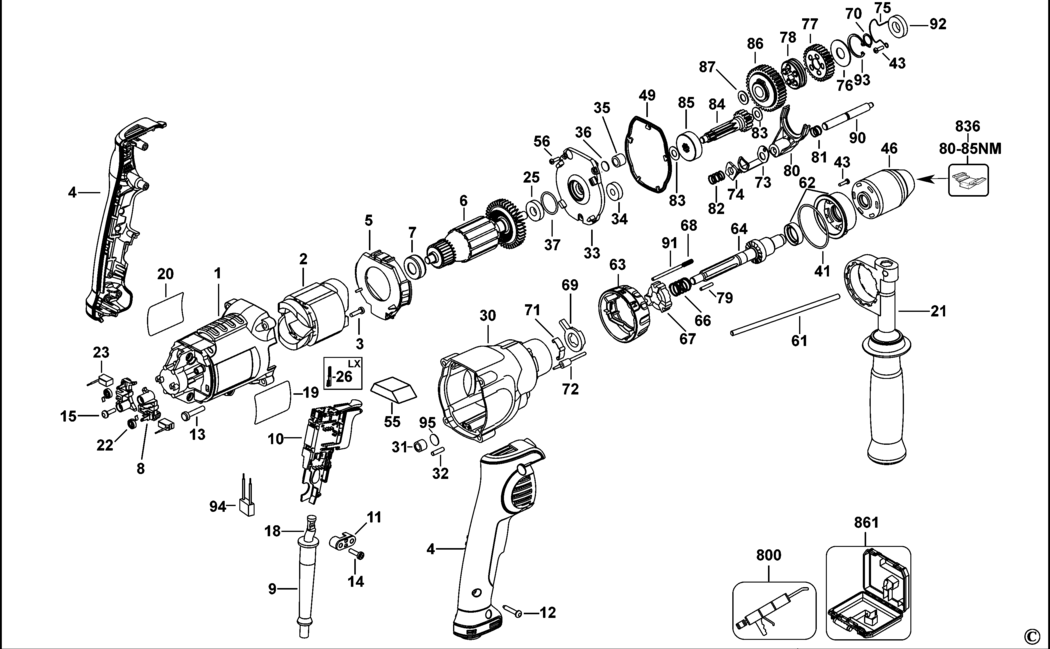

An exploded drawing and spare parts listing for the Dewalt DWD524KS Type 1 Hammer Drill

	Ex VAT	Inc VAT
1 - FIELD CASE BDE-639593-01.A4 639593-01	£14.57	£17.48
2 - FIELD 115V LX BDE-N047997SV.A0 N047997SV	£47.08	£56.49
2 - FIELD 230V GB BDE-N048000SV.A1 N048000SV	£60.94	£73.13
3 - SCREW BDE-N068183.A5 N068183	£3.80	£4.56
4 - CLAMSHELL SET BDE-662703-01.A1 662703-01	£24.39	£29.27
5 - BAFFLE FAN BDE-641824-00.A0 641824-00	£1.66	£1.99
6 - ARMATURE 115V LX BDE-647864-02SV.A4 647864-02SV	£84.42	£101.30
6 - ARMATURE 230V GB BDE-647864-03SV.A0 647864-03SV	£71.44	£85.73
7 - BEARING & SEAL GB BDE-391032-00.A7 391032-00	£3.80	£4.56
7 - BEARING LX BDE-330003-60.A8 330003-60	£2.78	£3.34
7 - BOOT LX BDE-631563-00.A9 631563-00	£1.66	£1.99
8 - BRUSH HOLDER GB BDE-N028784SV.A0 N028784SV	£18.91	£22.69
8 - BRUSH HOLDER SA LX BDE-653892-01.A4 653892-01	£4.69	£5.63
9 - CORD PROTECTOR BDE-N542553.A114 N542553	£3.80	£4.56
10 - SWITCH SA LX BDE-N079272.A0 N079272	£78.12	£93.74
10 - SWITCH SA GB BDE-N113355SV.A2 N113355SV	£41.24	£49.49
11 - CORD CLAMP BDE-655058-00.A0 655058-00	£1.66	£1.99
12 - PLASTIC SCREW BDE-330065-31.A9 330065-31	£1.66	£1.99
13 - SCREW BDE-330045-15.A126 330045-15	£1.66	£1.99
14 - SCREW BDE-330065-07.A69 330065-07	£1.66	£1.99
15 - SCREW BDE-176951-00.A50 176951-00	£1.66	£1.99
18 - CORDSET LX BDE-330061-37.A0 330061-37	£38.80	£46.56
18 - CORDSET (M/PLUG) GB GB BDE-330120-93.A0 330120-93	£24.39	£29.27
19 - RATING PLATE LX BDE-N097986 N097986	£2.78	£3.34
19 - RATING PLATE GB BDE-N097987 N097987	£1.66	£1.99
20 - BRAND LABEL BDE-395047-00.A103 395047-00	£1.66	£1.99
21 - HANDLE SIDE SA BDE-663029-00.A4 663029-00	£24.39	£29.27
22 - SPRING GB BDE-662999-01.A0 662999-01	£1.66	£1.99
22 - SPRING LX BDE-662999-00.A4 662999-00	£1.66	£1.99
23 - BRUSH 115V LX BDE-N198492.A1 N198492	£3.30	£3.96
23 - BRUSH GB BDE-N198493.A0 N198493	£4.69	£5.63
25 - BEARING BDE-N339299.A1 N339299	£3.80	£4.56
26 - INSERT LX BDE-584551-00.A66 584551-00	£2.26	£2.71
30 - GEARCASE SA BDE-N077817.A3 N077817	£78.12	£93.74
31 - BEARING NEEDLE BDE-330004-01.A0 330004-01	£3.80	£4.56
32 - PIN BDE-330041-07.A13 330041-07	£1.66	£1.99
33 - GEARCASE COVER BDE-645400-04SV.A0 645400-04SV	£30.08	£36.10
34 - BEARING BDE-605040-02.A23 605040-02	£2.26	£2.71
35 - BEARING NEEDLE BDE-330004-02.A95 330004-02	£1.66	£1.99
36 - THRUST PLATE BDE-652185-00.A0 652185-00	£1.66	£1.99
37 - O RING BDE-99014-04.A1 99014-04	-
41 - O RING BDE-56122-00.A6 56122-00	£1.66	£1.99
43 - SCREW BDE-330045-74.A4 330045-74	£1.66	£1.99
46 - CHUCK KEYLESS TORQUE TO 80-85 NM BDE-586200-12.A4 586200-12	£84.42	£101.30
49 - SEAL BDE-648761-00.A5 648761-00	£1.66	£1.99
55 - FELT BDE-N063107.A4 N063107	£3.30	£3.96
56 - NO LONGER AVAILABLE BDE-000000-00.A63583 000000-00	-
61 - DEPTH STOP BDE-940357-00.A81 940357-00	£17.48	£20.97
62 - END CAP BDE-N030304.A0 N030304	£17.48	£20.97
63 - COLLAR BDE-655856-00.A0 655856-00	£10.85	£13.02
64 - SPINDLE BDE-656368-02SV.A0 656368-02SV	£74.15	£88.98
64 - SPINDLE BDE-656368-00 656368-00	£58.69	£70.43
66 - SPRING BDE-651266-00.A4 651266-00	£1.66	£1.99
67 - RATCHET BDE-651262-00.A0 651262-00	£4.69	£5.63
68 - SPRING BDE-656287-00.A4 656287-00	£1.66	£1.99
69 - ARM BDE-659192-00.A0 659192-00	£4.69	£5.63
70 - CIRCLIP BDE-652188-00.A4 652188-00	£1.66	£1.99
71 - SPRING GUIDE BDE-395460-00.A0 395460-00	£1.66	£1.99
72 - PIN BDE-648298-00.A4 648298-00	£1.66	£1.99
73 - BRACKET BDE-651331-00.A4 651331-00	£1.66	£1.99
74 - FINGER BDE-656286-00.A0 656286-00	£1.66	£1.99
75 - SPRING BDE-652003-00.A4 652003-00	£1.66	£1.99
76 - WASHER THRUST BDE-652004-00.A0 652004-00	£1.66	£1.99
77 - GEAR BDE-653728-00.A0 653728-00	£16.03	£19.24
78 - SELECTOR BDE-643924-00SV.A4 643924-00SV	£37.35	£44.82
79 - ROLLER BDE-651330-00.A0 651330-00	£1.66	£1.99
80 - YOKE BDE-N045436.A0 N045436	£1.66	£1.99
81 - SPRING BDE-N031370.A4 N031370	£1.66	£1.99
82 - SPRING BDE-N022914.A0 N022914	£1.66	£1.99
83 - WASHER THRUST BDE-659185-00.A5 659185-00	£1.66	£1.99
84 - INTER SHAFT INCL 85 BDE-N045500SV.A4 N045500SV	£41.24	£49.49
85 - GEAR BDE-643896-00.A0 643896-00	£16.03	£19.24
86 - CLUTCH SA BDE-653814-00SV.A0 653814-00SV	£55.30	£66.36
87 - WASHER THRUST BDE-652007-00.A4 652007-00	£1.66	£1.99
90 - PIN BDE-651334-00.A0 651334-00	£3.80	£4.56
91 - PIN BDE-656321-00.A0 656321-00	£1.66	£1.99
92 - BEARING BDE-605040-72.A5 605040-72	£5.88	£7.06
93 - CIRCLIP BDE-658952-00.A4 658952-00	£1.66	£1.99
94 - CAPACITOR BDE-N075085.A6 N075085	£7.18	£8.62
95 - WASHER THRUST BDE-N045430.A4 N045430	£1.66	£1.99
800 - GREASE BDE-286436-00.A121 286436-00	£126.63	£151.96
800 - GREASE BDE-429698-00.A57 429698-00	£84.42	£101.30
836 - S.T.CHUCK REMOVAL JIG BDE-1003939-99.A4 1003939-99	£135.36	£162.43
836 - S.T.CHUCK REMOVAL JIG BDE-559662-99.A38 559662-99	£58.69	£70.43
861 - KITBOX BDE-N079829.A0 N079829	£45.14	£54.17
