Dewalt DWD522KS Type 1 Hammer Drill Spare Parts

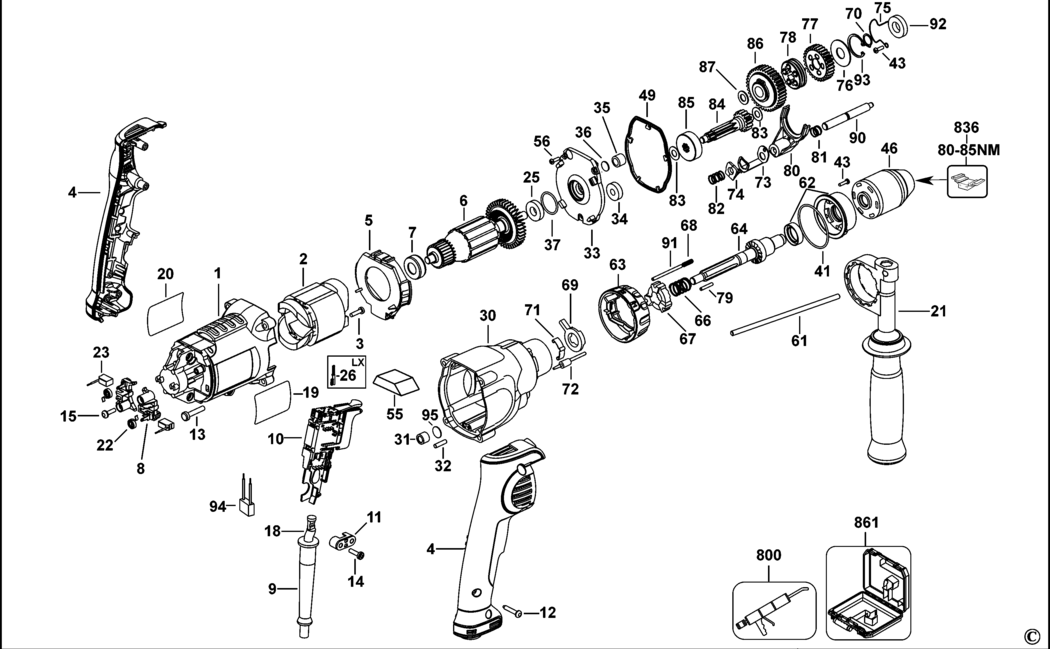

An exploded drawing and spare parts listing for the Dewalt DWD522KS Type 1 Hammer Drill

	Ex VAT	Inc VAT
1 - FIELD CASE BDE-639593-01.A1 639593-01	£15.01	£18.01
2 - FIELD 115V LX BDE-N047997SV.A1 N047997SV	£48.48	£58.17
2 - FIELD 230V GB BDE-N048000SV.A0 N048000SV	£62.77	£75.32
3 - SCREW BDE-N068183.A1 N068183	£3.92	£4.70
4 - CLAMSHELL SET BDE-662703-01.A0 662703-01	£25.12	£30.15
5 - BAFFLE FAN BDE-641824-00.A3 641824-00	£1.66	£1.99
6 - ARMATURE 230V GB BDE-647864-03SV.A4 647864-03SV	£73.58	£88.30
6 - ARMATURE 115V LX BDE-647864-02SV.A0 647864-02SV	£86.95	£104.34
7 - BEARING LX BDE-330003-60.A121 330003-60	£2.87	£3.44
7 - BOOT LX BDE-631563-00.A15 631563-00	£1.66	£1.99
7 - BEARING & SEAL GB BDE-391032-00.A16 391032-00	£3.92	£4.70
8 - BRUSH HOLDER GB BDE-N028784SV.A4 N028784SV	£19.48	£23.37
8 - BRUSH HOLDER SA LX BDE-653892-01.A0 653892-01	£4.83	£5.80
9 - CORD PROTECTOR BDE-N542553.A419 N542553	£3.92	£4.70
10 - SWITCH SA LX BDE-N079272.A1 N079272	£80.46	£96.55
10 - SWITCH SA GB BDE-N113355SV.A1 N113355SV	£42.48	£50.98
11 - CORD CLAMP BDE-655058-00.A5 655058-00	£1.66	£1.99
12 - PLASTIC SCREW BDE-330065-31.A92 330065-31	£1.66	£1.99
13 - SCREW BDE-330045-15.A15 330045-15	£1.66	£1.99
14 - SCREW BDE-330065-07.A51 330065-07	£1.66	£1.99
15 - SCREW BDE-176951-00.A21 176951-00	£1.66	£1.99
18 - CORDSET (M/PLUG) GB GB BDE-330120-93.A4 330120-93	£25.12	£30.15
18 - CORDSET LX BDE-330061-37.A1 330061-37	£39.97	£47.96
19 - RATING PLATE LX BDE-N097977 N097977	£2.71	£3.25
19 - RATING PLATE GB BDE-N097978 N097978	£2.71	£3.25
20 - BRAND LABEL BDE-395047-00.A0 395047-00	£1.66	£1.99
21 - HANDLE SIDE SA BDE-663029-00.A3 663029-00	£25.12	£30.15
22 - SPRING LX BDE-662999-00.A3 662999-00	£1.66	£1.99
22 - SPRING GB BDE-662999-01.A2 662999-01	£1.66	£1.99
23 - BRUSH 115V LX BDE-N198492.A0 N198492	£3.39	£4.07
23 - BRUSH GB BDE-N198493.A1 N198493	£4.83	£5.80
25 - BEARING BDE-N339299.A5 N339299	£3.92	£4.70
26 - INSERT LX BDE-584551-00.A0 584551-00	£2.32	£2.78
30 - GEARCASE SA BDE-N077817.A2 N077817	£78.12	£93.74
31 - BEARING NEEDLE BDE-330004-01.A13 330004-01	£3.92	£4.70
32 - PIN BDE-330041-07.A7 330041-07	£1.66	£1.99
33 - GEARCASE COVER BDE-645400-04SV.A4 645400-04SV	£30.98	£37.18
34 - BEARING BDE-605040-02.A145 605040-02	£2.32	£2.78
35 - BEARING NEEDLE BDE-330004-02.A31 330004-02	£1.66	£1.99
36 - THRUST PLATE BDE-652185-00.A2 652185-00	£1.66	£1.99
37 - O RING BDE-99014-04.A3 99014-04	-
41 - O RING BDE-56122-00.A5 56122-00	£1.66	£1.99
43 - SCREW BDE-330045-74.A0 330045-74	£1.66	£1.99
46 - CHUCK KEYLESS TORQUE TO 80-85 NM BDE-586200-12.A0 586200-12	£86.95	£104.34
49 - SEAL BDE-648761-00.A3 648761-00	£1.66	£1.99
55 - FELT BDE-N063107.A0 N063107	£3.39	£4.07
56 - NO LONGER AVAILABLE BDE-000000-00.A96514 000000-00	-
61 - DEPTH STOP BDE-940357-00.A32 940357-00	£18.00	£21.60
62 - END CAP BDE-N030304.A1 N030304	£18.00	£21.60
63 - COLLAR BDE-655856-00.A1 655856-00	£11.18	£13.41
64 - SPINDLE BDE-656368-02SV.A1 656368-02SV	£76.38	£91.65
66 - SPRING BDE-651266-00.A3 651266-00	£1.66	£1.99
67 - RATCHET BDE-651262-00.A1 651262-00	£4.83	£5.80
68 - SPRING BDE-656287-00.A0 656287-00	£1.66	£1.99
69 - ARM BDE-659192-00.A1 659192-00	£4.83	£5.80
70 - CIRCLIP BDE-652188-00.A3 652188-00	£1.66	£1.99
71 - SPRING GUIDE BDE-395460-00.A37 395460-00	£1.66	£1.99
72 - PIN BDE-648298-00.A3 648298-00	£1.66	£1.99
73 - BRACKET BDE-651331-00.A3 651331-00	£1.66	£1.99
74 - FINGER BDE-656286-00.A4 656286-00	£1.66	£1.99
75 - SPRING BDE-652003-00.A3 652003-00	£1.66	£1.99
76 - WASHER THRUST BDE-652004-00.A1 652004-00	£1.66	£1.99
77 - GEAR BDE-653728-00.A1 653728-00	£16.52	£19.82
78 - SELECTOR BDE-643924-00SV.A3 643924-00SV	£38.48	£46.17
79 - ROLLER BDE-651330-00.A1 651330-00	£1.66	£1.99
80 - YOKE BDE-N045436.A4 N045436	£1.66	£1.99
81 - SPRING BDE-N031370.A0 N031370	£1.66	£1.99
82 - SPRING BDE-N022914.A1 N022914	£1.66	£1.99
83 - WASHER THRUST BDE-659185-00.A3 659185-00	£1.66	£1.99
84 - INTER SHAFT INCL 85 BDE-N045500SV.A0 N045500SV	£42.48	£50.98
85 - GEAR BDE-643896-00.A1 643896-00	£16.52	£19.82
86 - CLUTCH SA BDE-653814-00SV.A4 653814-00SV	£56.97	£68.36
87 - WASHER THRUST BDE-652007-00.A3 652007-00	£1.66	£1.99
90 - PIN BDE-651334-00.A1 651334-00	£3.92	£4.70
91 - PIN BDE-656321-00.A4 656321-00	£1.66	£1.99
92 - BEARING BDE-605040-72.A3 605040-72	£6.06	£7.27
93 - CIRCLIP BDE-658952-00.A0 658952-00	£1.66	£1.99
94 - CAPACITOR BDE-N075085.A5 N075085	£7.40	£8.88
95 - WASHER THRUST BDE-N045430.A0 N045430	£1.66	£1.99
800 - GREASE BDE-286436-00.A143 286436-00	£130.43	£156.52
800 - GREASE BDE-429698-00.A84 429698-00	£86.95	£104.34
836 - S.T.CHUCK REMOVAL JIG BDE-559662-99.A9 559662-99	£73.58	£88.30
836 - S.T.CHUCK REMOVAL JIG BDE-1003939-99.A0 1003939-99	£139.42	£167.30
861 - KITBOX BDE-657281-00 657281-00	£45.47	£54.56

Attribute Name	Value
Brand	Dewalt
