Dewalt DW86 Type 1 Saw Spare Parts

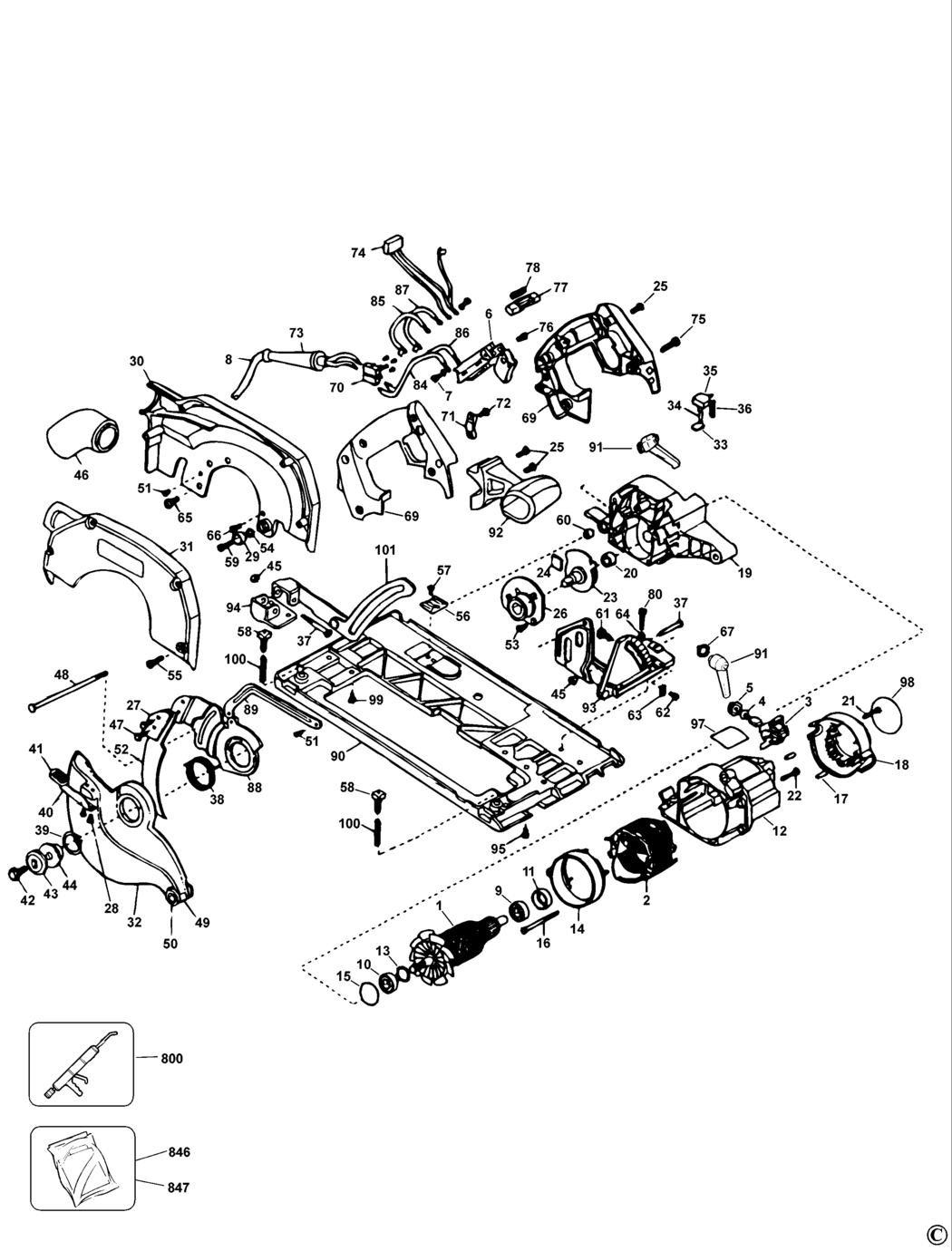

An exploded drawing and spare parts listing for the Dewalt DW86 Type 1 Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE LX BDE-000000-00.A118439 000000-00	-
1 - ARMATURE & FAN GB BDE-144785-10SV.A0 144785-10SV	-
2 - FIELD 230V GB BDE-N113577.A3 N113577	-
2 - NO LONGER AVAILABLE LX BDE-000000-00.A118440 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A118441 000000-00	-
4 - BRUSH SA 230V BDE-145323-06.A23 145323-06	£5.88	£7.06
5 - BRUSH CAP BDE-448084-01.A8 448084-01	-
6 - SWITCH BDE-450777-03.A0 450777-03	-
7 - SCREW BDE-384127-01.A15 384127-01	£1.50	£1.80
8 - CORDSET (M/PLUG) GB BDE-330060-44.A2 330060-44	£14.57	£17.48
8 - NO LONGER AVAILABLE LX BDE-000000-00.A118442 000000-00	-
9 - BEARING BDE-605040-20.A212 605040-20	£4.69	£5.63
10 - BEARING BDE-868768-07.A127 868768-07	£7.85	£9.42
11 - SLEEVE BDE-137382-00.A1 137382-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A118443 000000-00	-
13 - RETAINER BDE-930098-00.A96 930098-00	£1.50	£1.80
14 - NO LONGER AVAILABLE BDE-000000-00.A118444 000000-00	-
15 - SEAL BDE-701297-00.A16 701297-00	£1.50	£1.80
16 - SCREW BDE-330019-19.A201 330019-19	£1.50	£1.80
17 - PLUG BDE-87205-00.A33 87205-00	£1.50	£1.80
18 - NO LONGER AVAILABLE BDE-000000-00.A118445 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A118446 000000-00	-
20 - BEARING NEEDLE BDE-330004-06.A130 330004-06	£1.50	£1.80
21 - SCREW BDE-330019-20.A5 330019-20	£1.50	£1.80
22 - SCREW.TEMP BDE-330045-19.A14 330045-19	£1.50	£1.80
23 - SPINDLE & GEAR BDE-145353-09.A1 145353-09	£63.87	£76.64
24 - NO LONGER AVAILABLE BDE-000000-00.A118447 000000-00	-
25 - SCREW BDE-330019-14.A5 330019-14	£1.50	£1.80
26 - NO LONGER AVAILABLE BDE-000000-00.A118448 000000-00	-
27 - PLATE BDE-148241-01.A3 148241-01	£4.58	£5.49
28 - SCREW BDE-949894-06.A42 949894-06	£1.50	£1.80
29 - NO LONGER AVAILABLE BDE-000000-00.A118449 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A118450 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A118451 000000-00	-
32 - LOWER GUARD SA BDE-869044-00.A2 869044-00	-
33 - WIPER BDE-145351-00.A11 145351-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A118452 000000-00	-
35 - BUTTON BDE-145350-00.A8 145350-00	£1.50	£1.80
36 - NO LONGER AVAILABLE BDE-000000-00.A118453 000000-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A118454 000000-00	-
38 - SPRING BDE-N388721.A6 N388721	£1.50	£1.80
39 - NO LONGER AVAILABLE BDE-000000-00.A118455 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A118456 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A118457 000000-00	-
42 - SCREW.SPECIAL BDE-145344-00.A30 145344-00	£1.88	£2.25
43 - WASHER OUTER CLAMP BDE-145446-00.A11 145446-00	£3.30	£3.96
44 - WASHER INNER CLAMP BDE-145442-03.A4 145442-03	£3.80	£4.56
45 - NUT M5 BDE-860092-03.A111 860092-03	£1.50	£1.80
46 - NO LONGER AVAILABLE BDE-000000-00.A118458 000000-00	-
47 - SCREW BDE-861092-01 861092-01	-
48 - CARRIAGE BOLT BDE-868330-00 868330-00	-
49 - ROLLER BDE-868448-00.A2 868448-00	-
50 - NUT BDE-148460-00.A3 148460-00	-
51 - NO LONGER AVAILABLE BDE-000000-00.A118459 000000-00	-
52 - RIVING KNIFE BDE-147077-01.A0 147077-01	£18.42	£22.10
53 - NO LONGER AVAILABLE BDE-000000-00.A118460 000000-00	-
54 - NO LONGER AVAILABLE BDE-000000-00.A118461 000000-00	-
55 - SCREW BDE-330045-06.A76 330045-06	£1.50	£1.80
56 - NO LONGER AVAILABLE BDE-000000-00.A118462 000000-00	-
57 - SCREW.TEMP BDE-945121-00.A49 945121-00	£1.50	£1.80
58 - SCREW WING BDE-326573-01.A75 326573-01	£1.82	£2.19
59 - NO LONGER AVAILABLE BDE-000000-00.A118463 000000-00	-
60 - NO LONGER AVAILABLE BDE-000000-00.A118464 000000-00	-
61 - CARRIAGE BOLT BDE-N022876.A8 N022876	£1.50	£1.80
62 - SCREW BDE-949894-06.A41 949894-06	£1.50	£1.80
63 - NO LONGER AVAILABLE BDE-000000-00.A118465 000000-00	-
64 - NUT BDE-860083-02.A279 860083-02	£1.50	£1.80
65 - SCREW BDE-860094-12.A6 860094-12	£1.50	£1.80
66 - NO LONGER AVAILABLE BDE-000000-00.A118466 000000-00	-
67 - NO LONGER AVAILABLE BDE-000000-00.A118467 000000-00	-
69 - NO LONGER AVAILABLE BDE-000000-00.A118468 000000-00	-
70 - TERMINAL BLOCK BDE-320078-00.A68 320078-00	£2.26	£2.71
71 - CORD CLAMP BDE-003618-00.A5 003618-00	£1.50	£1.80
72 - NO LONGER AVAILABLE BDE-000000-00.A118469 000000-00	-
73 - CORD PROTECTOR BDE-947964-01.A109 947964-01	£3.80	£4.56
74 - CAPACITOR BDE-148679-02.A11 148679-02	-
75 - SCREW.TEMP BDE-330019-21.A33 330019-21	£1.50	£1.80
76 - SCREW BDE-860084-23.A6 860084-23	£1.50	£1.80
77 - NO LONGER AVAILABLE BDE-000000-00.A118476 000000-00	-
78 - NO LONGER AVAILABLE BDE-000000-00.A118477 000000-00	-
80 - SCREW BDE-869076-00.A29 869076-00	£1.50	£1.80
85 - NO LONGER AVAILABLE BDE-000000-00.A118470 000000-00	-
86 - NO LONGER AVAILABLE BDE-000000-00.A118471 000000-00	-
87 - NO LONGER AVAILABLE BDE-000000-00.A118472 000000-00	-
88 - NO LONGER AVAILABLE BDE-000000-00.A118473 000000-00	-
89 - NO LONGER AVAILABLE BDE-000000-00.A118474 000000-00	-
90 - NO LONGER AVAILABLE BDE-000000-00.A118475 000000-00	-
91 - LEVER SA BDE-861840-01.A4 861840-01	£5.72	£6.87
92 - NO LONGER AVAILABLE BDE-000000-00.A118478 000000-00	-
93 - QUADRANT SA BDE-151309-00.A1 151309-00	-
94 - NO LONGER AVAILABLE BDE-000000-00.A118479 000000-00	-
95 - SCREW BDE-860091-04.A29 860091-04	£1.50	£1.80
98 - NAMEPLATE BDE-149521-01.A16 149521-01	£1.42	£1.70
99 - SCREW BDE-860091-04.A28 860091-04	£1.50	£1.80
100 - SPRING BDE-448136-00.A6 448136-00	-
101 - NO LONGER AVAILABLE BDE-000000-00.A118480 000000-00	-
800 - GREASE 90 GMS BDE-870889-02.A666 870889-02	£7.85	£9.42
846 - WRENCH BDE-145378-01.A41 145378-01	£1.50	£1.80
847 - FENCE BDE-147071-04.A1 147071-04	-
