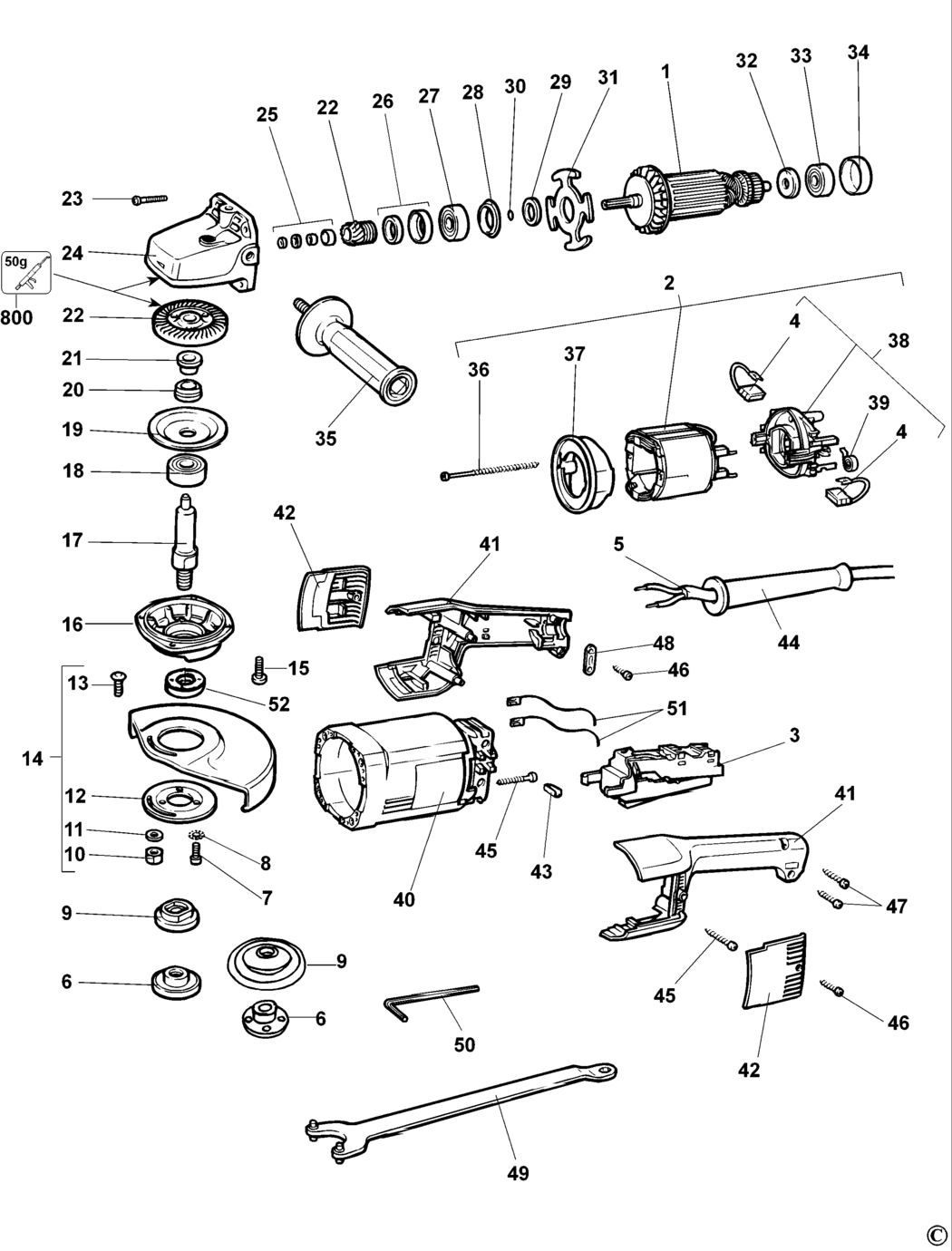

1 - NO LONGER AVAILABLE LX
BDE-000000-00.A60109
000000-00
|
-
|
|
|
|
2 - NO LONGER AVAILABLE LX
BDE-000000-00.A60110
000000-00
|
-
|
|
|
|
3 - NO LONGER AVAILABLE LX
BDE-000000-00.A60111
000000-00
|
-
|
|
|
|
4 - NO LONGER AVAILABLE LX
BDE-000000-00.A60112
000000-00
|
-
|
|
|
|
5 - NO LONGER AVAILABLE LX
BDE-000000-00.A60113
000000-00
|
-
|
|
|
|
6 - FLANGE
BDE-931771.A43
931771
|
£10.85
|
£13.02
|
|
|
7 - SCREW
BDE-933058-00.A35
933058-00
|
£1.66
|
£1.99
|
|
|
8 - WASHER
BDE-932369.A22
932369
|
-
|
|
|
|
9 - FLANGE
BDE-930927.A65
930927
|
-
|
|
|
|
10 - NUT
BDE-860083-03.A450
860083-03
|
£1.66
|
£1.99
|
|
|
11 - WASHER
BDE-930925.A69
930925
|
-
|
|
|
|
12 - NO LONGER AVAILABLE
BDE-000000-00.A60114
000000-00
|
-
|
|
|
|
13 - SCREW
BDE-949892-07.A71
949892-07
|
£1.66
|
£1.99
|
|
|
14 - NO LONGER AVAILABLE
BDE-000000-00.A60115
000000-00
|
-
|
|
|
|
15 - SCREW
BDE-949887-01.A58
949887-01
|
£1.66
|
£1.99
|
|
|
16 - GEARCASE COVER
BDE-947962-00.A57
947962-00
|
-
|
|
|
|
17 - SPINDLE
BDE-578243-00.A5
578243-00
|
£19.40
|
£23.28
|
|
|
18 - NO LONGER AVAILABLE
BDE-000000-00.A60116
000000-00
|
-
|
|
|
|
19 - FLANGE
BDE-930924.A55
930924
|
-
|
|
|
|
20 - SEAL
BDE-930923.A44
930923
|
-
|
|
|
|
21 - SPACER
BDE-930922.A63
930922
|
£1.66
|
£1.99
|
|
|
22 - GEAR & PINION SA
BDE-932522.A38
932522
|
-
|
|
|
|
23 - NO LONGER AVAILABLE
BDE-000000-00.A60117
000000-00
|
-
|
|
|
|
24 - NO LONGER AVAILABLE
BDE-000000-00.A60118
000000-00
|
-
|
|
|
|
25 - CLIP SA
BDE-937098-49.A35
937098-49
|
-
|
|
|
|
26 - SEAL SA
BDE-930909.A54
930909
|
-
|
|
|
|
27 - BEARING
BDE-330003-14.A51
330003-14
|
£7.85
|
£9.42
|
|
|
28 - SEAL SA
BDE-931067-00.A0
931067-00
|
£1.66
|
£1.99
|
|
|
29 - SPACER
BDE-931062.A135
931062
|
£1.66
|
£1.99
|
|
|
30 - O RING
BDE-930028-00.A144
930028-00
|
£1.66
|
£1.99
|
|
|
31 - FLANGE
BDE-931066-00.A157
931066-00
|
£1.82
|
£2.19
|
|
|
32 - SPACER
BDE-N174055.A102
N174055
|
£1.66
|
£1.99
|
|
|
33 - BEARING
BDE-577745-00.A352
577745-00
|
£7.85
|
£9.42
|
|
|
34 - SLEEVE
BDE-938332-00.A37
938332-00
|
£1.66
|
£1.99
|
|
|
35 - HANDLE SIDE SA
BDE-933499.A50
933499
|
-
|
|
|
|
36 - SCREW
BDE-931072.A88
931072
|
-
|
|
|
|
37 - NO LONGER AVAILABLE
BDE-000000-00.A60119
000000-00
|
-
|
|
|
|
38 - NO LONGER AVAILABLE LX
BDE-000000-00.A60120
000000-00
|
-
|
|
|
|
39 - SPRING
BDE-931076-00.A93
931076-00
|
£1.66
|
£1.99
|
|
|
40 - NO LONGER AVAILABLE
BDE-000000-00.A60121
000000-00
|
-
|
|
|
|
41 - HANDLE & COVER
BDE-N097875.A21
N097875
|
-
|
|
|
|
42 - COVER
BDE-933364-02.A32
933364-02
|
£1.66
|
£1.99
|
|
|
43 - SHOCK ABSORBER
BDE-930934-00.A52
930934-00
|
£1.66
|
£1.99
|
|
|
44 - CORD PROTECTOR LX
BDE-947964-01.A86
947964-01
|
£3.80
|
£4.56
|
|
|
45 - SCREW
BDE-931297-00.A217
931297-00
|
£1.66
|
£1.99
|
|
|
46 - SCREW
BDE-931469-02.A102
931469-02
|
£1.66
|
£1.99
|
|
|
47 - SCREW
BDE-930284-01.A0
930284-01
|
£1.66
|
£1.99
|
|
|
48 - CORD CLAMP
BDE-931477-00.A67
931477-00
|
£1.66
|
£1.99
|
|
|
49 - WRENCH PIN
BDE-938733.A42
938733
|
£7.18
|
£8.62
|
|
|
50 - WRENCH
BDE-807043.A98
807043
|
£1.66
|
£1.99
|
|
|
51 - NO LONGER AVAILABLE
BDE-000000-00.A60122
000000-00
|
-
|
|
|
|
800 - GREASE 100 GMS
BDE-575762-02.A34
575762-02
|
£7.85
|
£9.42
|
|
