Dewalt DW8103----E Type 1 Radial Arm Saw Spare Parts

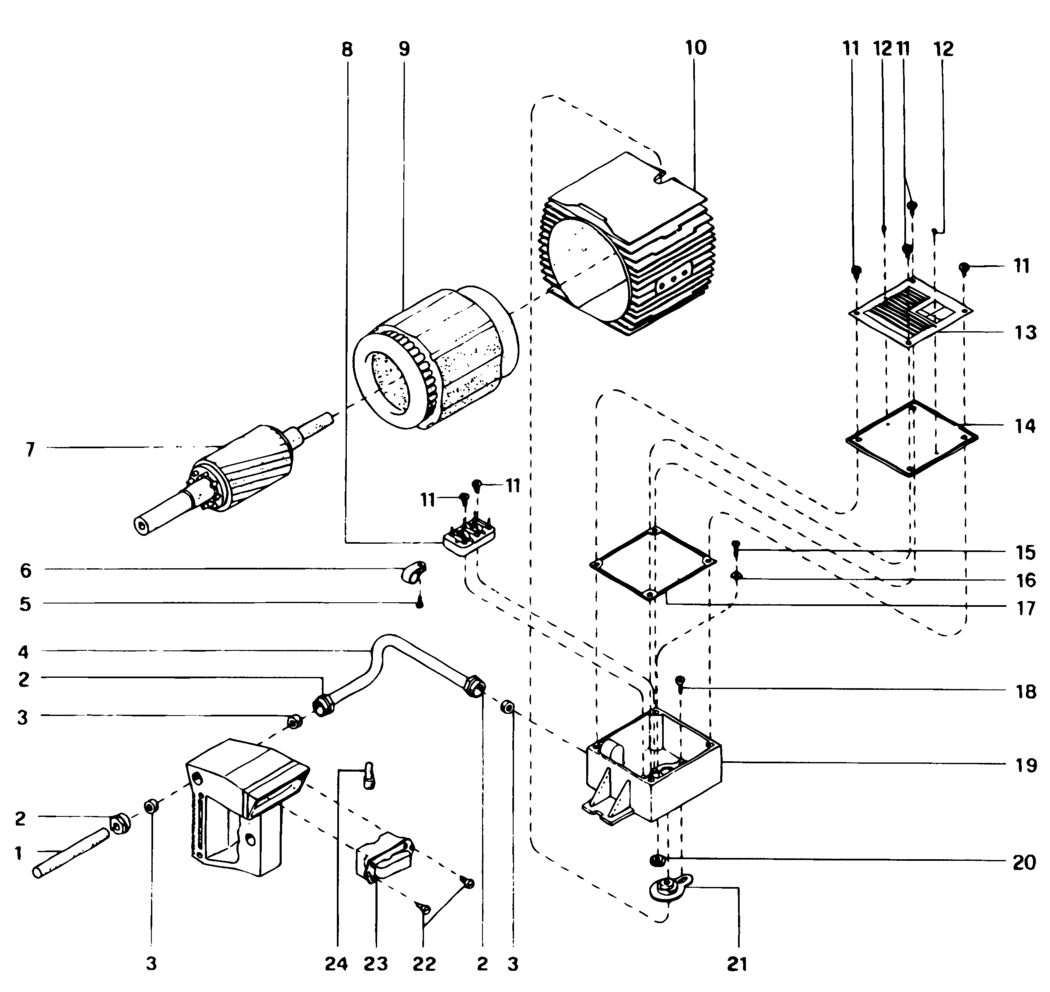

An exploded drawing and spare parts listing for the Dewalt DW8103----E Type 1 Radial Arm Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14710 000000-00	-
2 - RETAINER 3PH MOTOR BDE-944654-00.A44 944654-00	£1.66	£1.99
3 - NUT 3PH MOTOR BDE-944590-00.A102 944590-00	£1.66	£1.99
4 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14711 000000-00	-
5 - SCREW 3PH MOTOR BDE-860238-04.A24 860238-04	£1.66	£1.99
6 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14712 000000-00	-
7 - ROTOR 3 PH 3PH MOTOR BDE-868511-01.A15 868511-01	-
8 - CONNECTOR 3PH MOTOR BDE-946085-00.A19 946085-00	£1.88	£2.26
9 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14713 000000-00	-
10 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14714 000000-00	-
11 - SCREW 3PH MOTOR BDE-860094-03.A180 860094-03	£1.66	£1.99
12 - RIVET 3PH MOTOR BDE-860060-01.A21 860060-01	£1.66	£1.99
13 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14715 000000-00	-
14 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14716 000000-00	-
15 - SCREW 3PH MOTOR BDE-860094-01.A59 860094-01	£1.66	£1.99
16 - WASHER SPRING 3PH MOTOR BDE-944650-00.A24 944650-00	£1.66	£1.99
17 - GASKET 3PH MOTOR BDE-860708-00.A9 860708-00	-
18 - SCREW.TEMP 3PH MOTOR BDE-860094-00.A65 860094-00	£1.66	£1.99
19 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14720 000000-00	-
20 - GROMMET 3PH MOTOR BDE-944653-00.A17 944653-00	£3.39	£4.07
21 - GROMMET 3PH MOTOR BDE-944652-00.A48 944652-00	£4.83	£5.80
22 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14717 000000-00	-
23 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14718 000000-00	-
24 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14719 000000-00	-

Attribute Name	Value
Brand	Dewalt
