Dewalt DW729 Type 2 Radial Arm Saw Spare Parts

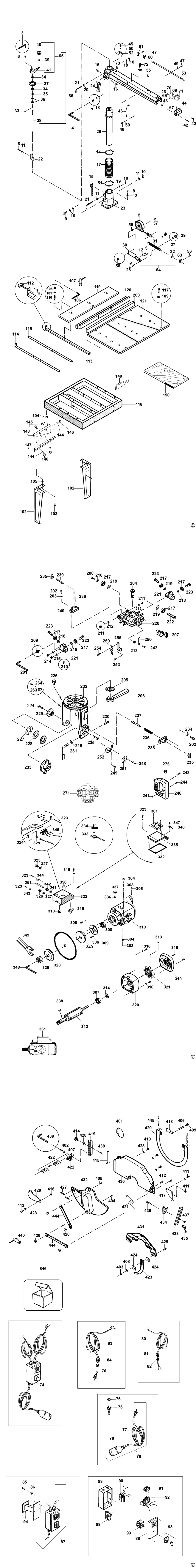

An exploded drawing and spare parts listing for the Dewalt DW729 Type 2 Radial Arm Saw

	Ex VAT	Inc VAT
2 - AUTO SAFETY RETURN BDE-863929-00.A7 863929-00	£135.36	£162.43
3 - WRENCH 6 MM BDE-860098-04.A101 860098-04	£1.50	£1.80
4 - HEX KEY 8 MM BDE-860098-05.A57 860098-05	£3.30	£3.96
5 - SCREW BDE-860093-14.A25 860093-14	£1.50	£1.80
6 - SCREW BDE-860093-02.A47 860093-02	£1.50	£1.80
7 - SCREW BDE-860088-07.A16 860088-07	£1.50	£1.80
8 - SCREW BDE-949702-05.A5 949702-05	£1.50	£1.80
9 - BOLT BDE-949702-09.A7 949702-09	£1.50	£1.80
10 - NUT BDE-860083-06.A5 860083-06	£1.50	£1.80
11 - WASHER BDE-860073-05.A49 860073-05	£1.50	£1.80
12 - WASHER BDE-860074-03.A225 860074-03	£1.50	£1.80
13 - WASHER BDE-860074-05.A20 860074-05	£1.50	£1.80
14 - CLIP BDE-949700-06.A13 949700-06	£7.18	£8.62
15 - PROTECTOR BDE-33024.A10 33024	£2.26	£2.71
16 - SCREW BDE-863900-00.A6 863900-00	£9.41	£11.29
17 - PROTECTOR BDE-863901-00.A7 863901-00	£47.08	£56.49
18 - INSERT BDE-863909-00.A6 863909-00	£1.50	£1.80
19 - WASHER BDE-860073-05.A48 860073-05	£1.50	£1.80
20 - WASHER BDE-860074-05.A21 860074-05	£1.50	£1.80
21 - HANDLE BDE-862069-00.A5 862069-00	£24.39	£29.27
22 - NUT BDE-862047-00.A8 862047-00	£74.15	£88.98
23 - COLUMN BDE-862237-02.A2 862237-02	£131.46	£157.75
24 - LATCH BDE-862241-00.A6 862241-00	£34.00	£40.80
25 - COLUMN SA BDE-861295-00.A0 861295-00	£212.82	£255.39
26 - ARM ELEVATING BDE-861289-01.A2 861289-01	-
27 - WASHER BDE-720959-00.A92 720959-00	£1.50	£1.80
28 - SCREW BDE-860301-00.A77 860301-00	£1.50	£1.80
29 - KNOB BDE-946469-00.A50 946469-00	£1.50	£1.80
30 - BRACKET BDE-863724-00.A9 863724-00	£16.03	£19.24
31 - BAR BDE-863710-00.A22 863710-00	£7.18	£8.62
32 - STOP RUBBER BDE-860786-00.A8 860786-00	£1.50	£1.80
33 - PIN BDE-330036-08.A7 330036-08	£1.50	£1.80
34 - BEARING BDE-949755-03.A0 949755-03	£18.91	£22.69
35 - WASHER BDE-863928-00.A6 863928-00	£2.26	£2.71
36 - NUT BDE-863930-00.A6 863930-00	£2.78	£3.34
37 - CAP BDE-862015-00.A6 862015-00	£10.85	£13.02
38 - SCREW BDE-865647-00.A2 865647-00	£37.35	£44.82
39 - CIRCLIP BDE-860079-02.A34 860079-02	£1.50	£1.80
40 - KNOB BDE-860018-00.A7 860018-00	£17.48	£20.97
41 - HANDLE BDE-173251.A5 173251	£24.39	£29.27
42 - SCREW BDE-860093-21.A10 860093-21	£1.50	£1.80
43 - BUMPER BDE-860429-00.A33 860429-00	£1.50	£1.80
44 - END CAP BDE-861219-01.A4 861219-01	£4.69	£5.63
45 - SCREW BDE-860238-00.A15 860238-00	£1.50	£1.80
46 - SUPPORT BDE-863912-00.A36 863912-00	£7.18	£8.62
47 - SCREW BDE-860238-04.A28 860238-04	£1.50	£1.80
48 - SCREW BDE-860238-00.A16 860238-00	£1.50	£1.80
49 - WASHER BDE-860073-00.A122 860073-00	£1.50	£1.80
50 - WASHER BDE-860074-01.A98 860074-01	£1.50	£1.80
51 - CLAMP BDE-949700-05.A8 949700-05	£9.41	£11.29
52 - POINTER BDE-860237-00.A53 860237-00	£3.80	£4.56
53 - SCALE BDE-863922-01.A5 863922-01	£7.18	£8.62
55 - PLUG BDE-865856-00.A0 865856-00	£1.50	£1.80
56 - SCREW.TEMP BDE-860093-05.A10 860093-05	£1.50	£1.80
57 - SCREW BDE-860085-20.A10 860085-20	£1.50	£1.80
58 - NUT BDE-860083-04.A134 860083-04	£1.50	£1.80
59 - SPACER BDE-867190-01.A12 867190-01	£3.30	£3.96
60 - CLAMP BDE-860843-01.A21 860843-01	£1.50	£1.80
61 - BRACKET BDE-860843-02.A47 860843-02	£1.50	£1.80
63 - LOCK BDE-864101-00.A1 864101-00	-
64 - STOP BDE-864566-01.A0 864566-01	£78.95	£94.74
65 - HANDLE SA BDE-864655-01.A1 864655-01	£25.70	£30.84
66 - ELEVATING SA BDE-864462-03.A6 864462-03	£135.36	£162.43
67 - INLET BDE-861230-00.A1 861230-00	£4.58	£5.49
68 - SCREW BDE-860094-03.A171 860094-03	£1.50	£1.80
69 - SCREW BDE-860094-03.A172 860094-03	£1.50	£1.80
70 - NO LONGER AVAILABLE BDE-000000-00.A14691 000000-00	-
71 - STOP SA BDE-861223-00.A0 861223-00	-
72 - INLET BDE-947322-01.A4 947322-01	£3.30	£3.96
73 - PLUG BDE-865856-00.A1 865856-00	£1.50	£1.80
74 - SWITCHBOX SA BDE-868245-00.A1 868245-00	£258.10	£309.72
75 - INLET BDE-947322-01.A3 947322-01	£3.30	£3.96
76 - NUT BDE-947321-01.A5 947321-01	£1.50	£1.80
77 - CABLE BDE-868248-00.A0 868248-00	£30.08	£36.10
78 - PLUG 3 PHASE BDE-860637-00.A5 860637-00	£14.57	£17.48
79 - CABLE & PLUG BDE-868249-00.A1 868249-00	£71.44	£85.73
80 - CABLE BDE-868246-00.A0 868246-00	£11.87	£14.24
81 - INLET BDE-868254-00.A1 868254-00	£2.71	£3.25
82 - NUT BDE-868255-00.A0 868255-00	£1.42	£1.70
83 - MOTOR CABLE BDE-868247-00.A1 868247-00	£29.32	£35.18
84 - INLET BDE-949747-12.A1 949747-12	£2.71	£3.25
85 - SCREW BDE-930224-00.A22 930224-00	£1.50	£1.80
86 - WASHER BDE-941633-00.A7 941633-00	£1.50	£1.80
87 - SWITCHBOX SA BDE-868251-00.A1 868251-00	£393.38	£472.06
88 - HOUSING & COVER BDE-868244-00.A0 868244-00	£122.02	£146.42
89 - SWITCHBOX SA BDE-868251-00.A0 868251-00	£393.38	£472.06
90 - OVERLOAD PROTECTOR BDE-868239-00.A0 868239-00	-
91 - VOLTAGE REGULATOR BDE-868240-00.A1 868240-00	-
92 - CONTACT BDE-868242-00.A1 868242-00	-
93 - SWITCH SA BDE-868241-00.A0 868241-00	£187.30	£224.76
94 - BRACKET BDE-863426-04.A5 863426-04	£30.08	£36.10
102 - LEG BDE-863866-05.A8 863866-05	£45.14	£54.17
103 - SCREW BDE-942831-00.A15 942831-00	£1.50	£1.80
104 - NUT RH BDE-860083-05.A138 860083-05	£1.50	£1.80
105 - WASHER BDE-860074-04.A81 860074-04	£1.50	£1.80
106 - WRENCH 4 MM BDE-949882-01.A57 949882-01	£1.50	£1.80
107 - SPANNER BDE-949752-01.A12 949752-01	£3.80	£4.56
108 - NUT BDE-949726-07.A4 949726-07	£1.50	£1.80
109 - WASHER M8 BDE-860073-03.A378 860073-03	£1.50	£1.80
110 - STUD BDE-863880-00.A6 863880-00	£17.48	£20.97
111 - SPACER BDE-863882-00.A7 863882-00	£1.50	£1.80
112 - KNOB BDE-866974-02.A12 866974-02	£1.50	£1.80
113 - BRACKET RH BDE-863682-03.A0 863682-03	£17.48	£20.97
114 - BRACKET LH BDE-863683-03.A6 863683-03	£17.48	£20.97
115 - BRACKET BDE-863684-03.A0 863684-03	£16.03	£19.24
116 - BASE SA BDE-863986-06.A3 863986-06	£204.32	£245.18
117 - SCREW BDE-949703-01.A16 949703-01	£1.50	£1.80
119 - BOARD BDE-864877-00.A6 864877-00	£38.80	£46.56
120 - GUIDE BDE-864871-00.A3 864871-00	£25.70	£30.84
121 - TABLE BDE-864964-01.A3 864964-01	-
144 - WASHER M8 BDE-860073-03.A380 860073-03	£1.50	£1.80
145 - BOLT BDE-860085-03.A73 860085-03	£1.50	£1.80
146 - NUT BDE-860083-04.A133 860083-04	£1.50	£1.80
147 - BRACKET BDE-863867-03.A4 863867-03	£7.85	£9.42
148 - BRACKET LH BDE-861238-02.A1 861238-02	£16.03	£19.24
149 - BRACKET RH BDE-861237-02.A9 861237-02	£16.03	£19.24
150 - TABLE BDE-861218-00.A0 861218-00	£37.82	£45.38
200 - BOARD BDE-864878-00.A3 864878-00	-
201 - KEY BDE-938539-00.A48 938539-00	£1.50	£1.80
202 - SCREW BDE-860093-02.A48 860093-02	£1.50	£1.80
203 - WASHER BDE-860074-03.A226 860074-03	£1.50	£1.80
204 - SCREW BDE-863951-00.A5 863951-00	£11.87	£14.24
205 - LOCKING RING BDE-863953-00.A4 863953-00	-
206 - NO LONGER AVAILABLE BDE-000000-00.A14692 000000-00	-
207 - LOCK BDE-864575-01.A4 864575-01	£36.42	£43.70
208 - SCREW BDE-760219-00.A17 760219-00	£1.50	£1.80
209 - SCREW BDE-860088-27.A53 860088-27	£1.50	£1.80
210 - SCREW BDE-949853-03.A18 949853-03	£1.82	£2.19
211 - PIN BDE-860088-10.A5 860088-10	£1.50	£1.80
212 - NUT BDE-860083-03.A332 860083-03	£1.50	£1.80
213 - NUT BDE-860083-01.A61 860083-01	£1.50	£1.80
214 - NUT RH BDE-860083-05.A139 860083-05	£1.50	£1.80
215 - WASHER BDE-860074-04.A80 860074-04	£1.50	£1.80
216 - WASHER BDE-860073-14.A52 860073-14	£1.50	£1.80
217 - BEARING BDE-861721-07.A11 861721-07	£7.18	£8.62
218 - WASHER BDE-863971-00.A19 863971-00	£1.50	£1.80
219 - WASHER BDE-860226-02.A18 860226-02	£1.50	£1.80
220 - ROLLER HEAD BDE-862148-06.A0 862148-06	£45.88	£55.06
221 - BRACKET BDE-862259-90.A7 862259-90	£38.80	£46.56
222 - SHAFT BDE-862380-00.A6 862380-00	£12.17	£14.60
223 - SHAFT BDE-863969-00.A7 863969-00	£5.88	£7.06
224 - SCREW BDE-949886-06.A5 949886-06	£1.82	£2.19
225 - SCREW BDE-949886-07.A8 949886-07	£2.78	£3.34
226 - NIPPLE BDE-860650-01.A6 860650-01	£1.50	£1.80
227 - WASHER BDE-863989-00.A6 863989-00	£1.50	£1.80
228 - WASHER BDE-863991-00.A7 863991-00	£1.50	£1.80
229 - TRUNNION BDE-862261-90.A7 862261-90	£17.48	£20.97
230 - SCREW BDE-949702-04.A7 949702-04	£1.50	£1.80
231 - HANDLE BDE-863978-00.A3 863978-00	£5.72	£6.87
232 - FORK BDE-862194-04.A0 862194-04	£122.02	£146.42
233 - TRUNNION BDE-862260-90.A6 862260-90	£44.14	£52.97
234 - WASHER M8 BDE-860073-03.A379 860073-03	£1.50	£1.80
235 - KNOB BDE-946469-00.A51 946469-00	£1.50	£1.80
236 - SPRING BDE-860112-11.A26 860112-11	£1.50	£1.80
237 - PIN BDE-863977-00.A30 863977-00	£14.57	£17.48
238 - SUPPORT BDE-860835-01.A6 860835-01	£24.39	£29.27
239 - PIN BDE-863961-00.A5 863961-00	£12.17	£14.60
240 - SUPPORT BDE-860835-00.A26 860835-00	£16.03	£19.24
241 - NUT BDE-860083-02.A85 860083-02	£1.50	£1.80
242 - SCREW BDE-860094-03.A173 860094-03	£1.50	£1.80
243 - SCREW BDE-860089-39.A50 860089-39	£1.50	£1.80
244 - SCREW.TEMP BDE-860089-17.A3 860089-17	£1.50	£1.80
246 - HANDLE BDE-866680-02.A0 866680-02	-
248 - SCREW BDE-860238-04.A27 860238-04	£1.50	£1.80
249 - SCREW BDE-860205-06.A23 860205-06	£1.50	£1.80
250 - POINTER BDE-863964-00.A3 863964-00	£10.57	£12.68
251 - POINTER BDE-862721-01.A30 862721-01	£5.88	£7.06
252 - POINTER BDE-860829-00.A49 860829-00	£5.88	£7.06
253 - SCREW BDE-860538-04.A8 860538-04	£1.42	£1.70
254 - SCREW BDE-860238-00.A17 860238-00	£1.50	£1.80
255 - PLATE BDE-861016-00.A6 861016-00	£33.13	£39.76
259 - CATCH BDE-864839-00.A4 864839-00	£15.63	£18.76
263 - BRACKET BDE-860843-02.A48 860843-02	£1.50	£1.80
264 - SCREW BDE-860094-03.A178 860094-03	£1.50	£1.80
271 - NO LONGER AVAILABLE BDE-000000-00.A14693 000000-00	-
275 - PLUG BDE-32647.A4 32647	-
301 - RIVET BDE-860060-01.A17 860060-01	£1.42	£1.70
303 - PIN BDE-860088-10.A6 860088-10	£1.50	£1.80
304 - NUT BDE-860083-03.A331 860083-03	£1.50	£1.80
305 - SCREW BDE-941880-00.A78 941880-00	£1.50	£1.80
306 - SCREW BDE-949889-02.A3 949889-02	£1.50	£1.80
307 - BEARING BDE-868768-07.A75 868768-07	£7.85	£9.42
308 - BEARING BDE-868768-11.A8 868768-11	£34.00	£40.80
309 - FLANGE BDE-862003-00.A6 862003-00	£7.18	£8.62
310 - STATOR GB BDE-868423-00.A1 868423-00	£615.67	£738.80
312 - ROTOR BDE-868420-01.A4 868420-01	-
313 - SCREW BDE-860088-27.A48 860088-27	£1.50	£1.80
314 - RING BDE-860080-02.A64 860080-02	£1.50	£1.80
315 - GASKET BDE-863410-01.A12 863410-01	£1.50	£1.80
316 - SCREW BDE-949870-04.A6 949870-04	£1.50	£1.80
318 - GROMMET BDE-944653-00.A19 944653-00	£3.30	£3.96
319 - END CAP BDE-862124-01.A5 862124-01	£17.48	£20.97
320 - COVER BDE-862165-00.A2 862165-00	£24.39	£29.27
321 - FAN BDE-862126-00.A6 862126-00	£34.00	£40.80
322 - HOUSING BDE-862217-92.A4 862217-92	£16.03	£19.24
323 - SCREW BDE-860094-03.A177 860094-03	£1.50	£1.80
324 - SCREW BDE-860094-01.A60 860094-01	£1.50	£1.80
325 - CAP BDE-949747-18.A1 949747-18	£1.50	£1.80
326 - CAP BDE-949747-18.A2 949747-18	£1.50	£1.80
327 - NUT BDE-944590-00.A100 944590-00	£1.50	£1.80
328 - FLANGE BDE-864008-02.A4 864008-02	£29.32	£35.18
329 - WASHER SPRING BDE-944650-00.A26 944650-00	£1.50	£1.80
332 - GASKET BDE-863716-00.A4 863716-00	£3.80	£4.56
333 - CAP BDE-860133-00.A9 860133-00	£1.42	£1.70
334 - PROTECTOR BDE-860692-03.A7 860692-03	£144.10	£172.92
335 - COVER BDE-862219-00.A9 862219-00	£24.39	£29.27
336 - WASHER BDE-860074-04.A70 860074-04	£1.50	£1.80
337 - NUT BDE-949758-02.A13 949758-02	£1.50	£1.80
338 - KEY BDE-860318-00.A7 860318-00	-
339 - NUT BDE-863526-00.A0 863526-00	-
340 - COLLAR BDE-864007-00.A5 864007-00	£40.21	£48.25
341 - NUT BDE-944590-00.A101 944590-00	£1.50	£1.80
342 - RETAINER BDE-944654-00.A42 944654-00	£1.50	£1.80
343 - STRAP BDE-123106-00.A14 123106-00	£1.50	£1.80
344 - STRAP BDE-860843-03.A10 860843-03	£1.50	£1.80
345 - CONNECTOR BDE-946085-00.A20 946085-00	£1.82	£2.19
346 - NO LONGER AVAILABLE BDE-000000-00.A14694 000000-00	-
347 - CAP BDE-949747-20.A6 949747-20	£9.17	£11.00
348 - WRENCH BDE-949882-02.A4 949882-02	-
349 - SPANNER BDE-949751-04.A9 949751-04	-
350 - PROTECTOR BDE-863259-00.A9 863259-00	£3.80	£4.56
351 - CABLE BDE-949863-57.A8 949863-57	£14.57	£17.48
361 - MOTOR 3PH 400V GB BDE-868394-01.A0 868394-01	-
401 - TUBE EXTRACTION BDE-864095-00.A69 864095-00	£7.85	£9.42
402 - SCREW BDE-760219-00.A10 760219-00	£1.50	£1.80
403 - NUT BDE-860083-04.A150 860083-04	£1.50	£1.80
404 - SCREW BDE-249412-20.A86 249412-20	£1.50	£1.80
405 - SCREW BDE-949888-06.A4 949888-06	£1.50	£1.80
406 - WASHER BDE-860074-01.A106 860074-01	£1.50	£1.80
407 - WASHER BDE-860074-02.A105 860074-02	£1.50	£1.80
408 - WASHER BDE-860074-03.A248 860074-03	£1.50	£1.80
409 - SCREW BDE-943023-00.A16 943023-00	£1.50	£1.80
410 - KNOB BDE-861842-00.A6 861842-00	£1.50	£1.80
411 - SCREW BDE-760273-00.A22 760273-00	£1.50	£1.80
412 - SCREW BDE-760998-00.A124 760998-00	£1.50	£1.80
413 - SCREW BDE-860094-12.A10 860094-12	£1.50	£1.80
414 - KNOB BDE-946469-00.A39 946469-00	£1.50	£1.80
415 - PROTECTOR BDE-863703-00.A36 863703-00	-
416 - BUSH BDE-863705-00.A32 863705-00	£1.82	£2.19
417 - BRACKET BDE-863707-01.A31 863707-01	£9.41	£11.29
418 - SQUARE BDE-863708-00.A39 863708-00	£10.85	£13.02
419 - SUPPORT BDE-863709-00.A28 863709-00	-
420 - PROTECTOR BDE-863711-02.A7 863711-02	£16.03	£19.24
421 - SPRING BDE-861222-00.A9 861222-00	£2.78	£3.34
422 - ELEMENT BDE-864538-02.A8 864538-02	-
423 - KNIFE BDE-863687-00.A3 863687-00	£18.42	£22.10
424 - PLATE BDE-864037-00.A4 864037-00	£1.42	£1.70
425 - SCREW BDE-949892-02.A6 949892-02	£2.71	£3.25
426 - WASHER BDE-864053-00.A62 864053-00	£3.80	£4.56
427 - ROLLER BDE-864054-00.A12 864054-00	£1.82	£2.19
428 - WASHER BDE-860075-00.A114 860075-00	£1.50	£1.80
429 - SQUARE BDE-863793-01.A3 863793-01	£3.80	£4.56
430 - GUARD BDE-N036977.A7 N036977	£65.52	£78.62
431 - BRACKET BDE-862087-90.A7 862087-90	-
432 - LOWER GUARD SA BDE-869325-00.A4 869325-00	£45.14	£54.17
433 - GUARD BDE-863621-00.A3 863621-00	£5.88	£7.06
434 - BRACKET BDE-863620-00.A10 863620-00	£5.88	£7.06
435 - HANDLE BDE-861840-00.A6 861840-00	£7.85	£9.42
436 - SCREW BDE-860301-16.A39 860301-16	£1.50	£1.80
437 - WASHER BDE-941602-00.A179 941602-00	£1.50	£1.80
438 - SCREW BDE-860301-00.A75 860301-00	£1.50	£1.80
439 - HEX KEY 5 MM BDE-930574-00.A18 930574-00	£1.50	£1.80
440 - SPANNER BOX BDE-869235-00.A56 869235-00	£17.48	£20.97
444 - LEVER BDE-862089-01.A4 862089-01	£17.48	£20.97
445 - SPRING BDE-861221-00.A1 861221-00	£2.78	£3.34
846 - GUARD SA BDE-869322-02.A6 869322-02	-

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW729 Type 2 Radial Arm Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
