Dewalt DW717XPS Type 4 Mitre Saw Spare Parts

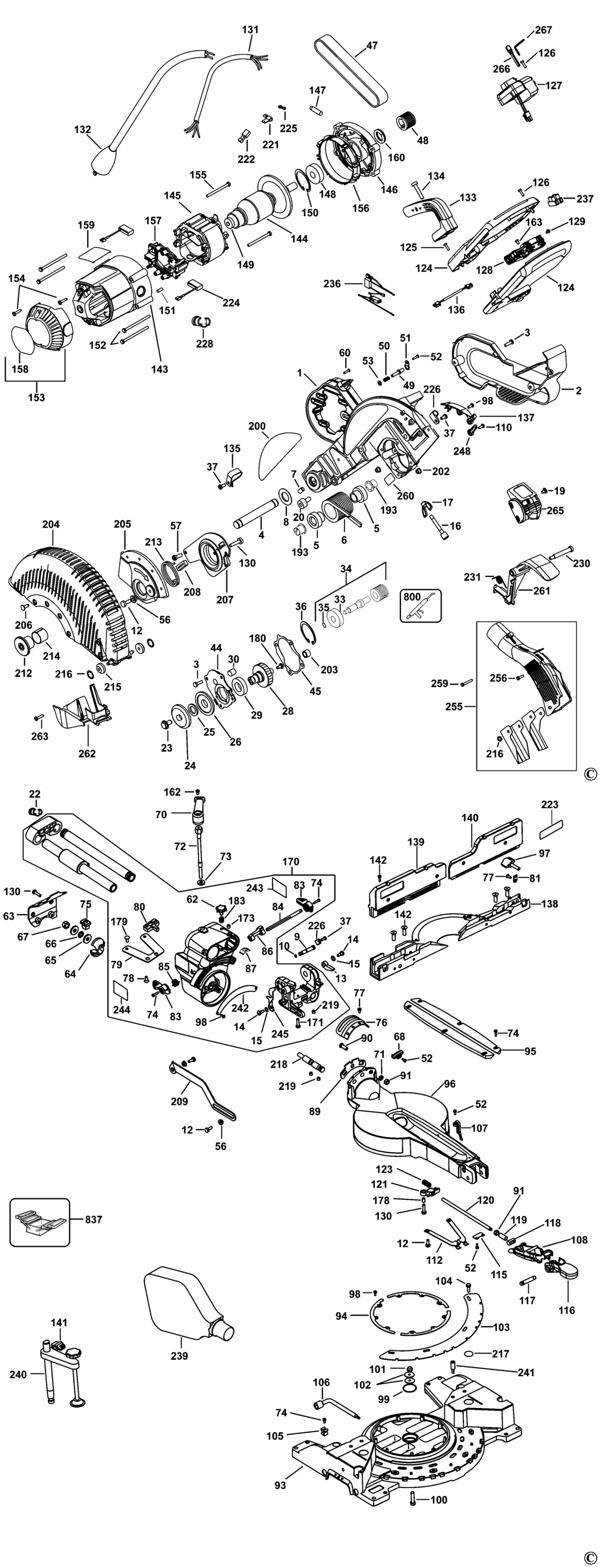

An exploded drawing and spare parts listing for the Dewalt DW717XPS Type 4 Mitre Saw

	Ex VAT	Inc VAT
1 - ARM BDE-641494-01.A5 641494-01	-
2 - BELT COVER BDE-641445-00.A0 641445-00	£12.17	£14.60
3 - SCREW BDE-330045-14.A157 330045-14	£1.50	£1.80
4 - SHAFT BDE-146751-00.A58 146751-00	£3.30	£3.96
5 - SPACER BDE-146732-00.A58 146732-00	£1.50	£1.80
6 - SPRING BDE-N039404.A10 N039404	£17.48	£20.97
7 - SCREW BDE-150075-00.A74 150075-00	£1.50	£1.80
8 - WASHER BDE-148296-00.A2 148296-00	£1.50	£1.80
9 - LOCKING PIN BDE-387130-00.A6 387130-00	£4.69	£5.63
10 - SEAL BDE-34158-00.A72 34158-00	£1.50	£1.80
12 - SCREW.SPECIAL BDE-330045-23.A34 330045-23	£1.50	£1.80
13 - PAWL BDE-153603-01.A27 153603-01	£1.82	£2.19
14 - SCREW BDE-153639-00.A61 153639-00	£1.50	£1.80
15 - WASHER BDE-153655-00.A11 153655-00	£1.50	£1.80
16 - SCREW BDE-N185664.A5 N185664	£3.30	£3.96
17 - NUT WING BDE-150718-00.A5 150718-00	£1.50	£1.80
19 - SCREW BDE-385915-02.A1 385915-02	£1.50	£1.80
20 - SCREW BDE-618198-00.A25 618198-00	£1.50	£1.80
22 - BUSHING BDE-615851-00.A32 615851-00	£1.50	£1.80
23 - BLADE BOLT BDE-647776-00.A12 647776-00	£1.66	£1.99
24 - CLAMP OUTER BDE-151962-01.A15 151962-01	£3.80	£4.56
25 - ADAPTOR BDE-604770-00.A19 604770-00	£3.80	£4.56
26 - WASHER INNER CLAMP BDE-644999-00.A6 644999-00	£5.88	£7.06
28 - GEAR & SPINDLE SA BDE-641465-00.A5 641465-00	£60.94	£73.13
29 - BEARING BALL BDE-330003-66.A9 330003-66	£14.57	£17.48
30 - BEARING NEEDLE BDE-391616-00.A1 391616-00	£4.69	£5.63
34 - SHAFT SA BDE-N066269.A6 N066269	£45.14	£54.17
35 - CIRCLIP BDE-860079-03.A83 860079-03	£1.50	£1.80
36 - RETAINER BDE-616726-00.A22 616726-00	£1.50	£1.80
37 - SCREW BDE-330045-49.A42 330045-49	£1.50	£1.80
44 - GEARCASE COVER SA BDE-641495-00SV.A3 641495-00SV	£87.82	£105.39
45 - GASKET BDE-641459-00.A3 641459-00	£7.18	£8.62
47 - V-BELT BDE-N767583.A1 N767583	£24.39	£29.27
48 - DRIVE PULLEY BDE-N004510.A7 N004510	£7.85	£9.42
49 - LOCKING PIN BDE-153561-00.A37 153561-00	£1.50	£1.80
50 - SPRING BDE-448176-00.A4 448176-00	£1.50	£1.80
51 - PLATE BDE-393071-00.A38 393071-00	£1.50	£1.80
52 - SCREW BDE-330045-45.A54 330045-45	£1.50	£1.80
53 - WASHER BDE-153559-00.A30 153559-00	£1.50	£1.80
56 - SLEEVE BDE-146740-00.A24 146740-00	£1.66	£1.99
57 - SCREW BDE-641470-00.A15 641470-00	£1.50	£1.80
60 - SCREW BDE-330045-15.A23 330045-15	£1.50	£1.80
62 - LOCK KNOB BDE-618156-00.A15 618156-00	£3.80	£4.56
63 - SUPPORT PLATE BDE-641455-00.A3 641455-00	£4.69	£5.63
64 - BUSHING BDE-618145-00.A0 618145-00	£3.30	£3.96
65 - WASHER BDE-153781-00.A49 153781-00	£1.50	£1.80
66 - BEARING THRUST BDE-153451-00.A32 153451-00	£1.82	£2.19
67 - LOCK NUT BDE-625393-00.A15 625393-00	£1.50	£1.80
68 - POINTER BDE-641425-00.A2 641425-00	£1.50	£1.80
70 - HANDLE BDE-618236-00.A6 618236-00	£3.80	£4.56
71 - WASHER BDE-330016-03.A50 330016-03	£1.50	£1.80
72 - ROD BDE-618148-00.A15 618148-00	£3.80	£4.56
73 - WASHER THRUST BDE-603636-00.A11 603636-00	£1.50	£1.80
74 - SCREW BDE-330045-06.A28 330045-06	£1.50	£1.80
75 - BLOCK BDE-618160-00.A13 618160-00	£3.80	£4.56
76 - SPRING BDE-626440-00.A2 626440-00	£3.80	£4.56
77 - SCREW BDE-098103-18.A8 098103-18	£1.50	£1.80
78 - SCREW.SPECIAL BDE-330045-23.A35 330045-23	£1.50	£1.80
79 - SPRING BDE-641466-00.A8 641466-00	£3.80	£4.56
80 - PAWL BDE-641467-00.A5 641467-00	£7.18	£8.62
81 - PLATE BDE-641484-00.A7 641484-00	£1.50	£1.80
83 - LEVER SA BDE-N019349.A6 N019349	£1.50	£1.80
84 - ROD BDE-618153-00.A9 618153-00	£7.18	£8.62
85 - SPRING TORSION BDE-618259-00.A6 618259-00	£1.50	£1.80
86 - CAM BDE-N059591.A5 N059591	£1.75	£2.10
89 - PLATE BDE-N091092.A1 N091092	£7.85	£9.42
90 - CARRIAGE BOLT BDE-98130-25.A13 98130-25	£1.50	£1.80
91 - NUT BDE-330015-03.A67 330015-03	£1.50	£1.80
93 - BASE SA BDE-641486-00SV.A3 641486-00SV	£245.11	£294.13
94 - PLATE BDE-641416-00.A2 641416-00	£1.50	£1.80
95 - PLATE BDE-641453-00.A0 641453-00	£5.88	£7.06
96 - TABLE SA BDE-641498-01.A4 641498-01	-
97 - KNOB LOWER BDE-147107-07.A16 147107-07	£3.80	£4.56
98 - SCREW BDE-330045-05.A205 330045-05	£1.50	£1.80
99 - RING BDE-49787-00.A22 49787-00	£1.50	£1.80
100 - SCREW BDE-98025-35.A15 98025-35	£1.50	£1.80
101 - NUT BDE-N074448.A0 N074448	£1.50	£1.80
102 - WASHER BDE-153792-00.A4 153792-00	£1.50	£1.80
103 - DETENT BDE-641443-00.A1 641443-00	£25.70	£30.84
104 - SCREW BDE-604410-00.A28 604410-00	£1.50	£1.80
105 - HOLDER BDE-391358-01.A9 391358-01	£1.50	£1.80
106 - WRENCH SPECIAL BDE-N040940.A25 N040940	£9.41	£11.29
107 - POINTER BDE-641452-00.A6 641452-00	£1.50	£1.80
108 - ACTUATOR BDE-641446-00.A5 641446-00	£2.78	£3.34
110 - SCREW BDE-330045-44.A15 330045-44	£1.50	£1.80
112 - SPRING BDE-397070-00.A9 397070-00	£3.80	£4.56
115 - RETAINER BDE-641448-00.A5 641448-00	£1.50	£1.80
116 - LEVER BDE-641456-00.A3 641456-00	£5.88	£7.06
117 - PIN BDE-659090-00.A5 659090-00	£2.26	£2.71
118 - PIN BDE-624460-00.A14 624460-00	£1.50	£1.80
119 - SLEEVE BDE-624461-00.A5 624461-00	£1.50	£1.80
120 - ROD BDE-641447-00.A1 641447-00	£3.30	£3.96
121 - BLOCK BDE-641424-00.A4 641424-00	£7.18	£8.62
123 - SPRING COMPRESSION BDE-618253-00.A8 618253-00	£1.50	£1.80
124 - HANDLE SA BDE-624730-00.A8 624730-00	£16.03	£19.24
125 - SCREW BDE-330045-18.A44 330045-18	£1.50	£1.80
126 - SCREW BDE-330019-32.A44 330019-32	£1.50	£1.80
127 - LED & POWER SUPPLY KIT BDE-DWS7085.A1 DWS7085	£114.00	£136.80
128 - SWITCH BDE-N548978V.A29 N548978V	£19.90	£23.88
129 - SCREW BDE-384127-01.A53 384127-01	£1.50	£1.80
130 - SCREW.SPECIAL BDE-330045-23.A36 330045-23	£1.50	£1.80
131 - MOTOR CABLE BDE-N029242.A7 N029242	£12.17	£14.60
132 - CORDSET BDE-N045586.A4 N045586	£51.90	£62.28
132 - CORDSET (EURO) BDE-330120-23.A1 330120-23	£37.35	£44.82
132 - CORDSET BDE-330060-91.A2 330060-91	£51.90	£62.28
133 - HANDLE BDE-641438-00.A1 641438-00	£3.80	£4.56
134 - SCREW BDE-330019-22.A18 330019-22	£1.50	£1.80
135 - CABLE CLAMP BDE-659008-00.A4 659008-00	£1.42	£1.70
136 - CABLE SA BDE-N467585.A17 N467585	£9.41	£11.29
137 - COVER BDE-641430-00.A4 641430-00	£1.50	£1.80
138 - FENCE GB BDE-641411-01.A6 641411-01	-
138 - FENCE LX BDE-641411-01.A7 641411-01	-
139 - FENCE LH BDE-641474-01.A9 641474-01	£34.00	£40.80
140 - FENCE RH BDE-641475-01SV.A4 641475-01SV	£99.47	£119.36
141 - KNOB LOWER BDE-147107-07.A17 147107-07	£3.80	£4.56
142 - SCREW BDE-098105-03.A27 098105-03	£3.80	£4.56
143 - FIELDCASE BDE-391317-00.A15 391317-00	£12.17	£14.60
144 - ARMATURE SA GB BDE-N284339.A1 N284339	£157.18	£188.61
144 - ARMATURE SA LX BDE-N284340.A0 N284340	£157.18	£188.61
145 - FIELD 115V TO DCODE WK46 2016 LX BDE-869045-01.A18 869045-01	£47.08	£56.49
145 - FIELD 230V TO DCODE WK46 2016 GB BDE-869045-00.A4 869045-00	£47.08	£56.49
146 - PLATE BDE-394036-00.A4 394036-00	£14.57	£17.48
147 - SCREW BDE-394034-00.A18 394034-00	£1.50	£1.80
148 - BEARING BALL BDE-605040-32.A6 605040-32	£7.92	£9.50
149 - BEARING BDE-330003-60.A143 330003-60	£2.78	£3.34
150 - RETAINER BDE-930098-00.A73 930098-00	£1.50	£1.80
151 - PLUG BDE-145312-00.A16 145312-00	£1.50	£1.80
152 - SCREW BDE-98094-55.A47 98094-55	£1.50	£1.80
153 - END CAP SA BDE-N187409.A2 N187409	£5.88	£7.06
154 - SCREW BDE-330019-13.A284 330019-13	£1.50	£1.80
155 - SCREW BDE-330019-19.A125 330019-19	£1.50	£1.80
156 - BAFFLE FAN BDE-391375-00.A63 391375-00	-
157 - BRUSH PLATE BDE-389512-01.A37 389512-01	£16.03	£19.24
158 - LABEL BDE-N625165.A28 N625165	£1.50	£1.80
159 - RATING PLATE GB BDE-N257480 N257480	£5.88	£7.06
159 - RATING PLATE LX BDE-N257481 N257481	£7.18	£8.62
160 - RING BDE-153783-00.A28 153783-00	£1.50	£1.80
162 - SCREW BDE-330045-13.A16 330045-13	£1.50	£1.80
163 - SCREW BDE-330019-12.A33 330019-12	£1.50	£1.80
170 - TRUNION BDE-641496-00.A3 641496-00	£336.69	£404.03
171 - SCREW BDE-603390-00.A20 603390-00	£1.50	£1.80
173 - SCREW BDE-153576-04.A15 153576-04	£1.50	£1.80
178 - SLEEVE BDE-641444-00.A5 641444-00	£1.50	£1.80
179 - SCREW BDE-330045-24.A22 330045-24	£1.50	£1.80
180 - SCREW BDE-385915-04.A3 385915-04	£2.78	£3.34
183 - SPRING BDE-659919-00.A7 659919-00	£1.50	£1.80
193 - BUSHING BDE-645746-00.A22 645746-00	£1.66	£1.99
200 - LABEL BDE-395021-00.A6 395021-00	£3.30	£3.96
202 - INSERT BDE-148608-00.A53 148608-00	£1.50	£1.80
203 - BEARING BDE-386780-00.A51 386780-00	£2.26	£2.71
204 - GUARD LOWER BDE-641434-01.A2 641434-01	-
205 - GUARD PLATE BDE-N592582.A4 N592582	£12.17	£14.60
206 - SCREW BDE-385915-04.A4 385915-04	£2.78	£3.34
207 - PLATE BDE-N041988.A1 N041988	£14.57	£17.48
208 - BUMPER BDE-146768-00.A34 146768-00	£1.66	£1.99
209 - LINK BDE-641436-00.A5 641436-00	£7.18	£8.62
212 - RETAINING PLATE BDE-146750-03.A0 146750-03	£2.78	£3.34
213 - SPRING BDE-N040005.A3 N040005	£3.80	£4.56
214 - SLEEVE BDE-148295-00.A52 148295-00	£1.66	£1.99
215 - ROLLER BDE-625825-00.A3 625825-00	£1.66	£1.99
216 - RING BDE-142273-00.A17 142273-00	£1.50	£1.80
217 - WARNING LABEL BDE-610707-00.A20 610707-00	£1.50	£1.80
218 - STUD BDE-618234-00.A6 618234-00	£7.18	£8.62
219 - SCREW BDE-153666-00.A23 153666-00	£1.50	£1.80
221 - TERMINAL BDE-145332-00.A5 145332-00	£1.50	£1.80
222 - TERMINAL BDE-450212-00.A22 450212-00	£2.78	£3.34
223 - WARNING LABEL BDE-610710-00.A3 610710-00	£1.50	£1.80
224 - BRUSH & LEAD BDE-381028-08.A46 381028-08	£7.18	£8.62
225 - TERMINAL BDE-395716-00.A11 395716-00	£1.50	£1.80
226 - CORD CLAMP BDE-153669-00.A14 153669-00	£1.50	£1.80
228 - BUSH BDE-682149-00.A1 682149-00	£5.88	£7.06
230 - BOLT BDE-152852-00.A71 152852-00	£1.82	£2.19
231 - SPRING BDE-386196-00.A10 386196-00	£1.66	£1.99
236 - LEAD SA BDE-618159-01.A2 618159-01	£16.03	£19.24
237 - TERMINAL BLOCK BDE-656549-00.A2 656549-00	£5.88	£7.06
239 - DUSTBAG BDE-147734-06.A36 147734-06	£16.03	£19.24
240 - CLAMP SA BDE-N109525.A1 N109525	£24.39	£29.27
241 - SCREW BDE-641442-00.A5 641442-00	£1.50	£1.80
242 - BEVEL SCALE BDE-641426-00.A4 641426-00	£3.30	£3.96
243 - LABEL PIVOT BDE-618277-00.A10 618277-00	£1.50	£1.80
244 - LABEL PIVOT BDE-618278-00.A4 618278-00	£1.50	£1.80
245 - LINK BDE-641427-00.A2 641427-00	£1.50	£1.80
248 - DEFLECTOR BDE-641482-00.A3 641482-00	£1.50	£1.80
255 - DUST PORT BDE-N175841.A1 N175841	£10.85	£13.02
256 - SCREW BDE-330019-02.A83 330019-02	£1.50	£1.80
259 - SCREW BDE-330019-05.A34 330019-05	£1.50	£1.80
260 - WARNING LABEL BDE-N174417.A8 N174417	£1.50	£1.80
261 - PADDLE BDE-661663-00.A2 661663-00	£4.69	£5.63
262 - GUARD BDE-661662-00.A4 661662-00	£4.69	£5.63
263 - SCREW.TEMP BDE-330019-11.A87 330019-11	£1.50	£1.80
265 - LED & POWER SUPPLY KIT DWS7085 BDE-DWS7085.A0 DWS7085	£114.00	£136.80
266 - SWITCH LOCK OFF BDE-627271-00.A10 627271-00	£1.50	£1.80
267 - HEX KEY 2.5 MM BDE-604407-01.A10 604407-01	£3.30	£3.96
800 - GREASE BDE-870889-03.A100 870889-03	£7.85	£9.42
837 - S.T.SQUARE BDE-559626-99.A5 559626-99	£108.20	£129.84

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW717XPS Type 4 Mitre Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt DW717XPS Type 4 Mitre Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt DW717XPS Type 4 Mitre Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
