Dewalt DW715 Type 1 Mitre Saw Spare Parts

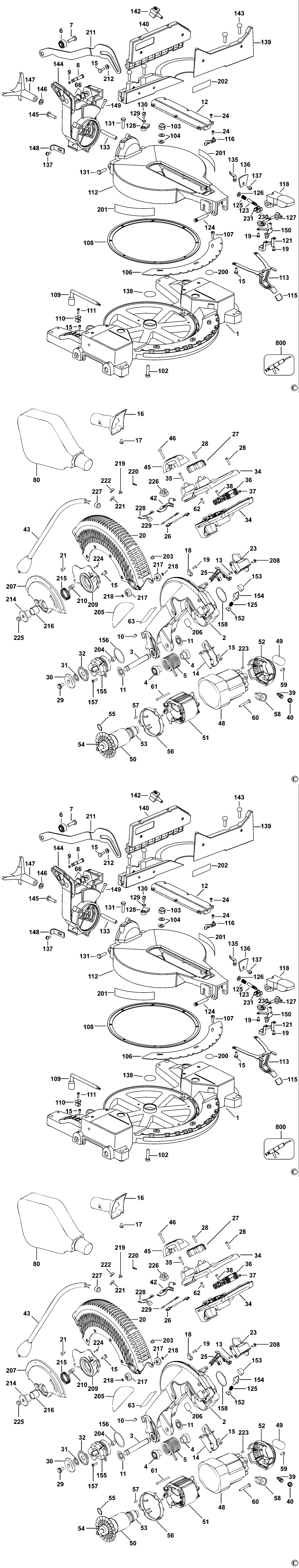

An exploded drawing and spare parts listing for the Dewalt DW715 Type 1 Mitre Saw

	Ex VAT	Inc VAT
1 - BASE SA BDE-626389-00.A0 626389-00	-
1 - BASE SA BDE-626389-00.A1 626389-00	-
2 - ARM BDE-626403-00 626403-00	-
3 - SHAFT BDE-146751-00.A47 146751-00	£3.39	£4.07
3 - SHAFT BDE-146751-00.A48 146751-00	£3.39	£4.07
4 - SPACER BDE-146732-00.A59 146732-00	£1.66	£1.99
4 - SPACER BDE-146732-00.A60 146732-00	£1.66	£1.99
5 - SPRING BDE-633290-02.A0 633290-02	-
5 - SPRING BDE-633290-02.A1 633290-02	-
6 - BUSH BDE-385756-01.A1 385756-01	£1.66	£1.99
6 - BUSH BDE-385756-01.A2 385756-01	£1.66	£1.99
7 - SCREW MTL THD FORMING BDE-330045-32.A6 330045-32	£1.66	£1.99
7 - SCREW MTL THD FORMING BDE-330045-32.A7 330045-32	£1.66	£1.99
8 - LOCKING PIN BDE-387130-00.A2 387130-00	£4.83	£5.80
8 - LOCKING PIN BDE-387130-00.A3 387130-00	£4.83	£5.80
9 - SEAL BDE-34158-00.A59 34158-00	£1.66	£1.99
9 - SEAL BDE-34158-00.A60 34158-00	£1.66	£1.99
10 - SCREW BDE-150075-00.A69 150075-00	£1.66	£1.99
10 - SCREW BDE-150075-00.A70 150075-00	£1.66	£1.99
11 - WASHER BDE-148296-00.A13 148296-00	£1.66	£1.99
11 - WASHER BDE-148296-00.A14 148296-00	£1.66	£1.99
12 - PLATE BDE-146726-02.A25 146726-02	£8.08	£9.70
12 - PLATE BDE-146726-02.A26 146726-02	£8.08	£9.70
13 - SCREW BDE-330045-05.A189 330045-05	£1.66	£1.99
13 - SCREW BDE-330045-05.A190 330045-05	£1.66	£1.99
14 - GUARD REAR BDE-618189-00.A0 618189-00	-
14 - GUARD REAR BDE-618189-00.A1 618189-00	-
15 - SCREW.SPECIAL BDE-330045-23.A10 330045-23	£1.66	£1.99
15 - SCREW.SPECIAL BDE-330045-23.A11 330045-23	£1.66	£1.99
16 - DUST DEFLECTOR BDE-391336-00.A8 391336-00	£2.32	£2.78
16 - DUST DEFLECTOR BDE-391336-00.A9 391336-00	£2.32	£2.78
17 - SCREW BDE-153460-00.A9 153460-00	£1.66	£1.99
17 - SCREW BDE-153460-00.A10 153460-00	£1.66	£1.99
18 - CORD CLAMP BDE-153669-00.A12 153669-00	£1.66	£1.99
18 - CORD CLAMP BDE-153669-00.A13 153669-00	£1.66	£1.99
19 - SCREW BDE-330045-13.A13 330045-13	£1.66	£1.99
19 - SCREW BDE-330045-13.A14 330045-13	£1.66	£1.99
20 - GUARD LOWER BDE-618230-00 618230-00	-
21 - SCREW BDE-394589-01.A1 394589-01	£1.66	£1.99
21 - SCREW BDE-394589-01.A2 394589-01	£1.66	£1.99
23 - COVER BDE-N026930.A12 N026930	£3.80	£4.56
23 - COVER BDE-N026930.A13 N026930	£3.80	£4.56
24 - SCREW BDE-385915-02.A2 385915-02	£1.66	£1.99
24 - SCREW BDE-385915-02.A3 385915-02	£1.66	£1.99
25 - COVER BDE-624900-00.A0 624900-00	-
25 - COVER BDE-624900-00.A1 624900-00	-
26 - CABLE SA BDE-N467585.A20 N467585	£9.69	£11.63
26 - CABLE SA BDE-N467585.A21 N467585	£9.69	£11.63
27 - COVER BDE-618270-00.A1 618270-00	£2.87	£3.44
27 - COVER BDE-618270-00.A2 618270-00	£2.87	£3.44
28 - SCREW BDE-330019-32.A64 330019-32	£1.66	£1.99
28 - SCREW BDE-330019-32.A65 330019-32	£1.66	£1.99
29 - BLADE BOLT BDE-869245-00.A62 869245-00	£3.54	£4.25
29 - BLADE BOLT BDE-869245-00.A63 869245-00	£3.54	£4.25
30 - CLAMP OUTER BDE-151962-01.A19 151962-01	£3.92	£4.70
30 - CLAMP OUTER BDE-151962-01.A20 151962-01	£3.92	£4.70
31 - BLADE HOLDER BDE-152636-00.A6 152636-00	£6.06	£7.27
31 - BLADE HOLDER BDE-152636-00.A7 152636-00	£6.06	£7.27
32 - WASHER INNER CLAMP BDE-141987-04.A0 141987-04	£4.58	£5.49
32 - WASHER INNER CLAMP BDE-141987-04.A1 141987-04	£4.58	£5.49
34 - NO LONGER AVAILABLE BDE-000000-00.A95911 000000-00	-
34 - HANDLE BDE-623017-00 623017-00	-
35 - SCREW BDE-330045-08.A9 330045-08	£1.66	£1.99
35 - SCREW BDE-330045-08.A10 330045-08	£1.66	£1.99
36 - SWITCH BDE-N548978V.A21 N548978V	£20.50	£24.60
36 - SWITCH BDE-N548978V.A22 N548978V	£20.50	£24.60
37 - SCREW BDE-384127-01.A45 384127-01	£1.66	£1.99
37 - SCREW BDE-384127-01.A46 384127-01	£1.66	£1.99
38 - SCREW BDE-330019-12.A20 330019-12	£1.66	£1.99
38 - SCREW BDE-330019-12.A21 330019-12	£1.66	£1.99
39 - BRUSH SA BDE-145323-06.A20 145323-06	£6.06	£7.27
40 - BRUSH CAP BDE-448084-01.A50 448084-01	-
40 - BRUSH CAP BDE-448084-01.A51 448084-01	-
42 - NO LONGER AVAILABLE BDE-000000-00.A95912 000000-00	-
42 - LEADWIRE BDE-618214-00 618214-00	-
45 - HANDLE BDE-396375-00.A10 396375-00	-
45 - HANDLE BDE-396375-00.A11 396375-00	-
46 - SCREW BDE-330019-22.A14 330019-22	£1.66	£1.99
46 - SCREW BDE-330019-22.A15 330019-22	£1.66	£1.99
49 - NAMEPLATE BDE-605189-00.A2 605189-00	£1.66	£1.99
49 - NAMEPLATE BDE-605189-00.A3 605189-00	£1.66	£1.99
50 - ARMATURE SA BDE-397200-04SV 397200-04SV	-
52 - END CAP BDE-387678-00.A15 387678-00	£24.39	£29.27
52 - END CAP BDE-387678-00.A16 387678-00	£24.39	£29.27
53 - BEARING BDE-330003-60.A113 330003-60	£2.87	£3.44
53 - BEARING BDE-330003-60.A114 330003-60	£2.87	£3.44
54 - BEARING BDE-330003-13.A62 330003-13	£3.92	£4.70
54 - BEARING BDE-330003-13.A63 330003-13	£3.92	£4.70
55 - CIRCLIP BDE-144803-00.A38 144803-00	£1.66	£1.99
55 - CIRCLIP BDE-144803-00.A39 144803-00	£1.66	£1.99
56 - BAFFLE BDE-146723-01.A5 146723-01	-
56 - BAFFLE BDE-146723-01.A6 146723-01	-
57 - PLUG BDE-145312-00.A3 145312-00	£1.66	£1.99
57 - PLUG BDE-145312-00.A4 145312-00	£1.66	£1.99
58 - BRUSH HOLDER SA BDE-147097-09.A34 147097-09	£16.52	£19.82
58 - BRUSH HOLDER SA BDE-147097-09.A35 147097-09	£16.52	£19.82
60 - SCREW BDE-98094-55.A55 98094-55	£1.66	£1.99
60 - SCREW BDE-98094-55.A56 98094-55	£1.66	£1.99
61 - SCREW BDE-330019-19.A135 330019-19	£1.66	£1.99
61 - SCREW BDE-330019-19.A136 330019-19	£1.66	£1.99
62 - SCREW BDE-330045-45.A45 330045-45	£1.66	£1.99
62 - SCREW BDE-330045-45.A46 330045-45	£1.66	£1.99
66 - BUSHING BDE-645746-00.A20 645746-00	£1.66	£1.99
66 - BUSHING BDE-645746-00.A21 645746-00	£1.66	£1.99
79 - EXTENSION BDE-639097-00.A0 639097-00	-
79 - EXTENSION BDE-639097-00.A1 639097-00	-
80 - DUSTBAG BDE-147734-06.A41 147734-06	£16.52	£19.82
80 - DUSTBAG BDE-147734-06.A42 147734-06	£16.52	£19.82
102 - SCREW BDE-98025-35.A21 98025-35	£1.66	£1.99
102 - SCREW BDE-98025-35.A22 98025-35	£1.66	£1.99
104 - WASHER BDE-153792-00.A15 153792-00	£1.66	£1.99
104 - WASHER BDE-153792-00.A16 153792-00	£1.66	£1.99
106 - DETENT BDE-391292-01.A1 391292-01	£30.98	£37.18
106 - DETENT BDE-391292-01.A2 391292-01	£30.98	£37.18
107 - SCREW BDE-604410-00.A35 604410-00	£1.66	£1.99
107 - SCREW BDE-604410-00.A36 604410-00	£1.66	£1.99
108 - PLATE BDE-391353-00.A9 391353-00	£15.01	£18.01
108 - PLATE BDE-391353-00.A10 391353-00	£15.01	£18.01
109 - WRENCH SPECIAL BDE-608563-01.A31 608563-01	£7.40	£8.88
109 - WRENCH SPECIAL BDE-608563-01.A32 608563-01	£7.40	£8.88
110 - HOLDER BDE-391358-01.A13 391358-01	£1.66	£1.99
110 - HOLDER BDE-391358-01.A14 391358-01	£1.66	£1.99
111 - SCREW BDE-330045-06.A34 330045-06	£1.66	£1.99
111 - SCREW BDE-330045-06.A35 330045-06	£1.66	£1.99
115 - COVER BDE-148611-00.A7 148611-00	£1.66	£1.99
115 - COVER BDE-148611-00.A8 148611-00	£1.66	£1.99
116 - POINTER BDE-398693-00.A7 398693-00	£1.66	£1.99
116 - POINTER BDE-398693-00.A8 398693-00	£1.66	£1.99
118 - LEVER LOCK BDE-649430-00.A0 649430-00	£7.18	£8.62
118 - LEVER LOCK BDE-649430-00.A1 649430-00	£7.18	£8.62
121 - PLATE BDE-630693-00.A6 630693-00	£3.80	£4.56
121 - PLATE BDE-630693-00.A7 630693-00	£3.80	£4.56
123 - ROD BDE-626610-00.A9 626610-00	£4.69	£5.63
123 - ROD BDE-626610-00.A10 626610-00	£4.69	£5.63
124 - PIN BDE-626611-00.A4 626611-00	£4.69	£5.63
124 - PIN BDE-626611-00.A5 626611-00	£4.69	£5.63
125 - SPRING BDE-58698-00.A41 58698-00	£1.66	£1.99
125 - SPRING BDE-58698-00.A42 58698-00	£1.66	£1.99
126 - WASHER BDE-330016-03.A48 330016-03	£1.66	£1.99
126 - WASHER BDE-330016-03.A49 330016-03	£1.66	£1.99
128 - PAWL BDE-391347-00.A19 391347-00	£1.66	£1.99
128 - PAWL BDE-391347-00.A20 391347-00	£1.66	£1.99
129 - WASHER BDE-153655-00.A24 153655-00	£1.66	£1.99
129 - WASHER BDE-153655-00.A25 153655-00	£1.66	£1.99
130 - SCREW BDE-153639-00.A55 153639-00	£1.66	£1.99
130 - SCREW BDE-153639-00.A56 153639-00	£1.66	£1.99
131 - SCREW BDE-153797-01.A9 153797-01	£1.66	£1.99
131 - SCREW BDE-153797-01.A10 153797-01	£1.66	£1.99
133 - STUD BDE-146760-02.A2 146760-02	£1.66	£1.99
133 - STUD BDE-146760-02.A3 146760-02	£1.66	£1.99
135 - POINTER BDE-391345-00.A8 391345-00	£1.66	£1.99
135 - POINTER BDE-391345-00.A9 391345-00	£1.66	£1.99
136 - DUST DEFLECTOR BDE-393570-00.A7 393570-00	£1.66	£1.99
136 - DUST DEFLECTOR BDE-393570-00.A8 393570-00	£1.66	£1.99
137 - SCREW BDE-330045-55.A47 330045-55	£1.66	£1.99
137 - SCREW BDE-330045-55.A48 330045-55	£1.66	£1.99
138 - RING BDE-49787-00.A20 49787-00	£1.66	£1.99
138 - RING BDE-49787-00.A21 49787-00	£1.66	£1.99
139 - FENCE BDE-626409-00.A0 626409-00	£58.69	£70.43
139 - FENCE BDE-626409-00.A1 626409-00	£58.69	£70.43
142 - KNOB LOWER BDE-147107-02.A22 147107-02	£2.32	£2.78
142 - KNOB LOWER BDE-147107-02.A23 147107-02	£2.32	£2.78
143 - SCREW BDE-098105-03.A31 098105-03	£3.92	£4.70
143 - SCREW BDE-098105-03.A32 098105-03	£3.92	£4.70
144 - TRUNION BDE-5140071-60.A0 5140071-60	-
144 - TRUNION BDE-5140071-60.A1 5140071-60	-
145 - SCREW BDE-330045-65.A0 330045-65	-
145 - SCREW BDE-330045-65.A1 330045-65	-
146 - WASHER BDE-330016-04.A4 330016-04	£1.66	£1.99
146 - WASHER BDE-330016-04.A5 330016-04	£1.66	£1.99
147 - HANDLE BDE-391344-00.A0 391344-00	£7.85	£9.42
147 - LOCK HANDLE BDE-N056883.A1 N056883	£12.53	£15.04
148 - STOP PLATE BDE-391350-00.A1 391350-00	£1.66	£1.99
148 - STOP PLATE BDE-391350-00.A2 391350-00	£1.66	£1.99
149 - SCREW BDE-391346-00.A3 391346-00	£1.66	£1.99
149 - SCREW BDE-391346-00.A4 391346-00	£1.66	£1.99
150 - PLATE BDE-629175-00.A6 629175-00	£2.78	£3.34
150 - PLATE BDE-629175-00.A7 629175-00	£2.78	£3.34
152 - FELT BDE-387732-00.A8 387732-00	£1.66	£1.99
152 - FELT BDE-387732-00.A9 387732-00	£1.66	£1.99
153 - BUTTON BDE-145350-00.A2 145350-00	£1.66	£1.99
153 - BUTTON BDE-145350-00.A3 145350-00	£1.66	£1.99
154 - LOCK BDE-146714-00.A1 146714-00	£1.66	£1.99
154 - LOCK BDE-146714-00.A2 146714-00	£1.66	£1.99
155 - GEAR & SPINDLE SA BDE-386824-03.A0 386824-03	-
156 - O RING BDE-616961-00.A1 616961-00	£1.66	£1.99
156 - O RING BDE-616961-00.A2 616961-00	£1.66	£1.99
157 - SCREW BDE-330045-14.A162 330045-14	£1.66	£1.99
157 - SCREW BDE-330045-14.A163 330045-14	£1.66	£1.99
158 - SEAL BDE-701297-00.A23 701297-00	£1.66	£1.99
158 - SEAL BDE-701297-00.A24 701297-00	£1.66	£1.99
200 - LABEL BDE-394976-00.A31 394976-00	£1.88	£2.26
200 - LABEL BDE-394976-00.A32 394976-00	£1.88	£2.26
203 - INSERT BDE-148608-00.A58 148608-00	£1.66	£1.99
203 - INSERT BDE-148608-00.A59 148608-00	£1.66	£1.99
204 - BEARING BDE-386780-00.A58 386780-00	£2.32	£2.78
204 - BEARING BDE-386780-00.A59 386780-00	£2.32	£2.78
205 - LABEL BDE-393706-00.A17 393706-00	£1.66	£1.99
205 - LABEL BDE-393706-00.A18 393706-00	£1.66	£1.99
208 - SCREW BDE-385915-01.A41 385915-01	£1.66	£1.99
208 - SCREW BDE-385915-01.A42 385915-01	£1.66	£1.99
210 - BUMPER BDE-146768-00.A41 146768-00	£1.66	£1.99
210 - BUMPER BDE-146768-00.A42 146768-00	£1.66	£1.99
211 - LINK BDE-391314-00.A2 391314-00	£7.85	£9.42
211 - LINK BDE-391314-00.A3 391314-00	£7.85	£9.42
212 - BUSH BDE-146740-01.A5 146740-01	£3.92	£4.70
212 - BUSH BDE-146740-01.A6 146740-01	£3.92	£4.70
214 - FSO KIT BDE-N390418.A5 N390418	£8.08	£9.70
214 - RETAINER BDE-N391680.A4 N391680	-
215 - SPRING BDE-661454-00.A8 661454-00	£1.66	£1.99
215 - SPRING BDE-661454-00.A9 661454-00	£1.66	£1.99
216 - SLEEVE BDE-148295-00.A44 148295-00	£1.66	£1.99
216 - SLEEVE BDE-148295-00.A45 148295-00	£1.66	£1.99
217 - ROLLER BDE-625825-00.A4 625825-00	£1.66	£1.99
217 - ROLLER BDE-625825-00.A5 625825-00	£1.66	£1.99
218 - RING BDE-142273-00.A11 142273-00	£1.66	£1.99
218 - RING BDE-142273-00.A12 142273-00	£1.66	£1.99
219 - TERMINAL BDE-145332-00.A0 145332-00	£1.66	£1.99
219 - TERMINAL BDE-145332-00.A1 145332-00	£1.66	£1.99
223 - PLUG BDE-87205-00.A21 87205-00	£1.66	£1.99
223 - PLUG BDE-87205-00.A22 87205-00	£1.66	£1.99
224 - SCREW.TEMP BDE-330045-25.A0 330045-25	£1.66	£1.99
224 - SCREW.TEMP BDE-330045-25.A1 330045-25	£1.66	£1.99
225 - NUT BDE-385137-00.A4 385137-00	£1.66	£1.99
225 - FSO KIT BDE-N390418.A4 N390418	£8.08	£9.70
228 - CAPACITOR SA BDE-631950-00 631950-00	-
229 - LEAD SA BDE-631948-00 631948-00	-
230 - NUT BDE-621322-00.A3 621322-00	£1.88	£2.26
231 - NUT BDE-621321-00.A8 621321-00	£1.66	£1.99
800 - GREASE BDE-429698-00.A82 429698-00	£86.95	£104.34
800 - GREASE BDE-429698-00.A83 429698-00	£86.95	£104.34

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW715 Type 1 Mitre Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
