Dewalt DW713 Type 3 Mitre Saw Spare Parts

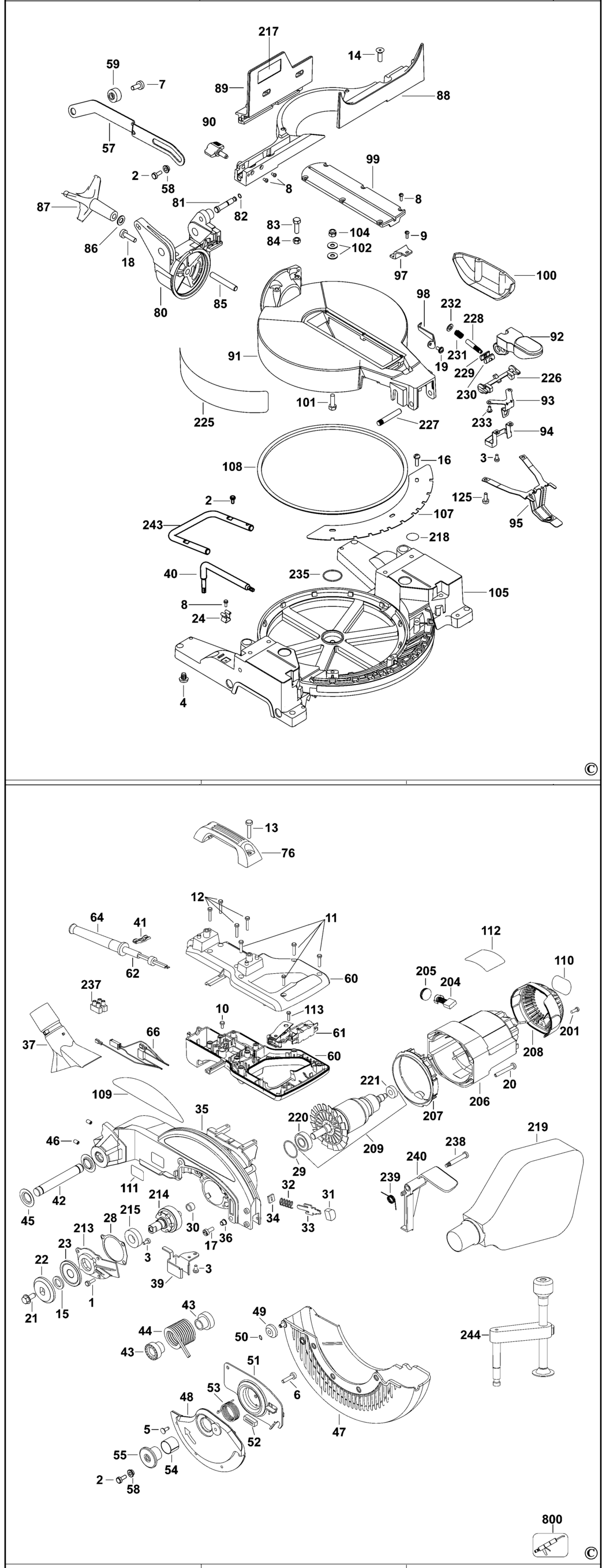

An exploded drawing and spare parts listing for the Dewalt DW713 Type 3 Mitre Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-330045-14.A156 330045-14	£1.66	£1.99
2 - SCREW.SPECIAL BDE-330045-23.A33 330045-23	£1.66	£1.99
3 - SCREW BDE-330045-13.A15 330045-13	£1.66	£1.99
4 - FOOT BDE-153612-00.A2 153612-00	£1.66	£1.99
5 - SCREW BDE-N298367 N298367	£1.66	£1.99
6 - SCREW BDE-151891-00.A24 151891-00	£1.66	£1.99
7 - SCREW BDE-330045-32.A3 330045-32	£1.66	£1.99
8 - SCREW BDE-330045-05.A204 330045-05	£1.66	£1.99
9 - SCREW BDE-153460-05.A4 153460-05	£1.66	£1.99
10 - SCREW BDE-330019-02.A82 330019-02	£1.66	£1.99
11 - SCREW BDE-330019-32.A43 330019-32	£1.66	£1.99
12 - SCREW BDE-330045-08.A7 330045-08	£1.66	£1.99
13 - SCREW BDE-330019-22.A19 330019-22	£1.66	£1.99
14 - SCREW BDE-098105-03.A26 098105-03	£3.92	£4.70
15 - BLADE HOLDER BDE-152636-00.A9 152636-00	£6.06	£7.27
16 - SCREW BDE-604410-00.A29 604410-00	£1.66	£1.99
17 - SCREW BDE-394589-01.A8 394589-01	£1.66	£1.99
18 - SCREW BDE-330045-33.A50 330045-33	£1.66	£1.99
18 - NO LONGER AVAILABLE BDE-000000-00.A96670 000000-00	-
19 - SCREW BDE-153460-00.A11 153460-00	£1.66	£1.99
20 - SCREW BDE-614375-00.A5 614375-00	£1.66	£1.99
21 - BLADE BOLT BDE-647776-00.A11 647776-00	£1.66	£1.99
22 - WASHER OUTER CLAMP BDE-650680-00.A2 650680-00	£7.18	£8.62
23 - WASHER INNER CLAMP BDE-141987-06.A10 141987-06	£11.18	£13.41
24 - HOLDER BDE-391358-01.A10 391358-01	£1.66	£1.99
28 - GASKET BDE-391632-00.A9 391632-00	£1.66	£1.99
29 - SEAL BDE-701297-00.A28 701297-00	£1.66	£1.99
30 - BEARING NEEDLE BDE-330004-06.A58 330004-06	£1.66	£1.99
31 - BUTTON BDE-145350-03.A11 145350-03	£1.66	£1.99
32 - SPRING BDE-398736-00.A2 398736-00	£1.66	£1.99
33 - LOCK BDE-146714-00.A3 146714-00	£1.66	£1.99
34 - WIPER BDE-146710-00.A13 146710-00	£1.66	£1.99
35 - ARM INCL.3036109 BDE-N199295.A0 N199295	£157.18	£188.61
35 - ARM BDE-N199295.A1 N199295	£157.18	£188.61
36 - INSERT BDE-148608-00.A54 148608-00	£1.66	£1.99
37 - CHUTE BDE-N126158 N126158	£1.88	£2.26
39 - GUARD BDE-393731-00.A0 393731-00	£2.87	£3.44
40 - WRENCH SPECIAL BDE-N040940.A26 N040940	£9.69	£11.63
42 - SHAFT BDE-146751-00.A57 146751-00	£3.39	£4.07
42 - PIVOT SHAFT BDE-N126153 N126153	£7.40	£8.88
43 - SPACER BDE-146732-00.A57 146732-00	£1.66	£1.99
44 - SPRING BDE-391606-00.A10 391606-00	£24.39	£29.27
45 - WASHER BDE-148296-00.A1 148296-00	£1.66	£1.99
46 - SCREW BDE-150075-00.A73 150075-00	£1.66	£1.99
47 - GUARD LOWER BDE-N199652 N199652	£42.48	£50.98
48 - GUARD PLATE BDE-N126157 N126157	£25.12	£30.15
49 - ROLLER BDE-146774-00.A27 146774-00	£1.88	£2.26
50 - CIRCLIP BDE-603232-00.A4 603232-00	£1.66	£1.99
51 - PLATE BDE-N041989 N041989	£18.00	£21.60
52 - BUMPER BDE-146768-00.A33 146768-00	£1.66	£1.99
53 - SPRING BDE-655325-00.A2 655325-00	£1.66	£1.99
54 - SLEEVE BDE-148295-00.A53 148295-00	£1.66	£1.99
55 - RETAINING PLATE BDE-146750-01.A11 146750-01	£9.69	£11.63
57 - LINK BDE-391630-00.A9 391630-00	£16.52	£19.82
58 - BUSH BDE-146740-01.A1 146740-01	£3.92	£4.70
59 - BUSHING BDE-399042-00.A4 399042-00	£3.92	£4.70
60 - HANDLE SA BDE-N126140 N126140	-
61 - SWITCH BDE-N169598 N169598	£34.00	£40.80
62 - CORDSET (EURO) BDE-647255-00 647255-00	£44.14	£52.97
64 - CORD PROTECTOR BDE-330005-02.A0 330005-02	£1.88	£2.26
66 - CAPACITOR BDE-N152791 N152791	£12.53	£15.04
80 - TRUNNION BDE-391578-01.A0 391578-01	£65.52	£78.62
81 - LOCKING PIN BDE-387130-00.A5 387130-00	£4.83	£5.80
82 - SEAL BDE-34158-00.A73 34158-00	£1.66	£1.99
83 - SCREW BDE-149368-00.A12 149368-00	£1.82	£2.19
84 - NUT BDE-99368-04.A5 99368-04	£1.66	£1.99
85 - STUD BDE-146760-02.A8 146760-02	£1.66	£1.99
86 - WASHER BDE-330016-04.A3 330016-04	£1.66	£1.99
87 - HANDLE BEVEL BDE-N126150.A0 N126150	£16.03	£19.24
88 - FENCE BDE-642126-00 642126-00	£90.46	£108.55
89 - FENCE LH BDE-648857-01.A2 648857-01	£44.14	£52.97
90 - KNOB LOWER BDE-N126145 N126145	£4.69	£5.63
92 - LEVER LOCK BDE-649430-00.A4 649430-00	£7.18	£8.62
93 - PLATE BDE-650051-00.A2 650051-00	£3.80	£4.56
94 - CLAMPING BAR BDE-N240659.A0 N240659	£7.18	£8.62
95 - SPRING BDE-650130-00.A0 650130-00	£7.18	£8.62
97 - POINTER BDE-391634-00.A4 391634-00	£2.78	£3.34
98 - POINTER BDE-391631-00.A1 391631-00	£1.66	£1.99
99 - PLATE BDE-146726-02.A27 146726-02	£8.08	£9.70
100 - GUARD BDE-391994-00.A6 391994-00	£2.26	£2.71
101 - SCREW BDE-98025-25.A6 98025-25	£1.66	£1.99
102 - WASHER BDE-153792-00.A5 153792-00	£1.66	£1.99
104 - NUT BDE-330021-02.A6 330021-02	£1.66	£1.99
105 - BASE BDE-N152784 N152784	£232.38	£278.85
107 - DETENT BDE-N126155 N126155	£38.48	£46.17
108 - RING BDE-391635-00.A6 391635-00	-
109 - LABEL BDE-395021-00.A5 395021-00	£3.39	£4.07
110 - BRAND LABEL BDE-N200392 N200392	£1.66	£1.99
113 - SCREW BDE-330019-03.A188 330019-03	£1.66	£1.99
125 - SCREW BDE-330045-22.A9 330045-22	£1.66	£1.99
201 - SCREW.TEMP BDE-330019-11.A88 330019-11	£1.66	£1.99
204 - BRUSH & LEAD BDE-623919-00.A1 623919-00	£7.40	£8.88
204 - BRUSH PAIR BDE-5140186-31.A1 5140186-31	-
205 - BRUSH CAP BDE-614368-00.A3 614368-00	£1.66	£1.99
206 - FIELDCASE SA 230V BDE-651765-00.A1 651765-00	£122.90	£147.48
207 - BAFFLE FAN BDE-614366-00.A3 614366-00	£3.92	£4.70
208 - END CAP BDE-N171521 N171521	-
209 - ARMATURE 230V BDE-623917-00.A2 623917-00	£122.90	£147.48
213 - GEARCASE COVER BDE-391573-00.A10 391573-00	£8.08	£9.70
214 - SPINDLE & GEAR BDE-392628-00.A6 392628-00	£60.46	£72.55
215 - BEARING BALL BDE-330003-29.A4 330003-29	£16.52	£19.82
217 - LABEL BDE-395301-00.A39 395301-00	£1.66	£1.99
218 - LABEL BDE-394976-00.A41 394976-00	£1.88	£2.26
219 - BAG DUST SA BDE-N126162.A0 N126162	£16.52	£19.82
220 - BEARING BDE-330003-13.A52 330003-13	£3.92	£4.70
221 - BEARING BDE-605040-06.A199 605040-06	£3.92	£4.70
225 - WARNING LABEL BDE-629369-00.A0 629369-00	-
226 - CAM LEVER BDE-650034-00.A0 650034-00	£1.66	£1.99
227 - PIN BDE-626611-00.A3 626611-00	£4.69	£5.63
228 - ROD BDE-626610-00.A11 626610-00	£4.69	£5.63
229 - NUT BDE-621321-00.A10 621321-00	£1.66	£1.99
230 - NUT BDE-621322-00.A1 621322-00	£1.88	£2.26
231 - SPRING BDE-58698-00.A47 58698-00	£1.66	£1.99
232 - WASHER BDE-330016-03.A51 330016-03	£1.66	£1.99
233 - SCREW BDE-650142-00.A6 650142-00	£1.66	£1.99
235 - RING BDE-49787-00.A23 49787-00	£1.66	£1.99
237 - TERMINAL BLOCK BDE-393520-00.A39 393520-00	£6.06	£7.27
238 - BOLT BDE-152852-00.A70 152852-00	£1.88	£2.26
239 - SPRING BDE-386196-00.A11 386196-00	£1.66	£1.99
240 - LEVER LOCK BDE-648729-00.A0 648729-00	£4.69	£5.63
243 - BAR BDE-N126163 N126163	£14.57	£17.48
244 - CLAMP BDE-153650-00.A4 153650-00	-
800 - GREASE BDE-5140061-28.A34 5140061-28	£53.46	£64.15
800 - GREASE BDE-93488-00.A31 93488-00	£18.00	£21.60
