Dewalt DW712N Type 2 Mitre Saw Spare Parts

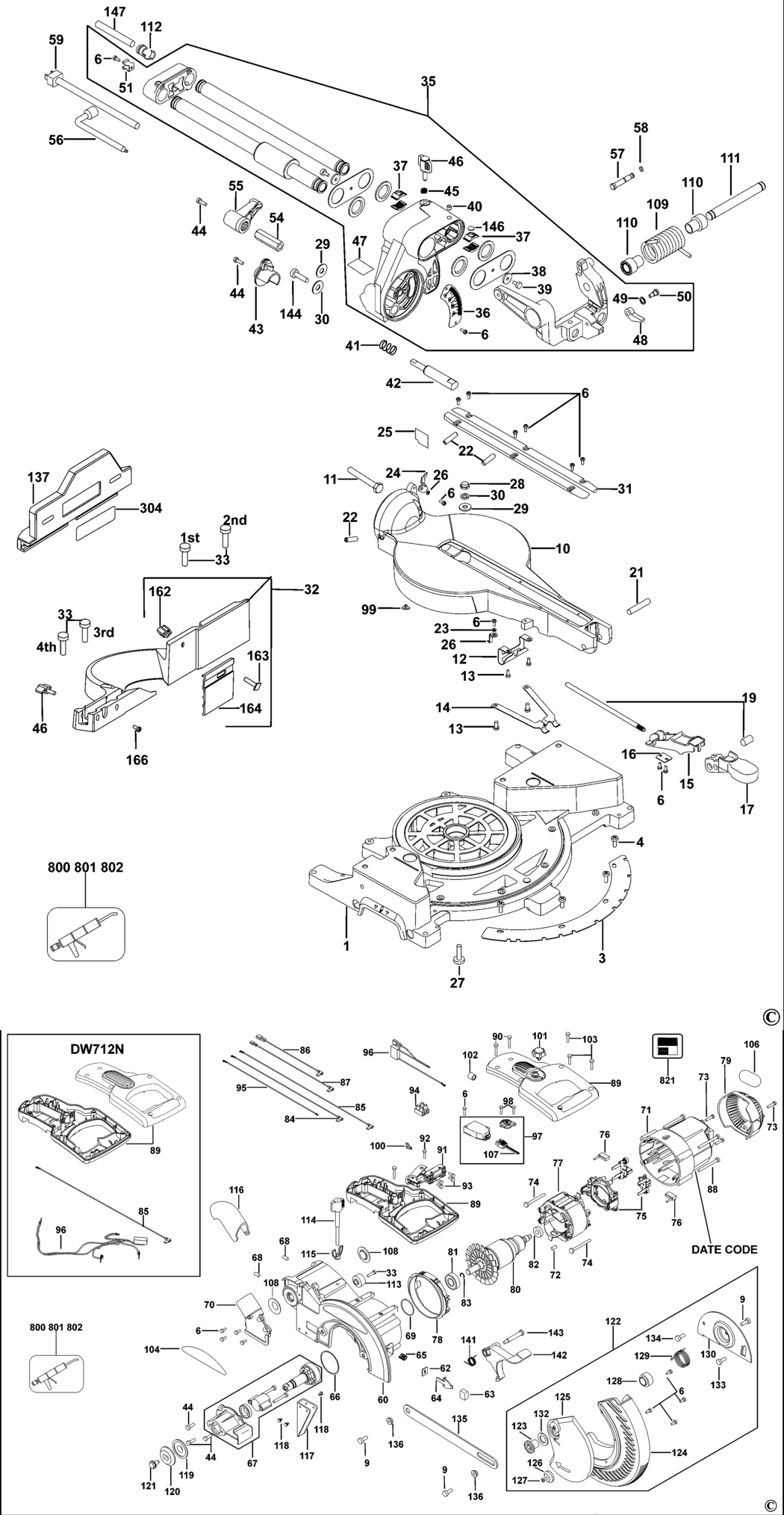

An exploded drawing and spare parts listing for the Dewalt DW712N Type 2 Mitre Saw

	Ex VAT	Inc VAT
1 - BASE SA BDE-869349-00.A1 869349-00	£122.90	£147.48
3 - DETENT BDE-397041-00.A3 397041-00	£45.47	£54.56
4 - SCREW BDE-604987-00.A4 604987-00	£1.66	£1.99
6 - SCREW BDE-330045-05.A140 330045-05	£1.66	£1.99
6 - SCREW BDE-330045-05.A141 330045-05	£1.66	£1.99
9 - SCREW.SPECIAL BDE-330045-23.A42 330045-23	£1.66	£1.99
10 - TABLE SA BDE-869350-00.A11 869350-00	£161.89	£194.27
11 - BOLT BDE-638875-00.A14 638875-00	£1.66	£1.99
12 - PLATE BDE-397062-00.A12 397062-00	£7.40	£8.88
13 - SCREW BDE-330045-55.A10 330045-55	£1.66	£1.99
14 - SPRING BDE-397070-00.A5 397070-00	£3.92	£4.70
15 - ACTUATOR BDE-397073-00.A12 397073-00	£3.39	£4.07
16 - CLAMP BDE-397075-00.A2 397075-00	£4.83	£5.80
17 - LEVER BDE-397065-00.A13 397065-00	£6.06	£7.27
19 - LOCK SA BDE-629395-00.A13 629395-00	£19.48	£23.37
21 - PIN BDE-397063-00.A2 397063-00	£1.66	£1.99
22 - SCREW BDE-153576-03.A22 153576-03	£1.66	£1.99
23 - POINTER BDE-397048-00.A2 397048-00	£1.66	£1.99
24 - POINTER BDE-397090-00.A4 397090-00	£1.66	£1.99
25 - LABEL BDE-605153-00.A2 605153-00	£1.66	£1.99
26 - WASHER BDE-249233-00.A11 249233-00	£1.66	£1.99
27 - SCREW BDE-860085-19.A23 860085-19	£1.66	£1.99
28 - NUT BDE-860092-05.A71 860092-05	£1.66	£1.99
29 - WASHER BDE-153781-00.A36 153781-00	£1.66	£1.99
30 - WASHER BDE-613270-00.A5 613270-00	£1.66	£1.99
31 - PLATE BDE-N714363.A12 N714363	£7.40	£8.88
32 - FENCE SA BDE-641363-00.A1 641363-00	£90.46	£108.55
33 - SCREW BDE-330045-33.A34 330045-33	£1.66	£1.99
35 - TRUNNION BDE-605699-00.A9 605699-00	£405.18	£486.22
36 - BEVEL SCALE BDE-397084-00.A3 397084-00	£4.83	£5.80
37 - GUIDE BDE-397118-00.A33 397118-00	£3.39	£4.07
38 - WASHER BDE-153586-00.A10 153586-00	£1.66	£1.99
39 - SCREW BDE-616001-00.A1 616001-00	£1.66	£1.99
40 - SCREW BDE-153576-04.A7 153576-04	£1.66	£1.99
41 - SPRING BDE-397088-00.A4 397088-00	£1.66	£1.99
42 - PIN BDE-397083-00.A7 397083-00	£9.69	£11.63
43 - KNOB BDE-397086-00.A6 397086-00	£1.88	£2.26
44 - SCREW BDE-330045-14.A124 330045-14	£1.66	£1.99
45 - SPRING BDE-606014-00.A17 606014-00	£1.66	£1.99
46 - KNOB BDE-147107-06.A6 147107-06	£3.92	£4.70
47 - LABEL BDE-N016463.A5 N016463	£1.66	£1.99
48 - PAWL BDE-153603-01.A33 153603-01	£1.88	£2.26
49 - WASHER BDE-153655-00.A4 153655-00	£1.66	£1.99
50 - SCREW BDE-153639-00.A77 153639-00	£1.66	£1.99
51 - HOLDER BDE-391358-01.A32 391358-01	£1.66	£1.99
54 - NUT BDE-397089-00.A11 397089-00	£11.18	£13.41
55 - HANDLE BDE-397080-00.A14 397080-00	£3.92	£4.70
56 - WRENCH SPECIAL BDE-N040940.A17 N040940	£9.69	£11.63
57 - LOCKING PIN BDE-387130-00.A25 387130-00	£4.83	£5.80
58 - SEAL BDE-34158-00.A56 34158-00	£1.66	£1.99
59 - CORDSET GB BDE-330060-85.A2 330060-85	£20.50	£24.60
59 - CORDSET LX BDE-330061-22.A11 330061-22	£38.48	£46.17
60 - ARM BDE-869351-00.A1 869351-00	£113.93	£136.72
62 - FELT BDE-387732-00.A5 387732-00	£1.66	£1.99
63 - BUTTON BDE-145350-00.A26 145350-00	£1.66	£1.99
64 - SPINDLE LOCK BDE-397135-00.A0 397135-00	£3.39	£4.07
65 - SPRING BDE-941586-00.A4 941586-00	£1.66	£1.99
66 - O RING BDE-616979-00.A3 616979-00	£1.66	£1.99
67 - GEARCASE COVER SA BDE-397210-00.A0 397210-00	£119.24	£143.09
68 - SCREW BDE-150075-00.A94 150075-00	£1.66	£1.99
69 - RING BDE-696519-00.A0 696519-00	£1.66	£1.99
70 - DUST PORT BDE-603726-00.A2 603726-00	£2.71	£3.25
71 - FIELD CASE BDE-391317-04.A5 391317-04	£16.52	£19.82
72 - PLUG BDE-145312-00.A28 145312-00	£1.66	£1.99
73 - SCREW BDE-330019-13.A494 330019-13	£1.66	£1.99
74 - SCREW BDE-330019-19.A196 330019-19	£1.66	£1.99
75 - BRUSHPLATE GB BDE-389512-08.A4 389512-08	£30.98	£37.18
75 - BRUSHPLATE LX BDE-389512-08.A5 389512-08	£30.98	£37.18
76 - BRUSH & LEAD GB BDE-381028-07.A0 381028-07	£6.06	£7.27
76 - BRUSH & LEAD LX BDE-381028-07.A1 381028-07	£6.06	£7.27
77 - FIELD 230V GB BDE-869045-00.A2 869045-00	£48.48	£58.17
77 - FIELD 115V LX BDE-869045-01.A20 869045-01	£48.48	£58.17
78 - BAFFLE FAN BDE-391375-00.A46 391375-00	-
79 - END CAP BDE-391933-00.A3 391933-00	£4.83	£5.80
80 - ARMATURE 230V GB BDE-869071-00.A4 869071-00	£107.43	£128.92
80 - ARMATURE 115/120V LX BDE-869071-01.A2 869071-01	£111.45	£133.74
81 - BEARING BDE-330003-13.A73 330003-13	£3.92	£4.70
82 - BEARING BDE-330003-60.A179 330003-60	£2.87	£3.44
83 - CIRCLIP BDE-144803-00.A13 144803-00	£1.66	£1.99
84 - LEAD YELLOW BDE-145371-00.A1 145371-00	£3.39	£4.07
85 - LEAD RED BDE-660071-00.A6 660071-00	£1.66	£1.99
86 - LEAD BLACK BDE-398823-00.A2 398823-00	£4.83	£5.80
87 - LEAD WHITE BDE-398828-00.A7 398828-00	£3.92	£4.70
88 - SCREW BDE-98094-56.A1 98094-56	-
89 - HOUSING & COVER BDE-397177-00.A0 397177-00	£18.00	£21.60
90 - SCREW BDE-330045-08.A21 330045-08	£1.66	£1.99
91 - SWITCH BDE-N548978V.A35 N548978V	£20.50	£24.60
92 - SCREW BDE-330013-22.A23 330013-22	-
93 - SCREW BDE-384127-01.A11 384127-01	£1.66	£1.99
94 - TERMINAL BLOCK BDE-326057-00.A12 326057-00	£1.66	£1.99
95 - LEAD RED BDE-660071-00.A5 660071-00	£1.66	£1.99
96 - CAPACITOR BDE-N012819.A1 N012819	£9.69	£11.63
99 - PAD BDE-640146-00.A10 640146-00	£1.66	£1.99
102 - BUSH BDE-388414-01.A49 388414-01	£1.66	£1.99
103 - SCREW BDE-330019-13.A493 330019-13	£1.66	£1.99
104 - LABEL BDE-397134-00.A9 397134-00	£1.66	£1.99
106 - LABEL BDE-N625165.A19 N625165	£1.66	£1.99
108 - WASHER BDE-148296-00.A26 148296-00	£1.66	£1.99
109 - SPRING BDE-397130-00.A1 397130-00	£7.40	£8.88
110 - SPACER BDE-397129-00.A11 397129-00	£1.66	£1.99
111 - PIVOT SHAFT BDE-397128-00.A1 397128-00	£6.06	£7.27
112 - BUSHING BDE-605155-00.A39 605155-00	£1.66	£1.99
113 - BUSHING BDE-146753-00.A33 146753-00	£1.66	£1.99
114 - DEPTH STOP BDE-147107-05.A7 147107-05	£7.40	£8.88
115 - WING NUT BDE-613365-00.A3 613365-00	£1.66	£1.99
116 - DEFLECTOR BDE-148520-00.A24 148520-00	£1.66	£1.99
117 - CHUTE BDE-612788-00.A7 612788-00	£1.88	£2.26
118 - RIVET BDE-607491-00.A6 607491-00	£1.66	£1.99
119 - WASHER BDE-397138-00.A1 397138-00	£4.83	£5.80
120 - WASHER OUTER CLAMP BDE-397136-00.A9 397136-00	£6.06	£7.27
121 - BLADE BOLT BDE-647776-00.A1 647776-00	£1.66	£1.99
122 - GUARD KIT BDE-N164918.A2 N164918	£60.46	£72.55
123 - RETAINER BDE-399182-00.A1 399182-00	£3.92	£4.70
124 - GUARD LOWER BDE-N164683.A2 N164683	£19.48	£23.37
125 - GUARD COVER BDE-613460-00.A0 613460-00	£18.00	£21.60
126 - ROLLER BDE-146774-00.A5 146774-00	£1.88	£2.26
127 - LOCKING RING BDE-604728-00.A4 604728-00	£1.66	£1.99
128 - SLEEVE BDE-603440-00.A7 603440-00	£1.66	£1.99
129 - SPRING BDE-603439-00.A5 603439-00	£1.66	£1.99
130 - PLATE BDE-N041977.A4 N041977	£8.08	£9.70
132 - WASHER BDE-612923-00.A5 612923-00	£1.66	£1.99
133 - SCREW BDE-330045-55.A13 330045-55	£1.66	£1.99
134 - SCREW BDE-330045-55.A14 330045-55	£1.66	£1.99
135 - LINK BDE-397159-00.A12 397159-00	£3.92	£4.70
136 - SLEEVE BDE-146740-02.A20 146740-02	£1.66	£1.99
137 - FENCE BDE-640349-00.A4 640349-00	£25.12	£30.15
141 - SPRING TORSION BDE-398472-00.A20 398472-00	£2.32	£2.78
142 - LEVER LOCK BDE-397150-00.A0 397150-00	£2.87	£3.44
143 - BOLT BDE-152852-00.A58 152852-00	£1.88	£2.26
144 - SCREW BDE-612008-00.A4 612008-00	£1.66	£1.99
146 - THRUST PLATE BDE-613497-00.A10 613497-00	£1.66	£1.99
147 - BUSHING BDE-615851-00.A21 615851-00	£1.66	£1.99
162 - KNOB BDE-653947-00.A10 653947-00	£1.66	£1.99
163 - BOLT BDE-653948-00.A2 653948-00	£3.92	£4.70
164 - FENCE BDE-634736-00.A10 634736-00	£11.18	£13.41
166 - SCREW BDE-860094-02.A97 860094-02	£1.66	£1.99
304 - WARNING LABEL BDE-621135-00.A3 621135-00	£1.66	£1.99
801 - GREASE BDE-5140061-28.A10 5140061-28	£53.46	£64.15
802 - GREASE BDE-93488-00.A7 93488-00	£18.00	£21.60
821 - RATING PLATE GB BDE-N047899 N047899	£5.88	£7.06
821 - RATING PLATE LX BDE-N047901 N047901	£7.85	£9.42

Attribute Name	Value
Brand	Dewalt
