Dewalt DW712N Type 1 Mitre Saw Spare Parts

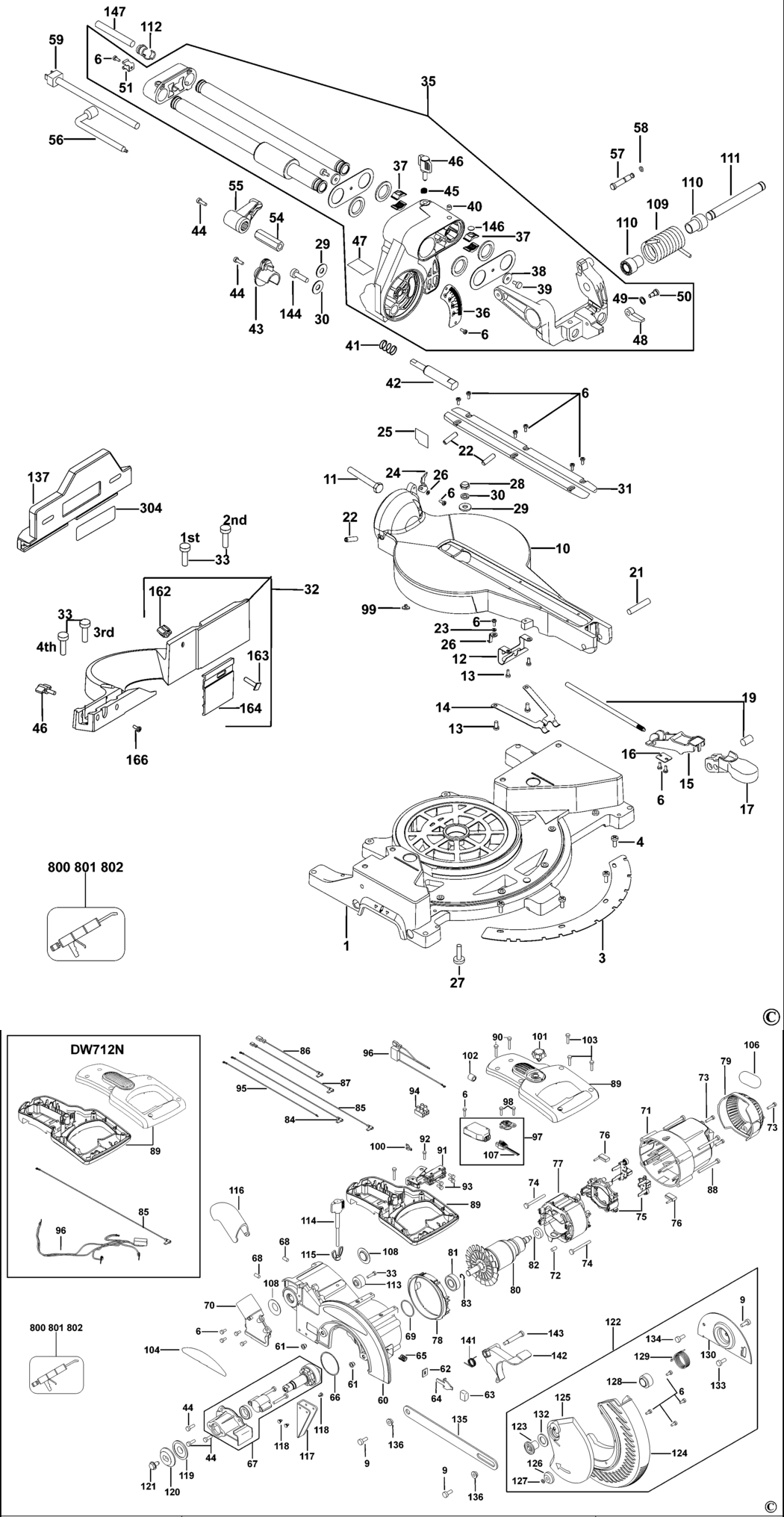

An exploded drawing and spare parts listing for the Dewalt DW712N Type 1 Mitre Saw

	Ex VAT	Inc VAT
1 - BASE SA BDE-869349-00.A9 869349-00	£119.32	£143.19
2 - FOOT BDE-153612-00.A26 153612-00	£1.66	£1.99
3 - DETENT BDE-397041-00.A14 397041-00	£44.14	£52.97
4 - SCREW BDE-604987-00.A13 604987-00	£1.66	£1.99
6 - SCREW BDE-330045-05.A17 330045-05	£1.66	£1.99
6 - SCREW BDE-330045-05.A18 330045-05	£1.66	£1.99
9 - SCREW.SPECIAL BDE-330045-23.A105 330045-23	£1.66	£1.99
10 - TABLE SA BDE-869350-00.A5 869350-00	£157.18	£188.61
11 - BOLT BDE-638875-00.A3 638875-00	£1.66	£1.99
12 - PLATE BDE-397062-00.A0 397062-00	£7.18	£8.62
13 - SCREW BDE-330045-55.A96 330045-55	£1.66	£1.99
14 - SPRING BDE-397070-00.A20 397070-00	£3.80	£4.56
15 - ACTUATOR BDE-397073-00.A0 397073-00	£3.30	£3.96
16 - CLAMP BDE-397075-00.A14 397075-00	£4.69	£5.63
17 - LEVER BDE-397065-00.A0 397065-00	£5.88	£7.06
19 - LOCK SA BDE-629395-00.A0 629395-00	£18.91	£22.69
21 - PIN BDE-397063-00.A14 397063-00	£1.66	£1.99
22 - SCREW BDE-153576-03.A10 153576-03	£1.66	£1.99
23 - POINTER BDE-397048-00.A14 397048-00	£1.66	£1.99
24 - POINTER BDE-397090-00.A8 397090-00	£1.66	£1.99
25 - LABEL BDE-605153-00.A5 605153-00	£1.66	£1.99
26 - WASHER BDE-249233-00.A61 249233-00	£1.66	£1.99
27 - SCREW BDE-860085-19.A70 860085-19	£1.66	£1.99
28 - NUT BDE-860092-05.A25 860092-05	£1.66	£1.99
29 - WASHER BDE-153781-00.A34 153781-00	£1.66	£1.99
30 - WASHER BDE-613270-00.A21 613270-00	£1.66	£1.99
31 - PLATE BDE-N714363.A0 N714363	£7.18	£8.62
32 - FENCE SA BDE-641363-00.A6 641363-00	£87.82	£105.39
33 - SCREW BDE-330045-33.A7 330045-33	£1.66	£1.99
35 - TRUNNION BDE-605699-00.A0 605699-00	£393.38	£472.06
36 - BEVEL SCALE BDE-397084-00.A5 397084-00	£4.69	£5.63
37 - GUIDE BDE-397118-00.A5 397118-00	£3.30	£3.96
38 - WASHER BDE-153586-00.A31 153586-00	£1.66	£1.99
39 - SCREW BDE-616001-00.A21 616001-00	£1.66	£1.99
40 - SCREW BDE-153576-04.A19 153576-04	£1.66	£1.99
41 - SPRING BDE-397088-00.A6 397088-00	£1.66	£1.99
42 - PIN BDE-397083-00.A4 397083-00	£9.41	£11.29
43 - KNOB BDE-397086-00.A4 397086-00	£1.82	£2.19
44 - SCREW BDE-330045-14.A12 330045-14	£1.66	£1.99
45 - SPRING BDE-606014-00.A13 606014-00	£1.66	£1.99
46 - KNOB BDE-147107-06.A14 147107-06	£3.80	£4.56
47 - LABEL BDE-N016463.A0 N016463	£1.66	£1.99
48 - PAWL BDE-153603-01.A1 153603-01	£1.82	£2.19
49 - WASHER BDE-153655-00.A30 153655-00	£1.66	£1.99
50 - SCREW BDE-153639-00.A7 153639-00	£1.66	£1.99
51 - HOLDER BDE-391358-01.A59 391358-01	£1.66	£1.99
54 - NUT BDE-397089-00.A5 397089-00	£10.85	£13.02
55 - HANDLE BDE-397080-00.A5 397080-00	£3.80	£4.56
56 - WRENCH SPECIAL BDE-608563-01.A8 608563-01	£7.18	£8.62
57 - LOCKING PIN BDE-387130-00.A31 387130-00	£4.69	£5.63
58 - SEAL BDE-34158-00.A12 34158-00	£1.66	£1.99
59 - CORDSET LX BDE-330061-22.A6 330061-22	£37.35	£44.82
59 - CORDSET GB BDE-330060-85.A14 330060-85	£19.90	£23.88
61 - INSERT BDE-148608-03.A4 148608-03	£2.26	£2.71
62 - FELT BDE-387732-00.A21 387732-00	£1.66	£1.99
63 - BUTTON BDE-145350-00.A39 145350-00	£1.66	£1.99
64 - SPINDLE LOCK BDE-397135-00.A10 397135-00	£3.30	£3.96
65 - SPRING BDE-941586-00.A30 941586-00	£1.66	£1.99
66 - O RING BDE-616979-00.A13 616979-00	£1.66	£1.99
67 - GEARCASE COVER SA BDE-397210-00.A9 397210-00	£115.77	£138.92
68 - SCREW BDE-150075-00.A45 150075-00	£1.66	£1.99
69 - RING BDE-696519-00.A8 696519-00	£1.66	£1.99
70 - DUST PORT BDE-603726-00.A6 603726-00	£2.71	£3.25
71 - FIELD CASE BDE-391317-04.A8 391317-04	£16.03	£19.24
72 - PLUG BDE-145312-00.A70 145312-00	£1.66	£1.99
73 - SCREW BDE-330019-13.A185 330019-13	£1.66	£1.99
74 - SCREW BDE-330019-19.A86 330019-19	£1.66	£1.99
75 - BRUSHPLATE GB BDE-389512-08.A7 389512-08	£30.08	£36.10
75 - BRUSHPLATE LX BDE-389512-08.A8 389512-08	£30.08	£36.10
76 - BRUSH & LEAD LX BDE-381028-07.A10 381028-07	£5.88	£7.06
76 - BRUSH & LEAD GB BDE-381028-07.A11 381028-07	£5.88	£7.06
77 - FIELD 115V LX BDE-869045-01.A9 869045-01	£47.08	£56.49
77 - FIELD 230V GB BDE-869045-00.A12 869045-00	£47.08	£56.49
78 - BAFFLE FAN BDE-391375-00.A24 391375-00	-
79 - END CAP BDE-391933-00.A45 391933-00	£4.69	£5.63
80 - ARMATURE 230V GB BDE-869071-00.A3 869071-00	£104.31	£125.17
80 - ARMATURE 115/120V LX BDE-869071-01.A4 869071-01	£108.20	£129.84
81 - BEARING BDE-330003-13.A45 330003-13	£3.80	£4.56
82 - BEARING BDE-330003-60.A30 330003-60	£2.78	£3.34
83 - CIRCLIP BDE-144803-00.A95 144803-00	£1.66	£1.99
84 - LEAD YELLOW BDE-145371-00.A9 145371-00	£3.30	£3.96
85 - LEAD RED BDE-660071-00.A13 660071-00	£1.66	£1.99
86 - LEAD BLACK BDE-398823-00.A4 398823-00	£4.69	£5.63
87 - LEAD WHITE BDE-398828-00.A5 398828-00	£3.80	£4.56
88 - SCREW BDE-98094-56.A18 98094-56	-
89 - HOUSING & COVER BDE-397177-00.A2 397177-00	£17.48	£20.97
90 - SCREW BDE-330045-08.A50 330045-08	£1.66	£1.99
91 - SWITCH BDE-N548978V.A0 N548978V	£19.90	£23.88
92 - SCREW BDE-330013-22.A1 330013-22	-
93 - SCREW BDE-384127-01.A80 384127-01	£1.66	£1.99
94 - TERMINAL BLOCK BDE-326057-00.A44 326057-00	£1.66	£1.99
95 - LEAD RED BDE-660071-00.A12 660071-00	£1.66	£1.99
96 - CAPACITOR BDE-N012819.A2 N012819	£9.41	£11.29
99 - PAD BDE-640146-00.A0 640146-00	£1.66	£1.99
102 - BUSH BDE-388414-01.A7 388414-01	£1.66	£1.99
103 - SCREW BDE-330019-13.A184 330019-13	£1.66	£1.99
104 - LABEL BDE-397134-00.A0 397134-00	£1.66	£1.99
106 - LABEL BDE-N625165.A11 N625165	£1.66	£1.99
108 - WASHER BDE-148296-00.A68 148296-00	£1.66	£1.99
109 - SPRING BDE-397130-00.A10 397130-00	£7.18	£8.62
110 - SPACER BDE-397129-00.A0 397129-00	£1.66	£1.99
111 - PIVOT SHAFT BDE-397128-00.A15 397128-00	£5.88	£7.06
112 - BUSHING BDE-605155-00.A14 605155-00	£1.66	£1.99
113 - BUSHING BDE-146753-00.A20 146753-00	£1.66	£1.99
114 - DEPTH STOP BDE-147107-05.A4 147107-05	£7.18	£8.62
115 - WING NUT BDE-613365-00.A10 613365-00	£1.66	£1.99
116 - DEFLECTOR BDE-148520-00.A6 148520-00	£1.66	£1.99
117 - CHUTE BDE-612788-00.A0 612788-00	£1.82	£2.19
118 - RIVET BDE-607491-00.A15 607491-00	£1.66	£1.99
119 - WASHER BDE-397138-00.A12 397138-00	£4.69	£5.63
120 - WASHER OUTER CLAMP BDE-397136-00.A0 397136-00	£5.88	£7.06
121 - BLADE BOLT BDE-869245-00.A69 869245-00	£3.54	£4.25
122 - GUARD KIT BDE-N164918.A12 N164918	£58.69	£70.43
123 - RETAINER BDE-399182-00.A12 399182-00	£3.80	£4.56
124 - GUARD LOWER BDE-N164683.A12 N164683	£18.91	£22.69
125 - GUARD COVER BDE-613460-00.A6 613460-00	£17.48	£20.97
126 - ROLLER BDE-146774-00.A45 146774-00	£1.82	£2.19
127 - LOCKING RING BDE-604728-00.A34 604728-00	£1.66	£1.99
128 - SLEEVE BDE-603440-00.A4 603440-00	£1.66	£1.99
129 - SPRING BDE-603439-00.A8 603439-00	£1.66	£1.99
130 - PLATE BDE-399181-00.A0 399181-00	£4.69	£5.63
132 - WASHER BDE-612923-00.A12 612923-00	£1.66	£1.99
133 - SCREW BDE-641470-00.A22 641470-00	£1.66	£1.99
134 - SCREW BDE-641470-00.A23 641470-00	£1.66	£1.99
135 - LINK BDE-397159-00.A6 397159-00	£3.80	£4.56
136 - SLEEVE BDE-146740-02.A10 146740-02	£1.66	£1.99
137 - FENCE BDE-640349-00.A6 640349-00	£24.39	£29.27
141 - SPRING TORSION BDE-398472-00.A3 398472-00	£2.26	£2.71
142 - LEVER LOCK BDE-397150-00.A6 397150-00	£2.78	£3.34
143 - BOLT BDE-152852-00.A15 152852-00	£1.82	£2.19
144 - SCREW BDE-612008-00.A25 612008-00	£1.66	£1.99
146 - THRUST PLATE BDE-613497-00.A18 613497-00	£1.66	£1.99
147 - BUSHING BDE-615851-00.A10 615851-00	£1.66	£1.99
162 - KNOB BDE-653947-00.A6 653947-00	£1.66	£1.99
163 - BOLT BDE-653948-00.A5 653948-00	£3.80	£4.56
164 - FENCE BDE-634736-00.A3 634736-00	£10.85	£13.02
166 - SCREW BDE-860094-02.A31 860094-02	£1.66	£1.99
304 - WARNING LABEL BDE-621135-00.A9 621135-00	£1.66	£1.99
801 - GREASE BDE-5140061-28.A42 5140061-28	£51.90	£62.28
802 - GREASE BDE-93488-00.A64 93488-00	£17.48	£20.97
