Dewalt DW710 Type 4 Mitre Saw Spare Parts

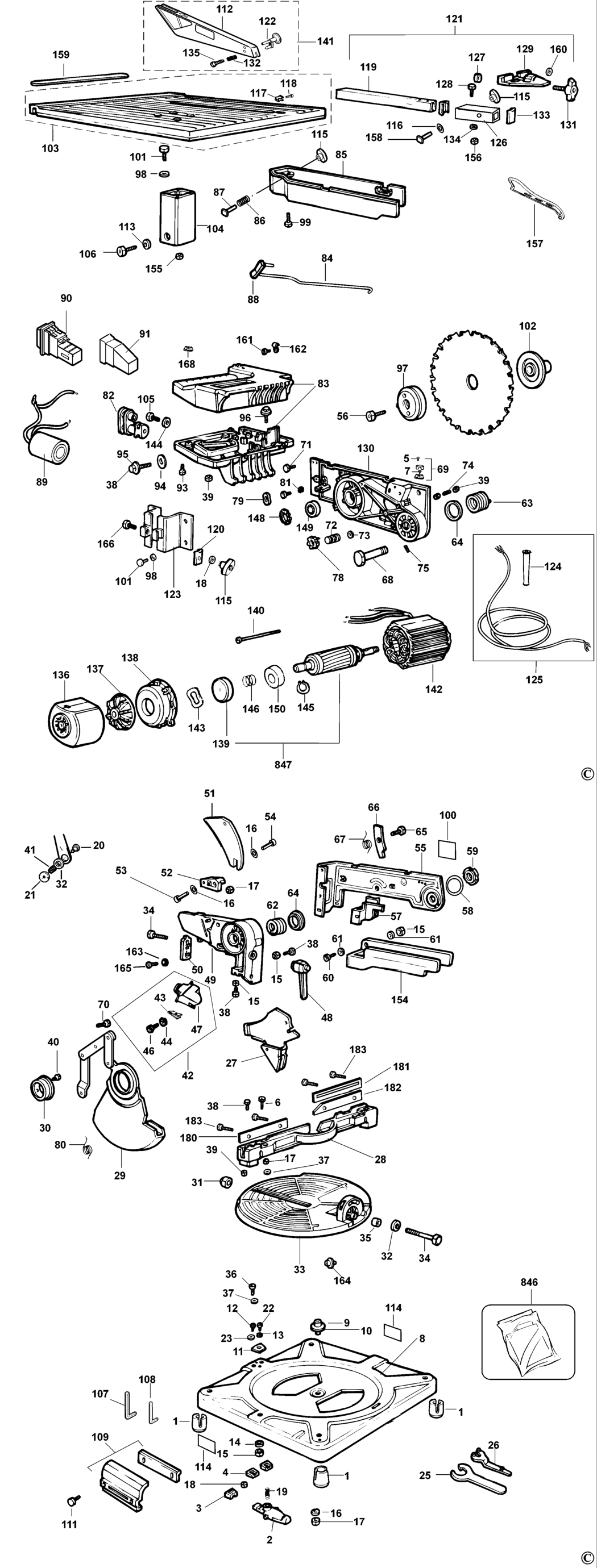

An exploded drawing and spare parts listing for the Dewalt DW710 Type 4 Mitre Saw

	Ex VAT	Inc VAT
1 - FOOT BDE-402804-00.A3 402804-00	£3.80	£4.56
2 - LEVER BDE-862002-00.A5 862002-00	-
3 - CAP BDE-760427-00.A34 760427-00	£1.78	£2.13
4 - BRACKET BDE-863612-00.A0 863612-00	£1.66	£1.99
5 - SCREW BDE-860094-03.A228 860094-03	£1.66	£1.99
6 - KNOB BDE-862428-00.A4 862428-00	£1.66	£1.99
7 - SCREW BDE-249412-22.A0 249412-22	£1.66	£1.99
8 - BASE BDE-863608-06 863608-06	£46.49	£55.79
8 - NO LONGER AVAILABLE BDE-000000-00.A63273 000000-00	-
9 - PIN BDE-863072-00.A3 863072-00	£1.78	£2.13
10 - SPACER BDE-863702-00.A6 863702-00	-
11 - POINTER BDE-863686-00.A5 863686-00	£1.66	£1.99
12 - SCREW BDE-860093-17.A1 860093-17	£1.66	£1.99
13 - WASHER SPRING BDE-860074-00.A6 860074-00	£1.66	£1.99
14 - WASHER BDE-860074-02.A30 860074-02	£1.66	£1.99
15 - KNOB BDE-942895-01.A4 942895-01	£3.30	£3.96
16 - WASHER BDE-860074-03.A425 860074-03	£1.66	£1.99
17 - NUT BDE-860092-05.A26 860092-05	£1.66	£1.99
18 - NUT BDE-860083-02.A17 860083-02	£1.66	£1.99
19 - SPRING BDE-123255-01.A1 123255-01	£1.66	£1.99
20 - LOCK SCREW BDE-863046-00.A0 863046-00	£2.32	£2.78
21 - CAP BDE-863047-00.A9 863047-00	£1.66	£1.99
22 - SCREW BDE-860084-03.A7 860084-03	£1.66	£1.99
23 - WASHER M8 BDE-860073-03.A585 860073-03	£1.66	£1.99
25 - SPANNER 10-13MM BDE-949751-07.A25 949751-07	£3.92	£4.70
26 - SPANNER BDE-939072-00.A3 939072-00	£9.69	£11.63
27 - GUARD BDE-861918-04.A7 861918-04	£11.18	£13.41
28 - FENCE BDE-862099-01.A4 862099-01	£113.93	£136.72
29 - GUARD SA BDE-864693-04.A6 864693-04	£35.02	£42.02
30 - HUB BDE-863039-02.A3 863039-02	£1.66	£1.99
31 - NUT BDE-860092-01.A42 860092-01	£1.66	£1.99
32 - BUSH BDE-863048-00.A0 863048-00	£1.66	£1.99
33 - TABLE ROTARY BDE-869232-00.A0 869232-00	£65.52	£78.62
34 - SCREW BDE-860086-10.A0 860086-10	£1.66	£1.99
35 - BUSH BDE-949748-01.A1 949748-01	£3.70	£4.44
36 - SCREW BDE-760219-00.A33 760219-00	£1.66	£1.99
37 - SPACER BDE-862447-00.A5 862447-00	£1.66	£1.99
38 - SCREW.TEMP BDE-860085-09.A19 860085-09	£1.66	£1.99
39 - NUT M6 BDE-860083-12.A148 860083-12	£1.66	£1.99
40 - SCREW BDE-330045-49.A58 330045-49	£1.66	£1.99
41 - SPRING BDE-949722-18.A0 949722-18	£1.66	£1.99
42 - DUST EXTRACTOR BDE-868478-00.A1 868478-00	£11.18	£13.41
43 - FASTENER BDE-865410-00.A24 865410-00	£1.66	£1.99
44 - WASHER BDE-939625-00.A30 939625-00	£3.92	£4.70
46 - SCREW BDE-860084-21.A26 860084-21	£1.66	£1.99
47 - DUST EXTRACTOR BDE-868478-00.A0 868478-00	£11.18	£13.41
48 - LEVER BDE-949884-01.A3 949884-01	£6.24	£7.49
49 - SUPPORT BDE-862182-00.A0 862182-00	-
50 - NO LONGER AVAILABLE BDE-000000-00.A63274 000000-00	-
51 - RIVING KNIFE BDE-861919-01.A3 861919-01	£12.53	£15.04
52 - SPACER BDE-862075-01.A8 862075-01	£7.40	£8.88
53 - SCREW BDE-860093-00.A57 860093-00	£1.66	£1.99
54 - SCREW BDE-949886-16.A14 949886-16	£1.66	£1.99
55 - FRAME BDE-861890-02.A3 861890-02	£17.03	£20.44
56 - BOLT BDE-949886-21.A9 949886-21	£1.88	£2.26
57 - SPACER BDE-861920-00.A3 861920-00	£1.88	£2.26
58 - SHIM BDE-949761-02.A12 949761-02	£1.66	£1.99
59 - LOCK NUT BDE-949759-01.A3 949759-01	£2.87	£3.44
60 - SCREW BDE-860085-07.A54 860085-07	£1.66	£1.99
61 - WASHER BDE-720959-00.A2 720959-00	£1.66	£1.99
62 - SPRING LH BDE-863606-00.A12 863606-00	£11.18	£13.41
63 - SPRING RH BDE-863590-00.A8 863590-00	£11.18	£13.41
64 - SHIM BDE-863611-00.A15 863611-00	£1.66	£1.99
65 - SCREW BDE-863602-00.A8 863602-00	£1.66	£1.99
66 - PLATE BDE-863610-00.A0 863610-00	£1.66	£1.99
67 - SPRING BDE-863604-00.A4 863604-00	£1.66	£1.99
68 - PIN BDE-863607-00.A3 863607-00	£15.01	£18.01
69 - CLAMP BDE-861692-00.A7 861692-00	£1.66	£1.99
70 - SCREW BDE-863262-00.A4 863262-00	£1.88	£2.26
71 - SCREW BDE-860094-02.A34 860094-02	£1.66	£1.99
72 - PIN BDE-863605-00.A1 863605-00	£1.88	£2.26
73 - O RING BDE-943030-00.A2 943030-00	£1.66	£1.99
74 - PIN BDE-860088-10.A30 860088-10	£1.66	£1.99
75 - SCREW BDE-949853-04.A2 949853-04	£1.66	£1.99
78 - KNOB BDE-946469-00.A7 946469-00	£1.66	£1.99
79 - GASKET BDE-863026-00.A16 863026-00	£1.66	£1.99
80 - SPRING BDE-863604-01.A5 863604-01	£1.66	£1.99
81 - WASHER SPRING BDE-944650-00.A7 944650-00	£1.66	£1.99
82 - INLET BDE-863573-00.A10 863573-00	£1.66	£1.99
83 - HANDLE & COVER BDE-862429-05.A8 862429-05	£16.52	£19.82
83 - HANDLE & COVER BDE-862429-04.A2 862429-04	-
84 - ROD BDE-863613-01.A6 863613-01	£7.40	£8.88
85 - GUARD UPPER BDE-402803-02.A0 402803-02	£7.40	£8.88
86 - SPRING BDE-868082-00.A23 868082-00	£1.66	£1.99
87 - LOCKING PIN BDE-861963-00.A3 861963-00	£1.88	£2.26
88 - CAP BDE-861953-00.A4 861953-00	£1.66	£1.99
89 - CAPACITOR BDE-949772-23.A5 949772-23	£15.01	£18.01
90 - SWITCH SA BDE-861930-00.A1 861930-00	-
91 - COVER BDE-861964-00.A3 861964-00	£7.85	£9.42
93 - SCREW BDE-860084-09.A18 860084-09	£1.66	£1.99
94 - GASKET BDE-863026-00.A17 863026-00	£1.66	£1.99
95 - WASHER BDE-860075-00.A218 860075-00	£1.66	£1.99
96 - SCREW BDE-860085-07.A53 860085-07	£1.66	£1.99
97 - OUTER FLANGE BDE-861056-00.A4 861056-00	£3.39	£4.07
98 - WASHER BDE-720959-00.A1 720959-00	£1.66	£1.99
99 - SCREW BDE-860094-03.A227 860094-03	£1.66	£1.99
100 - LABEL BDE-868693-01.A1 868693-01	£1.66	£1.99
101 - SCREW BDE-860084-22.A6 860084-22	£1.66	£1.99
102 - INNER FLANGE BDE-861057-01.A9 861057-01	£4.83	£5.80
103 - TABLE BDE-869232-01.A1 869232-01	£71.44	£85.73
104 - BRACKET BDE-402801-00.A2 402801-00	£4.83	£5.80
105 - SCREW BDE-930076-00.A69 930076-00	£1.66	£1.99
106 - SCREW BDE-949886-16.A13 949886-16	£1.66	£1.99
107 - WRENCH 6 MM BDE-860098-04.A21 860098-04	£1.66	£1.99
108 - HEX KEY 5 MM BDE-930574-00.A72 930574-00	£1.66	£1.99
109 - HANDLE SA BDE-863044-02.A7 863044-02	£3.22	£3.86
111 - SCREW BDE-330045-49.A57 330045-49	£1.66	£1.99
112 - GUARD UPPER BDE-N162669.A2 N162669	£18.00	£21.60
113 - WASHER BDE-949876-06.A9 949876-06	£1.66	£1.99
114 - LABEL BDE-625450-00.A9 625450-00	£1.66	£1.99
115 - KNOB BDE-861464-00.A12 861464-00	£1.88	£2.26
116 - WASHER BDE-860073-08.A12 860073-08	£1.66	£1.99
117 - HOLDER BDE-391358-01.A61 391358-01	£1.66	£1.99
118 - SCREW BDE-720688-02.A2 720688-02	£1.66	£1.99
119 - FENCE BDE-861978-00.A1 861978-00	£12.53	£15.04
120 - PLASTIC INSERT BDE-861748-00.A0 861748-00	£1.66	£1.99
121 - FENCE SA BDE-861982-00.A9 861982-00	£45.47	£54.56
122 - PIVOT BDE-N162670.A26 N162670	£3.92	£4.70
123 - NO LONGER AVAILABLE BDE-000000-00.A63275 000000-00	-
124 - CORD PROTECTOR BDE-868520-00.A41 868520-00	£1.88	£2.26
125 - CORDSET GB BDE-868313-11.A3 868313-11	£23.75	£28.50
126 - FENCE BDE-861422-02.A3 861422-02	£11.18	£13.41
127 - SPACER BDE-861453-00.A8 861453-00	£1.66	£1.99
128 - SCREW BDE-949886-11.A27 949886-11	£1.66	£1.99
129 - SUPPORT BDE-861421-01.A7 861421-01	£12.53	£15.04
130 - SUPPORT BRACKET BDE-862180-08.A7 862180-08	£42.48	£50.98
131 - KNOB BDE-861452-00.A5 861452-00	£2.87	£3.44
132 - SPRING BDE-941622-00.A18 941622-00	£1.66	£1.99
133 - END CAP BDE-861423-00.A10 861423-00	£3.39	£4.07
134 - WASHER BDE-860073-14.A80 860073-14	£1.66	£1.99
135 - SCREW BDE-860084-11.A49 860084-11	£1.66	£1.99
136 - COVER BDE-860445-00.A8 860445-00	£7.40	£8.88
137 - FAN BDE-945841-00.A45 945841-00	£2.87	£3.44
138 - HOUSING SA BDE-861345-00.A7 861345-00	£18.00	£21.60
139 - BRAKE BDE-861336-02.A11 861336-02	£9.69	£11.63
140 - TIE ROD BDE-863015-00.A18 863015-00	£1.66	£1.99
141 - GUARD SA BDE-N164678.A29 N164678	£39.97	£47.96
142 - STATOR SA 230V BDE-868412-04.A9 868412-04	£188.92	£226.70
143 - RING BDE-860080-02.A14 860080-02	£1.66	£1.99
144 - SHEATH BDE-863025-00.A3 863025-00	£1.66	£1.99
145 - CIRCLIP BDE-861349-00.A7 861349-00	£1.66	£1.99
146 - SPRING BDE-861338-00.A7 861338-00	£1.66	£1.99
148 - RING BDE-860806-00.A12 860806-00	£1.66	£1.99
149 - BEARING BDE-861721-12.A35 861721-12	£8.08	£9.70
150 - BEARING BDE-868768-07.A38 868768-07	£8.08	£9.70
154 - GUARD BDE-861917-01.A2 861917-01	£7.01	£8.41
155 - NUT BDE-941535-00.A13 941535-00	£1.66	£1.99
156 - NUT BDE-860083-13.A19 860083-13	£1.66	£1.99
157 - PUSHROD BDE-860610-01.A82 860610-01	£8.08	£9.70
158 - SCREW BDE-931997-00.A18 931997-00	£1.66	£1.99
159 - SCALE BDE-863576-01.A0 863576-01	-
161 - SCREW BDE-860094-02.A33 860094-02	£1.66	£1.99
162 - STRAP BDE-123106-00.A8 123106-00	£1.66	£1.99
163 - SPACER BDE-863599-02.A32 863599-02	£1.66	£1.99
164 - SPACER BDE-864049-00.A1 864049-00	£1.66	£1.99
165 - SCREW BDE-860093-07.A20 860093-07	£1.66	£1.99
166 - SCREW BDE-949702-17.A0 949702-17	-
168 - CONNECTOR BDE-861257-00.A8 861257-00	£1.66	£1.99
180 - FENCE RH BDE-869204-00.A3 869204-00	£7.01	£8.41
181 - FENCE LH BDE-869120-00.A0 869120-00	£18.91	£22.69
182 - FENCE LH BDE-869120-02.A0 869120-02	£11.87	£14.24
183 - SCREW BDE-869076-00.A11 869076-00	£1.66	£1.99
846 - PARTS PACK BDE-861446-00.A0 861446-00	£15.63	£18.76
847 - ROTOR SA BDE-868411-01.A12 868411-01	£76.38	£91.65
