Dewalt DW707E Type 1 Mitre Saw Spare Parts

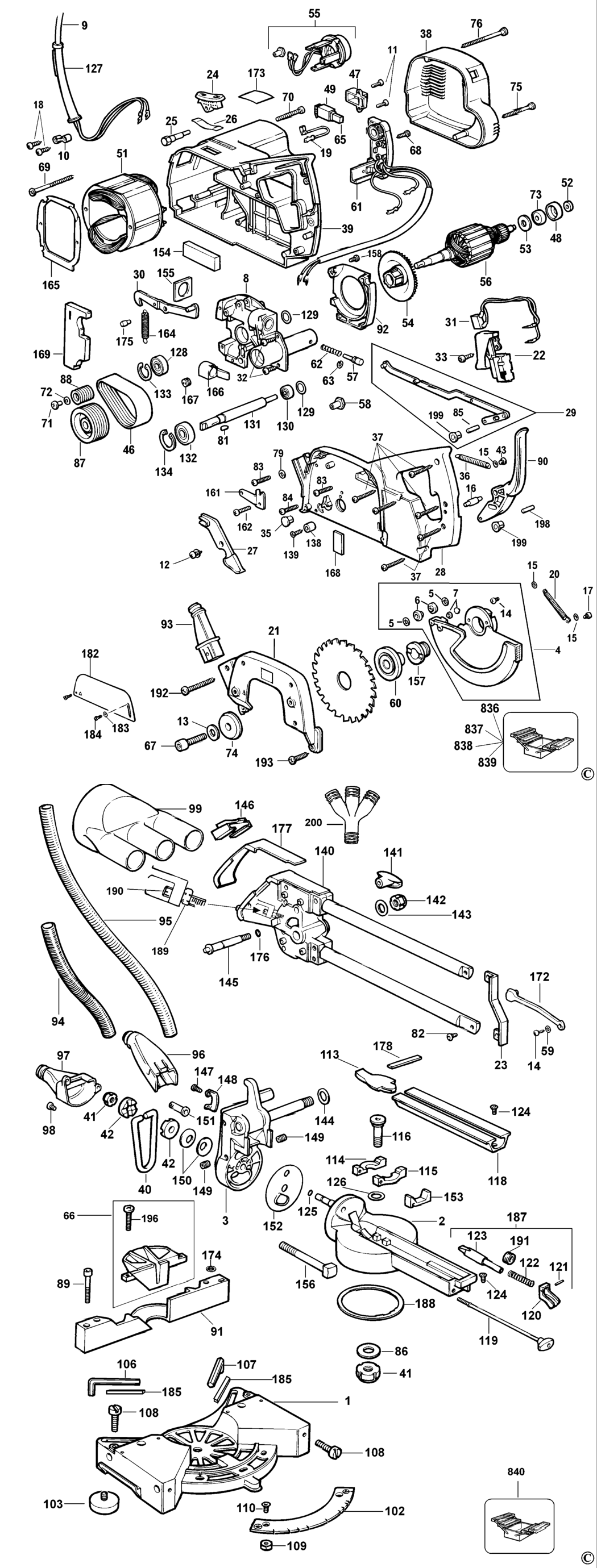

An exploded drawing and spare parts listing for the Dewalt DW707E Type 1 Mitre Saw

	Ex VAT	Inc VAT
1 - TABLE SA BDE-861848-00.A7 861848-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A14875 000000-00	-
3 - SEGMENT BDE-947000-00.A2 947000-00	-
4 - GUARD SA BDE-861361-01.A7 861361-01	-
5 - QUICKLOCK BDE-861366-00.A1 861366-00	£1.50	£1.80
6 - ROLLER BDE-861367-01.A16 861367-01	£1.66	£1.99
7 - INSERT BDE-760298-01.A30 760298-01	£1.66	£1.99
8 - CARRIAGE SA BDE-947645-00.A6 947645-00	£113.07	£135.68
9 - CABLE SA BDE-947108-09.A1 947108-09	£5.72	£6.87
10 - CLAMP BDE-720748-00.A9 720748-00	-
11 - SCREW BDE-860084-12.A1 860084-12	£1.50	£1.80
12 - SCREW.SPECIAL BDE-861363-00.A4 861363-00	£1.42	£1.70
13 - WASHER BDE-949876-19.A12 949876-19	£1.50	£1.80
14 - SCREW BDE-860084-20.A103 860084-20	£1.50	£1.80
15 - WASHER BDE-860073-00.A116 860073-00	£1.50	£1.80
16 - PIVOT BDE-760296-01.A18 760296-01	£1.50	£1.80
17 - SCREW BDE-860084-20.A102 860084-20	£1.50	£1.80
18 - SCREW BDE-860084-12.A2 860084-12	£1.50	£1.80
19 - LEAD BDE-942589-00.A7 942589-00	-
20 - SPRING BDE-868512-00.A9 868512-00	-
21 - GUARD BDE-943004-05.A2 943004-05	-
22 - SWITCH SA BDE-947486-00.A6 947486-00	£37.35	£44.82
23 - BRACKET BDE-947613-00.A13 947613-00	£2.78	£3.34
24 - LOCK BUTTON BDE-946871-00.A4 946871-00	-
25 - ECCENTRIC BDE-947016-00.A4 947016-00	£10.57	£12.68
26 - LEAF SPRING BDE-946876-00.A4 946876-00	-
27 - LEVER BDE-946880-00.A7 946880-00	£3.80	£4.56
28 - HANDLE & COVER BDE-946999-02.A1 946999-02	£24.39	£29.27
29 - KIT SA BDE-861765-00.A5 861765-00	£16.03	£19.24
30 - LEVER BDE-947010-01.A7 947010-01	-
31 - CAPACITOR BDE-947025-00.A18 947025-00	-
32 - SCREW BDE-860084-12.A3 860084-12	£1.50	£1.80
33 - SCREW BDE-860084-20.A100 860084-20	£1.50	£1.80
35 - PLUG BDE-947067-00.A24 947067-00	£1.50	£1.80
36 - SPRING BDE-947019-00.A6 947019-00	£1.82	£2.19
37 - SCREW BDE-949896-10.A31 949896-10	£1.50	£1.80
38 - END CAP BDE-946877-01.A2 946877-01	-
39 - FIELDCASE BDE-946997-02.A2 946997-02	-
40 - LOCK HANDLE BDE-947063-00.A5 947063-00	-
41 - LOCK-NUT BDE-943016-01.A7 943016-01	£3.70	£4.44
42 - WASHER BDE-947062-00.A6 947062-00	-
43 - SCREW BDE-860084-20.A101 860084-20	£1.50	£1.80
46 - BELT BDE-760215-00.A13 760215-00	£14.57	£17.48
47 - CLAMP BDE-942569-00.A6 942569-00	-
48 - SLEEVE BDE-934409-00.A9 934409-00	-
49 - BRUSHBOX SA BDE-761202-00.A47 761202-00	£3.30	£3.96
51 - FIELD BDE-868405-01.A8 868405-01	-
52 - PICK UP BDE-945893-00.A12 945893-00	-
53 - SPACER BDE-944975-00.A9 944975-00	-
54 - FAN BDE-946857-01.A5 946857-01	£5.72	£6.87
55 - BRAKE SA 230V BDE-401204-00.A0 401204-00	-
56 - ARMATURE 230V BDE-861379-09.A2 861379-09	£94.12	£112.94
57 - LOCK BUTTON BDE-947011-01.A2 947011-01	-
58 - PLASTIC ADAPTOR BDE-401167-00.A2 401167-00	-
59 - WASHER BDE-939625-00.A20 939625-00	£3.80	£4.56
60 - INNER FLANGE BDE-947022-00.A5 947022-00	-
61 - NO LONGER AVAILABLE BDE-000000-00.A14876 000000-00	-
62 - SPRING BDE-947070-00.A9 947070-00	£1.50	£1.80
63 - CIRCLIP BDE-949728-01.A0 949728-01	£1.50	£1.80
65 - BRUSH CUT OFF BDE-949736-01.A5 949736-01	£10.85	£13.02
66 - INSERT BDE-401363-00.A2 401363-00	£14.57	£17.48
66 - INSERT SA BDE-401457-00.A22 401457-00	£17.48	£20.97
67 - SCREW BDE-949886-27.A7 949886-27	-
68 - SCREW BDE-860084-13.A42 860084-13	-
69 - SCREW BDE-760251-00.A15 760251-00	£1.42	£1.70
70 - SCREW BDE-949894-02.A12 949894-02	£1.50	£1.80
71 - SCREW BDE-949886-26.A11 949886-26	£1.82	£2.19
72 - WASHER BDE-760261-00.A28 760261-00	£1.42	£1.70
73 - BEARING BDE-577745-00.A285 577745-00	£7.85	£9.42
74 - OUTER FLANGE BDE-942959-03.A6 942959-03	£10.85	£13.02
75 - SCREW BDE-931298-02.A5 931298-02	-
76 - SCREW BDE-930082-01.A66 930082-01	£1.50	£1.80
79 - WASHER BDE-860073-00.A115 860073-00	£1.50	£1.80
81 - KEY BDE-940441-00.A22 940441-00	£1.50	£1.80
82 - SCREW BDE-949609-01.A5 949609-01	£1.42	£1.70
83 - SCREW BDE-949894-04.A7 949894-04	£1.50	£1.80
84 - SCREW BDE-330045-05.A260 330045-05	£1.50	£1.80
85 - PIN BDE-949739-01.A4 949739-01	£1.50	£1.80
86 - WASHER BDE-860073-05.A46 860073-05	£1.50	£1.80
87 - PULLEY BDE-861356-00.A8 861356-00	£18.91	£22.69
88 - PULLEY BDE-401166-00.A4 401166-00	£7.85	£9.42
89 - SCREW BDE-330045-26.A19 330045-26	£1.82	£2.19
90 - LEVER BDE-946869-02.A5 946869-02	£7.85	£9.42
91 - FENCE BDE-946853-03.A7 946853-03	£24.39	£29.27
92 - BAFFLE BDE-946863-00.A5 946863-00	-
93 - ADAPTOR BDE-760311-00.A9 760311-00	£2.41	£2.89
94 - HOSE BDE-947113-00.A13 947113-00	£7.18	£8.62
95 - HOSE BDE-947113-01.A2 947113-01	£10.85	£13.02
96 - ADAPTOR BDE-760312-00.A13 760312-00	£2.49	£2.99
97 - ADAPTOR BDE-947620-00.A10 947620-00	£3.80	£4.56
98 - SCREW BDE-860094-03.A190 860094-03	£1.50	£1.80
102 - SCALE BDE-946861-01.A7 946861-01	-
103 - FOOT SA BDE-861809-00.A14 861809-00	£7.85	£9.42
106 - WRENCH 6 MM BDE-860098-04.A95 860098-04	£1.50	£1.80
107 - WRENCH 4 MM BDE-949882-01.A64 949882-01	£1.50	£1.80
108 - SCREW BDE-N409486.A19 N409486	£1.50	£1.80
109 - NUT BDE-860092-00.A150 860092-00	£1.50	£1.80
110 - SCREW BDE-949889-07.A9 949889-07	-
113 - SEAL BDE-947020-00.A1 947020-00	-
114 - CLAMP BDE-946858-01.A8 946858-01	-
115 - CLAMP BDE-946858-00.A4 946858-00	£10.57	£12.68
116 - BOLT BDE-946848-00.A4 946848-00	£7.64	£9.17
118 - INSERT BDE-946856-00.A2 946856-00	£24.39	£29.27
119 - HANDLE SCREW SA BDE-947015-01.A2 947015-01	£18.91	£22.69
120 - LEVER BDE-946864-00.A3 946864-00	£5.88	£7.06
121 - PIN BDE-949734-01.A3 949734-01	-
122 - SPRING BDE-946866-00.A6 946866-00	£1.50	£1.80
123 - LATCH BDE-401176-00.A3 401176-00	-
124 - SCREW BDE-949894-06.A68 949894-06	£1.50	£1.80
125 - O RING BDE-935857-00.A12 935857-00	£1.50	£1.80
126 - WASHER BDE-949705-01.A17 949705-01	£1.50	£1.80
127 - PROTECTOR BDE-720703-00.A46 720703-00	£1.50	£1.80
128 - BEARING BDE-861721-13.A1 861721-13	£7.85	£9.42
129 - WASHER BDE-930117-00.A0 930117-00	-
130 - BEARING 608 BDE-N110358.A18 N110358	£3.32	£3.99
131 - SPINDLE BDE-947012-01.A9 947012-01	£25.70	£30.84
132 - BEARING BDE-861721-10.A0 861721-10	£7.85	£9.42
133 - CIRCLIP BDE-949729-02.A11 949729-02	£1.50	£1.80
134 - CIRCLIP BDE-949729-03.A17 949729-03	£1.50	£1.80
138 - BUMPER BDE-761306-00.A2 761306-00	£1.50	£1.80
139 - SCREW BDE-761307-00.A20 761307-00	-
140 - FSO SUPPORT SA BDE-401172-01.A3 401172-01	£187.30	£224.76
141 - KNOB BDE-941756-00.A199 941756-00	£1.50	£1.80
142 - LOCK NUT BDE-943016-00.A8 943016-00	£1.50	£1.80
143 - WASHER BDE-860226-02.A21 860226-02	£1.50	£1.80
144 - WASHER BDE-947290-01.A1 947290-01	£1.42	£1.70
145 - PIN BDE-947616-00.A5 947616-00	-
146 - CABLE CLAMP BDE-947021-00.A7 947021-00	£7.18	£8.62
147 - SCREW BDE-949894-12.A12 949894-12	£1.50	£1.80
148 - SCALE BDE-946862-01.A8 946862-01	£10.85	£13.02
149 - SCREW BDE-949743-02.A12 949743-02	£1.66	£1.99
150 - WASHER BDE-949613-01.A2 949613-01	£1.42	£1.70
151 - CHANGE LEVER SA BDE-947619-00.A3 947619-00	£5.72	£6.87
152 - PLATE BDE-947614-00.A18 947614-00	£2.08	£2.50
153 - SEAL BDE-947641-00.A4 947641-00	£1.42	£1.70
154 - BAFFLE BDE-947653-00.A4 947653-00	-
155 - SEAL BDE-947638-00.A9 947638-00	£1.50	£1.80
156 - BOLT BDE-946859-00.A4 946859-00	£10.57	£12.68
157 - FLANGE BDE-947017-00.A7 947017-00	-
158 - SCREW BDE-860094-03.A187 860094-03	£1.50	£1.80
161 - LOCKING DEVICE BDE-947617-01.A6 947617-01	-
162 - SCREW BDE-860084-12.A0 860084-12	£1.50	£1.80
164 - SPRING BDE-947642-00.A5 947642-00	£1.50	£1.80
165 - BAFFLE BDE-947573-00.A5 947573-00	-
166 - INSERT BDE-947018-00.A4 947018-00	£1.50	£1.80
167 - ADJUSTER BDE-946874-00.A11 946874-00	£1.66	£1.99
168 - SEAL BDE-947610-00.A5 947610-00	£1.42	£1.70
169 - SEAL BDE-401174-00.A7 401174-00	-
172 - SPRING BDE-947650-00.A6 947650-00	£10.85	£13.02
173 - WARNING LABEL BDE-947752-07 947752-07	£1.42	£1.70
175 - PIN BDE-760279-00.A9 760279-00	-
176 - O RING BDE-943030-00.A19 943030-00	£1.50	£1.80
177 - COVER BDE-868689-00.A9 868689-00	-
178 - SEAL BDE-947640-00.A5 947640-00	-
185 - MAGNET BDE-947068-02.A1 947068-02	-
187 - LEVER SA BDE-401177-02.A1 401177-02	-
188 - WASHER SPECIAL BDE-947868-01.A8 947868-01	£3.70	£4.44
189 - NUT BDE-860083-14.A23 860083-14	£1.50	£1.80
190 - SCREW BDE-760242-00.A1 760242-00	£1.50	£1.80
191 - BUSH BDE-401178-00.A8 401178-00	£10.57	£12.68
192 - SCREW BDE-949896-11.A8 949896-11	£1.50	£1.80
193 - SCREW BDE-949896-12.A135 949896-12	£1.50	£1.80
196 - SCREW BDE-860090-05.A0 860090-05	£1.50	£1.80
198 - PIN BDE-949739-01.A5 949739-01	£1.50	£1.80
199 - BUSH BDE-861736-00.A2 861736-00	£1.82	£2.19
200 - CONNECTOR BDE-946518-00.A2 946518-00	£9.41	£11.29
836 - SPANNER TOOL BDE-279663-99.A10 279663-99	£72.28	£86.73
837 - SOCKET BDE-559506-99.A5 559506-99	£47.08	£56.49
838 - SOCKET BDE-559570-99.A18 559570-99	£47.08	£56.49
839 - BOLT BDE-559572-99.A5 559572-99	£10.85	£13.02
840 - S.T.SQUARE BDE-559606-99.A6 559606-99	£74.15	£88.98
