Dewalt DW704 Type 3 Mitre Saw Spare Parts

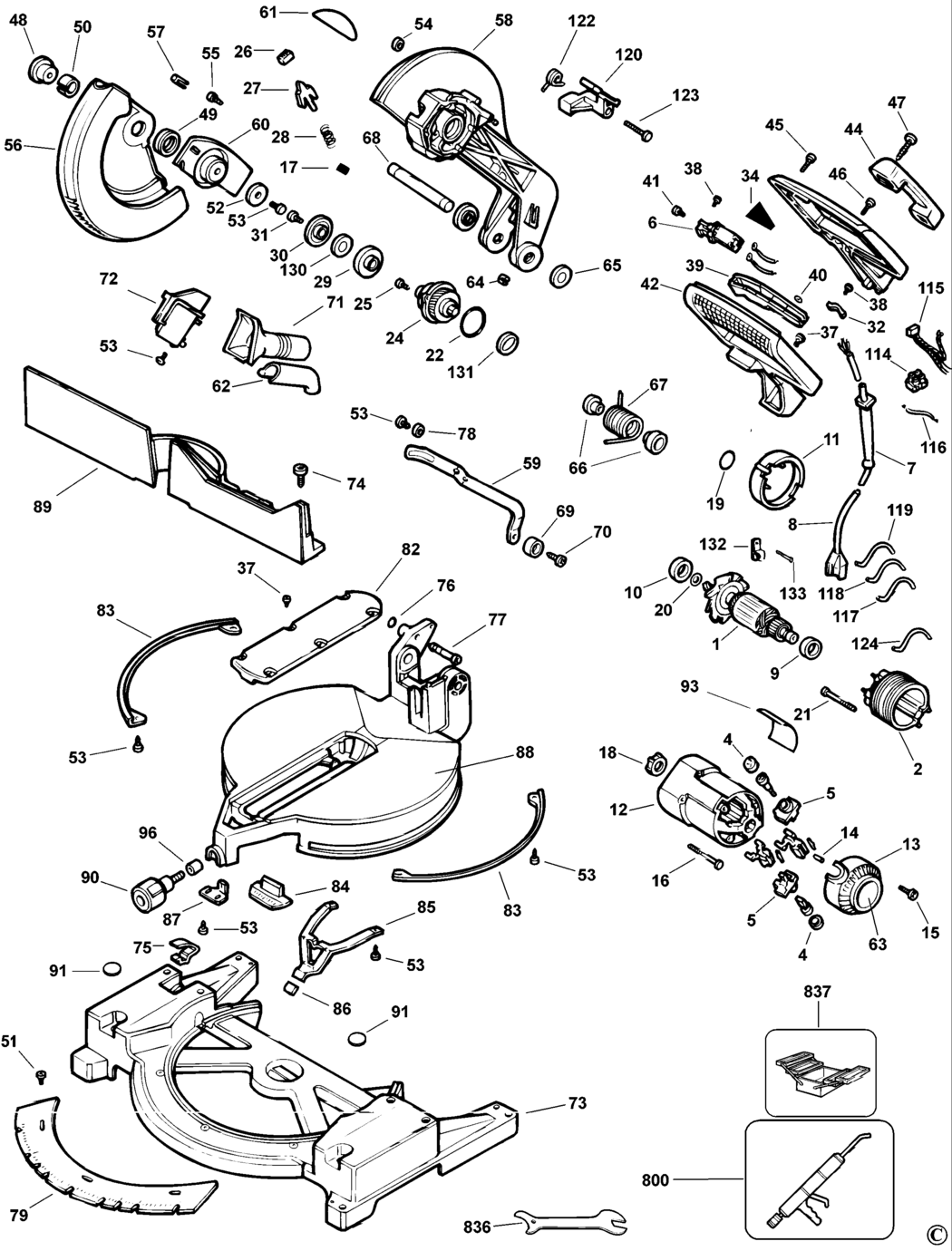

An exploded drawing and spare parts listing for the Dewalt DW704 Type 3 Mitre Saw

	Ex VAT	Inc VAT
1 - ARMATURE KIT GB BDE-5140021-94.A9 5140021-94	-
1 - NO LONGER AVAILABLE LX BDE-000000-00.A47896 000000-00	-
2 - FIELD 115V LX BDE-N078040SV.A2 N078040SV	-
2 - FIELD 230V GB BDE-N113577.A11 N113577	-
4 - BRUSH CAP BDE-448084-01.A77 448084-01	-
5 - BRUSH HOLDER SA GB BDE-147097-09.A11 147097-09	£16.52	£19.82
5 - BRUSH HOLDER SA LX BDE-147097-09.A12 147097-09	£16.52	£19.82
6 - NO LONGER AVAILABLE GB BDE-000000-00.A47897 000000-00	-
6 - NO LONGER AVAILABLE LX BDE-000000-00.A47898 000000-00	-
7 - CORD PROTECTOR BDE-445338-00.A17 445338-00	£1.66	£1.99
8 - NO LONGER AVAILABLE GB BDE-000000-00.A47899 000000-00	-
8 - CORDSET LX BDE-330061-20.A31 330061-20	£50.60	£60.72
9 - BEARING BDE-605040-20.A61 605040-20	£4.83	£5.80
10 - BEARING BDE-868768-07.A4 868768-07	£8.08	£9.70
11 - BAFFLE BDE-146723-01.A16 146723-01	-
12 - NO LONGER AVAILABLE LX BDE-000000-00.A47900 000000-00	-
12 - ARMATURE KIT GB BDE-5140021-94.A10 5140021-94	-
13 - END CAP BDE-387678-00.A5 387678-00	£24.39	£29.27
14 - PLUG BDE-87205-00.A12 87205-00	£1.66	£1.99
15 - SCREW BDE-330019-20.A31 330019-20	£1.66	£1.99
16 - SCREW BDE-98094-55.A14 98094-55	£1.66	£1.99
17 - FELT BDE-387732-00.A17 387732-00	£1.66	£1.99
18 - SLEEVE BDE-137382-01.A1 137382-01	£1.66	£1.99
19 - SEAL BDE-701297-00.A41 701297-00	£1.66	£1.99
20 - CIRCLIP BDE-144803-00.A80 144803-00	£1.66	£1.99
21 - SCREW BDE-330019-19.A101 330019-19	£1.66	£1.99
22 - NO LONGER AVAILABLE BDE-000000-00.A47901 000000-00	-
24 - GEAR & SPINDLE SA BDE-386824-03SV.A1 386824-03SV	-
25 - SCREW BDE-330045-14.A2 330045-14	£1.66	£1.99
26 - BUTTON BDE-145350-00.A43 145350-00	£1.66	£1.99
27 - LOCK BDE-146714-00.A14 146714-00	£1.66	£1.99
28 - SPRING BDE-58698-00.A8 58698-00	£1.66	£1.99
29 - NO LONGER AVAILABLE BDE-000000-00.A47902 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A47903 000000-00	-
31 - BLADE BOLT BDE-869245-00.A26 869245-00	£3.54	£4.25
32 - CORD CLAMP BDE-003618-00.A32 003618-00	£1.66	£1.99
34 - CONNECTOR BDE-32114-01.A9 32114-01	-
37 - SCREW BDE-330045-05.A6 330045-05	£1.66	£1.99
38 - SCREW BDE-330019-03.A102 330019-03	£1.66	£1.99
39 - NO LONGER AVAILABLE BDE-000000-00.A47904 000000-00	-
40 - RING BDE-701901-00.A4 701901-00	£1.66	£1.99
41 - SCREW BDE-384127-01.A85 384127-01	£1.66	£1.99
42 - CLAMSHELL PAIR BDE-380452-00.A2 380452-00	£30.98	£37.18
44 - NO LONGER AVAILABLE BDE-000000-00.A47905 000000-00	-
45 - SCREW BDE-330019-14.A132 330019-14	£1.66	£1.99
46 - SCREW BDE-330045-08.A63 330045-08	£1.66	£1.99
47 - SCREW BDE-330019-22.A47 330019-22	£1.66	£1.99
48 - RETAINING PLATE BDE-146750-03.A27 146750-03	£2.87	£3.44
49 - SPRING BDE-661454-00.A32 661454-00	£1.66	£1.99
50 - SLEEVE BDE-148295-00.A2 148295-00	£1.66	£1.99
52 - WASHER BDE-148612-00.A0 148612-00	-
53 - SCREW BDE-151891-00.A13 151891-00	£1.66	£1.99
54 - INSERT BDE-148608-00.A13 148608-00	£1.66	£1.99
55 - SCREW BDE-394589-01.A37 394589-01	£1.66	£1.99
56 - NO LONGER AVAILABLE BDE-000000-00.A47906 000000-00	-
57 - BUMPER BDE-146768-00.A29 146768-00	£1.66	£1.99
58 - NO LONGER AVAILABLE BDE-000000-00.A47907 000000-00	-
59 - LINK BDE-146752-02.A10 146752-02	-
60 - PLATE BDE-429986-01.A5 429986-01	-
61 - IDENTITY LABEL BDE-149365-01.A8 149365-01	£5.72	£6.87
62 - DEFLECTOR BDE-148520-00.A11 148520-00	£1.66	£1.99
63 - NAMEPLATE BDE-149521-01.A4 149521-01	£1.66	£1.99
64 - SCREW BDE-150075-00.A23 150075-00	£1.66	£1.99
65 - WASHER BDE-148296-00.A89 148296-00	£1.66	£1.99
66 - SPACER BDE-146732-00.A26 146732-00	£1.66	£1.99
67 - SPRING BDE-N039404.A31 N039404	£18.00	£21.60
68 - SHAFT BDE-146751-00.A9 146751-00	£3.39	£4.07
69 - BUSHING BDE-146753-00.A12 146753-00	£1.66	£1.99
70 - SCREW BDE-330045-32.A55 330045-32	£1.66	£1.99
71 - DUCT BDE-146717-00.A6 146717-00	-
72 - GUARD REAR BDE-146772-03.A6 146772-03	£3.70	£4.44
73 - NO LONGER AVAILABLE BDE-000000-00.A47908 000000-00	-
74 - SCREW BDE-330045-33.A10 330045-33	£1.66	£1.99
75 - SPRING BDE-146758-00.A10 146758-00	£1.66	£1.99
76 - SEAL BDE-34158-00.A23 34158-00	£1.66	£1.99
77 - LOCKING PIN BDE-387130-00.A43 387130-00	£4.83	£5.80
78 - BUSH BDE-146740-01.A29 146740-01	£3.92	£4.70
79 - NO LONGER AVAILABLE BDE-000000-00.A47909 000000-00	-
82 - PLATE BDE-146726-02.A16 146726-02	£8.08	£9.70
83 - PLATE BDE-146773-01.A5 146773-01	-
84 - NO LONGER AVAILABLE BDE-000000-00.A47910 000000-00	-
85 - SPRING BDE-146745-00.A16 146745-00	-
86 - COVER BDE-148611-00.A27 148611-00	£1.66	£1.99
87 - CLAMP BDE-148297-00.A2 148297-00	£1.78	£2.13
88 - NO LONGER AVAILABLE BDE-000000-00.A47911 000000-00	-
89 - NO LONGER AVAILABLE BDE-000000-00.A47912 000000-00	-
90 - KNOB BDE-145439-09.A1 145439-09	-
91 - LABEL BDE-394976-00.A22 394976-00	£1.88	£2.26
93 - NO LONGER AVAILABLE LX BDE-000000-00.A47913 000000-00	-
93 - NO LONGER AVAILABLE GB BDE-000000-00.A47914 000000-00	-
96 - NO LONGER AVAILABLE BDE-000000-00.A47915 000000-00	-
114 - TERMINAL BLOCK BDE-320078-00.A7 320078-00	£2.32	£2.78
115 - CAPACITOR GB BDE-148679-02.A4 148679-02	-
115 - NO LONGER AVAILABLE LX BDE-000000-00.A47916 000000-00	-
116 - NO LONGER AVAILABLE BDE-000000-00.A47917 000000-00	-
117 - NO LONGER AVAILABLE LX BDE-000000-00.A47918 000000-00	-
118 - NO LONGER AVAILABLE BDE-000000-00.A47919 000000-00	-
119 - NO LONGER AVAILABLE LX BDE-000000-00.A47920 000000-00	-
120 - NO LONGER AVAILABLE BDE-000000-00.A47921 000000-00	-
122 - SPRING BDE-386196-00.A55 386196-00	£1.66	£1.99
123 - BOLT BDE-152852-00.A1 152852-00	£1.88	£2.26
124 - NO LONGER AVAILABLE GB BDE-000000-00.A47922 000000-00	-
130 - BLADE HOLDER BDE-152636-00.A2 152636-00	£6.06	£7.27
131 - BEARING BDE-386780-00.A18 386780-00	£2.32	£2.78
132 - CORD CLAMP BDE-153669-00.A2 153669-00	£1.66	£1.99
133 - SCREW BDE-330045-13.A82 330045-13	£1.66	£1.99
800 - GREASE BDE-93488-00.A57 93488-00	£18.00	£21.60
836 - WRENCH BDE-145378-01.A10 145378-01	£1.66	£1.99
837 - S.T.SQUARE BDE-559626-99.A24 559626-99	£252.46	£302.95
