Dewalt DW620 Type 1 Router Spare Parts

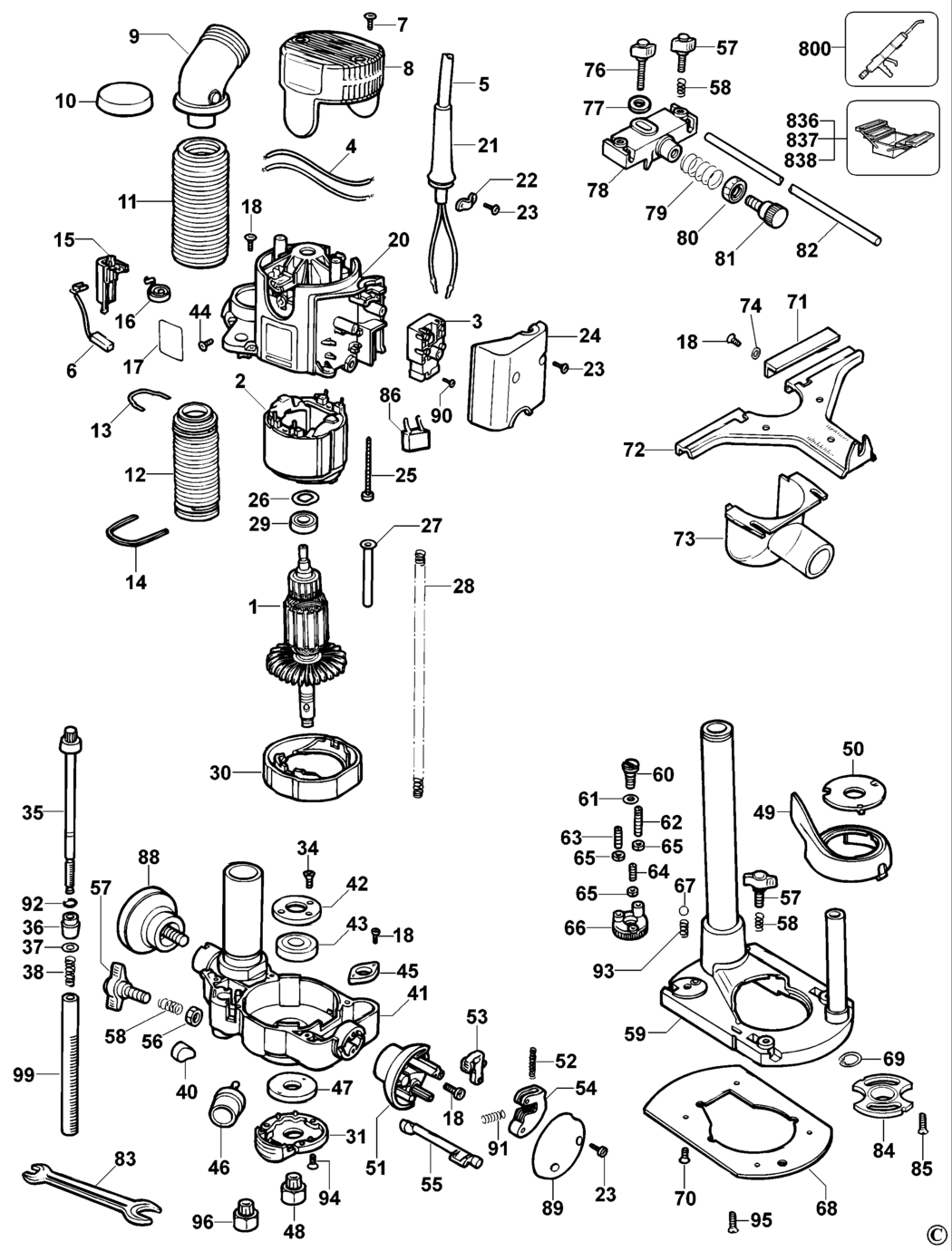

An exploded drawing and spare parts listing for the Dewalt DW620 Type 1 Router

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE LX BDE-000000-00.A118223 000000-00	-
1 - ARMATURE 230V GB BDE-328255-00.A2 328255-00	-
2 - NO LONGER AVAILABLE GB BDE-000000-00.A118225 000000-00	-
2 - NO LONGER AVAILABLE LX BDE-000000-00.A118226 000000-00	-
3 - SWITCH BDE-323132-00.A12 323132-00	£15.01	£18.01
4 - NO LONGER AVAILABLE BDE-000000-00.A118224 000000-00	-
5 - CORDSET (M/PLUG) GB BDE-330060-44.A6 330060-44	£14.57	£17.48
5 - CORDSET (M/PLUG) LX BDE-330061-04.A67 330061-04	£12.53	£15.04
6 - BRUSH 230V GB BDE-580017-00.A7 580017-00	£6.06	£7.27
6 - BRUSH 115V LX BDE-580017-01.A8 580017-01	£6.06	£7.27
7 - SCREW BDE-330065-09.A15 330065-09	£1.66	£1.99
8 - NO LONGER AVAILABLE BDE-000000-00.A118227 000000-00	-
9 - VACUUM ADAPTOR BDE-N434647.A12 N434647	£7.40	£8.88
10 - CAP BDE-326287-00.A12 326287-00	£1.66	£1.99
11 - BELLOWS BDE-326268-00.A10 326268-00	£16.52	£19.82
12 - SPRING SA BDE-326283-00.A10 326283-00	£15.01	£18.01
13 - CLIP BDE-326279-00.A7 326279-00	£1.66	£1.99
14 - CLIP BDE-326607-00.A9 326607-00	£3.92	£4.70
15 - HOLDER BDE-326933-01.A49 326933-01	£3.30	£3.96
16 - BRUSH SPRING GB BDE-326667-00.A1 326667-00	£1.66	£1.99
16 - BRUSH SPRING LX BDE-326667-01.A10 326667-01	£1.66	£1.99
17 - BRAND LABEL BDE-861315-00.A7 861315-00	£1.66	£1.99
18 - SCREW BDE-324006-00.A88 324006-00	£1.66	£1.99
20 - HOUSING MOTOR GB BDE-328252-02.A6 328252-02	£38.48	£46.17
20 - HOUSING MOTOR LX BDE-328252-01.A1 328252-01	£26.47	£31.76
21 - CORD PROTECTOR BDE-320785.A1117 320785	£1.66	£1.99
22 - CORD CLAMP BDE-821070.A127 821070	£1.66	£1.99
23 - SCREW BDE-330065-06.A312 330065-06	£1.66	£1.99
24 - SWITCH COVER BDE-326258-01.A1 326258-01	£2.32	£2.78
25 - SCREW BDE-330065-10.A53 330065-10	£1.66	£1.99
26 - WASHER SPRING BDE-326845-00.A1 326845-00	£1.66	£1.99
27 - GUIDE BDE-329016-00.A7 329016-00	£1.66	£1.99
28 - SPRING BDE-323395-13.A0 323395-13	£1.66	£1.99
29 - BEARING BDE-605040-63.A68 605040-63	£3.39	£4.07
30 - BAFFLE FAN BDE-326604-00.A8 326604-00	£3.92	£4.70
31 - SPINDLE LOCK GB BDE-326616-04.A17 326616-04	£15.01	£18.01
31 - SPINDLE LOCK LX BDE-326616-04.A18 326616-04	£15.01	£18.01
34 - SCREW.TEMP BDE-945121-00.A52 945121-00	£1.66	£1.99
35 - ADJUSTER BDE-326600-00.A11 326600-00	£4.83	£5.80
36 - SCALE BDE-326265-00.A10 326265-00	£3.39	£4.07
37 - WASHER BDE-321118.A14 321118	£1.66	£1.99
38 - SPRING BDE-323395-14.A15 323395-14	£1.66	£1.99
40 - INSERT BDE-326602-00.A7 326602-00	£1.88	£2.26
41 - HOUSING LOWER BDE-328254-00.A15 328254-00	£80.98	£97.18
42 - CLAMP BDE-326285-00.A9 326285-00	£1.66	£1.99
43 - BEARING LX BDE-570936-00.A17 570936-00	£11.18	£13.41
43 - BEARING GB BDE-570936-00.A18 570936-00	£11.18	£13.41
44 - SCREW BDE-330065-04.A44 330065-04	£1.66	£1.99
45 - GUIDE BDE-326606-00.A7 326606-00	£1.66	£1.99
46 - PINION BDE-326294-02.A3 326294-02	£7.40	£8.88
47 - LOCKING RING BDE-326673-00.A2 326673-00	£3.39	£4.07
48 - COLLET & NUT SA LX BDE-326286-01.A46 326286-01	£25.12	£30.15
48 - COLLET & NUT SA GB BDE-326286-01.A47 326286-01	£25.12	£30.15
49 - DUST GUARD BDE-326273-00.A6 326273-00	£1.88	£2.26
50 - CAP 21 MM GB BDE-326599-00.A19 326599-00	£1.66	£1.99
50 - CAP 21 MM LX BDE-326599-00.A20 326599-00	£1.66	£1.99
51 - HANDLE RH BDE-326598-01.A0 326598-01	£1.88	£2.26
52 - SPRING BDE-328202-01.A35 328202-01	£3.92	£4.70
53 - LOCKING KNOB BDE-328202-01.A8 328202-01	£3.92	£4.70
54 - ACTUATOR BDE-328202-01.A24 328202-01	£3.92	£4.70
55 - LEVER BDE-326256-00.A13 326256-00	£1.66	£1.99
56 - NUT BDE-949726-05.A23 949726-05	£1.66	£1.99
57 - SCREW WING BDE-326573-01.A71 326573-01	£1.88	£2.26
58 - SPRING BDE-868082-00.A119 868082-00	£1.66	£1.99
59 - BASEPLATE SA BDE-328253-00.A2 328253-00	£90.46	£108.55
60 - SCREW BDE-326610-00.A6 326610-00	£1.66	£1.99
61 - WASHER SPRING BDE-327012-00.A17 327012-00	£1.66	£1.99
62 - SCREW BDE-868109-00.A19 868109-00	£1.66	£1.99
63 - SCREW BDE-942931-01.A27 942931-01	£1.66	£1.99
64 - SCREW.TEMP BDE-942931-02.A28 942931-02	£1.66	£1.99
65 - NUT BDE-860083-02.A280 860083-02	£1.66	£1.99
66 - TURRET BDE-N547463.A24 N547463	£4.83	£5.80
67 - BALL BDE-720664-00.A28 720664-00	£1.66	£1.99
68 - BASEPLATE BDE-326270-00.A8 326270-00	£19.48	£23.37
69 - CIRCLIP BDE-324821-00.A6 324821-00	£1.66	£1.99
70 - SCREW BDE-324006-00.A87 324006-00	£1.66	£1.99
71 - GUIDE BDE-328788-00.A10 328788-00	£4.83	£5.80
72 - FENCE BDE-328784-00.A0 328784-00	£11.18	£13.41
73 - EXHAUST BDE-328786-00.A0 328786-00	£7.40	£8.88
74 - WASHER BDE-330016-01.A49 330016-01	£1.66	£1.99
76 - SCREW WING BDE-326573-02.A8 326573-02	£2.32	£2.78
77 - WASHER BDE-330016-02.A10 330016-02	£1.66	£1.99
78 - BRACKET BDE-328785-00.A11 328785-00	£3.92	£4.70
79 - SPRING BDE-323395-21.A17 323395-21	£1.66	£1.99
80 - INDEX BDE-942918-00.A14 942918-00	£1.66	£1.99
81 - ADJUSTER BDE-326239-00.A3 326239-00	£3.92	£4.70
82 - ROD BDE-868080-00.A19 868080-00	£2.87	£3.44
83 - SPANNER GB BDE-31351301.A2 31351301	£2.87	£3.44
83 - SPANNER LX BDE-31351301.A3 31351301	£2.87	£3.44
84 - GUIDE BUSH BDE-326276-03.A10 326276-03	£12.53	£15.04
85 - SCREW BDE-911141.A10 911141	£1.66	£1.99
86 - CAPACITOR BDE-949877-01.A153 949877-01	£1.66	£1.99
88 - KNOB SA BDE-326300-00.A8 326300-00	£11.18	£13.41
89 - COVER BDE-326313-01.A8 326313-01	£12.53	£15.04
90 - SCREW BDE-911026.A145 911026	£1.66	£1.99
91 - SPRING BDE-323395-22.A2 323395-22	£1.66	£1.99
92 - O RING BDE-323711-26.A1 323711-26	£1.66	£1.99
93 - SPRING BDE-868082-00.A120 868082-00	£1.66	£1.99
94 - SCREW.TEMP BDE-945121-00.A53 945121-00	£1.66	£1.99
95 - SCREW BDE-911058.A4 911058	-
99 - RACK BDE-326309-01.A5 326309-01	£16.52	£19.82
800 - GREASE 90 GMS BDE-870889-02.A672 870889-02	£8.08	£9.70
836 - S.T.WRENCH BDE-559582-99.A15 559582-99	£107.82	£129.39
837 - S.T.ASSEMBLY JIG BDE-559585-98.A9 559585-98	£76.38	£91.65
838 - PIN BDE-559585-99.A10 559585-99	£19.40	£23.28
