Dewalt DW507 Type 2 Drill Spare Parts

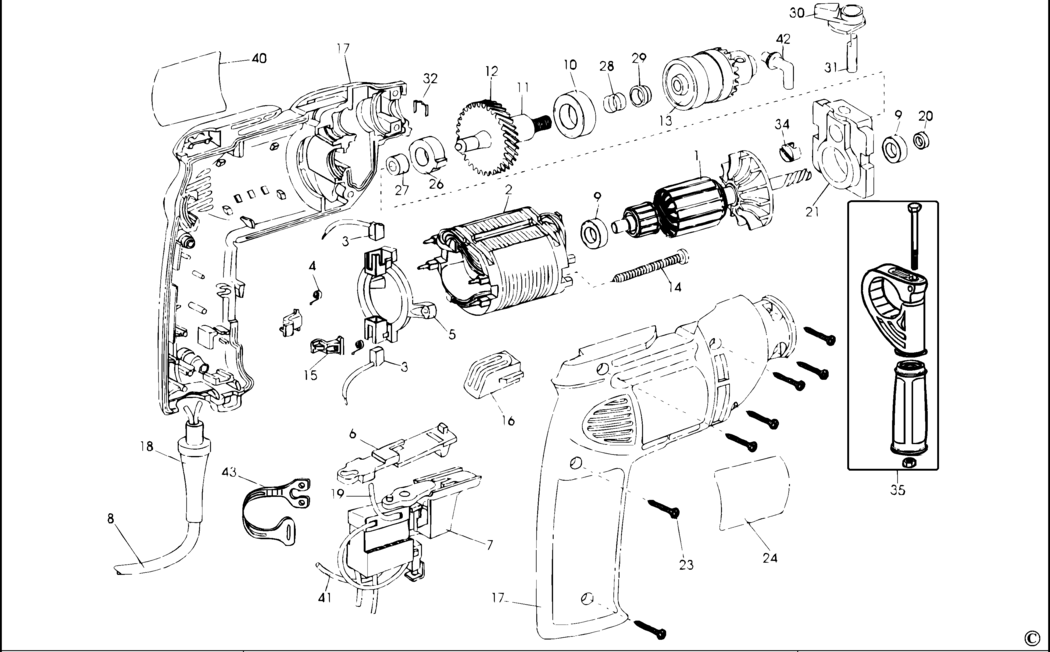

An exploded drawing and spare parts listing for the Dewalt DW507 Type 2 Drill

	Ex VAT	Inc VAT
2 - NO LONGER AVAILABLE BDE-000000-00.A93694 000000-00	-
3 - BRUSH BDE-146475-10 146475-10	-
4 - NO LONGER AVAILABLE BDE-000000-00.A93695 000000-00	-
5 - BRUSH HOLDER BDE-148325-01.A0 148325-01	-
6 - NO LONGER AVAILABLE BDE-000000-00.A93696 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A93697 000000-00	-
9 - BEARING BDE-605040-06.A172 605040-06	£3.92	£4.70
10 - BEARING BALL BDE-605040-23.A6 605040-23	£4.83	£5.80
11 - NO LONGER AVAILABLE BDE-000000-00.A93698 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A93699 000000-00	-
14 - SCREW BDE-330019-25.A18 330019-25	£1.66	£1.99
15 - NO LONGER AVAILABLE BDE-000000-00.A93700 000000-00	-
16 - VENT BDE-151036-01.A2 151036-01	-
17 - NO LONGER AVAILABLE BDE-000000-00.A93701 000000-00	-
18 - CORD PROTECTOR BDE-N542553.A391 N542553	£3.92	£4.70
19 - NO LONGER AVAILABLE BDE-000000-00.A93702 000000-00	-
20 - DEFLECTOR BDE-464292-00.A18 464292-00	£1.66	£1.99
21 - BEARING BLOCK BDE-153147-01.A1 153147-01	-
23 - SCREW BDE-330019-13.A419 330019-13	£1.66	£1.99
24 - NO LONGER AVAILABLE BDE-000000-00.A93703 000000-00	-
26 - CLUTCH BDE-153148-00.A0 153148-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A93704 000000-00	-
28 - SPRING BDE-86134-00.A13 86134-00	£1.66	£1.99
29 - NO LONGER AVAILABLE BDE-000000-00.A93705 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A93706 000000-00	-
31 - PIN BDE-151255-00.A1 151255-00	-
32 - NO LONGER AVAILABLE BDE-000000-00.A93707 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A93708 000000-00	-
35 - NO LONGER AVAILABLE BDE-000000-00.A93709 000000-00	-
40 - BRAND LABEL BDE-395047-00.A21 395047-00	£1.66	£1.99
41 - LEADWIRE BDE-143961-00 143961-00	-
43 - HOLDER BDE-65288-02.A6 65288-02	£1.66	£1.99

Attribute Name	Value
Brand	Dewalt
