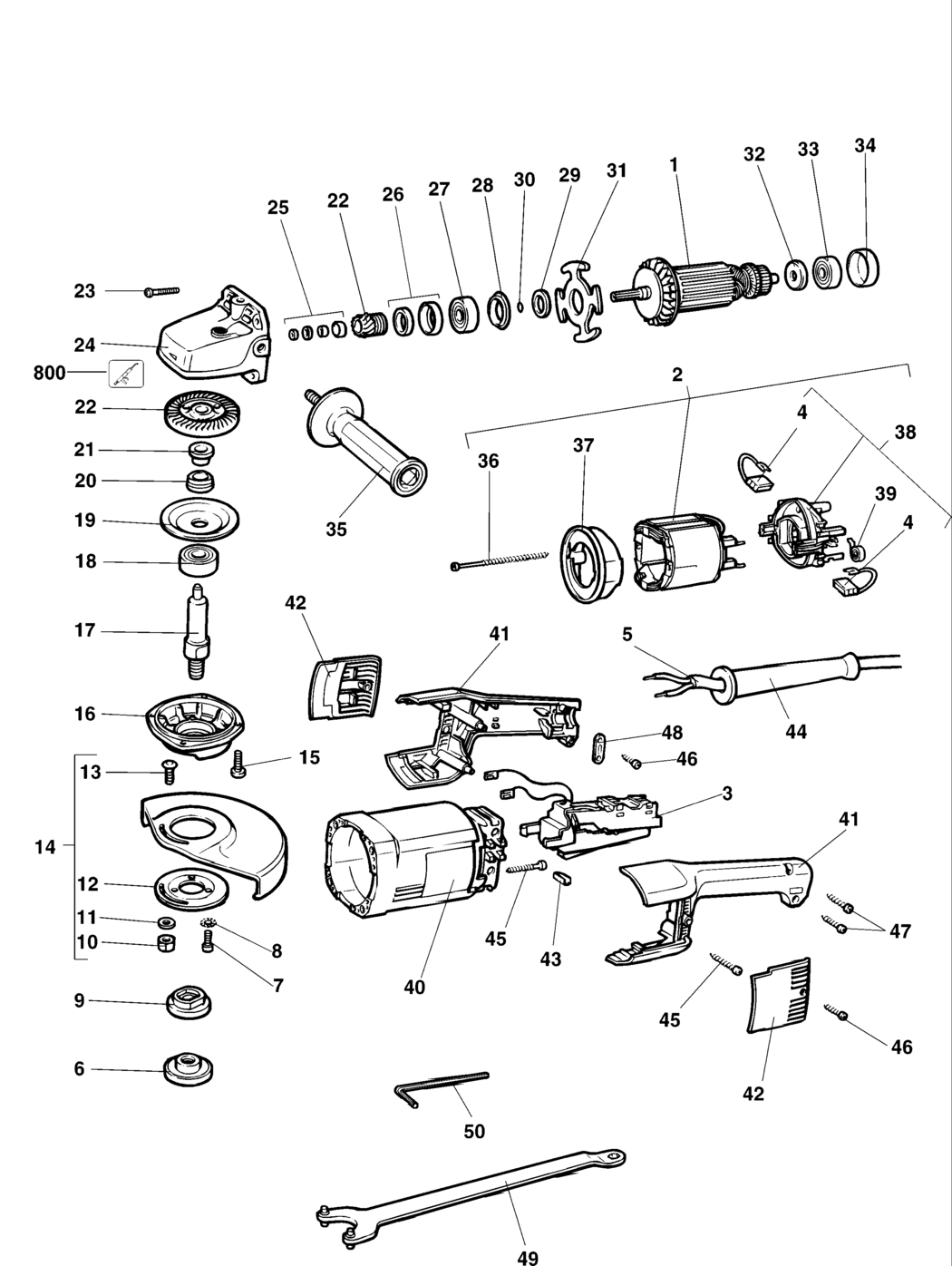

1 - ARMATURE 230V GB 230V
BDE-574370-08.A18
574370-08
|
-
|
|
|
|
1 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A47161
000000-00
|
-
|
|
|
|
1 - ARMATURE 230V QS
BDE-574370-08.A19
574370-08
|
-
|
|
|
|
2 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A47162
000000-00
|
-
|
|
|
|
2 - NO LONGER AVAILABLE QS
BDE-000000-00.A47163
000000-00
|
-
|
|
|
|
2 - NO LONGER AVAILABLE GB 230V
BDE-000000-00.A47164
000000-00
|
-
|
|
|
|
3 - NO LONGER AVAILABLE QS
BDE-000000-00.A47165
000000-00
|
-
|
|
|
|
3 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A47166
000000-00
|
-
|
|
|
|
3 - SWITCH SA GB 230V
BDE-949823-32.A1
949823-32
|
-
|
|
|
|
4 - BRUSH 230V QS
BDE-403485-03.A9
403485-03
|
£11.18
|
£13.41
|
|
|
4 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A79385
000000-00
|
-
|
|
|
|
4 - BRUSH 230V GB 230V
BDE-403485-03.A20
403485-03
|
£11.18
|
£13.41
|
|
|
5 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A79386
000000-00
|
-
|
|
|
|
5 - CABLE 240V GB 230V
BDE-330060-75.A15
330060-75
|
-
|
|
|
|
5 - CABLE QS
BDE-330080-53.A6
330080-53
|
£9.17
|
£11.00
|
|
|
6 - FLANGE
BDE-931771.A82
931771
|
£11.18
|
£13.41
|
|
|
7 - SCREW
BDE-933058-00.A11
933058-00
|
£1.66
|
£1.99
|
|
|
8 - WASHER
BDE-932369.A67
932369
|
-
|
|
|
|
9 - FLANGE
BDE-930927.A70
930927
|
-
|
|
|
|
10 - NUT
BDE-860083-03.A179
860083-03
|
£1.66
|
£1.99
|
|
|
11 - WASHER
BDE-930925.A53
930925
|
-
|
|
|
|
12 - NO LONGER AVAILABLE
BDE-000000-00.A79387
000000-00
|
-
|
|
|
|
13 - SCREW
BDE-949892-07.A117
949892-07
|
£1.66
|
£1.99
|
|
|
14 - NO LONGER AVAILABLE
BDE-000000-00.A79388
000000-00
|
-
|
|
|
|
15 - SCREW
BDE-949887-01.A33
949887-01
|
£1.66
|
£1.99
|
|
|
16 - GEARCASE COVER
BDE-947962-00.A78
947962-00
|
-
|
|
|
|
17 - SPINDLE
BDE-578243-00.A100
578243-00
|
£19.40
|
£23.28
|
|
|
18 - NO LONGER AVAILABLE
BDE-000000-00.A79389
000000-00
|
-
|
|
|
|
19 - FLANGE
BDE-930924.A61
930924
|
-
|
|
|
|
20 - SEAL
BDE-930923.A38
930923
|
-
|
|
|
|
21 - SPACER
BDE-930922.A71
930922
|
£1.66
|
£1.99
|
|
|
22 - GEAR & PINION SA
BDE-932522.A41
932522
|
-
|
|
|
|
23 - NO LONGER AVAILABLE
BDE-000000-00.A79390
000000-00
|
-
|
|
|
|
24 - NO LONGER AVAILABLE
BDE-000000-00.A79391
000000-00
|
-
|
|
|
|
25 - CLIP SA
BDE-937098-49.A95
937098-49
|
-
|
|
|
|
26 - SEAL SA
BDE-930909.A46
930909
|
-
|
|
|
|
27 - BEARING
BDE-330003-14.A41
330003-14
|
£8.08
|
£9.70
|
|
|
28 - SEAL SA
BDE-931067-00.A103
931067-00
|
£1.66
|
£1.99
|
|
|
29 - SPACER
BDE-931062.A44
931062
|
£1.66
|
£1.99
|
|
|
30 - O RING
BDE-930028-00.A95
930028-00
|
£1.66
|
£1.99
|
|
|
31 - FLANGE
BDE-931066-00.A53
931066-00
|
£1.82
|
£2.19
|
|
|
32 - SPACER
BDE-N174055.A13
N174055
|
£1.66
|
£1.99
|
|
|
33 - BEARING
BDE-577745-00.A240
577745-00
|
£8.08
|
£9.70
|
|
|
34 - SLEEVE
BDE-938332-00.A96
938332-00
|
£1.66
|
£1.99
|
|
|
35 - HANDLE SIDE SA
BDE-933499.A8
933499
|
-
|
|
|
|
36 - SCREW
BDE-931072.A30
931072
|
-
|
|
|
|
37 - NO LONGER AVAILABLE
BDE-000000-00.A79392
000000-00
|
-
|
|
|
|
38 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A79393
000000-00
|
-
|
|
|
|
38 - NO LONGER AVAILABLE QS
BDE-000000-00.A79394
000000-00
|
-
|
|
|
|
38 - NO LONGER AVAILABLE GB 230V
BDE-000000-00.A79395
000000-00
|
-
|
|
|
|
39 - SPRING
BDE-931076-00.A33
931076-00
|
£1.66
|
£1.99
|
|
|
40 - NO LONGER AVAILABLE
BDE-000000-00.A79396
000000-00
|
-
|
|
|
|
41 - HANDLE & COVER
BDE-N097875.A9
N097875
|
-
|
|
|
|
42 - COVER
BDE-933364-02.A80
933364-02
|
£1.66
|
£1.99
|
|
|
43 - SHOCK ABSORBER
BDE-930934-00.A44
930934-00
|
£1.66
|
£1.99
|
|
|
44 - CORD PROTECTOR GB 230V
BDE-947964-01.A134
947964-01
|
£3.92
|
£4.70
|
|
|
44 - CORD PROTECTOR GB 115V
BDE-947964-02.A1
947964-02
|
£1.66
|
£1.99
|
|
|
44 - CORD PROTECTOR QS
BDE-947964-01.A133
947964-01
|
£3.92
|
£4.70
|
|
|
45 - SCREW
BDE-931297-00.A99
931297-00
|
£1.66
|
£1.99
|
|
|
46 - SCREW
BDE-931469-02.A23
931469-02
|
£1.66
|
£1.99
|
|
|
47 - SCREW
BDE-930284-01.A210
930284-01
|
£1.66
|
£1.99
|
|
|
48 - CORD CLAMP
BDE-931477-00.A118
931477-00
|
£1.66
|
£1.99
|
|
|
49 - WRENCH PIN
BDE-938733.A115
938733
|
£7.40
|
£8.88
|
|
|
50 - WRENCH
BDE-807043.A21
807043
|
£1.66
|
£1.99
|
|
|
800 - GREASE 100 GMS
BDE-575762-02.A13
575762-02
|
£8.08
|
£9.70
|
|
