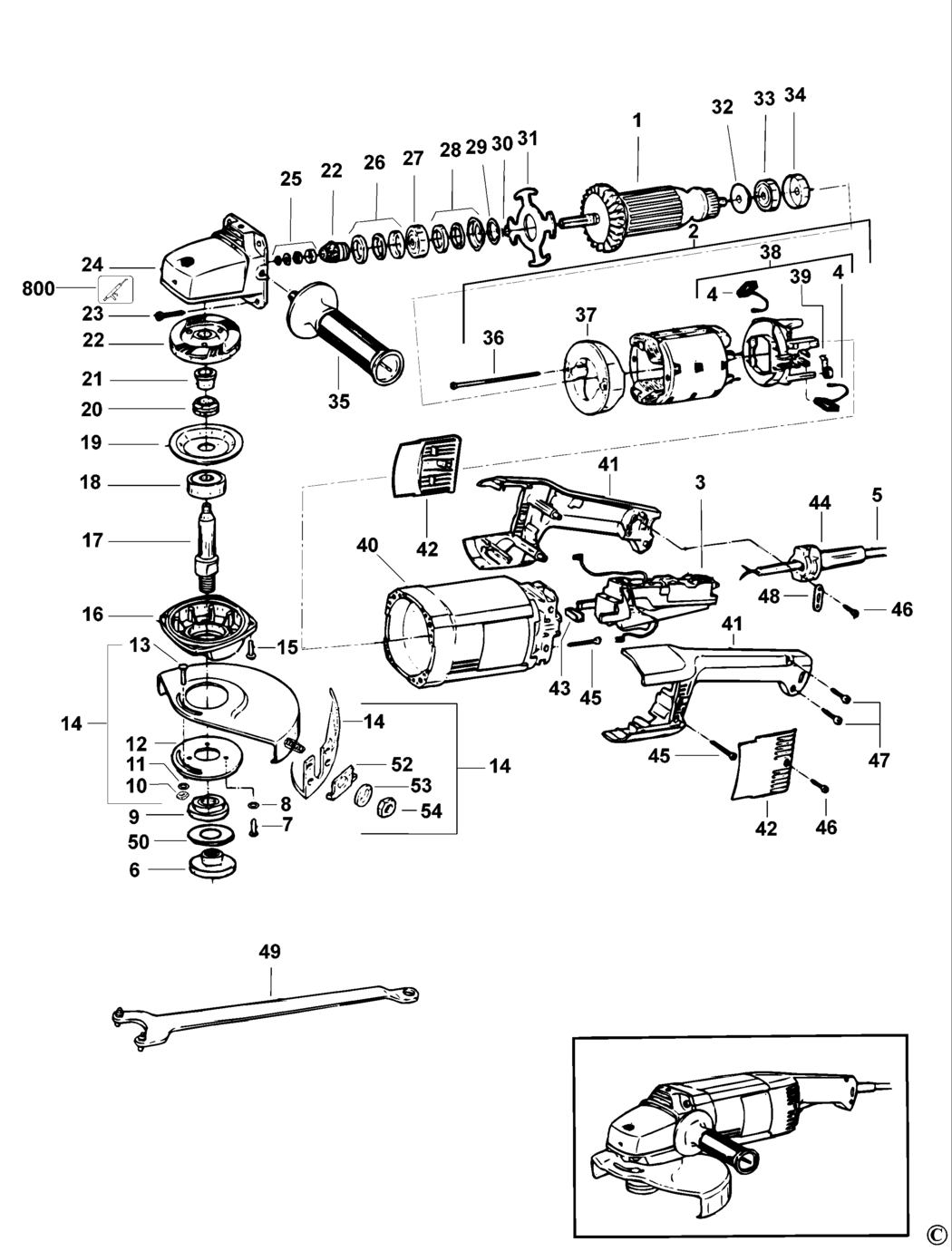

1 - ARMATURE 230V
BDE-574370-08.A15
574370-08
|
-
|
|
|
|
2 - NO LONGER AVAILABLE
BDE-000000-00.A55679
000000-00
|
-
|
|
|
|
3 - SWITCH SA
BDE-949823-32.A3
949823-32
|
-
|
|
|
|
4 - BRUSH 230V
BDE-403485-03.A12
403485-03
|
£10.85
|
£13.02
|
|
|
6 - FLANGE
BDE-931771.A47
931771
|
£10.85
|
£13.02
|
|
|
7 - SCREW
BDE-933058-00.A36
933058-00
|
£1.66
|
£1.99
|
|
|
8 - WASHER
BDE-932369.A21
932369
|
-
|
|
|
|
9 - NO LONGER AVAILABLE
BDE-000000-00.A55680
000000-00
|
-
|
|
|
|
10 - NUT
BDE-860083-03.A467
860083-03
|
£1.66
|
£1.99
|
|
|
11 - WASHER
BDE-930925.A59
930925
|
-
|
|
|
|
12 - NO LONGER AVAILABLE
BDE-000000-00.A55681
000000-00
|
-
|
|
|
|
13 - SCREW
BDE-949892-07.A67
949892-07
|
£1.66
|
£1.99
|
|
|
14 - NO LONGER AVAILABLE
BDE-000000-00.A55682
000000-00
|
-
|
|
|
|
15 - SCREW
BDE-949887-01.A59
949887-01
|
£1.66
|
£1.99
|
|
|
16 - GEARCASE COVER
BDE-947962-00.A56
947962-00
|
-
|
|
|
|
17 - SPINDLE
BDE-578243-00.A4
578243-00
|
£19.40
|
£23.28
|
|
|
18 - NO LONGER AVAILABLE
BDE-000000-00.A55683
000000-00
|
-
|
|
|
|
19 - FLANGE
BDE-930924.A58
930924
|
-
|
|
|
|
20 - SEAL
BDE-930923.A41
930923
|
-
|
|
|
|
21 - SPACER
BDE-930922.A68
930922
|
£1.66
|
£1.99
|
|
|
22 - GEAR & PINION SA
BDE-932522.A37
932522
|
-
|
|
|
|
23 - NO LONGER AVAILABLE
BDE-000000-00.A55684
000000-00
|
-
|
|
|
|
24 - NO LONGER AVAILABLE
BDE-000000-00.A55685
000000-00
|
-
|
|
|
|
25 - CLIP SA
BDE-937098-49.A34
937098-49
|
-
|
|
|
|
26 - SEAL SA
BDE-930909.A49
930909
|
-
|
|
|
|
27 - BEARING
BDE-330003-14.A52
330003-14
|
£7.85
|
£9.42
|
|
|
28 - SEAL SA
BDE-931067-00.A1
931067-00
|
£1.66
|
£1.99
|
|
|
29 - SPACER
BDE-931062.A136
931062
|
£1.66
|
£1.99
|
|
|
30 - O RING
BDE-930028-00.A155
930028-00
|
£1.66
|
£1.99
|
|
|
31 - FLANGE
BDE-931066-00.A156
931066-00
|
£1.82
|
£2.19
|
|
|
32 - SPACER
BDE-N174055.A107
N174055
|
£1.66
|
£1.99
|
|
|
33 - BEARING
BDE-577745-00.A344
577745-00
|
£7.85
|
£9.42
|
|
|
34 - SLEEVE
BDE-938332-00.A32
938332-00
|
£1.66
|
£1.99
|
|
|
35 - HANDLE SIDE SA
BDE-933499.A51
933499
|
-
|
|
|
|
36 - SCREW
BDE-931072.A87
931072
|
-
|
|
|
|
37 - NO LONGER AVAILABLE
BDE-000000-00.A55686
000000-00
|
-
|
|
|
|
38 - NO LONGER AVAILABLE
BDE-000000-00.A55687
000000-00
|
-
|
|
|
|
39 - NO LONGER AVAILABLE
BDE-000000-00.A55688
000000-00
|
-
|
|
|
|
40 - NO LONGER AVAILABLE
BDE-000000-00.A55689
000000-00
|
-
|
|
|
|
41 - HANDLE & COVER
BDE-N097875.A22
N097875
|
-
|
|
|
|
42 - COVER
BDE-933364-02.A31
933364-02
|
£1.66
|
£1.99
|
|
|
43 - SHOCK ABSORBER
BDE-930934-00.A51
930934-00
|
£1.66
|
£1.99
|
|
|
44 - CORD PROTECTOR
BDE-947964-02.A5
947964-02
|
£1.66
|
£1.99
|
|
|
45 - SCREW
BDE-931297-00.A209
931297-00
|
£1.66
|
£1.99
|
|
|
46 - SCREW
BDE-931469-02.A100
931469-02
|
£1.66
|
£1.99
|
|
|
47 - SCREW
BDE-930284-01.A5
930284-01
|
£1.66
|
£1.99
|
|
|
48 - CORD CLAMP
BDE-931477-00.A68
931477-00
|
£1.66
|
£1.99
|
|
|
49 - WRENCH PIN
BDE-938733.A27
938733
|
£7.18
|
£8.62
|
|
|
50 - NO LONGER AVAILABLE
BDE-000000-00.A55690
000000-00
|
-
|
|
|
|
52 - NO LONGER AVAILABLE
BDE-000000-00.A55691
000000-00
|
-
|
|
|
|
53 - NO LONGER AVAILABLE
BDE-000000-00.A55692
000000-00
|
-
|
|
|
|
54 - NUT
BDE-930244-00.A22
930244-00
|
£3.30
|
£3.96
|
|
|
800 - GREASE 100 GMS
BDE-575762-02.A35
575762-02
|
£7.85
|
£9.42
|
|
