Dewalt DPN1664PP Type 1 Nailer Spare Parts

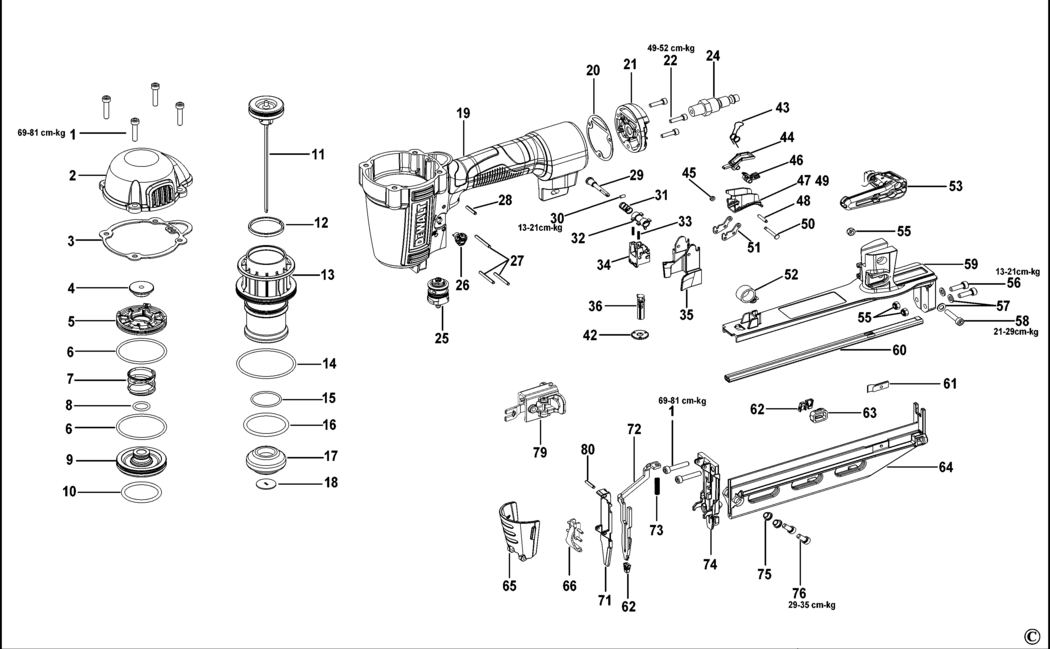

An exploded drawing and spare parts listing for the Dewalt DPN1664PP Type 1 Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-MSC5080-25.A0 MSC5080-25	£1.50	£1.80
2 - END CAP BDE-9R205674 9R205674	£19.90	£23.88
3 - GASKET BDE-9R203809 9R203809	£2.78	£3.34
4 - SEAL BDE-180533.A0 180533	£1.50	£1.80
5 - SEAL BDE-180230.A2 180230	£1.50	£1.80
6 - O RING BDE-850605.A2 850605	£1.50	£1.80
7 - SPRING BDE-180532.A9 180532	£1.50	£1.80
8 - O RING BDE-100843.A2 100843	£1.50	£1.80
9 - VALVE BDE-180537.A3 180537	£1.82	£2.19
10 - O RING BDE-182253.A3 182253	£1.50	£1.80
11 - PISTON SA BDE-9R204250.A2 9R204250	£17.48	£20.97
12 - PISTON RING BDE-180543.A0 180543	£1.50	£1.80
13 - SLEEVE BDE-180538.A0 180538	£4.69	£5.63
14 - O RING BDE-166047.A2 166047	£1.50	£1.80
15 - O RING BDE-180544.A3 180544	£1.50	£1.80
16 - O RING BDE-180540.A3 180540	£1.50	£1.80
17 - BUMPER BDE-180549.A1 180549	£2.78	£3.34
18 - GUIDE BDE-180293.A1 180293	£1.50	£1.80
20 - GASKET BDE-180463.A11 180463	£1.50	£1.80
21 - CAP BDE-180465.A1 180465	£5.88	£7.06
22 - SCREW BDE-MSC4070-16.A21 MSC4070-16	£1.50	£1.80
24 - ADAPTOR BDE-159977.A11 159977	£1.50	£1.80
25 - VALVE BDE-9R196764.A2 9R196764	£9.41	£11.29
26 - BUTTON BDE-9R208907.A2 9R208907	£1.50	£1.80
27 - PIN BDE-174345.A17 174345	£1.50	£1.80
28 - SPIROL PIN BDE-107583.A3 107583	£1.50	£1.80
29 - PIN BDE-9R195255.A6 9R195255	£2.26	£2.71
30 - GRUB SCREW BDE-9R198788.A4 9R198788	£1.50	£1.80
31 - SPRING BDE-180481.A3 180481	£1.50	£1.80
32 - PAWL BDE-9R201813.A0 9R201813	£5.88	£7.06
33 - SPRING BDE-9R201809.A0 9R201809	£1.50	£1.80
34 - GUIDE BDE-9R205579.A0 9R205579	£1.50	£1.80
35 - COVER BDE-9R203807 9R203807	£1.50	£1.80
36 - CONTACT BDE-9R205583.A1 9R205583	£9.41	£11.29
42 - WHEEL ADJUSTER BDE-9R203952.A1 9R203952	£1.50	£1.80
43 - SPRING BDE-9R205607.A6 9R205607	£1.50	£1.80
44 - ROCKER BDE-9R205614.A2 9R205614	£7.18	£8.62
45 - GROMMET BDE-391814-C3D1.A2 391814-C3D1	£1.50	£1.80
46 - ROCKER BDE-9R205615.A0 9R205615	£1.50	£1.80
47 - TRIGGER BDE-9R205611.A2 9R205611	£7.18	£8.62
48 - PIN BDE-181920.A5 181920	£1.50	£1.80
49 - TRIGGER BDE-9R205608.A0 9R205608	£3.30	£3.96
50 - PIN BDE-9R196682.A4 9R196682	£1.50	£1.80
51 - BRACKET BDE-9R201812.A7 9R201812	£1.50	£1.80
52 - SPRING BDE-9R205585.A0 9R205585	£2.78	£3.34
53 - HOOK BDE-182272.A7 182272	£3.80	£4.56
55 - LOCK-NUT BDE-MHE5080-100.A3 MHE5080-100	£1.50	£1.80
56 - SCREW BDE-MSC5080-16.A3 MSC5080-16	£1.50	£1.80
57 - WASHER BDE-180569.A3 180569	£1.50	£1.80
58 - SCREW BDE-MSC5080-22.2.A2 MSC5080-22.2	£1.50	£1.80
59 - CASING UPPER BDE-180236.A1 180236	£10.85	£13.02
60 - LINER BDE-180560.A2 180560	£5.88	£7.06
61 - STOP BDE-180564.A2 180564	£1.50	£1.80
62 - FOOT BDE-9R208927 9R208927	£1.50	£1.80
63 - ADAPTOR BDE-9R205581.A0 9R205581	£1.50	£1.80
64 - BOTTOM PLATE BDE-181916.A3 181916	£10.85	£13.02
65 - COVER BDE-9R203808 9R203808	£1.50	£1.80
66 - LATCH BDE-9R196742.A4 9R196742	£9.41	£11.29
71 - DOOR BDE-9R198730.A1 9R198730	£17.48	£20.97
72 - CONTACT BDE-9R198754.A1 9R198754	£9.41	£11.29
73 - SPRING BDE-9R205580.A1 9R205580	£1.50	£1.80
74 - NOSE BDE-9R198726.A0 9R198726	£37.35	£44.82
75 - BUSHING BDE-180235.A2 180235	£1.50	£1.80
76 - SCREW BDE-9R199720.A24 9R199720	£1.50	£1.80
79 - PUSHER BDE-9R205613.A1 9R205613	£5.88	£7.06
80 - PIN BDE-103858.A1 103858	£1.50	£1.80

Attribute Name	Value
Brand	Dewalt
