Dewalt DDF2130000 Type 1 Nailer Spare Parts

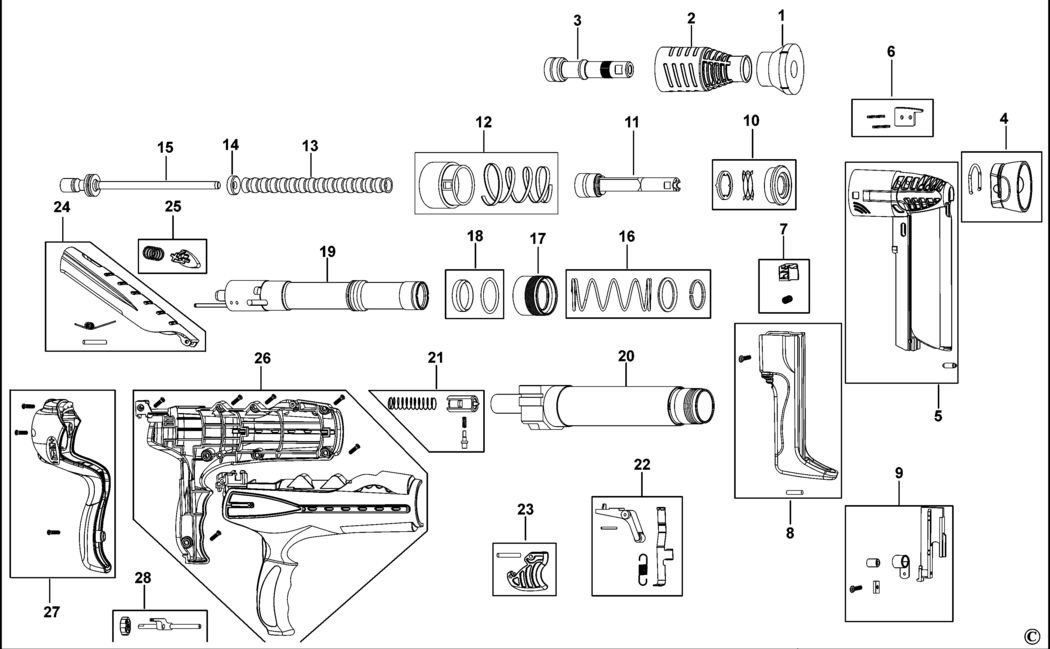

An exploded drawing and spare parts listing for the Dewalt DDF2130000 Type 1 Nailer

	Ex VAT	Inc VAT
1 - FOOT BDE-67400-PWR.A1 67400-PWR	£38.48	£46.17
2 - COVER BDE-67402-PWR.A0 67402-PWR	£38.48	£46.17
3 - GUIDE BDE-67404-PWR.A1 67404-PWR	£56.97	£68.36
4 - STABILISER BDE-67406-PWR.A0 67406-PWR	£42.48	£50.98
6 - SLIDER SA BDE-67410-PWR.A1 67410-PWR	£26.47	£31.76
7 - LOCKING DEVICE BDE-67412-PWR.A0 67412-PWR	£18.00	£21.60
8 - COVER SA BDE-67414-PWR.A1 67414-PWR	£80.98	£97.18
9 - FOLLOWER BDE-67416-PWR.A0 67416-PWR	£80.46	£96.55
10 - INDEX BDE-67418-PWR.A1 67418-PWR	£48.48	£58.17
11 - GUIDE BDE-67420-PWR.A0 67420-PWR	£139.42	£167.30
12 - RETURN DEVICE ASSEMBLY BDE-67422-PWR.A1 67422-PWR	£38.48	£46.17
13 - SPRING COMPRESSION BDE-67424-PWR.A0 67424-PWR	£35.02	£42.02
14 - SPACER INSULATING BDE-67426-PWR.A1 67426-PWR	£16.52	£19.82
15 - PISTON BDE-67428-PWR.A0 67428-PWR	£139.42	£167.30
16 - SPRING SA BDE-67430-PWR.A1 67430-PWR	£30.98	£37.18
17 - NUT BDE-67432-PWR.A0 67432-PWR	£45.47	£54.56
18 - STOP BDE-67434-PWR.A1 67434-PWR	£9.69	£11.63
19 - BARREL BDE-67436-PWR.A0 67436-PWR	£265.84	£319.01
20 - RECEPTACLE BDE-67438-PWR.A1 67438-PWR	£265.84	£319.01
21 - FIRING ASSEMBLY BDE-67440-PWR.A0 67440-PWR	£53.46	£64.15
22 - LEVER SA BDE-67442-PWR.A1 67442-PWR	£76.38	£91.65
23 - TRIGGER BDE-67444-PWR.A0 67444-PWR	£38.48	£46.17
24 - COVER SA BDE-67446-PWR.A1 67446-PWR	£60.46	£72.55
25 - LOCK SA BDE-67448-PWR.A0 67448-PWR	£18.00	£21.60
27 - COVER REAR BDE-67452-PWR.A1 67452-PWR	£139.42	£167.30
28 - ADJUSTER SA BDE-67454-PWR.A0 67454-PWR	£56.97	£68.36

Attribute Name	Value
Brand	Dewalt
